Overview

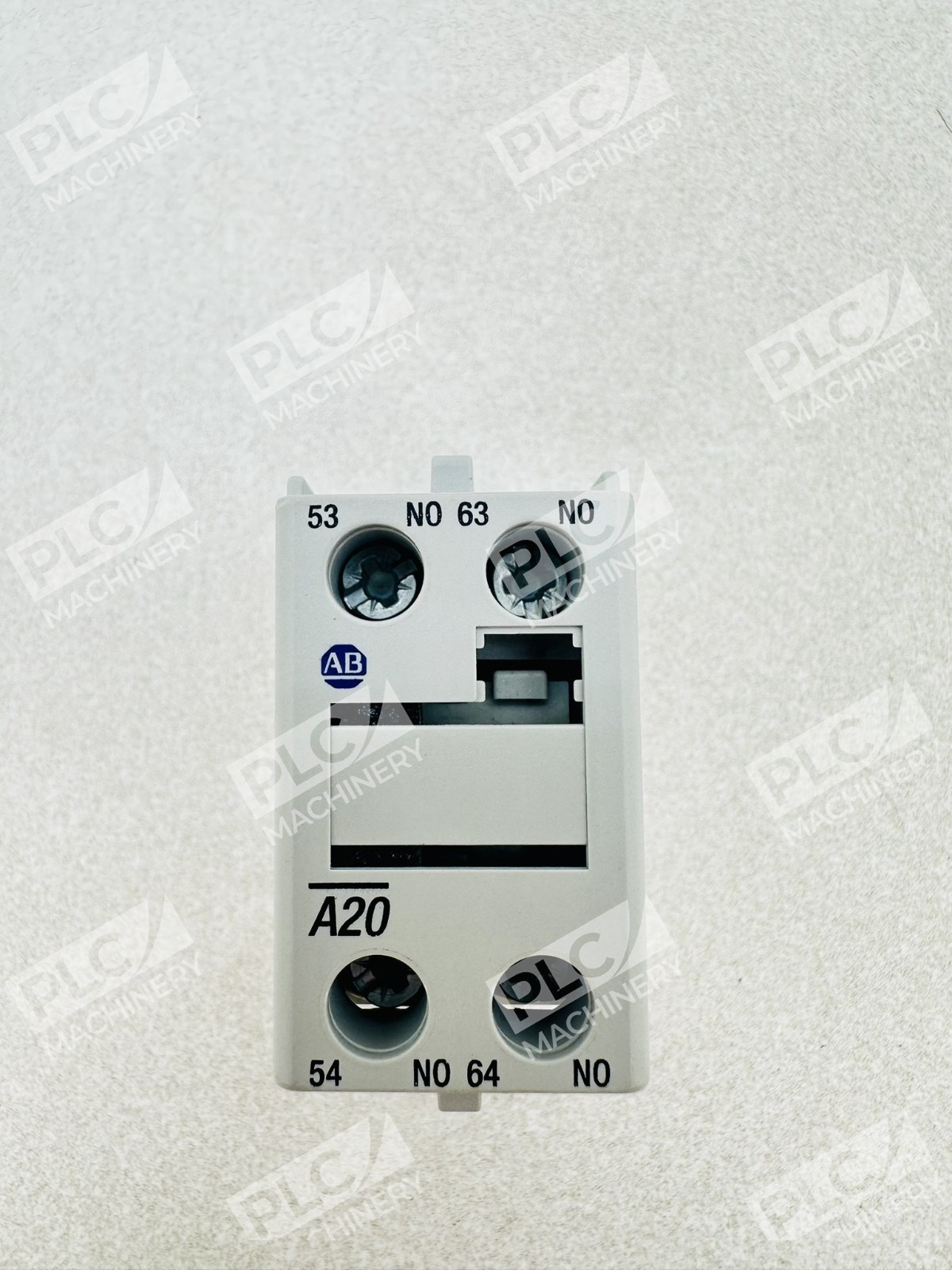

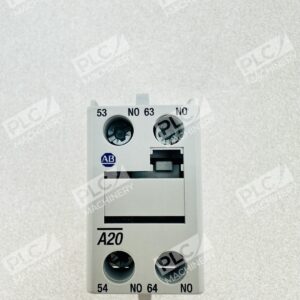

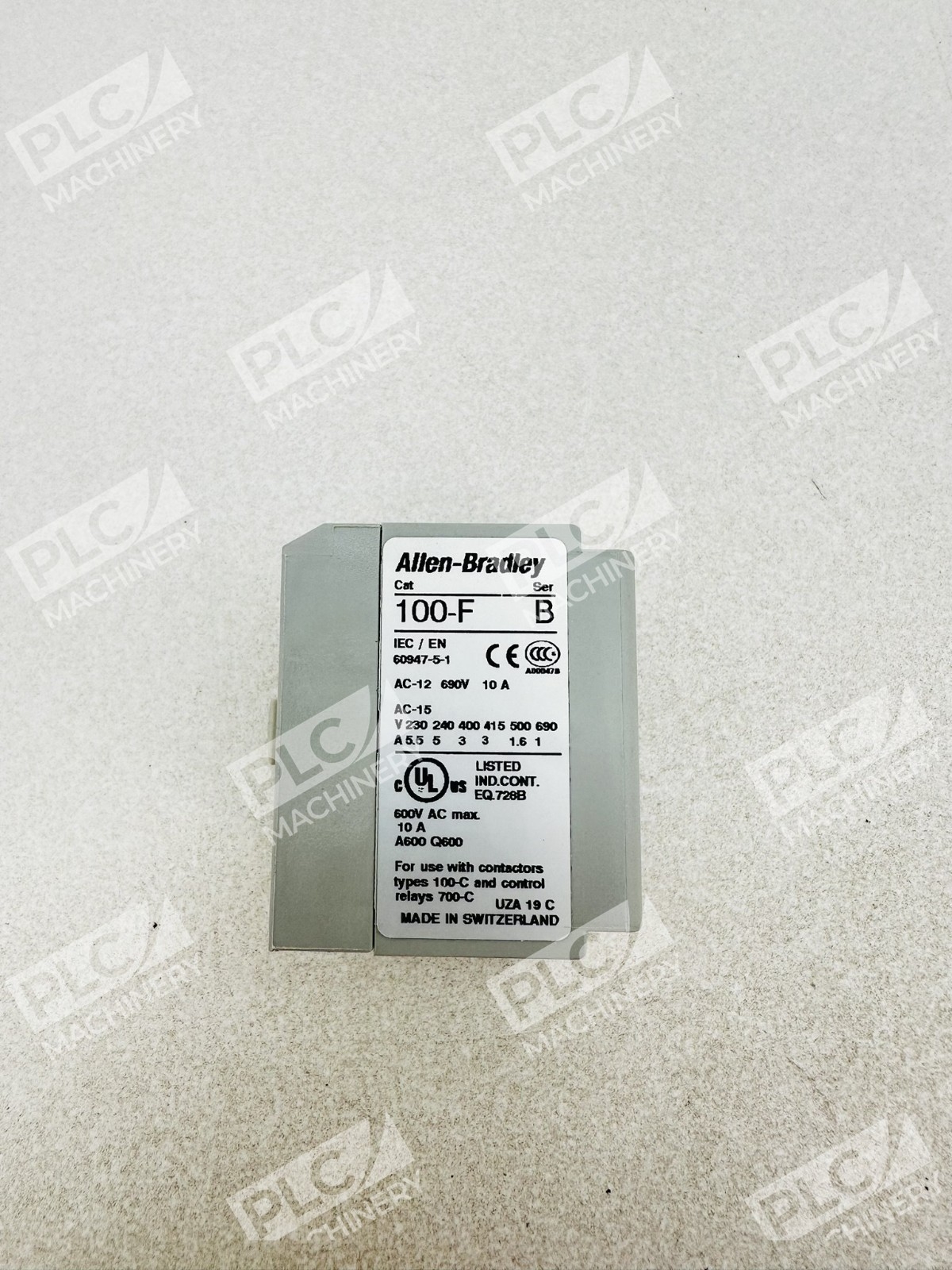

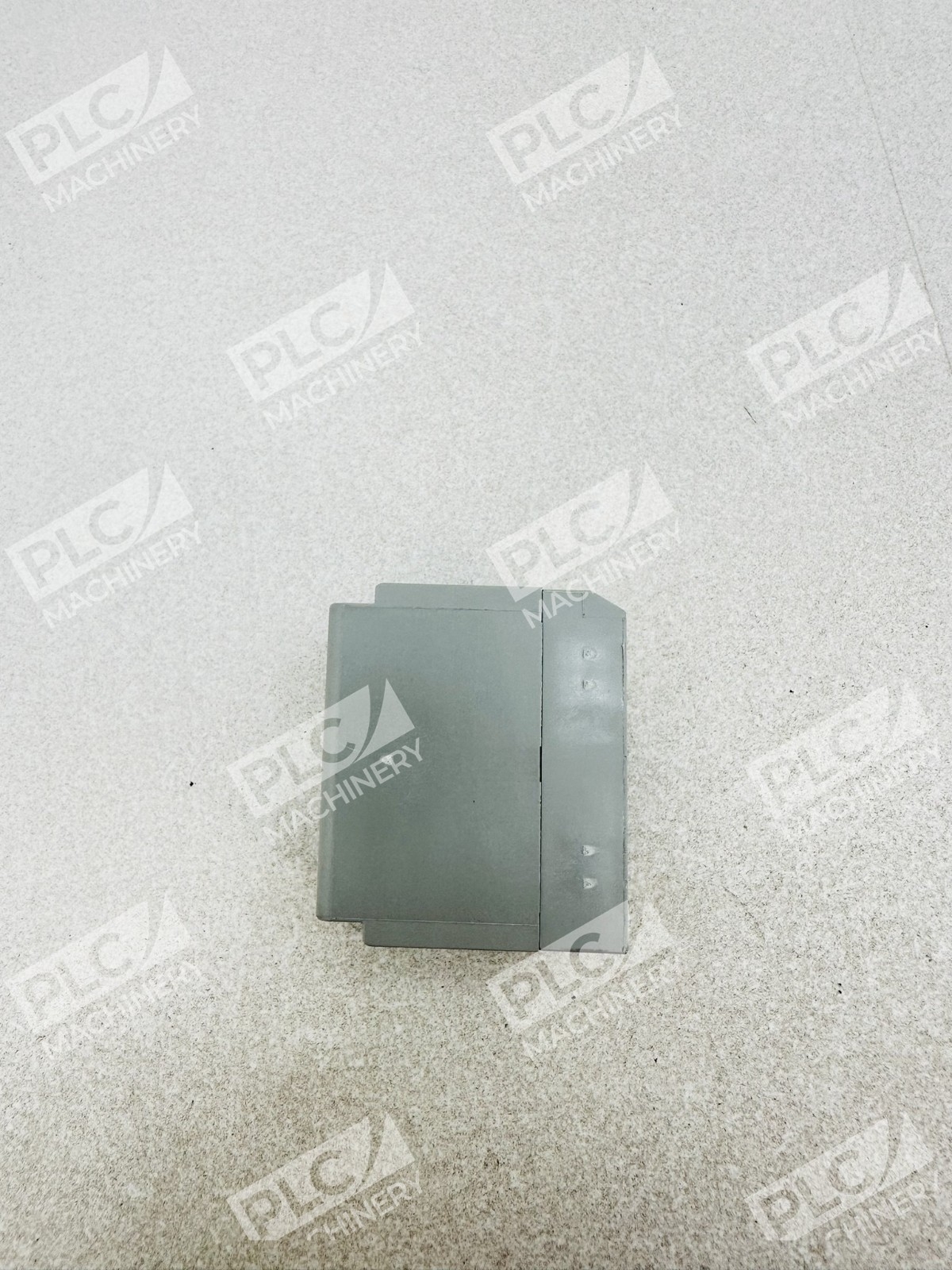

The Allen-Bradley 100-FA20 is a front-mount auxiliary contact block designed to add extra contact points to Allen-Bradley 100-C, 104-C, 700-CF, and 700S-CF contactors. This two-pole device features two normally open (N.O.) contacts and snap-on mounting for fast installation or removal without tools. With screw terminal connections, the 100-FA20 simplifies adding logic, status, and auxiliary signaling capabilities to existing contactor systems.
Key Features
- Two normally open (N.O.) contact configuration

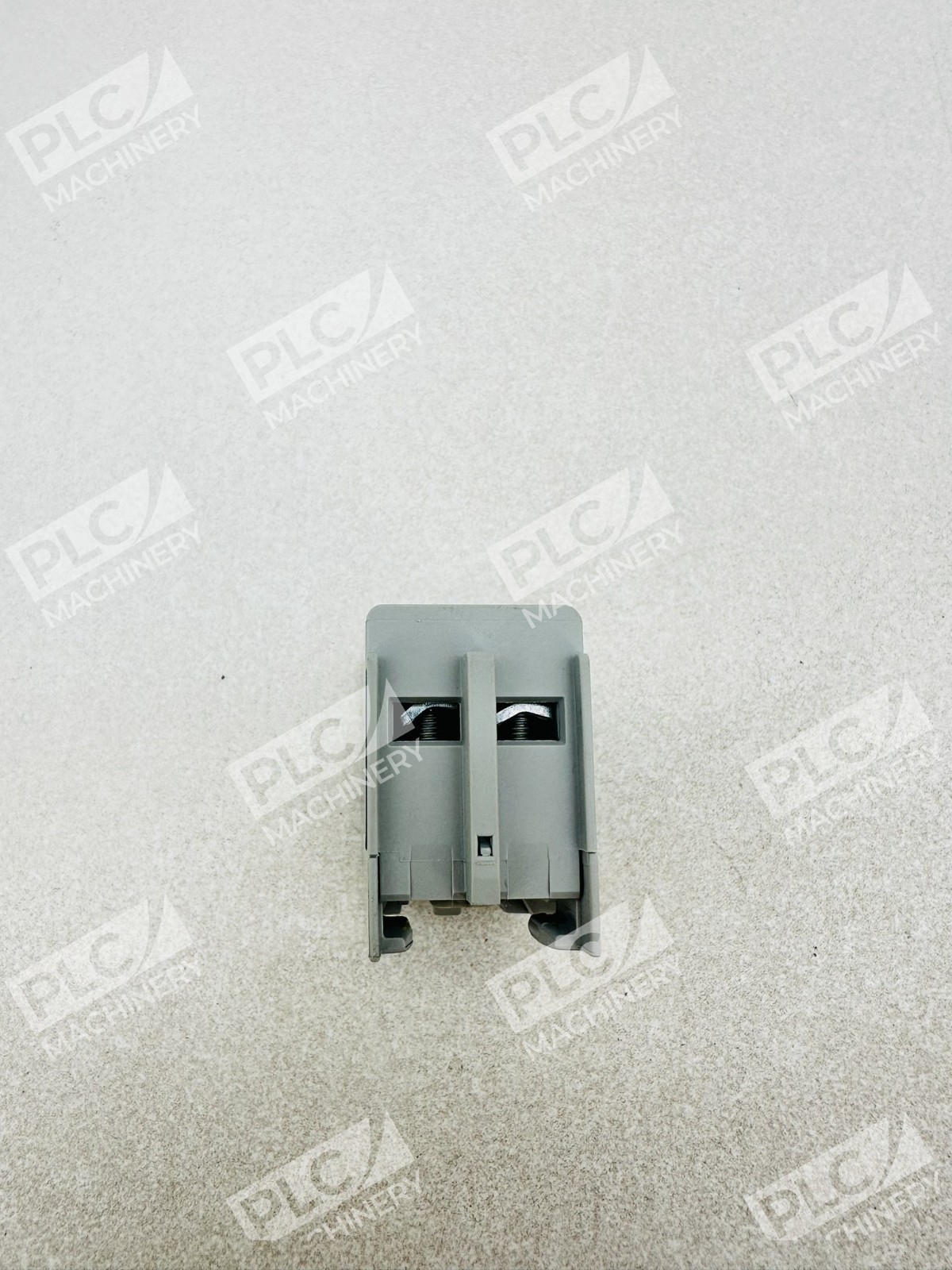

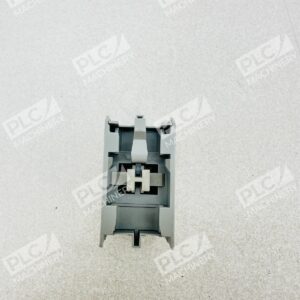

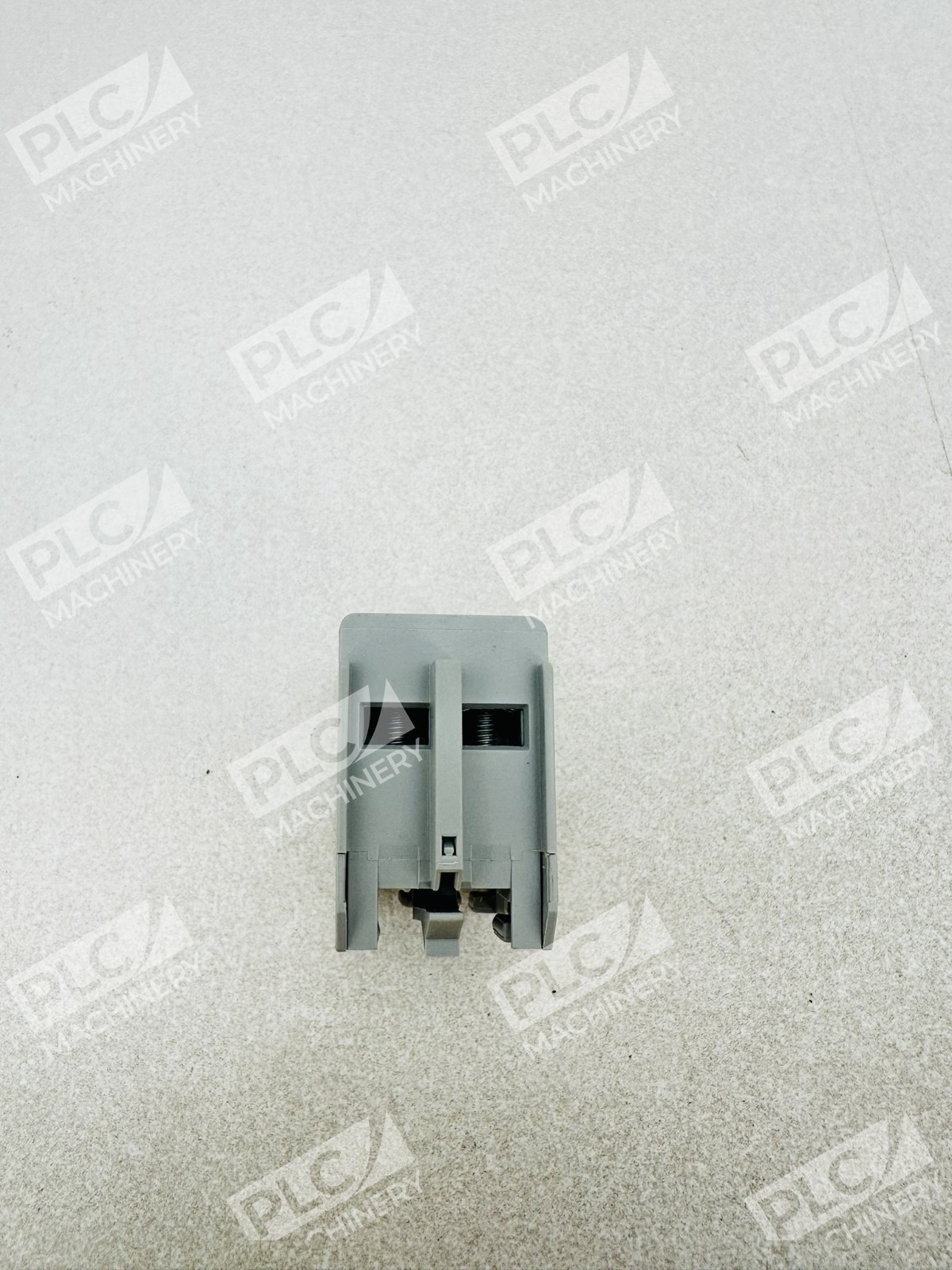

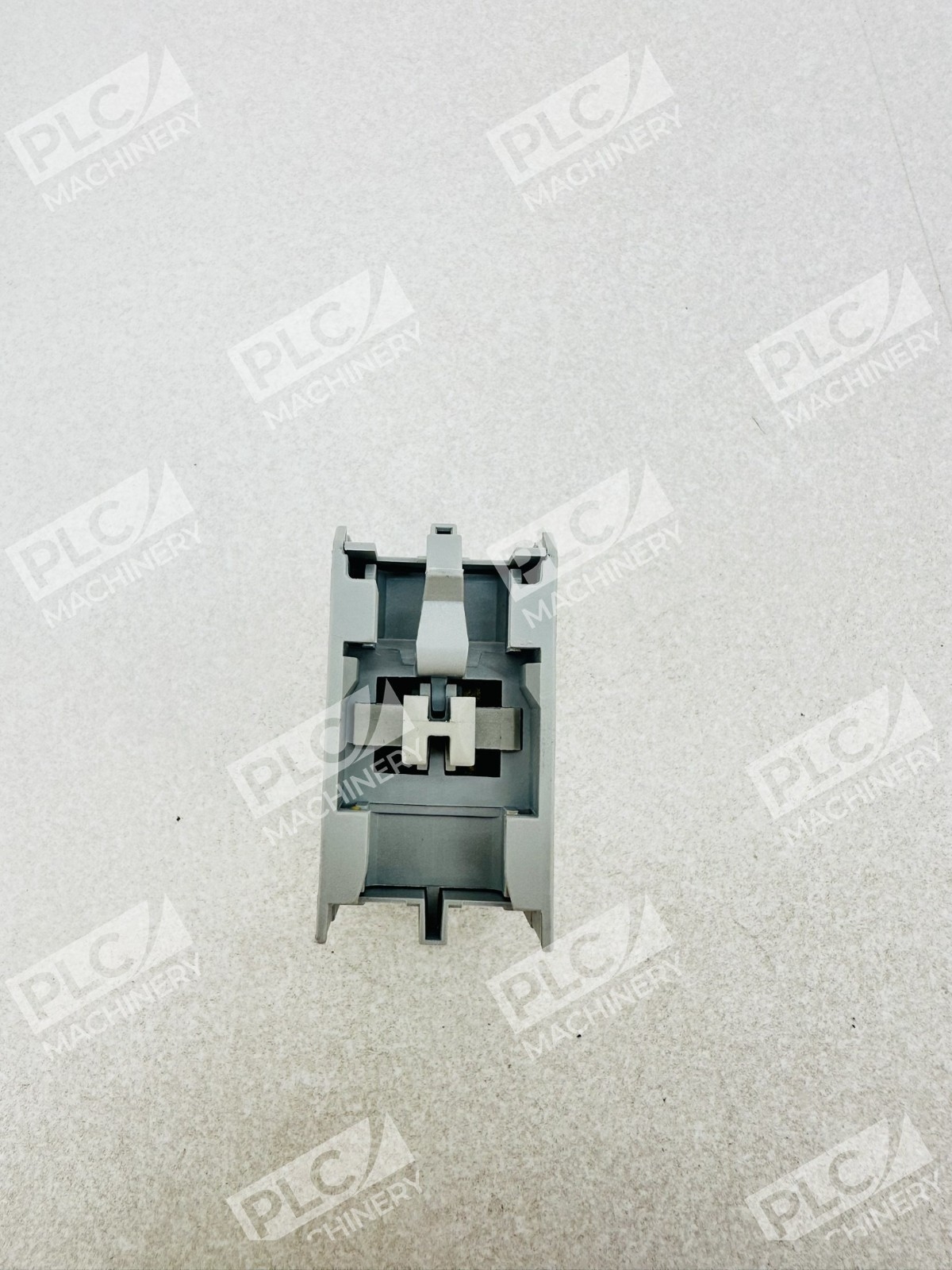

- Front-mount design for easy snap-on installation

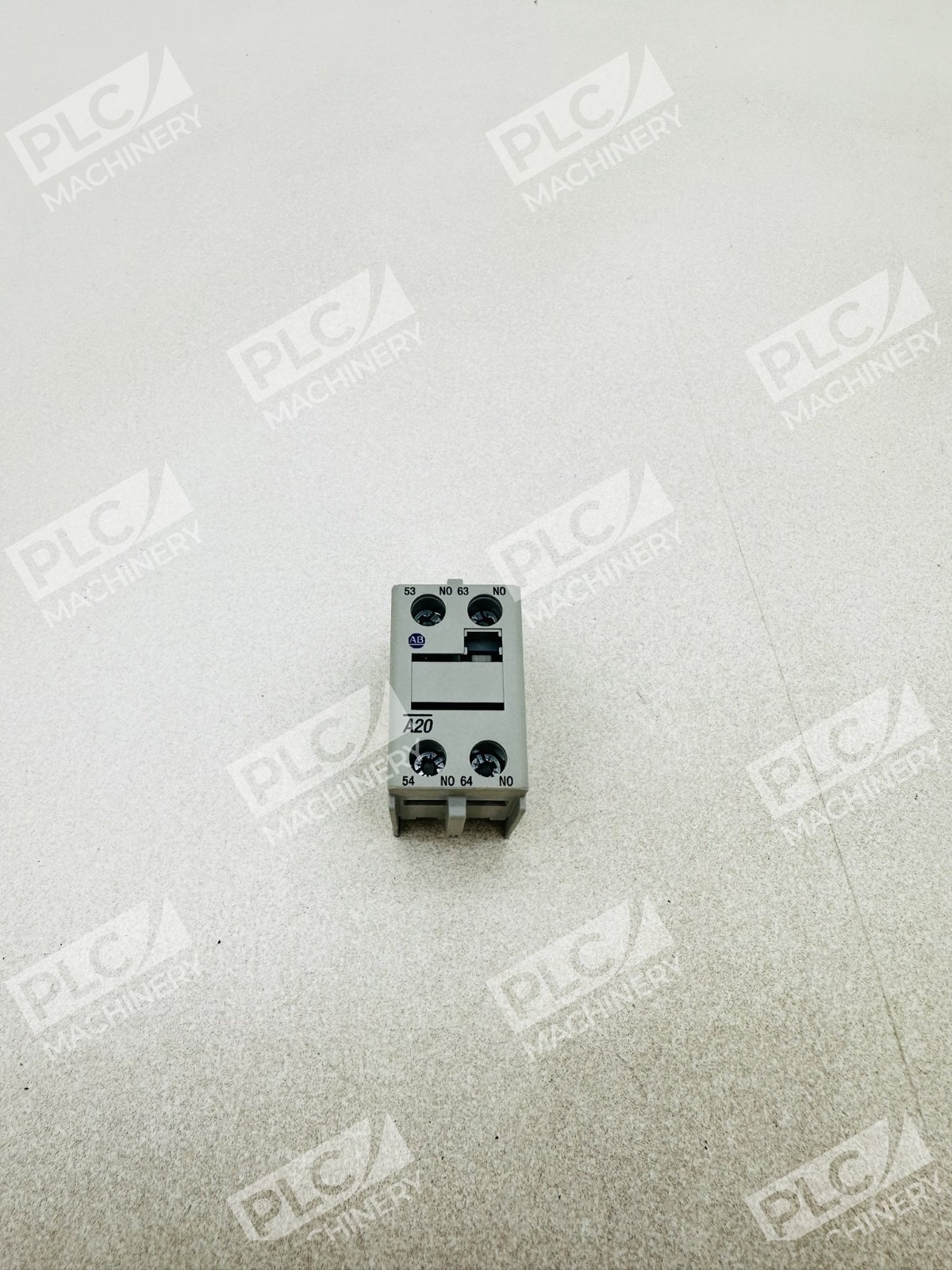

- Screw terminal connections for secure wiring
- 10 A contact current rating
- Compatible with 100-C and 704-CF series contactors
- Reduces downtime with quick replacement or removal

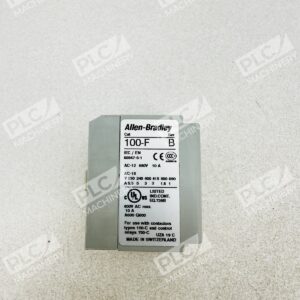

Technical Specifications
- Part Number: 100-FA20
- Product Type: Auxiliary Contact Block
- Contact Configuration: 2 N.O. (Normally Open)
- Number of Poles: 2
- Contact Current Rating: 10 A
- Mounting Style: Front Mount
- Terminal Type: Screw
- Weight: 0.10 lbs
- Standards/Certifications: CCC, CE, CUL, GOST, KC, UL
- Lifecycle Status: Active
Typical Applications
The 100-FA20 auxiliary contact block is used in industrial and commercial control systems where additional contact points are required for:
- Status monitoring and signal indication
- Interlocking logic circuits
- Remote indication of contactor position
- Alarm and fault signaling
- Multiple load control from a single contactor
Compatibility & Replacements
Compatible With
- Allen-Bradley 100-C series contactors (100-C09 through 100-C97)
- Allen-Bradley 104-C contactors
- Allen-Bradley 700-CF relays
- Allen-Bradley 700S-CF relays
- IEC-rated three-pole contactors in the MCS family
Replaces / Drop-In Replacement For
The 100-FA20 is the standard front-mount, 2 N.O. auxiliary contact block for Bulletin 100 series. Verify specific model compatibility with your system integrator before ordering, as other contact configurations (1 N.O./1 N.C., different pole counts) may be required for your application.
Works With
- Allen-Bradley ContactorStudio software
- Studio 5000 (with 100-C series contactor integration)
- Rockwell Automation control systems
- Standard industrial electrical control circuits
- EtherNet/IP-enabled MES and data logging systems (via gateway devices)
