Overview

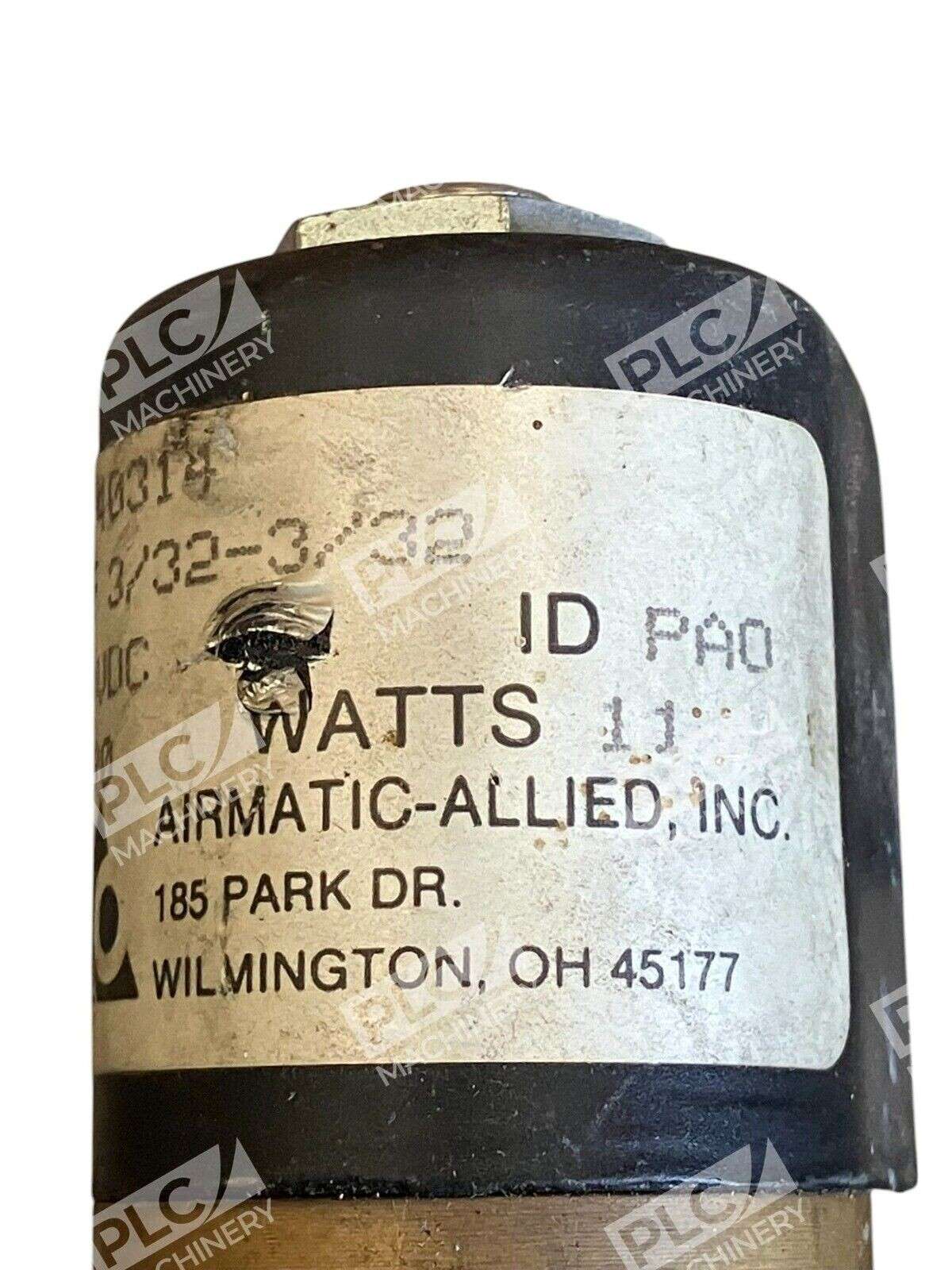

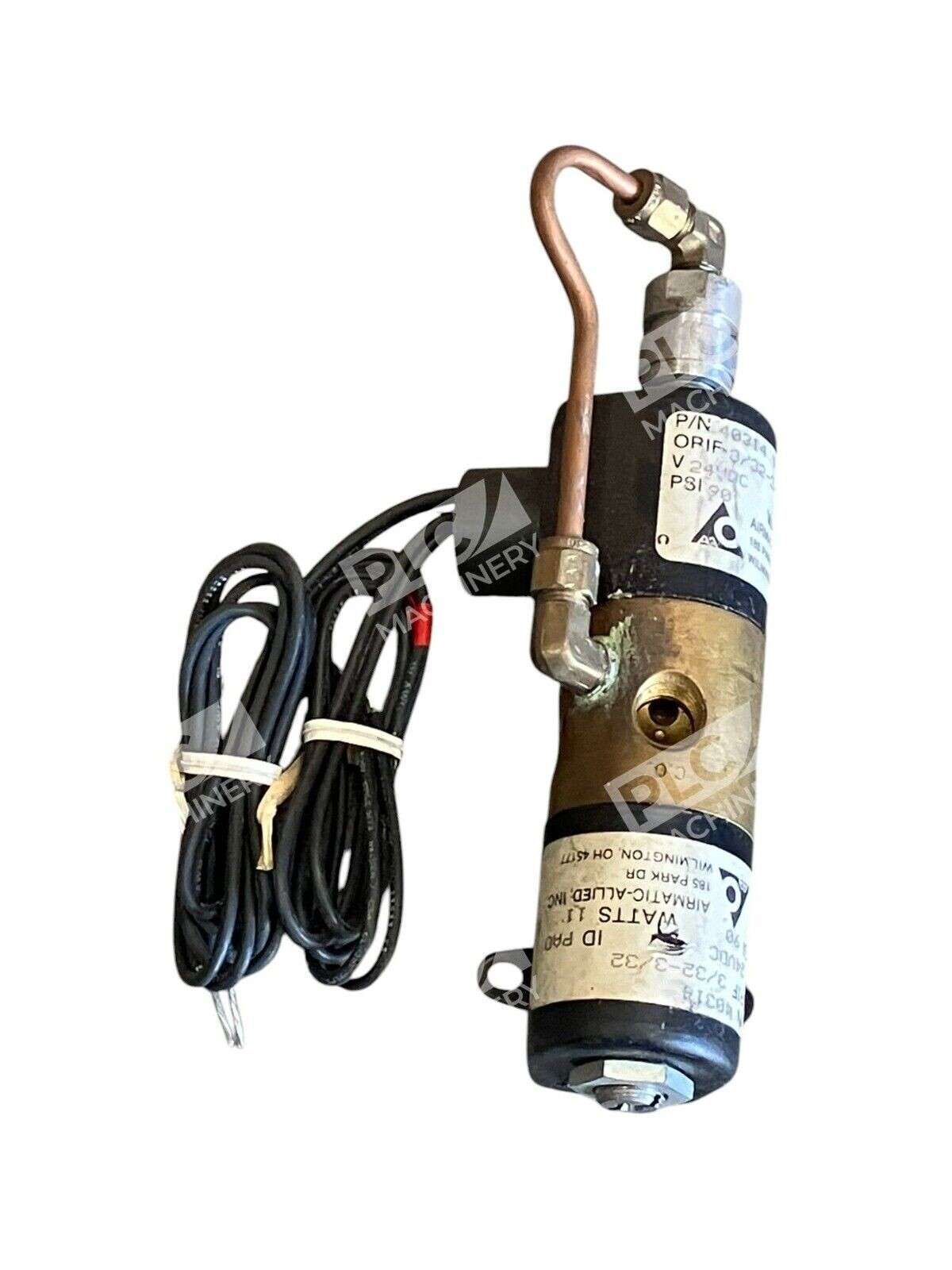

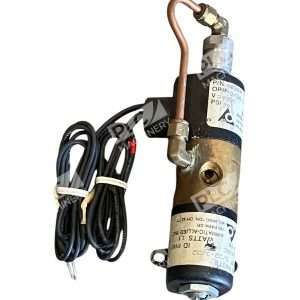

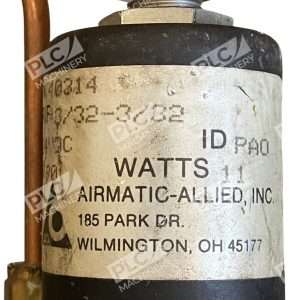

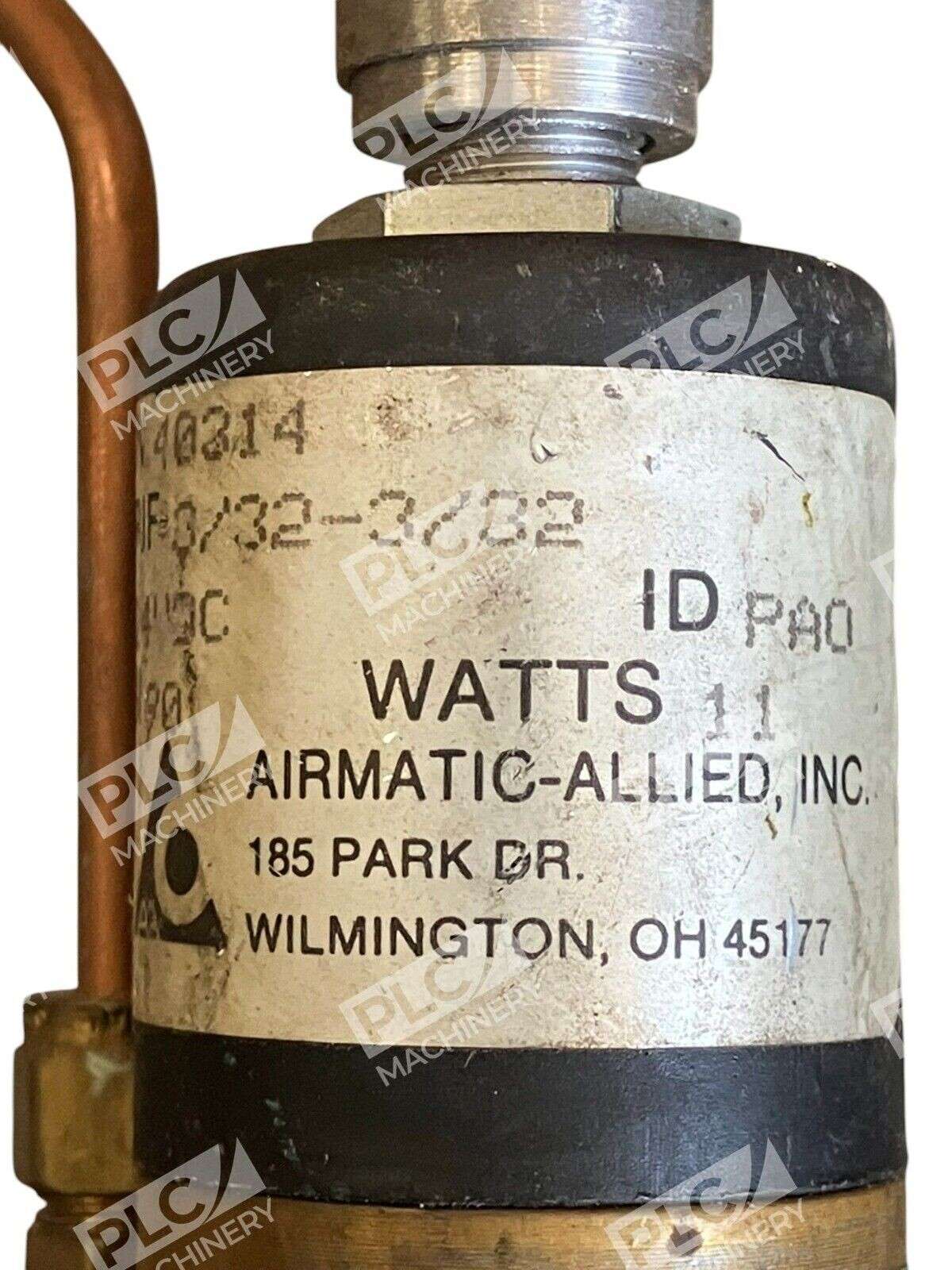

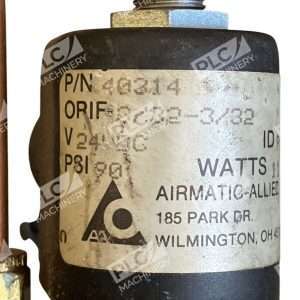

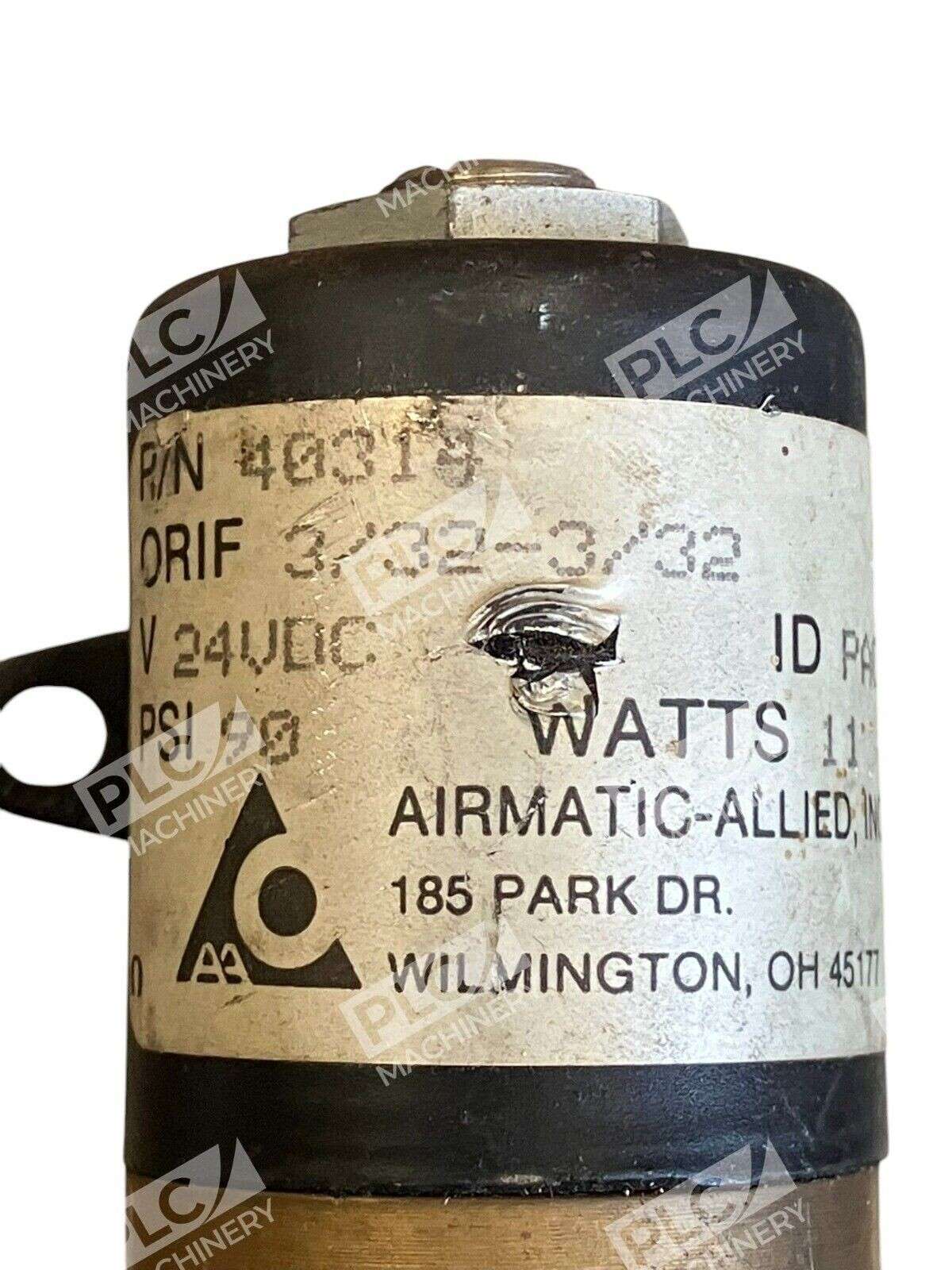

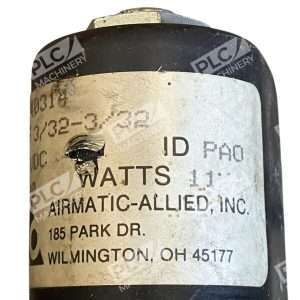

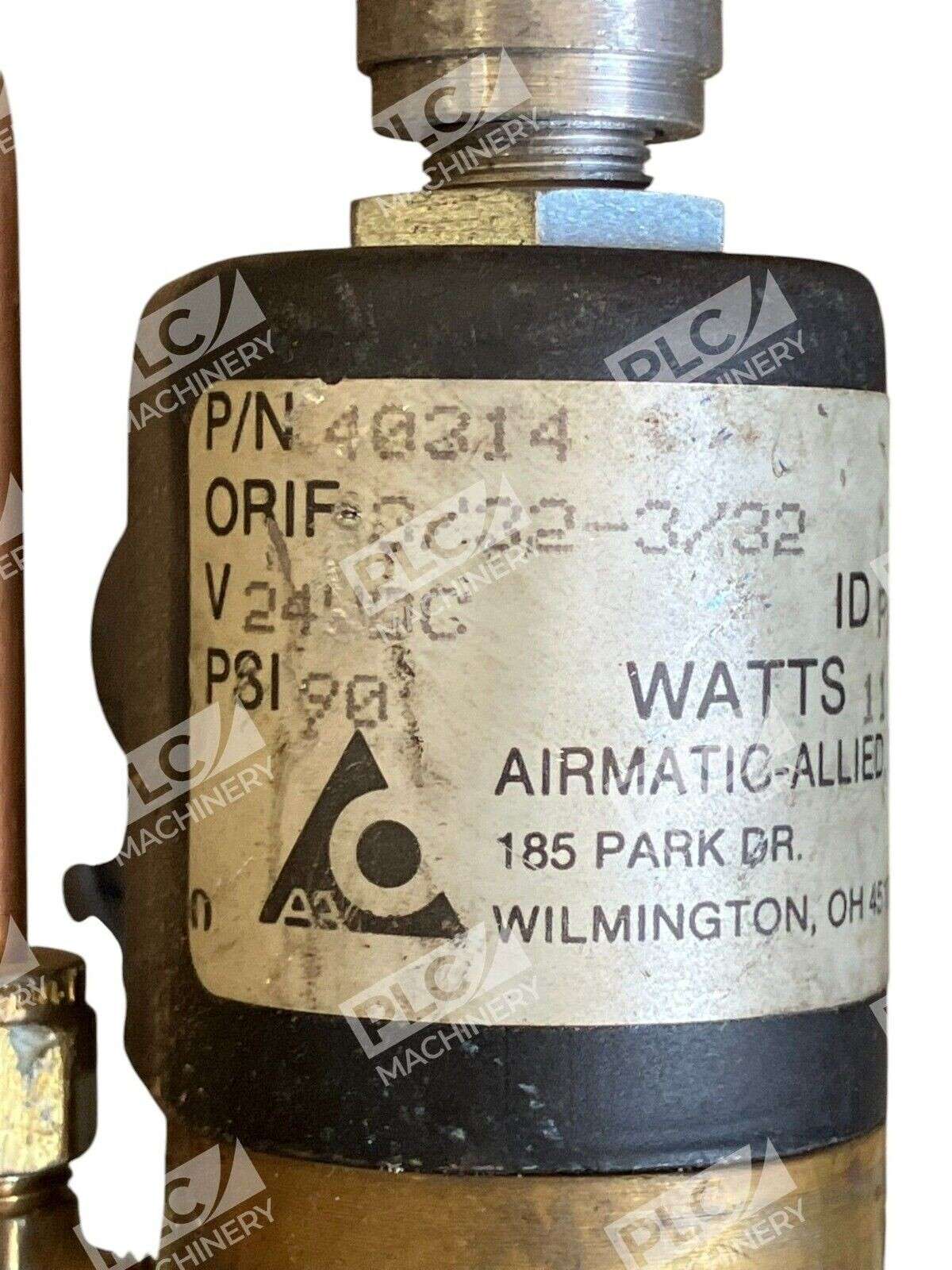

The Airmatic Allied 40314 is a solenoid-operated pneumatic valve designed for reliable on/off control in industrial automation and pneumatic systems. Rated at 90PSI with 24VDC coil operation, this valve delivers stable switching performance with optimized energy consumption at 11W. The 3/32″ dual-sided port configuration ensures secure, leak-free connections across a range of pneumatic circuit designs.
Key Features
- Solenoid-operated for remote electronic control
- 90PSI maximum working pressure rating
- 24VDC coil voltage with 11W power consumption
- 3/32″ port sizing (both inlet and exhaust)
- Compact, reliable design suitable for continuous industrial duty
- Used condition, fully functional and tested before shipment
Technical Specifications
The Airmatic Allied 40314 offers the following technical parameters:
- Maximum Pressure: 90 PSI
- Coil Voltage: 24 VDC
- Power Consumption: 11 watts
- Port Configuration: 3/32″ inlet / 3/32″ exhaust
- Valve Type: Solenoid-operated pneumatic valve
- Body Material: Aluminum (standard pneumatic valve construction)
- Operating Temperature Range: Typical industrial pneumatic range (consult OEM documentation for exact limits)
- Condition: Used, tested and functional
Typical Applications
The Airmatic Allied 40314 is well-suited for:
- Industrial pneumatic automation systems requiring low-power solenoid switching
- Pneumatic logic circuits and air distribution manifolds
- Machine tool air control and actuation circuits
- Process automation requiring precise air-line switching
- Control of double-acting and single-acting pneumatic cylinders
- Material handling and packaging equipment with pneumatic components
Compatibility & Replacements
Compatible With
- Standard pneumatic systems operating at 80–90 PSI
- 24VDC control logic circuits and PLC-based automation
- Compressed air distribution networks with 3/32″ NPT or equivalent fittings
- Industrial control panels with 24VDC auxiliary power supplies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Airmatic-Allied was discontinued and successor models should be confirmed with the OEM or your controls partner. Do not assume direct interchangeability with modern pneumatic valve platforms.
Works With
- Standard 24VDC solenoid coil wiring and connectors
- Pneumatic tubing and hard-line systems with NPT or SAE ports
- Industrial compressed air systems rated 80–90 PSI
- PLC and motion control systems equipped with 24VDC auxiliary outputs
