Overview

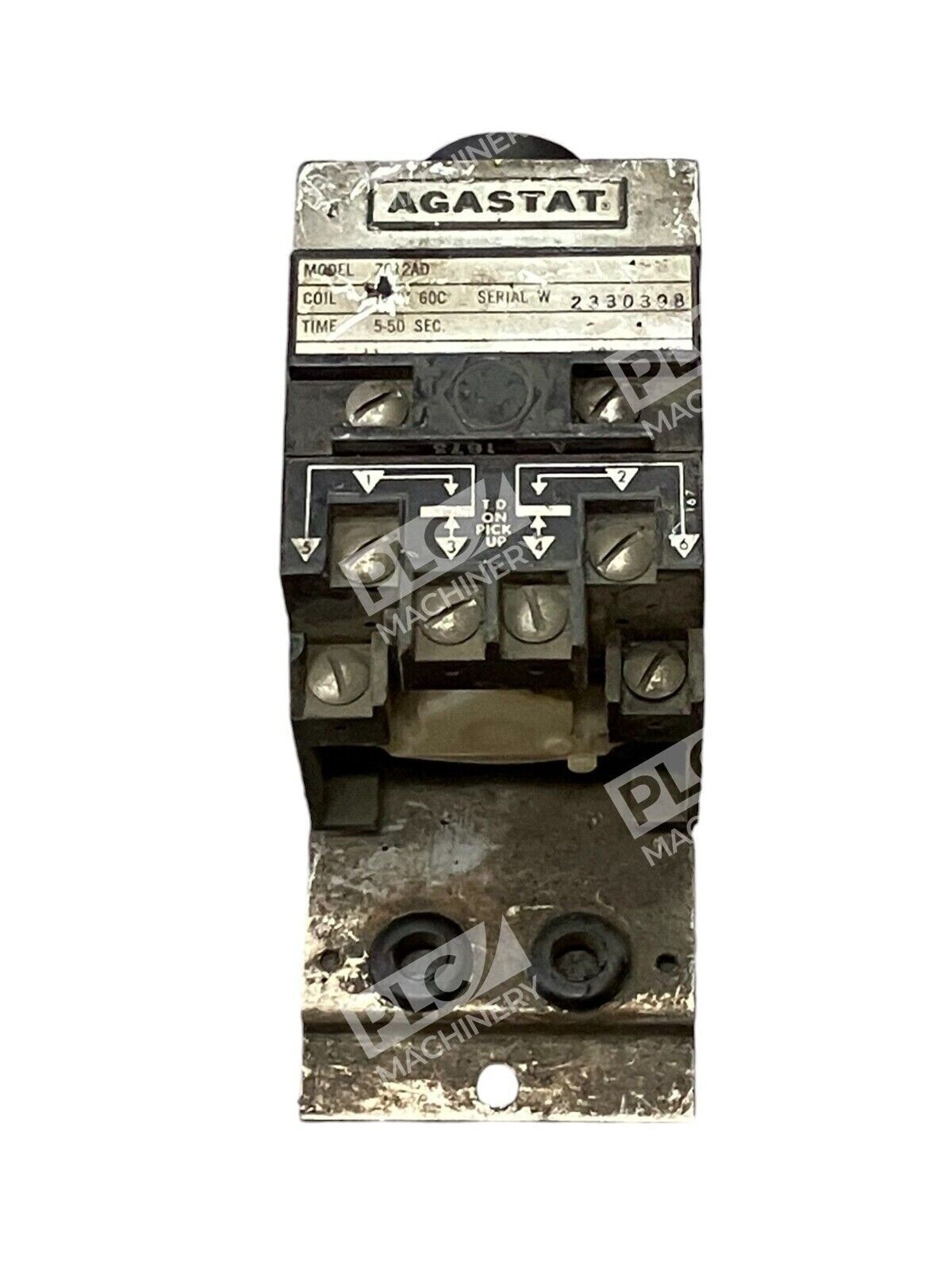

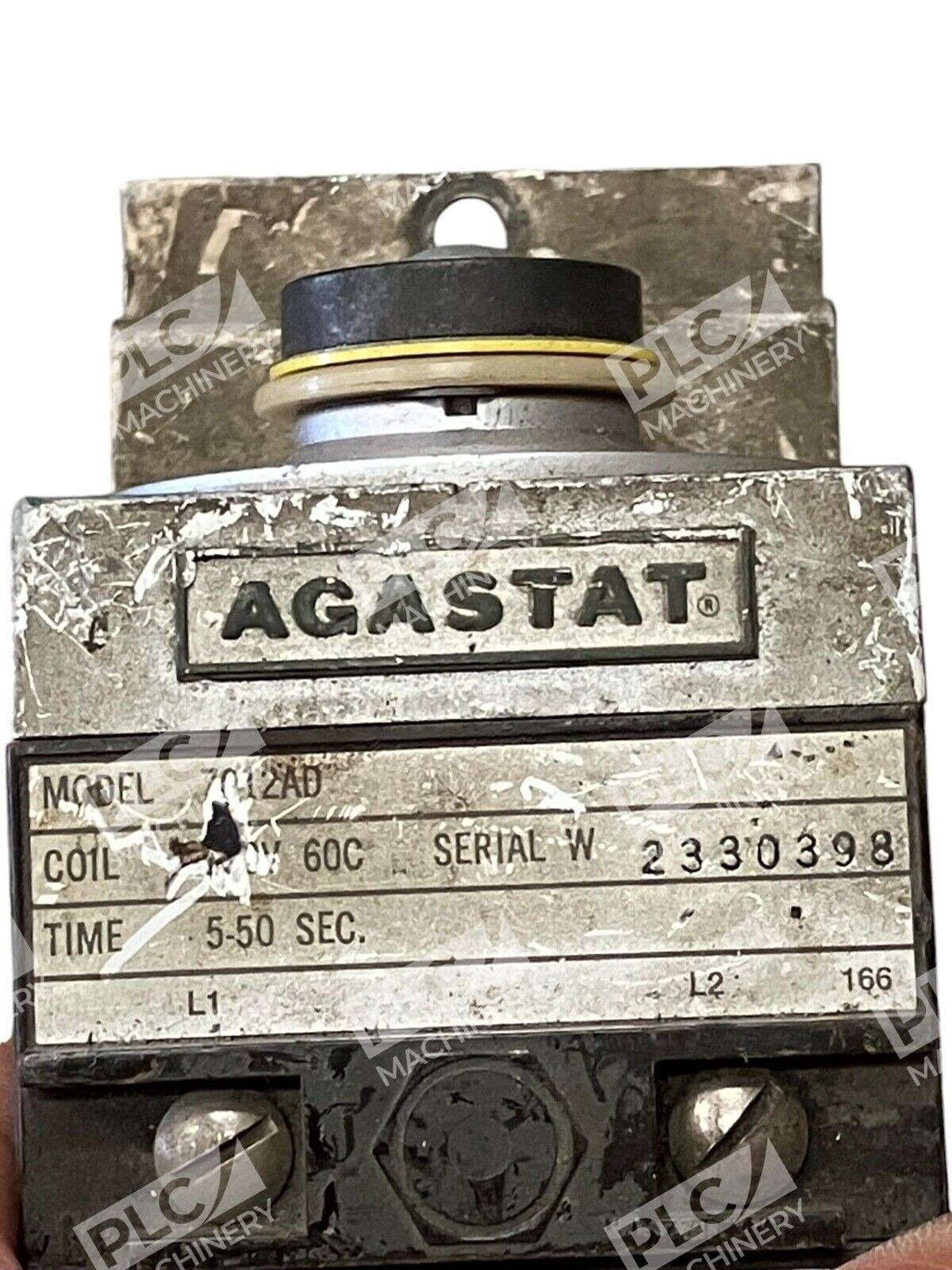

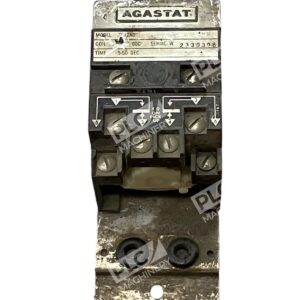

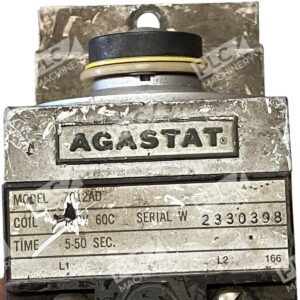

The Agastat 7012AD is a 2-pole specialty relay from the Agastat 7000 series designed for industrial electro-pneumatic timing control. The 7012AD is a 2-pole Specialty Relay with ON delay, 5 to 50 seconds delay, and 2 form-C (DPDT) contact configuration. The timing head circulates air through a variable length to provide linearly adjustable timing, with a patented design that provides easy adjustment and long service life under severe operating conditions.
Key Features
- On-Delay Timing Control: ON delay with 5 to 50 seconds adjustable delay in 2 form-C (DPDT) contact configuration
- Precision Adjustment: Timing head circulates air through a variable length to provide linearly adjustable timing
- Robust Construction: Sealing without external leads eliminates moisture problems and gives maximum insulation value
- High Insulation Rating: Insulation resistance of 500 Megohms with 500VDC applied
- Extended Operating Range: Operating temperature range of -20°F to +165°F (-29°C to 74°C), with all units calibrated for vertical operation and capable of horizontal mounting
Technical Specifications
The 7012AD provides reliable timing performance with the following electrical and mechanical characteristics:
Typical Applications
The Agastat 7012AD is ideally suited for manufacturing controls, machine automation, process sequencing, equipment startup delays, and industrial control panels where precise timing is required. Common applications include pump start delays, fan ramp-up sequencing, conveyor belt timing, and motor soft-start controls. The on-delay configuration makes it suitable for applications requiring a fixed startup wait before equipment activation.
Compatibility & Replacements
Compatible With
- General-purpose panel-mounted control systems
- Equipment with 120VAC control circuits
- Machines requiring 5-50 second on-delay timing
- Industrial control cabinets with DIN or surface mounting
Replaces / Drop-In Replacement For
The Agastat 7012AD is part of the 7000 series standard timing relay line. Related models in the 7000 series include 7012AE, 7012AF, 7012AH, 7012AK, and other variants with different coil voltages and contact ratings. Verify compatibility with your system integrator before ordering, particularly if replacing a unit with a different coil voltage (240VAC models also available).
Works With
- 120VAC control circuits and PLCs with relay outputs
- Motor control centers and switchgear
- Industrial timer-based automation systems
- Pneumatic and electro-mechanical control systems
