Overview

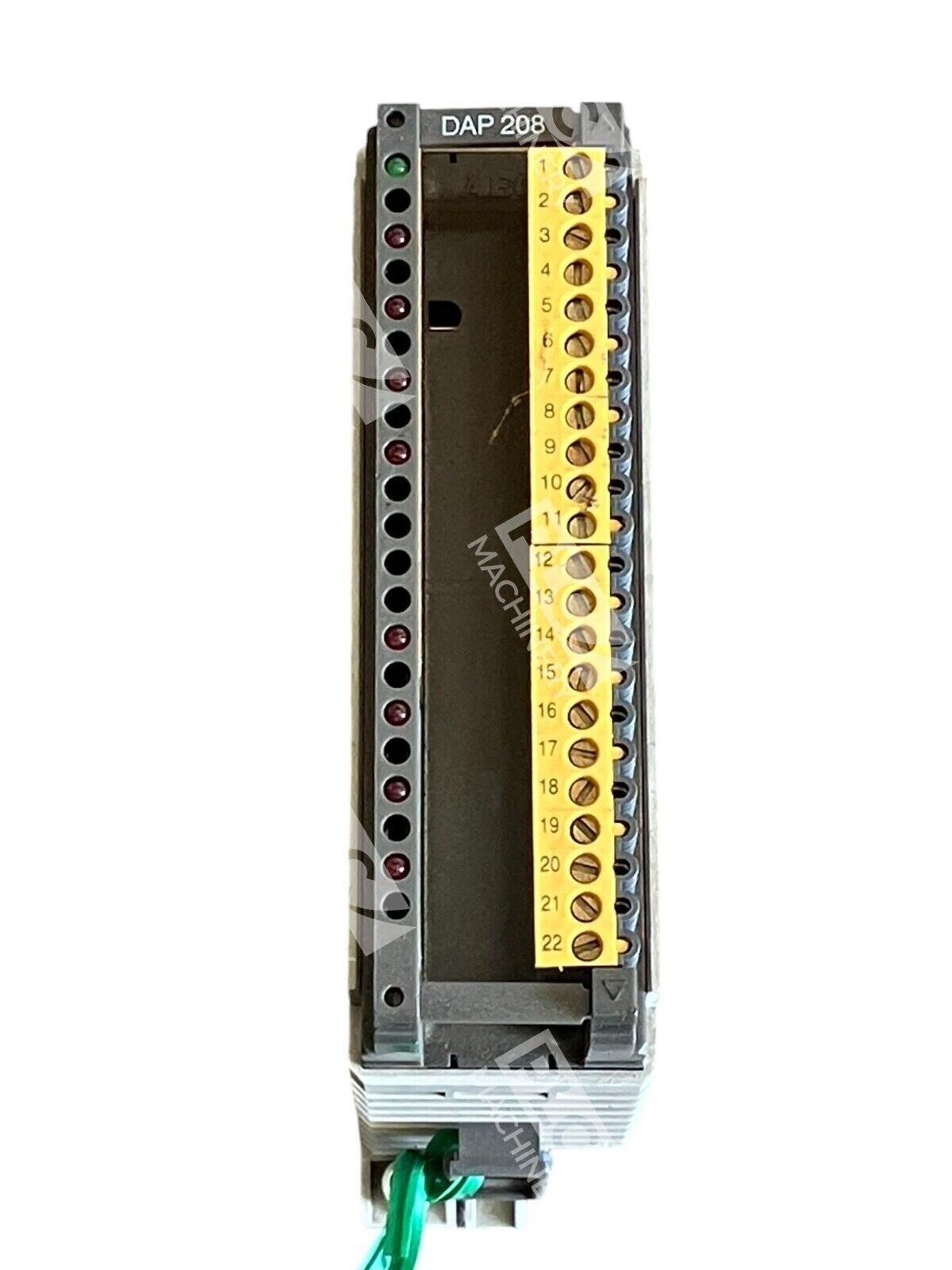

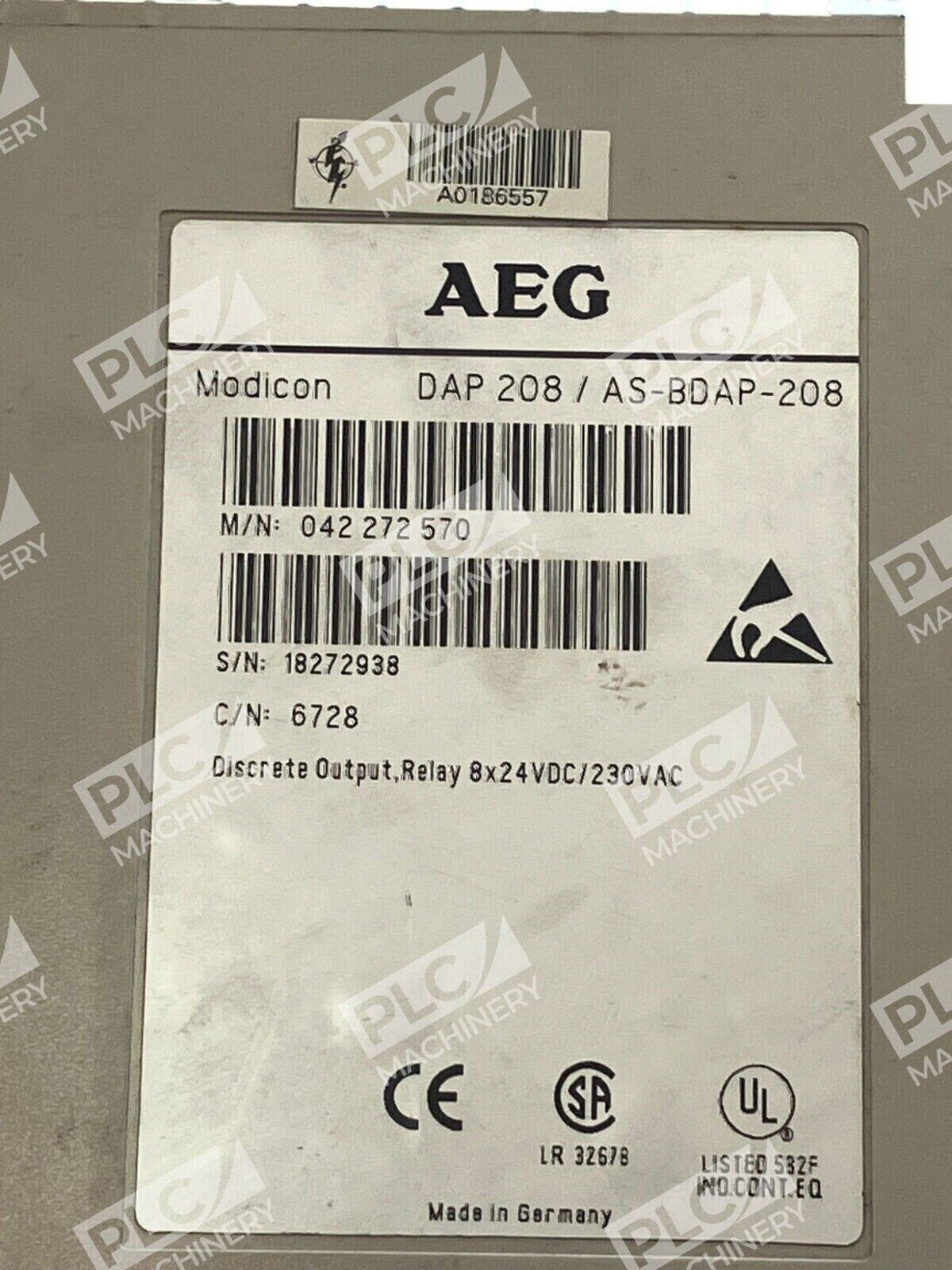

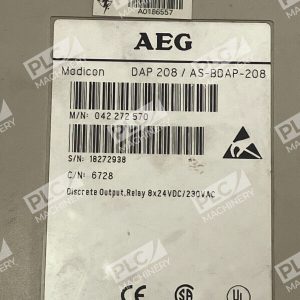

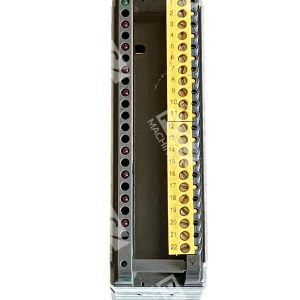

The Modicon AS-BDAP-208 is a reliable discrete output relay module designed for industrial automation control systems. This 8-point relay output module supports dual voltage ratings of 24VDC and 230VAC, making it suitable for a wide range of AC and DC control applications. Manufactured to exacting German standards, the AS-BDAP-208 integrates directly into Modicon Telemecanique TSX Compact PLC systems and provides isolated relay switching for solenoids, contactors, motors, and other industrial devices.
Key Features
- 8-point isolated relay output module with independent channel isolation
- Dual voltage support: 24VDC and 230VAC output capability
- 2-amp relay contact rating per channel for reliable load switching
- Compact, lightweight German-engineered design (380 grams)
- LED status indicators for channel monitoring and troubleshooting
- Field-wiring terminal blocks for fast installation
Technical Specifications
- Output Channels: 8-point relay
- Output Voltage Rating: 24VDC / 230VAC
- Contact Rating: 2 amps per channel
- Isolation Level: Output-to-logic isolation for safety
- Weight: 380 grams
- Mounting: Rail mount (IEC 60715 top-hat standard)
- Origin: Germany
- Status Indicators: LED per output channel
Typical Applications
- General-purpose discrete output control in factory automation
- Solenoid and contactor switching for pneumatic/hydraulic systems
- Motor control and load switching in machine tool applications
- Process control output relay logic for industrial HVAC and utility systems
- Building automation and discrete device actuation
Compatibility & Replacements
Compatible With
- Modicon Telemecanique TSX Compact PLC controllers
- Modicon M221, M241, M251 PLC families (legacy variants)
- Systems using TSX modular I/O racks
- Industrial relay-based control logic networks
Replaces / Drop-In Replacement For
- DAP 208 (alternate part number designation)
- Original Modicon discrete relay output modules in TSX Compact racks
Works With
- Modicon automation programming environments
- Legacy PLC discrete output relay logic
- Industrial standard IEC 60715 top-hat mounting rails
- Standard industrial control wiring practices and protection
