Overview

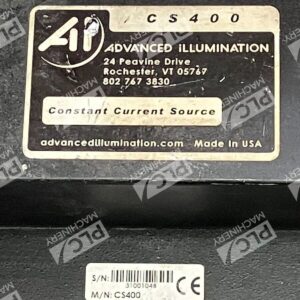

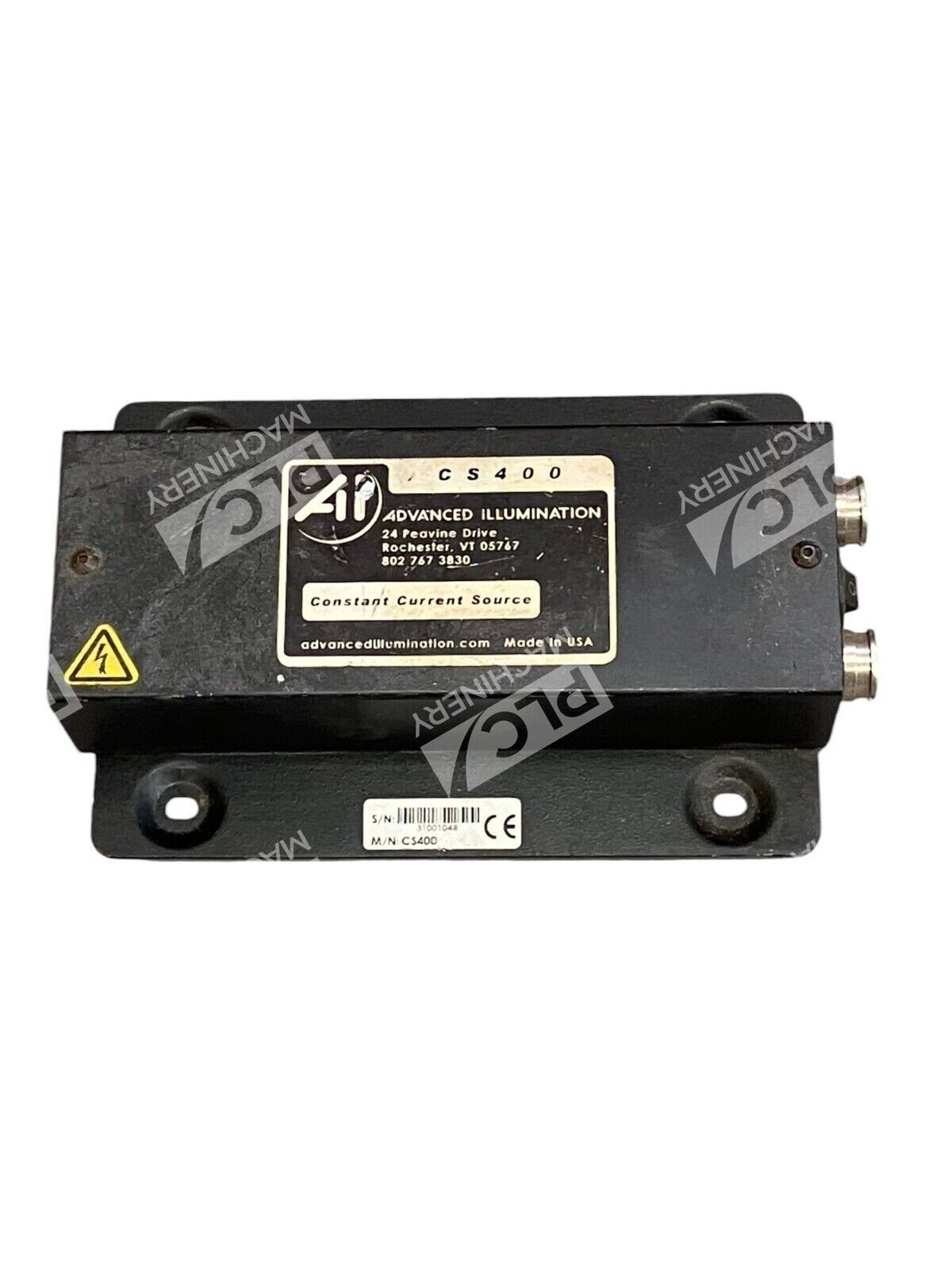

The Advanced Illumination CS400 is a compact, switching-mode constant current source designed for LED lighting and industrial illumination applications. It accepts universal input power (90–264VAC) and supplies a regulated 24VDC output with dual-channel capability. With an output power rating of 30 watts, the CS400 delivers stable current regulation and is protected by internal fusing and output short-circuit safeguards, making it ideal for precision lighting systems and control circuits requiring consistent current delivery.
Key Features
- Dual constant current output channels for simultaneous independent loads
- Universal input voltage range (90–264VAC) with 47–63 Hz frequency support
- Low output ripple and noise: 120 mV peak-to-peak at 24 volts
- Internal fuse protection on input and output short-circuit protection
- MTBF greater than 100,000 hours for industrial-grade reliability
- Compact form factor with integrated power cord
Technical Specifications
The CS400 specifications are optimized for stable LED and lighting control applications:
- Input Voltage: 90–264VAC (universal)
- Input Frequency: 47–63 Hz
- Output Power: 30 watts
- Output Voltage: 24VDC (nominal)
- Output Ripple & Noise: 120 mV peak-to-peak (at 24V)
- Input Current: 0.7A maximum (at 100–240VAC)
- Protection: Internal fuse (input); output short-circuit protected
- MTBF: Greater than 100,000 hours
- Output Channels: Dual independent sources
Typical Applications
The Advanced Illumination CS400 is commonly deployed in:
- LED lighting systems requiring stable constant-current regulation
- Industrial machine vision and inspection lighting
- Medical and laboratory illumination equipment
- Display and control panel backlighting
- Research and test bench power delivery
Compatibility & Replacements
Compatible With
- 24VDC LED arrays and string assemblies
- Industrial control circuits requiring constant current regulation
- Dual-output lighting systems and color-mixing applications
- Systems rated for 90–264VAC universal input power
- Standard industrial control panels and enclosures
Replaces / Drop-In Replacement For
The CS400 is a specialized constant-current platform. Verify specific model interchangeability with your system integrator before ordering, as replacement depends on output current requirements and connector type.
Works With
- Universal AC power systems (North American and international)
- 24VDC-rated LED modules and fixtures
- Industrial automation control systems
- Standard electrical enclosures and DIN rail installations
- Systems requiring constant-current output for precision lighting
