Overview

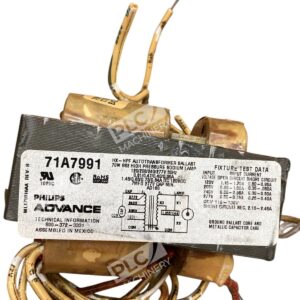

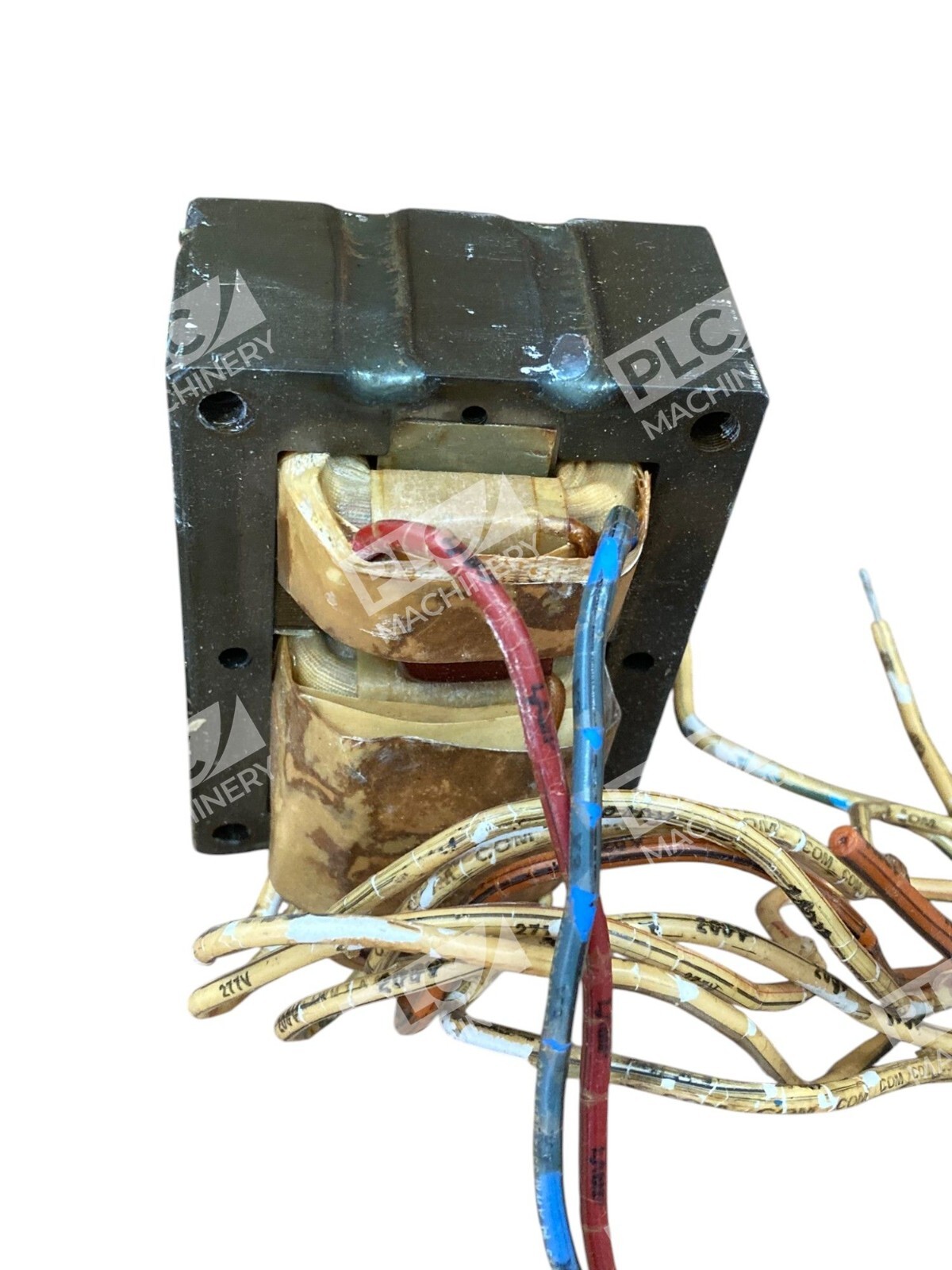

The Advance 71A7971-001D HPS ballast is a 70-watt magnetic HID ballast designed as a core and coil component for industrial and commercial HID lighting systems. This unit features quad-tap voltage inputs (120/208/240/277V) and operates with S62 ANSI-rated high pressure sodium lamps. The HX-HPF (high power factor) circuit maximizes energy efficiency and is compatible with pulse-start ignitor technology.
Key Features
- 70W power rating for S62 ANSI high pressure sodium lamps
- Quad-tap voltage configuration: 120V, 208V, 240V, 277V
- HX-HPF circuit design for 90% high power factor operation

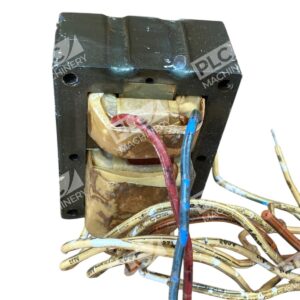

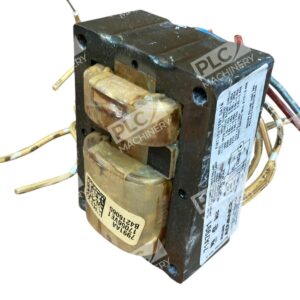

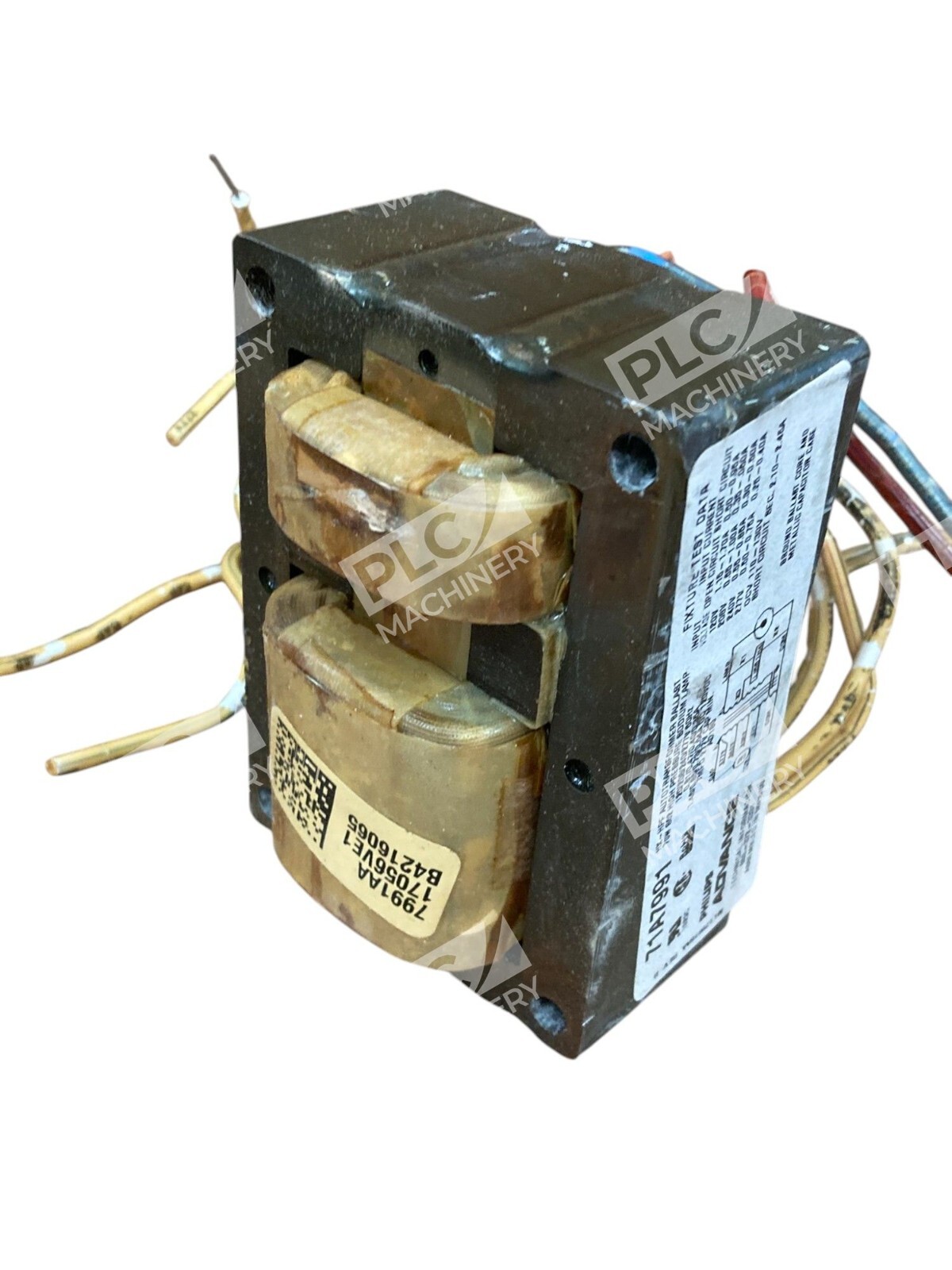

- Core and coil configuration—ideal for OEM luminaire integration

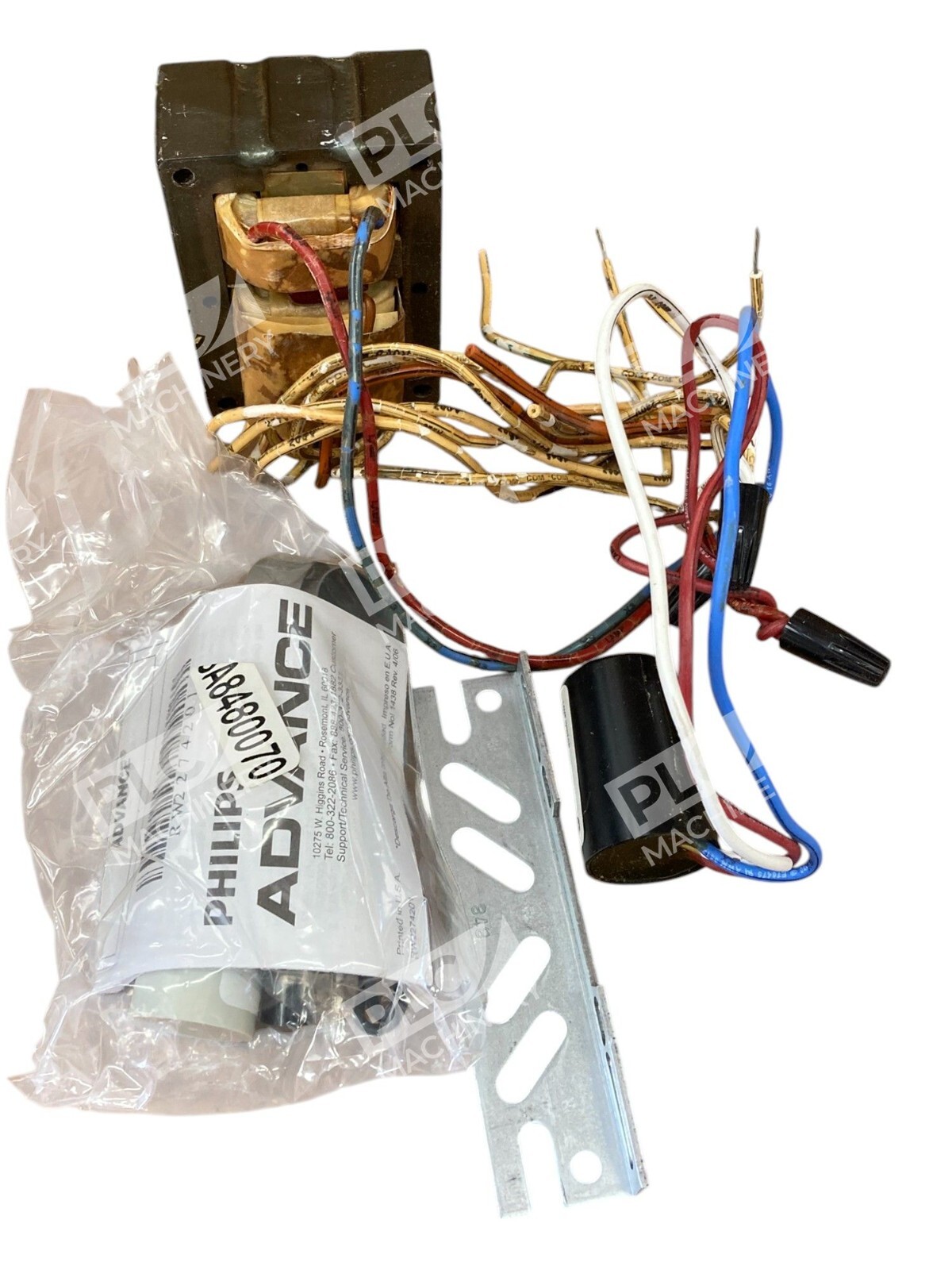

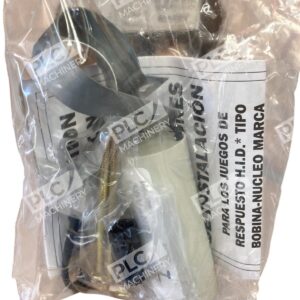

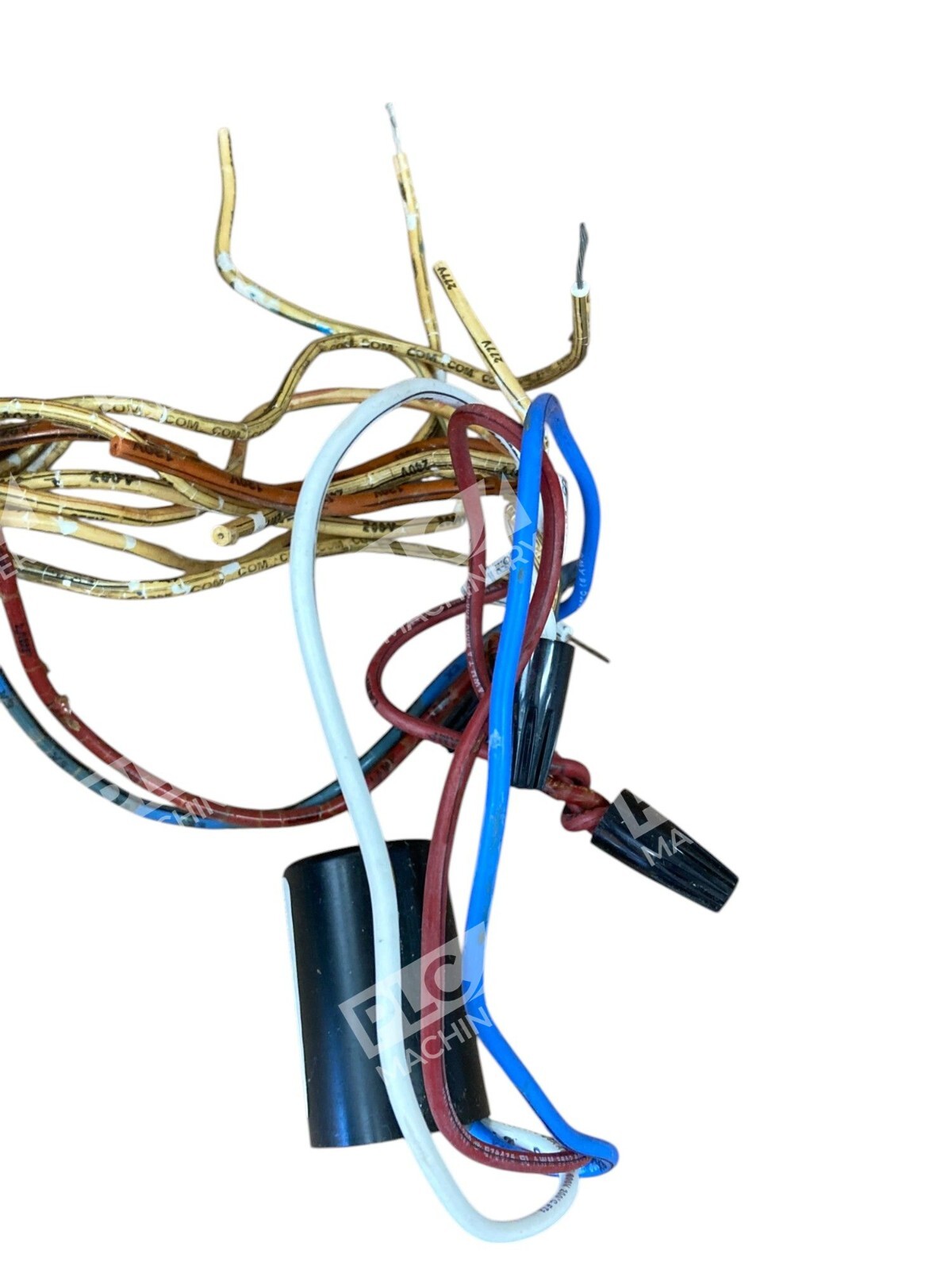

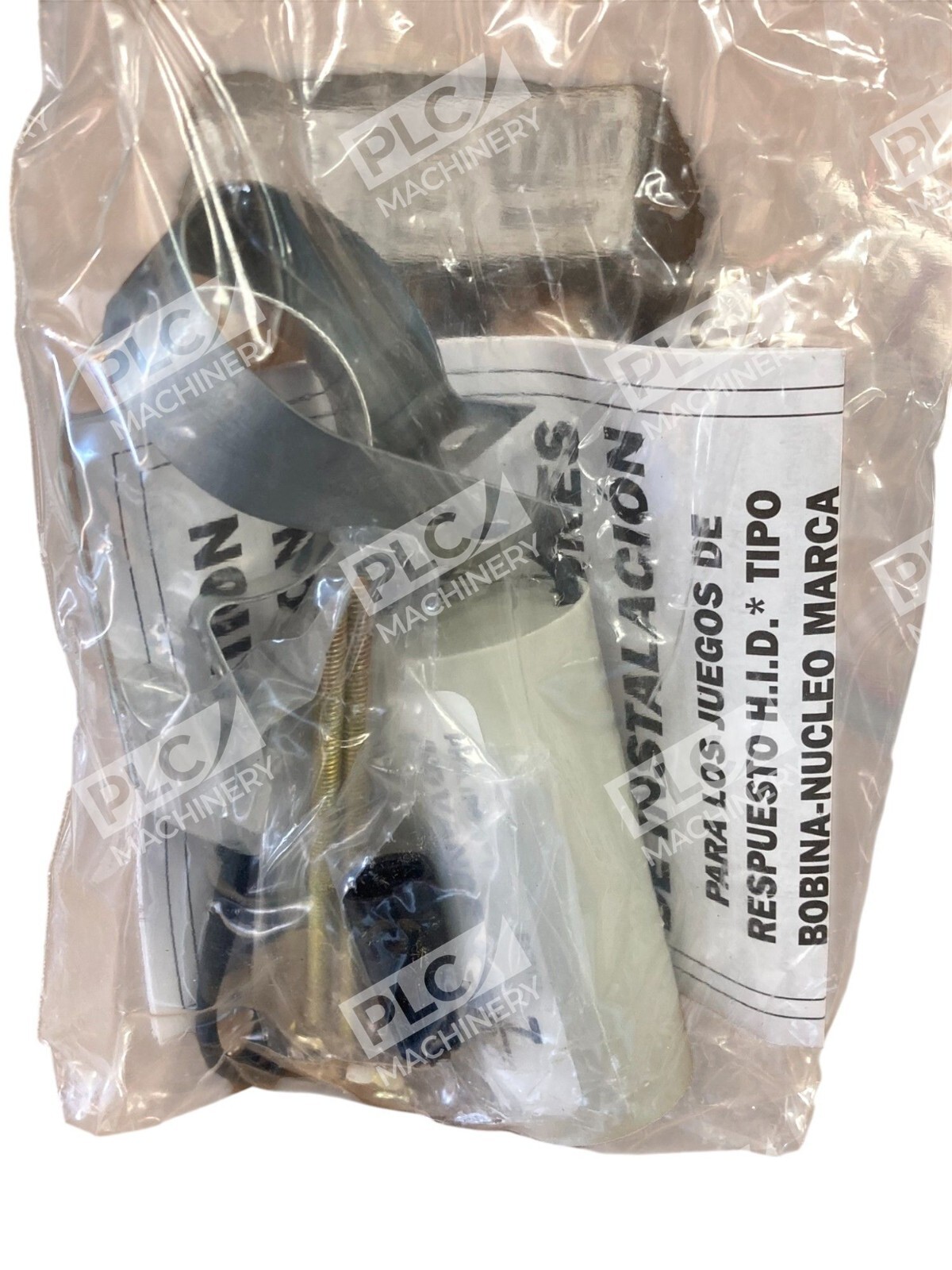

- Includes dry film capacitor, pulse-start ignitor, and bracket kit
- Operating temperature rating of 221°F suitable for warehouse and manufacturing environments
Technical Specifications
- Ballast Type: Magnetic HID, core and coil
- Lamp Wattage: 70W
- ANSI Code: S62
- Input Voltage (Quad-tap): 120V / 208V / 240V / 277V AC
- Power Factor: 90% (high power factor)
- Circuit Type: HX-HPF (high reactance, high power factor)
- Maximum Operating Temperature: 221°F
- Included Components: Dry film capacitor, ignitor, bracket kit
- Manufacturer: Philips Advance

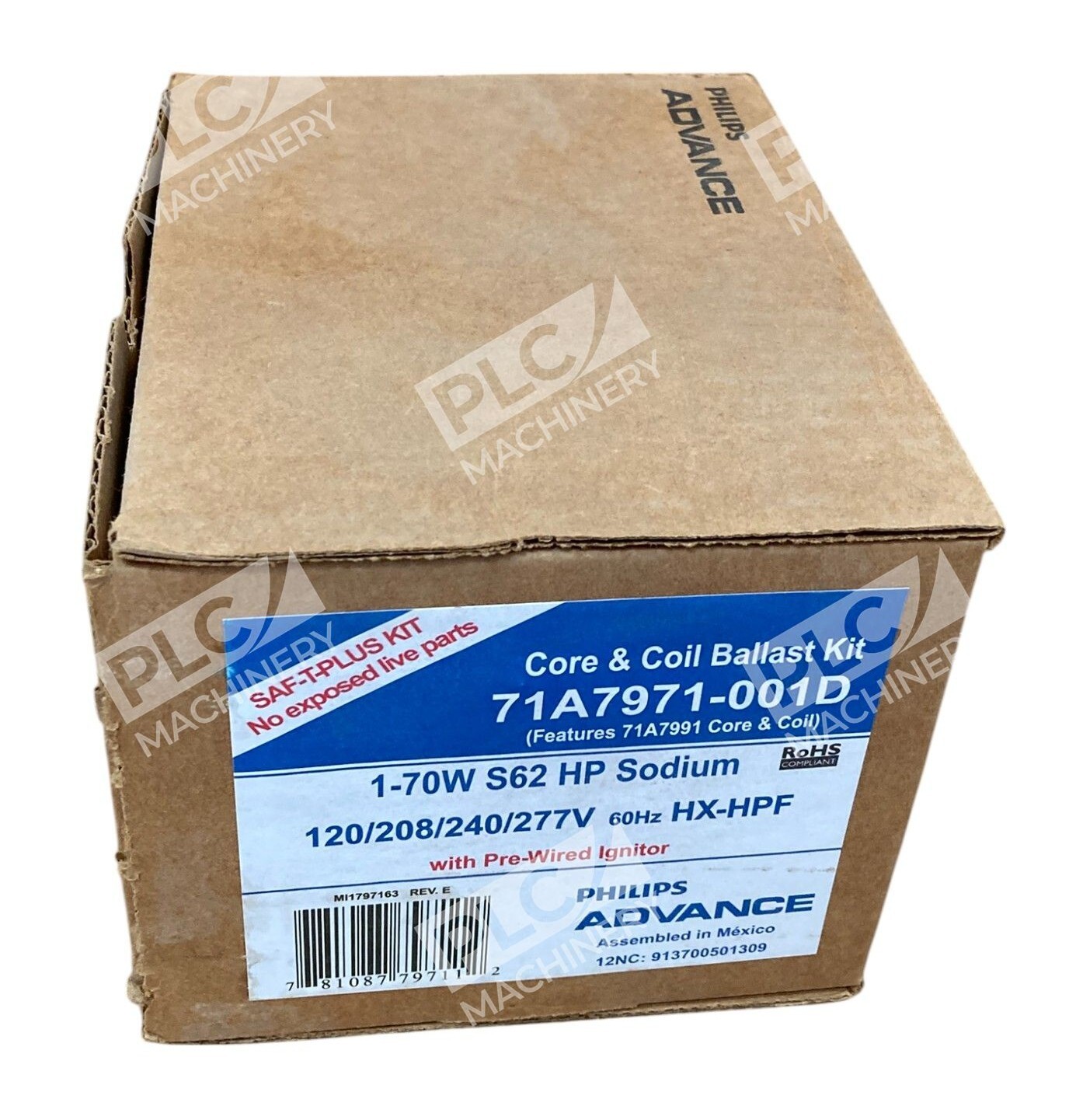

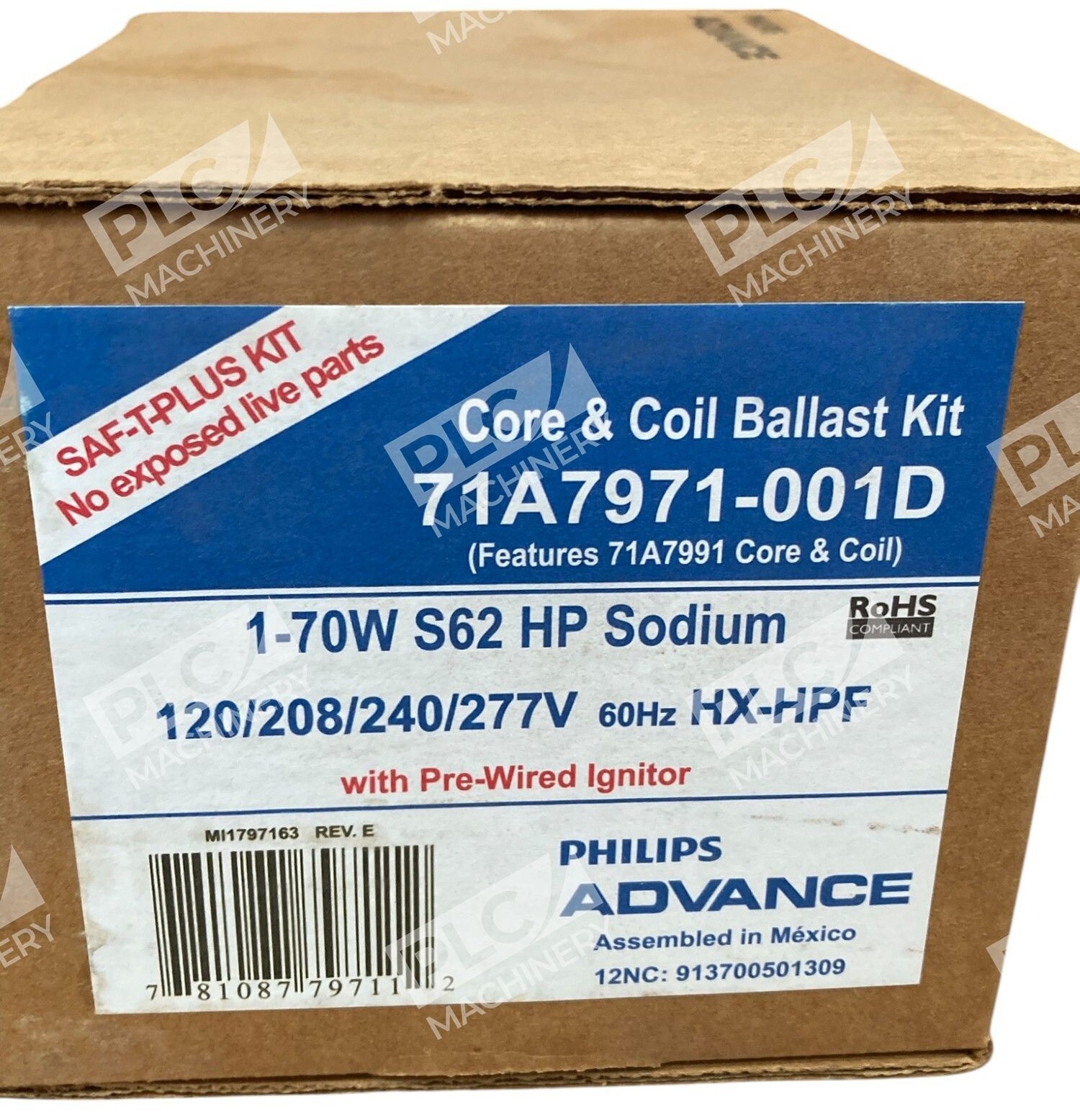

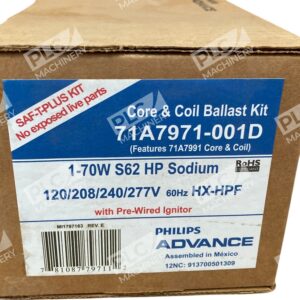

- Part Number: 71A7971-001D
- UPC: 781087797112
- Alternate Designations: ADV71A7971001D, HPS70TB, 70HPSS62
Typical Applications
- Warehouse and facility lighting systems
- Manufacturing plant HID lighting
- Outdoor and high-bay industrial illumination
- OEM luminaire manufacturing and assembly
- Retrofit and maintenance ballast replacement in existing HID fixtures
- Commercial and institutional lighting upgrades
Compatibility & Replacements
Compatible With
- S62 ANSI-rated 70W high pressure sodium lamps
- Pulse-start HID ignitor systems
- OEM HID luminaires designed for 70W S62 ballasts
- Standard commercial electrical systems (120–277V single-phase)
- Magnetic ballast fixtures using quad-tap voltage configuration
Replaces / Drop-In Replacement For
- Original equipment 70W S62 HPS ballast units
- Legacy Advance / Philips HPS ballast cores requiring 90% power factor upgrade
- Industrial lighting fixtures with failed or end-of-life HID ballasts
Works With
- Pulse-start ignitor modules (standard M98 base)
- High pressure sodium lamp sockets (E26 or mogul base, depending on fixture)
- Dry film capacitors rated 28 MFD (included)
- Standard commercial AC electrical distribution at 120–277V
- Building automation and facility management lighting control systems
