Overview

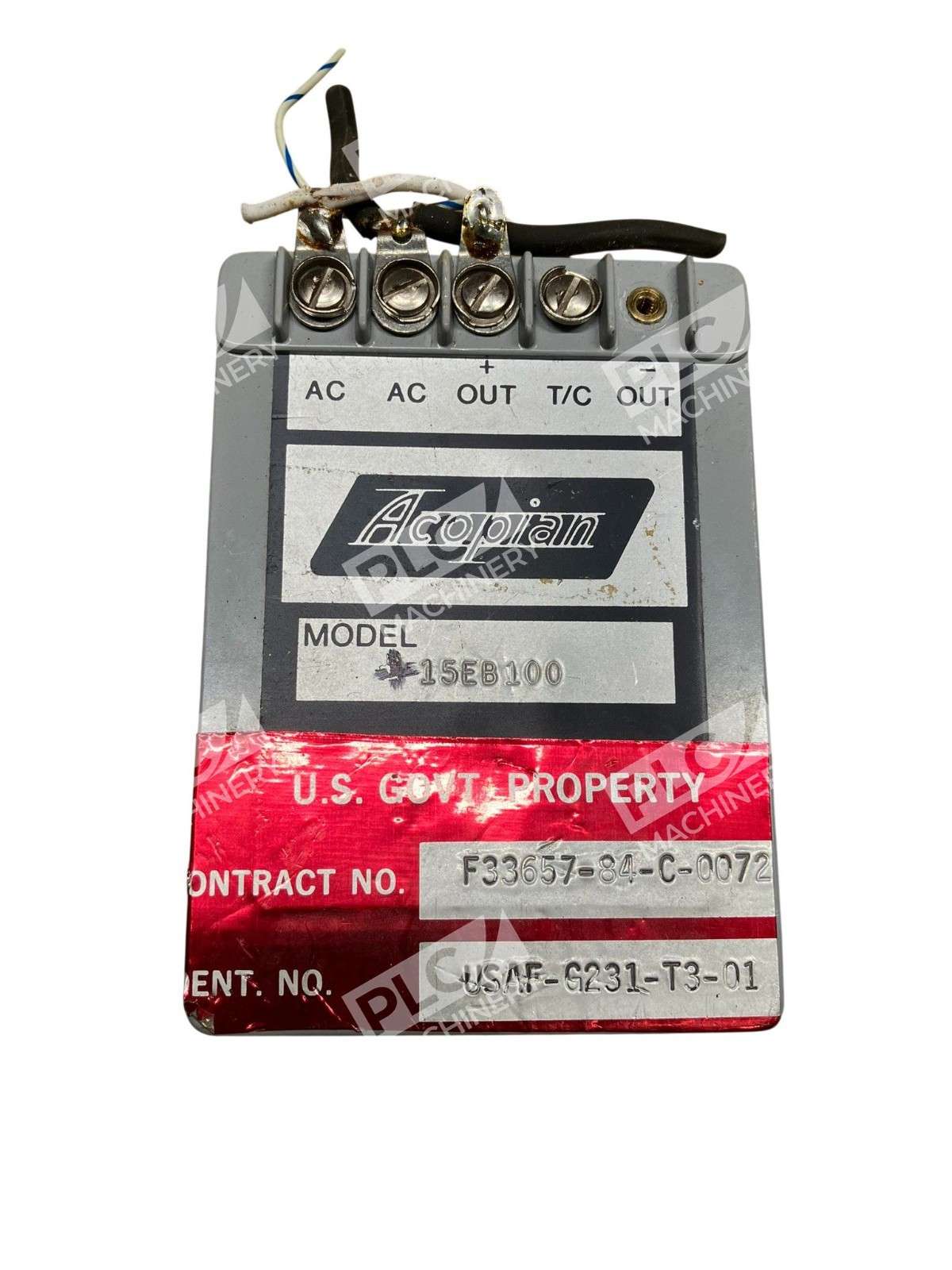

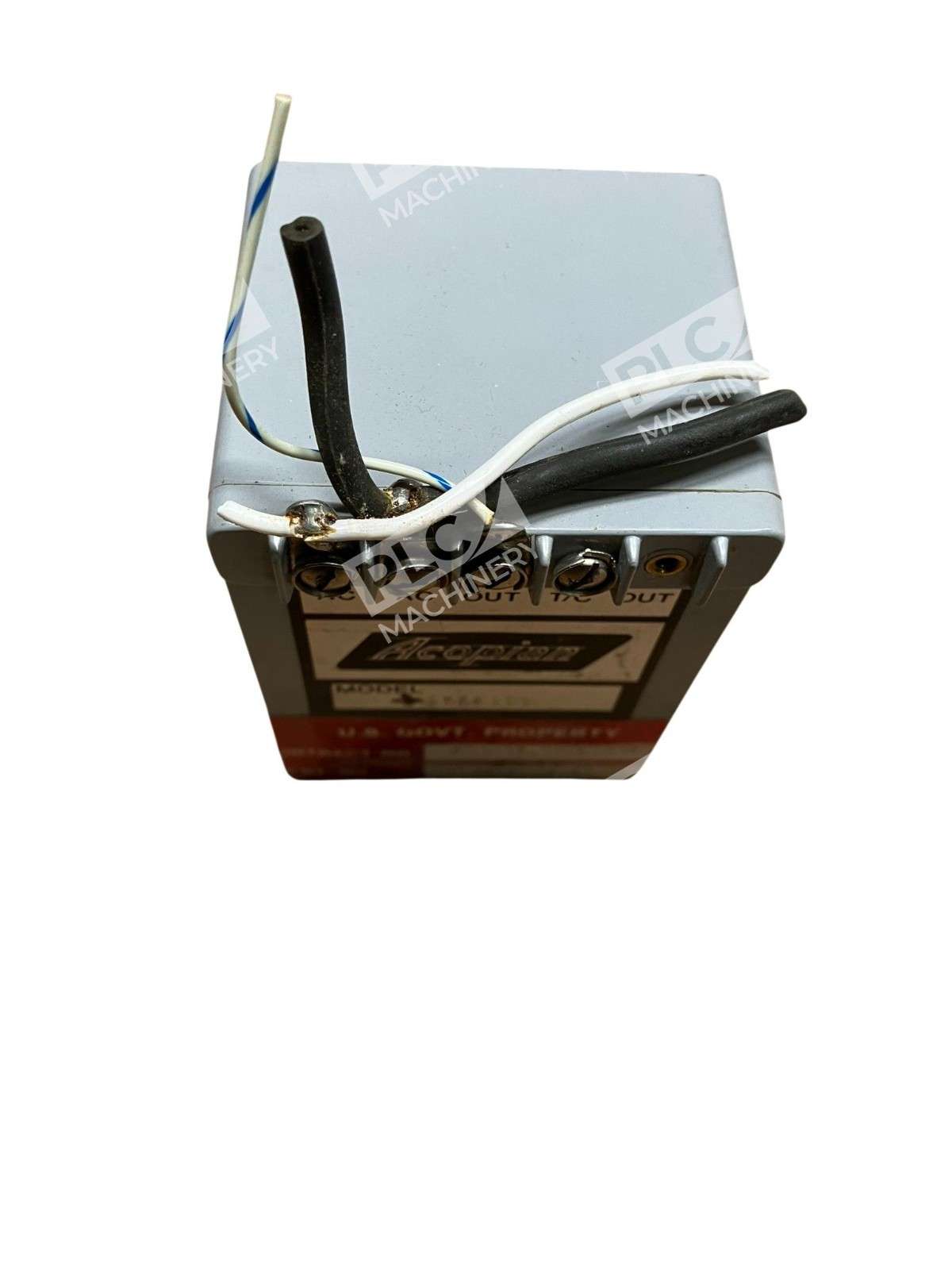

The Acopian 15EB100 is a mini-encapsulated, linear regulated AC-DC power supply designed for industrial controls, test equipment, and general-purpose applications requiring stable 15V output. This compact module delivers 1A continuous output with factory-preset accuracy and screw terminal connections for easy installation.
Key Features
- Linear regulated design for low noise and stable voltage output
- Factory-preset to ±1% accuracy; no field adjustment required
- Compact EB-20 case size with screw terminal connections
- Floating output; either terminal may be grounded or floated up to 300V
- Optional 230V input (-230 suffix) available with 2-day additional lead time
- Wide frequency tolerance: 47–420 Hz input support
Technical Specifications
- Nominal Output Voltage: 15V DC
- Output Current: 1A continuous
- Input Voltage Range: 105–125 VAC (standard); 210–250 VAC with -230 option
- Input Frequency: 47–420 Hz, single-phase
- Output Voltage Tolerance: ±1%
- Temperature Coefficient: Typically 0.015%/°C
- Operating Temperature: –20 to +71°C (no derating required)
- Storage Temperature: –55 to +85°C
- Case Size: EB-20
- Connection Type: Screw terminals
- Warranty: 1 year from date of shipment (encapsulated units)
Typical Applications
- Industrial automation and PLC power backup
- Test and measurement equipment power supply
- Control circuit and relay power modules
- Data acquisition and sensor supply systems
- General-purpose equipment requiring regulated 15V DC
Compatibility & Replacements
Compatible With
- Standard industrial control cabinets with 105–125 VAC input
- DIN rail mounting via optional EB35DIN mounting kit
- Wall-mounted installations via optional EB4A wall-mounting kit
- Equipment or systems requiring 15V DC regulated power
Replaces / Drop-In Replacement For
- Direct OEM replacement for Acopian 15EB100 units
- Verify compatibility with your system integrator before ordering for legacy equipment applications
Works With
- Industrial AC mains power systems (105–125 VAC, 50/60 Hz and other frequencies 47–420 Hz)
- Floating DC output supports custom grounding schemes
- Compatible with standard screw-terminal equipment enclosures and backplanes
