Overview

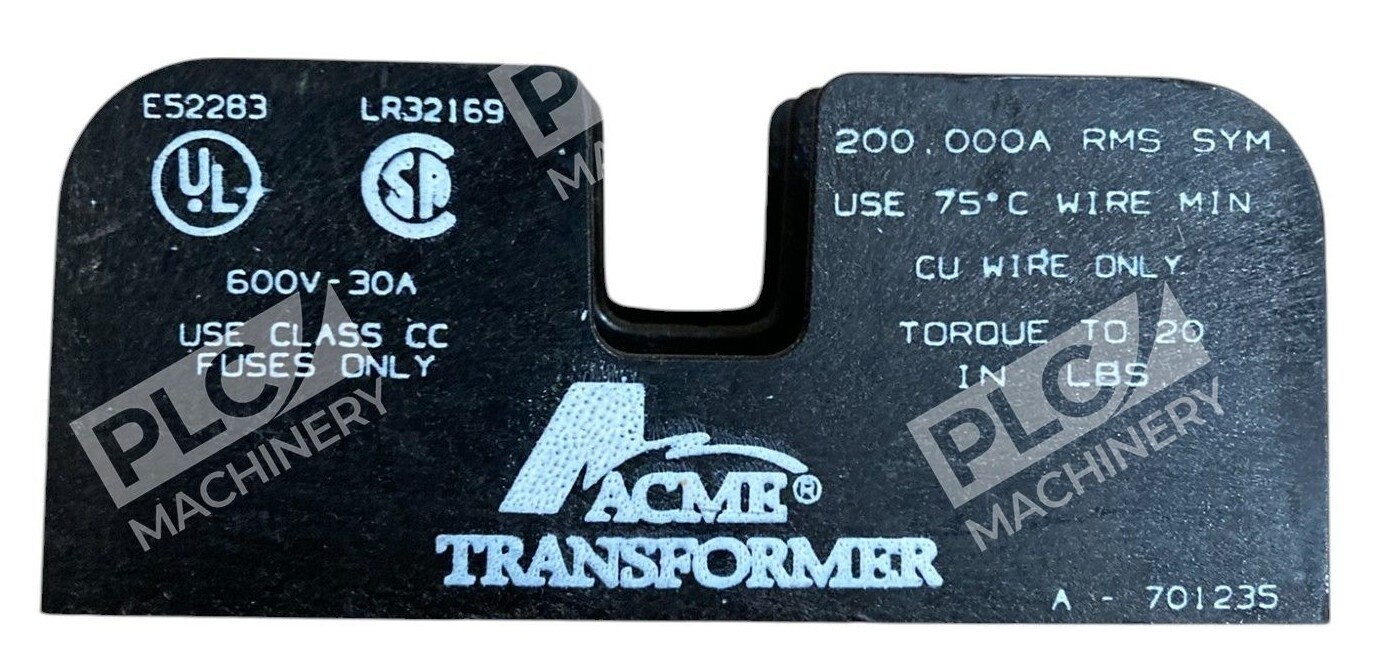

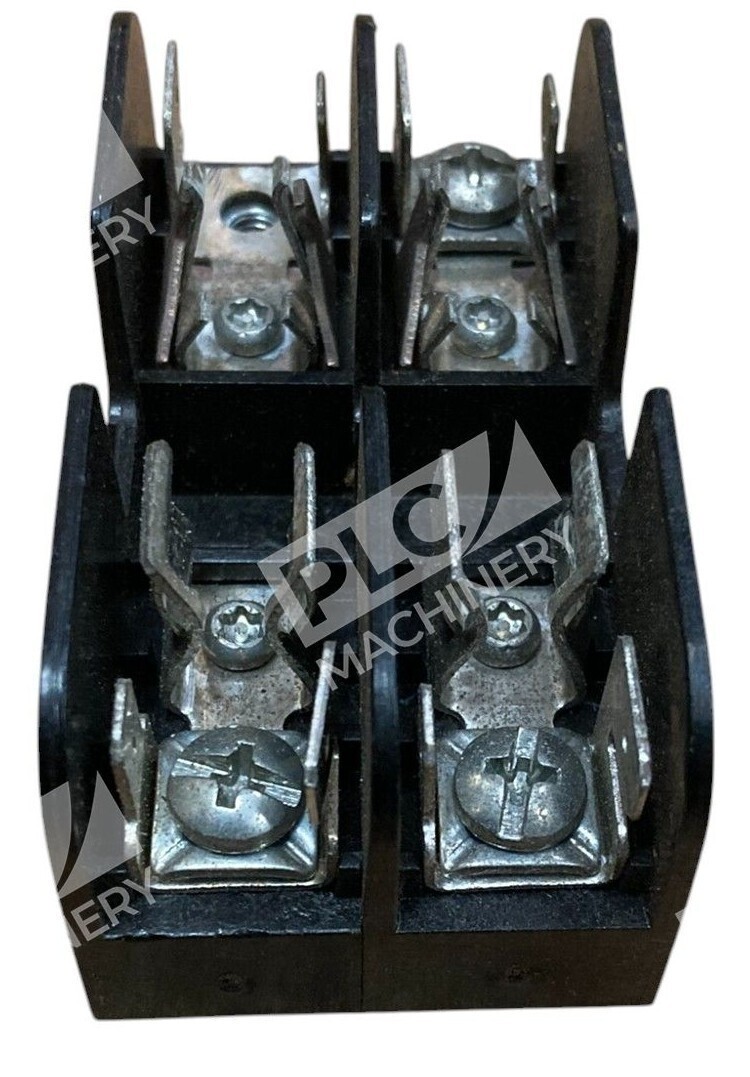

The Acme LR32169 is a proven 3-pole fuse holder assembly designed for industrial-grade electrical protection. Rated at 600V AC with a 30-amp capacity, this fuse holder provides dependable overcurrent protection in transformer circuits and control cabinets. The unit is commonly found in Acme transformer installations and serves as a drop-in replacement for equivalent equipment.
Key Features
- 3-pole configuration for three-phase or multi-circuit applications
- 600V AC voltage rating suitable for high-voltage industrial circuits
- 30-amp current rating for medium-load protection
- Compact, durable construction built for reliable long-term operation
- Compatible with standard 10 x 38mm cartridge fuses
Technical Specifications
- Manufacturer: Acme Transformer
- Model Number: LR32169
- Voltage Rating: 600V AC
- Current Rating: 30A
- Pole Configuration: 3-pole
- Fuse Type: 10 x 38mm cartridge (ferrule)
- Weight: Approximately 2 lbs
- Application: Transformer primary circuit protection, control panel fusing
Typical Applications
- Acme transformer primary circuit protection
- Industrial control cabinet overcurrent protection
- Three-phase circuit fusing in motor control centers
- Equipment manufacturer original fuse holder assemblies
- Retrofit and replacement installations in legacy electrical systems
Compatibility & Replacements
Compatible With
- Acme Transformer three-phase power supplies
- Industrial control systems rated 600V AC
- Transformer primary winding protection circuits
- Standard 10 x 38mm cartridge fuse installations
- Three-phase electrical distribution panels
Replaces / Drop-In Replacement For
- Original equipment Acme fuse holder assemblies in transformer applications
- Equivalent 3-pole 30A 600V fuse holders from legacy equipment
Works With
- 10 x 38mm AC cartridge fuses rated 600V
- Standard fuse clips and mounting hardware
- Industrial electrical wiring and termination standards
