Overview

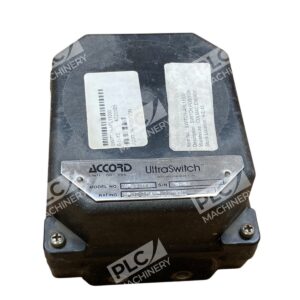

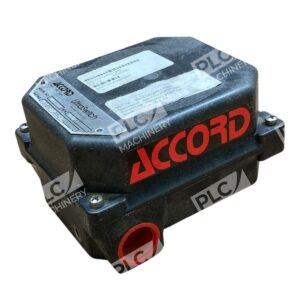

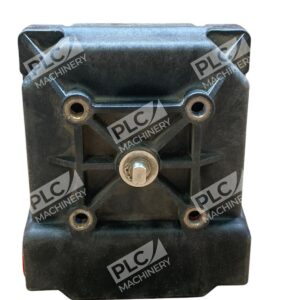

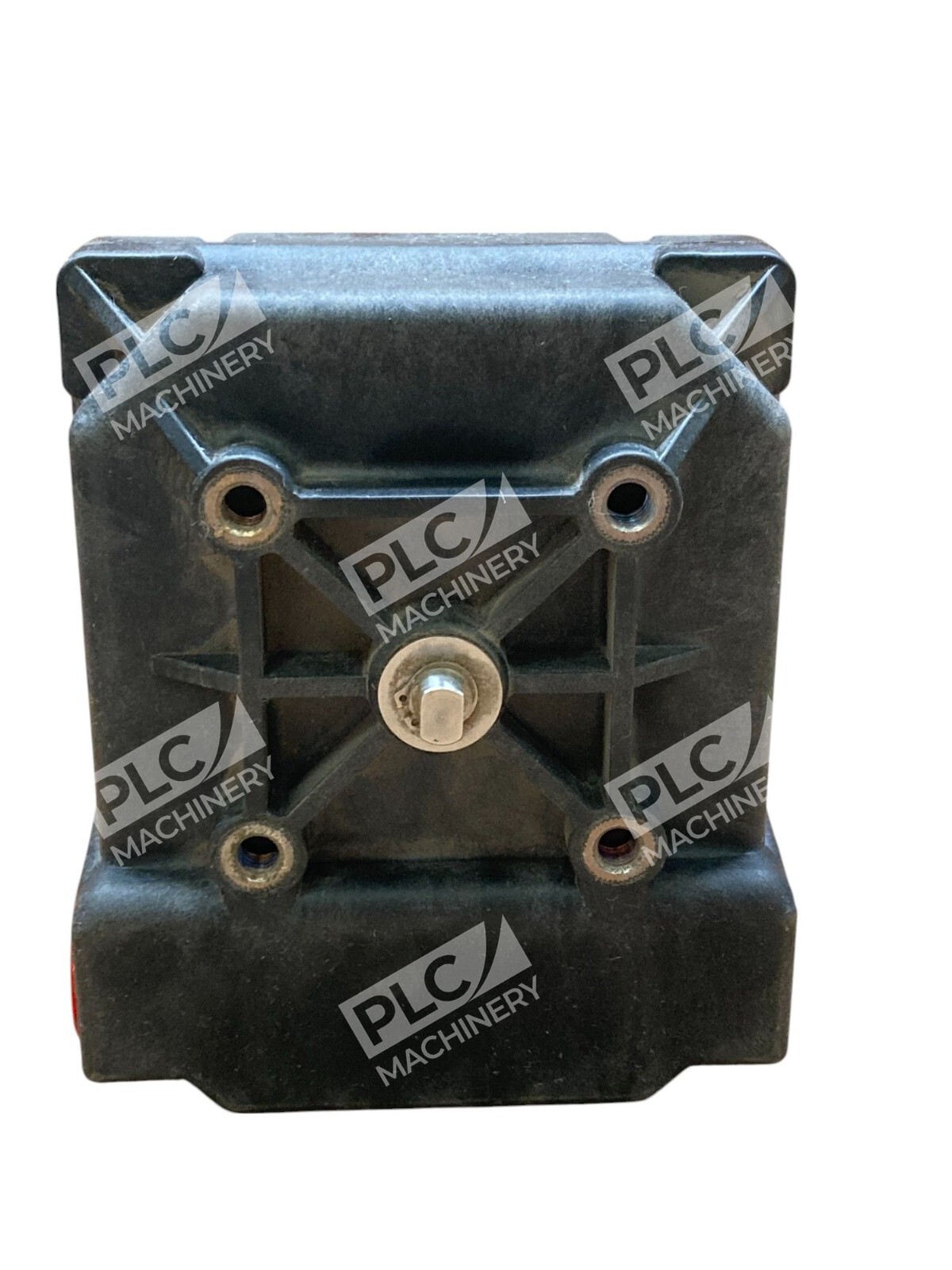

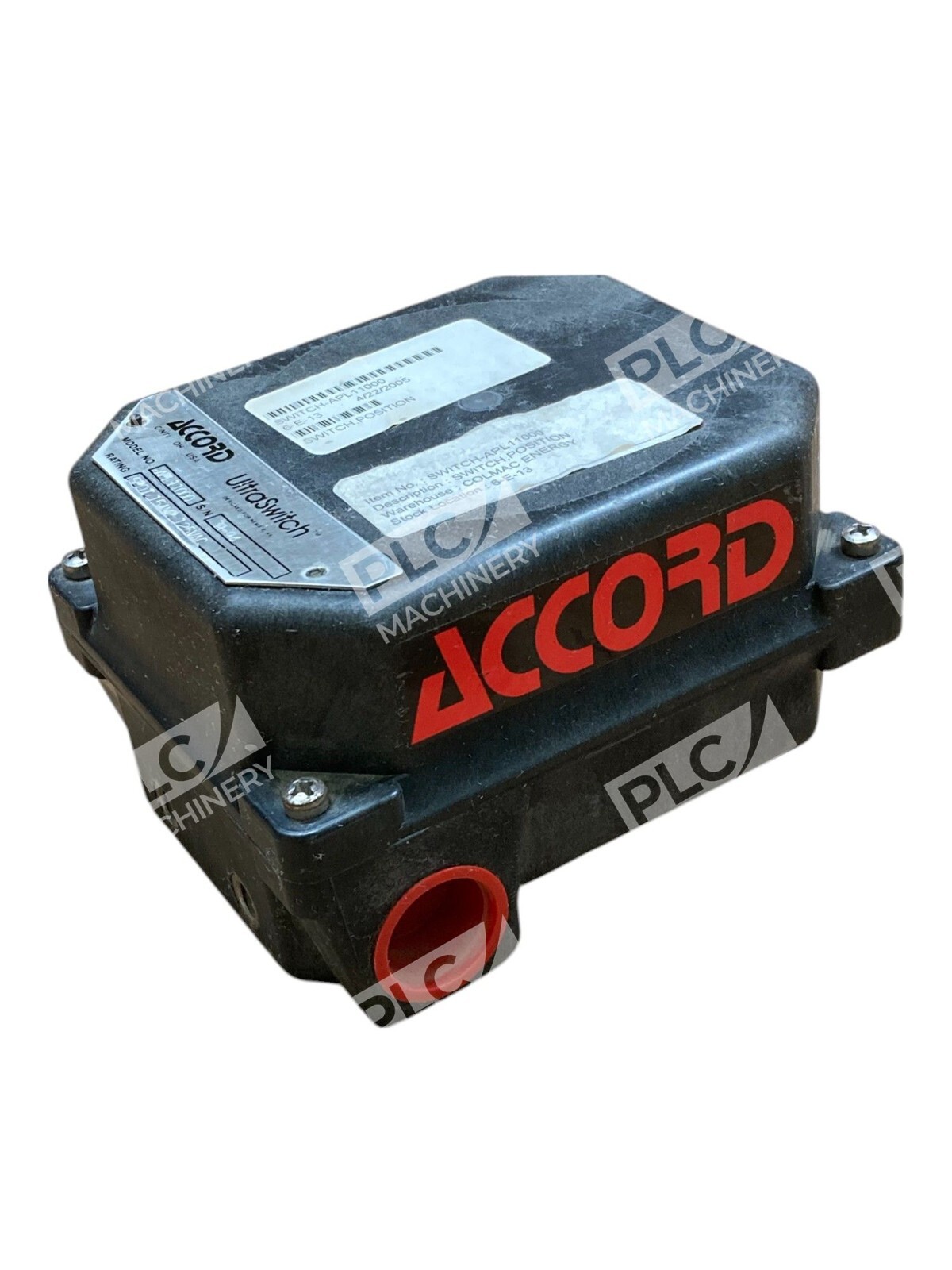

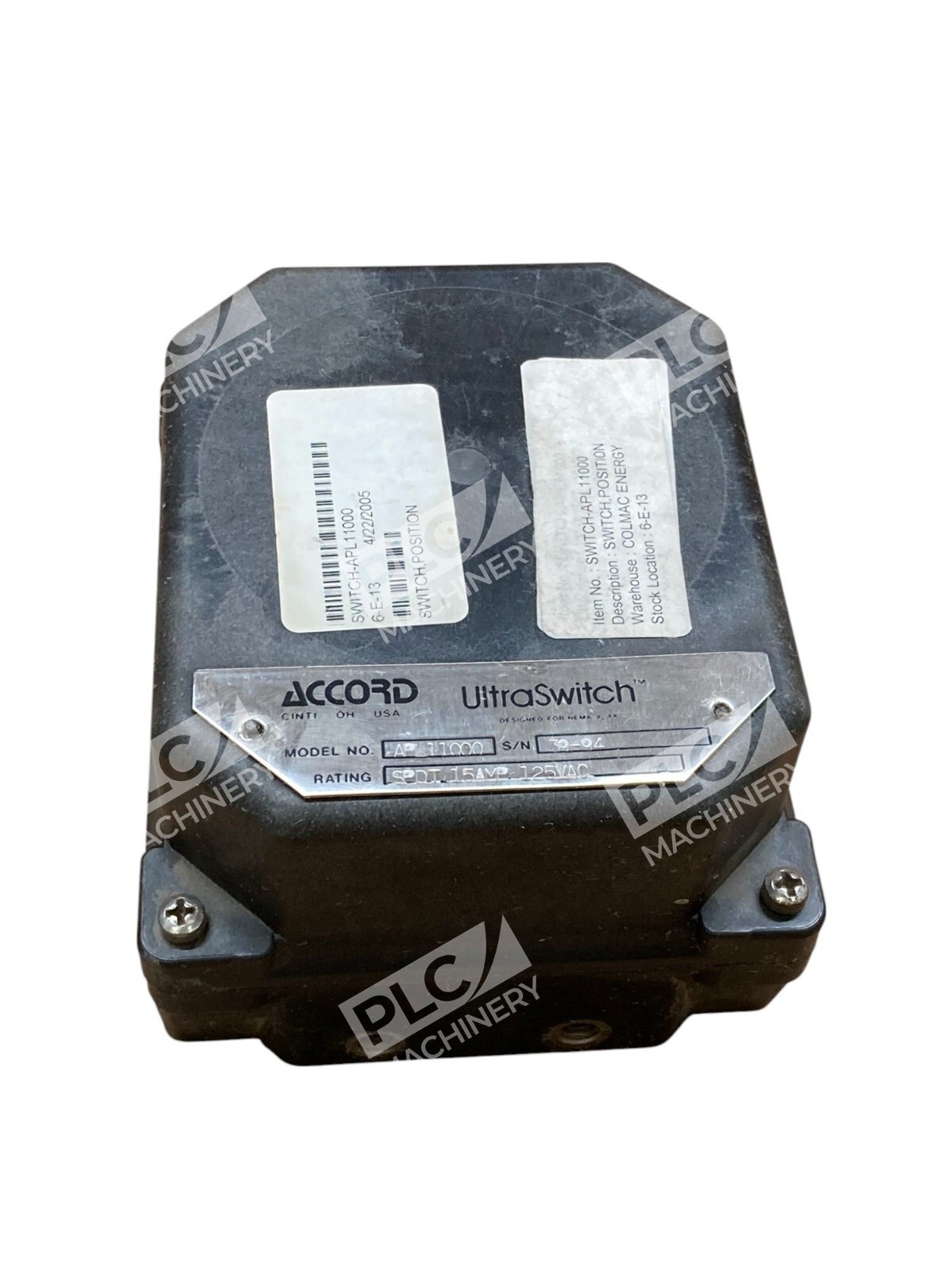

The Accord APL11000 is a Single Pole, Double Throw (SPDT) position switch from the UltraSwitch series, engineered to provide accurate and cost-efficient position signaling in industrial control applications. Rated for 15 amps at 125 volts AC, the APL11000 delivers reliable mechanical switching suitable for valve positioners, pump controllers, damper actuators, and equipment status indication across a wide range of machinery.
Key Features
- SPDT (Single Pole, Double Throw) configuration for flexible contact logic
- Rated 15A at 125VAC for general industrial control circuits
- Cost-efficient, accurate and reliable position signaling
- Mechanical switch design suitable for mounting on rotary actuators and positioners
- Compact form factor for integration into confined spaces
- Proven performance across chemical, petrochemical, and utility industries
Technical Specifications

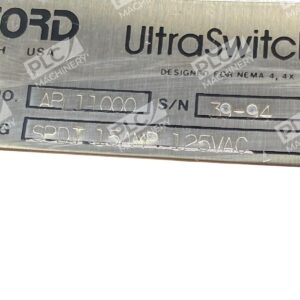

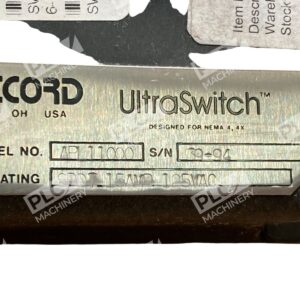

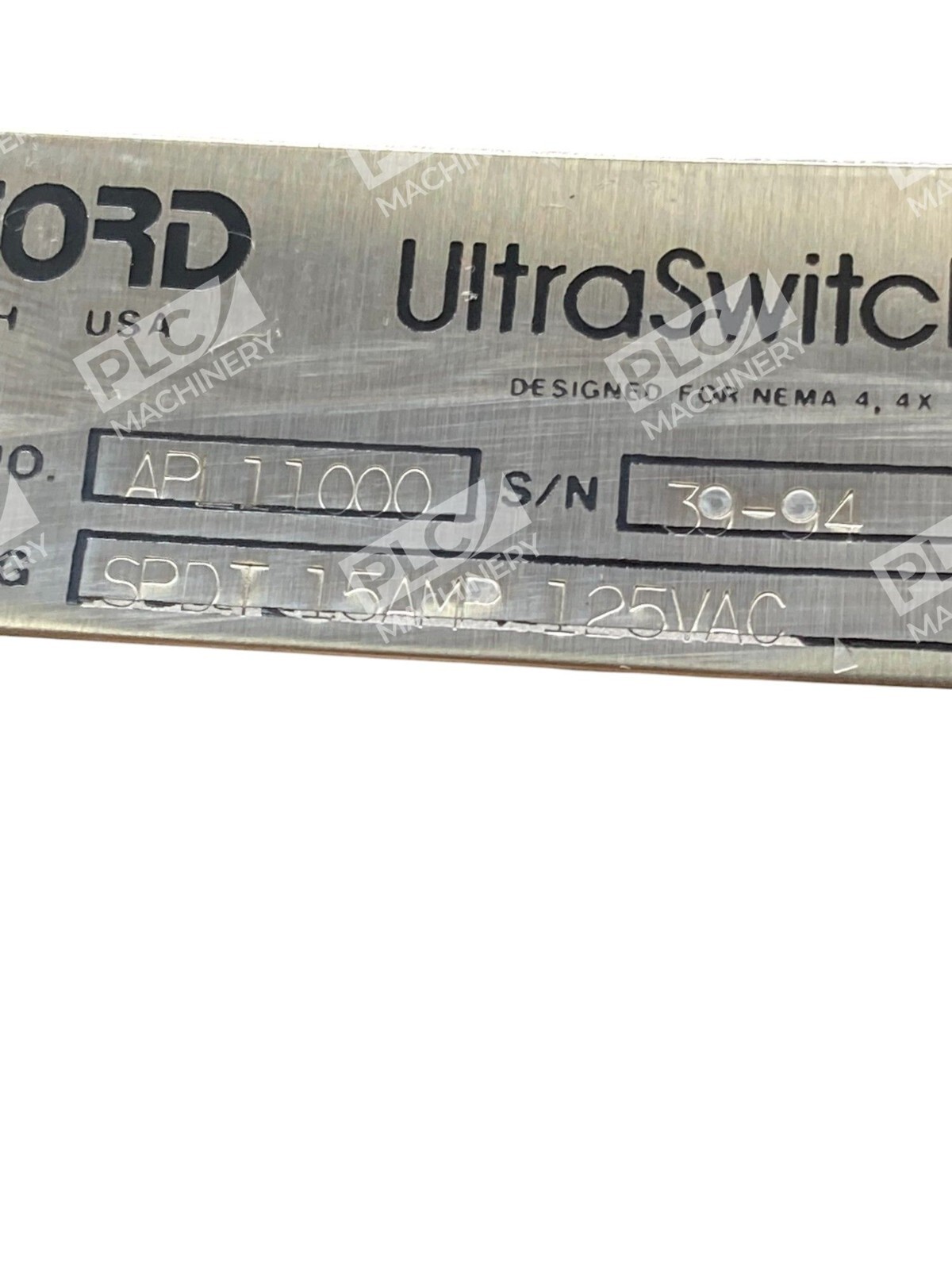

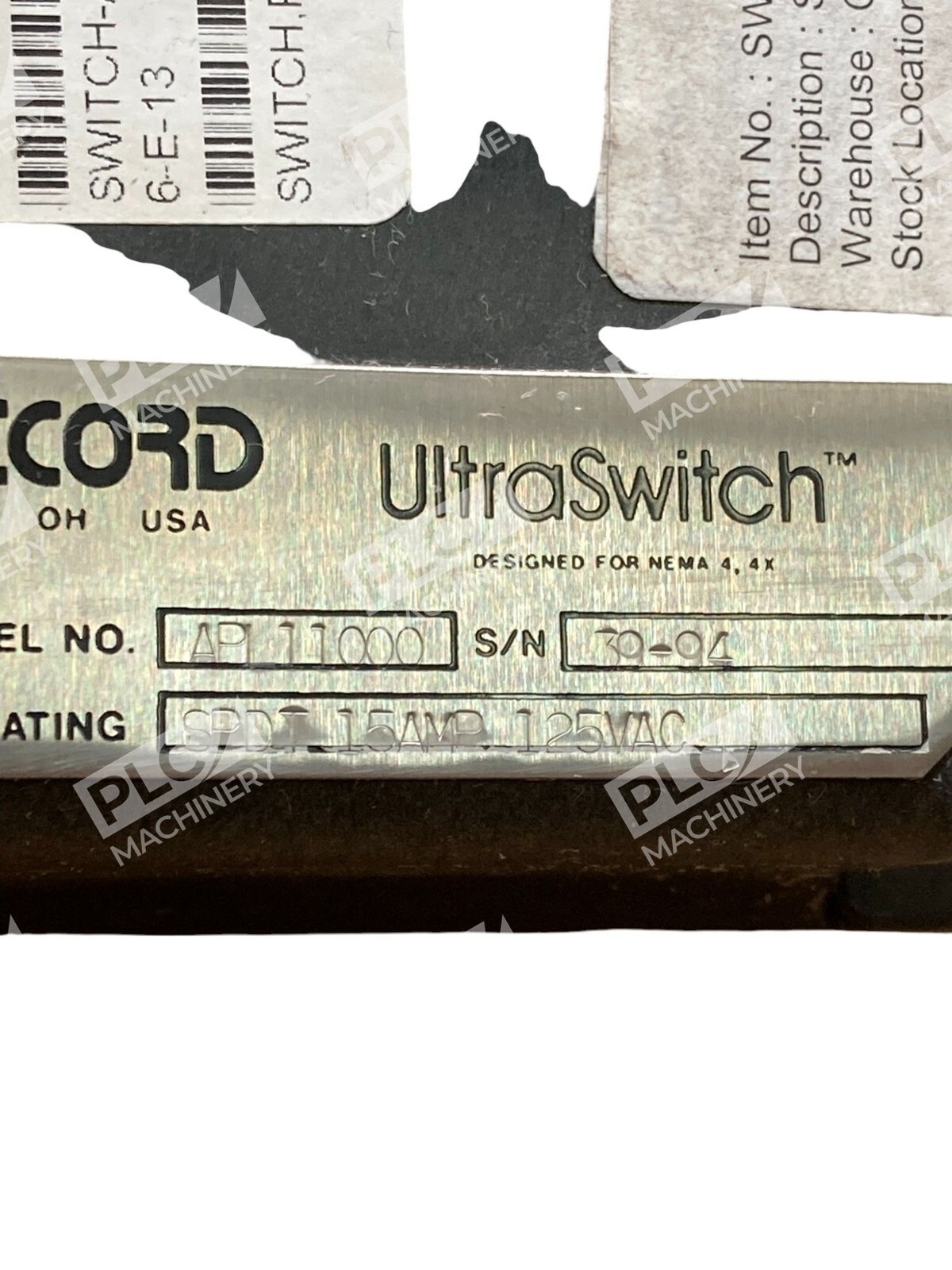

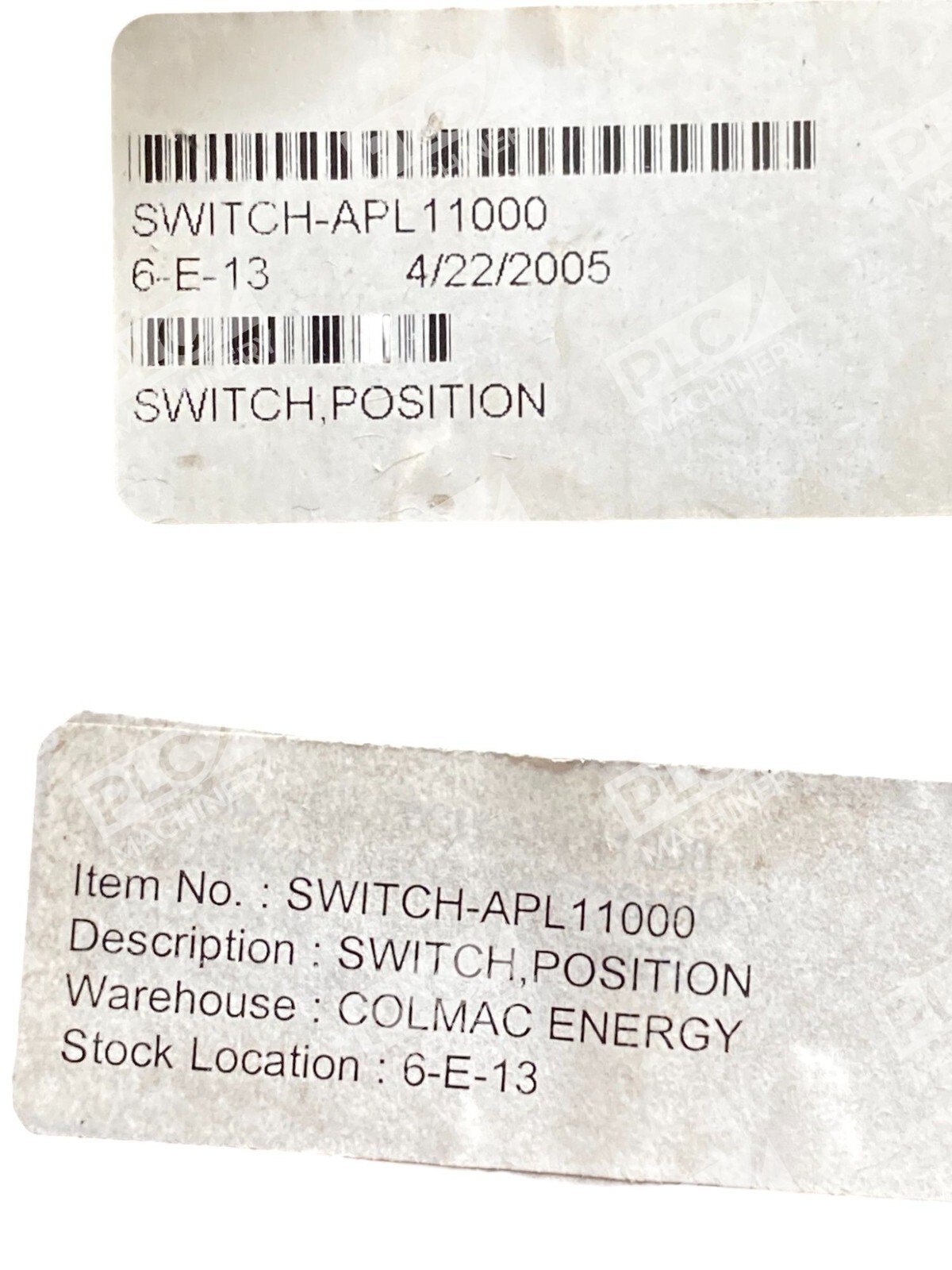

- Part Number: APL11000
- Contact Configuration: SPDT (Single Pole, Double Throw)
- Voltage Rating: 125 VAC
- Current Rating: 15 Amps
- Switch Type: Mechanical
- Series: Accord UltraSwitch
- Manufacturer: Accord Controls (Flowserve)
- Application: Rotary position indication and control signaling
Typical Applications
- Valve positioner limit switch monitoring
- Actuator position feedback signaling
- Pump and motor status indication
- Damper and louver position control
- Equipment on/off status confirmation
- Industrial control panel switch applications
Compatibility & Replacements
Compatible With
- Accord rotary actuators and positioners
- Flowserve control valve systems
- NAMUR-compliant valve mounting interfaces
- Standard 125VAC industrial control circuits
- PLC and control system discrete input modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Accord APL series switches share electrical ratings with other SPDT 15A 125VAC industrial limit switches; however, mechanical and mounting compatibility should be confirmed against your original equipment documentation.
Works With
- Flowserve Apex positioners
- Flowserve Logix digital positioners
- Standard industrial PLC discrete input cards
- Relay control circuits and motor starters
- SCADA and automation system signal inputs
