Overview
The ABB NPBA-02 Profibus adapter module is a specialized fieldbus communication device designed to bridge ABB industrial drives with PROFIBUS DP networks. This compact module provides reliable, deterministic communication for process automation, motor control, and drive management applications. Used by controls engineers and integrators worldwide, the NPBA-02 delivers proven performance in demanding industrial environments.
Key Features
- PROFIBUS DP-V0 and DP-V1 protocol support for flexible network configurations
- Compact form factor (100 × 70 × 30 mm) for space-constrained installations
- High-speed data transfer at up to 12 Mbps for real-time control applications
- Supports cyclic and acyclic communication for parameter access and drive diagnostics
- 24V DC power supply for integration with standard industrial control systems
- Lightweight design (approximately 150g) for easy mounting and installation
Technical Specifications
- Communication Protocol: PROFIBUS DP (Decentralized Peripherals)
- Data Transfer Rate: Up to 12 Mbps

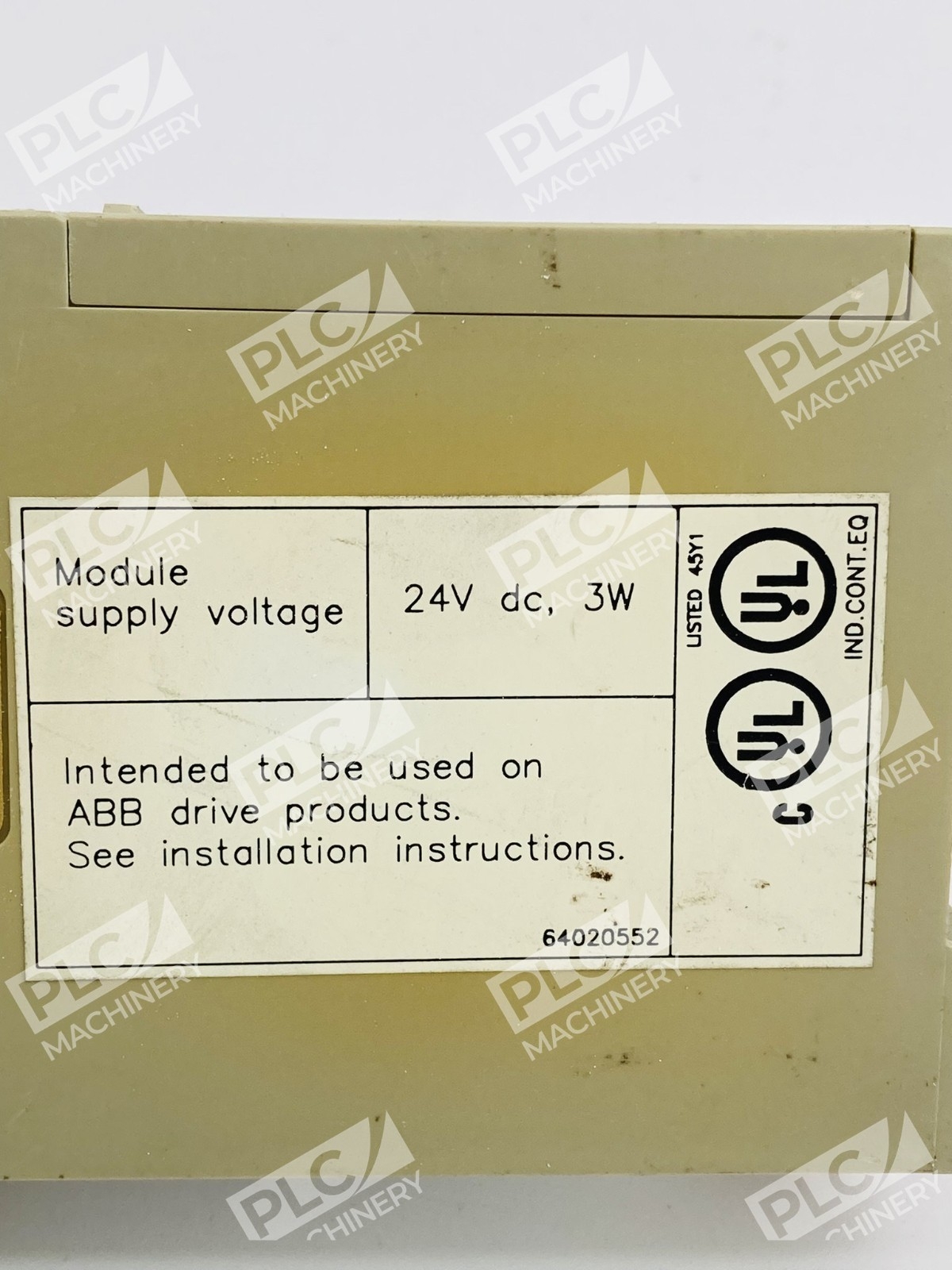

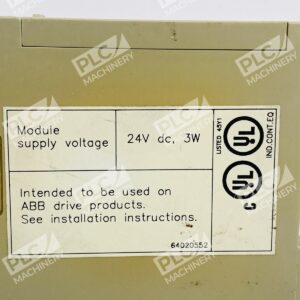

- Power Supply: 24V DC
- Dimensions: 100 mm (L) × 70 mm (W) × 30 mm (H)
- Weight: Approximately 150 grams
- Operating Condition: Used, Tested, Fully Functional
- Compatible Protocols: PROFIBUS DP-V0, DP-V1
- Module Type: Fieldbus Communication Adapter
Typical Applications
- ABB AC/DC drive integration into PROFIBUS networks
- Process automation systems requiring fieldbus control
- Motor speed control and parameter management via PLC
- Manufacturing equipment requiring deterministic communication
- Oil, gas, chemical, and pharmaceutical plant automation
- Conveyor and material handling system control
- HVAC and water management system drives
Compatibility & Replacements
Compatible With
- ABB ACS 600 Series drives
- ABB DCS 400, 500B, 600 DC drives
- PROFIBUS DP master stations and PLC controllers
- Industrial control systems supporting PROFIBUS DP-V0/DP-V1
- Standard 24V DC power supplies
- PROFIBUS-certified cabling and network infrastructure
Replaces / Drop-In Replacement For
- NPBA-02 (standard model)
- Legacy PROFIBUS adapter configurations in ABB drive systems
Works With
- PROFIBUS DP communication protocol
- ABB drive engineering software and parameter tools
- GSD (Generic Station Description) files for PROFIBUS configuration
- Standard PROFIBUS twisted-pair cabling (RS-485)
- PLC configuration software supporting PROFIBUS DP
- Drive control panels and monitoring systems
