Overview
The ABB 1SVR440611R0300 LM002 AC010 logic module is a compact programmable controller designed for industrial automation and control tasks. As a replacement for traditional relay logic wiring, the AC010 offers flexible logic control in a space-efficient format. It delivers reliable performance in small to medium-sized automation systems where cost-effective, modular control is required.
Key Features
- Expandable I/O Architecture: AC010 12/6-8 I/O modules expand easily on local and remote levels, allowing configurations up to 24 digital inputs and 16 outputs
- Mixed Output Types: Supports both relay outputs (up to 8A maximum) and 0.5A transistor outputs for diverse load switching
- Logic Functions: Includes logical combinations, time functions, counting, time control with week scheduling, and comparison functions
- Safety Isolation: Designed with safe isolation per EN 50178 for enhanced operator protection
- Easy Integration: Compact form factor replaces hardwired control panels with programmable automation
Technical Specifications
- Module Type: Logic Module (LM002)
- Controller Series: AC010
- Digital Inputs: Up to 24 (expandable)
- Digital Outputs: Up to 16 (expandable)
- Relay Output Current: 8A maximum
- Transistor Output Current: 0.5A maximum
- Analog Inputs: 2 analog inputs supported
- Safety Standard: EN 50178

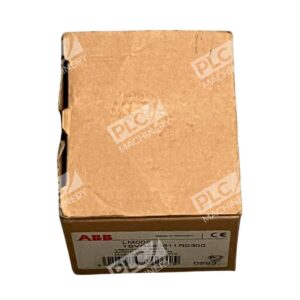

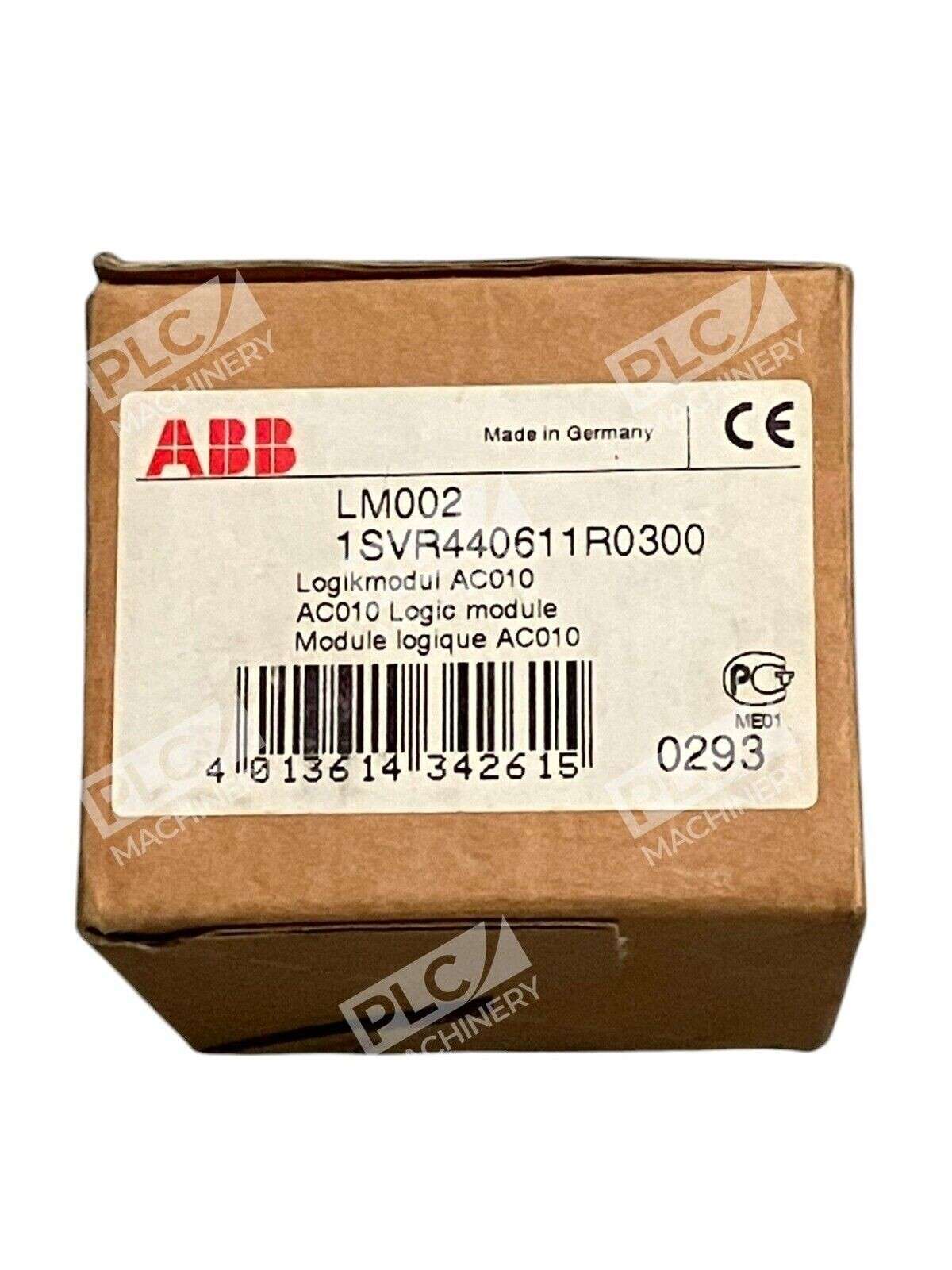

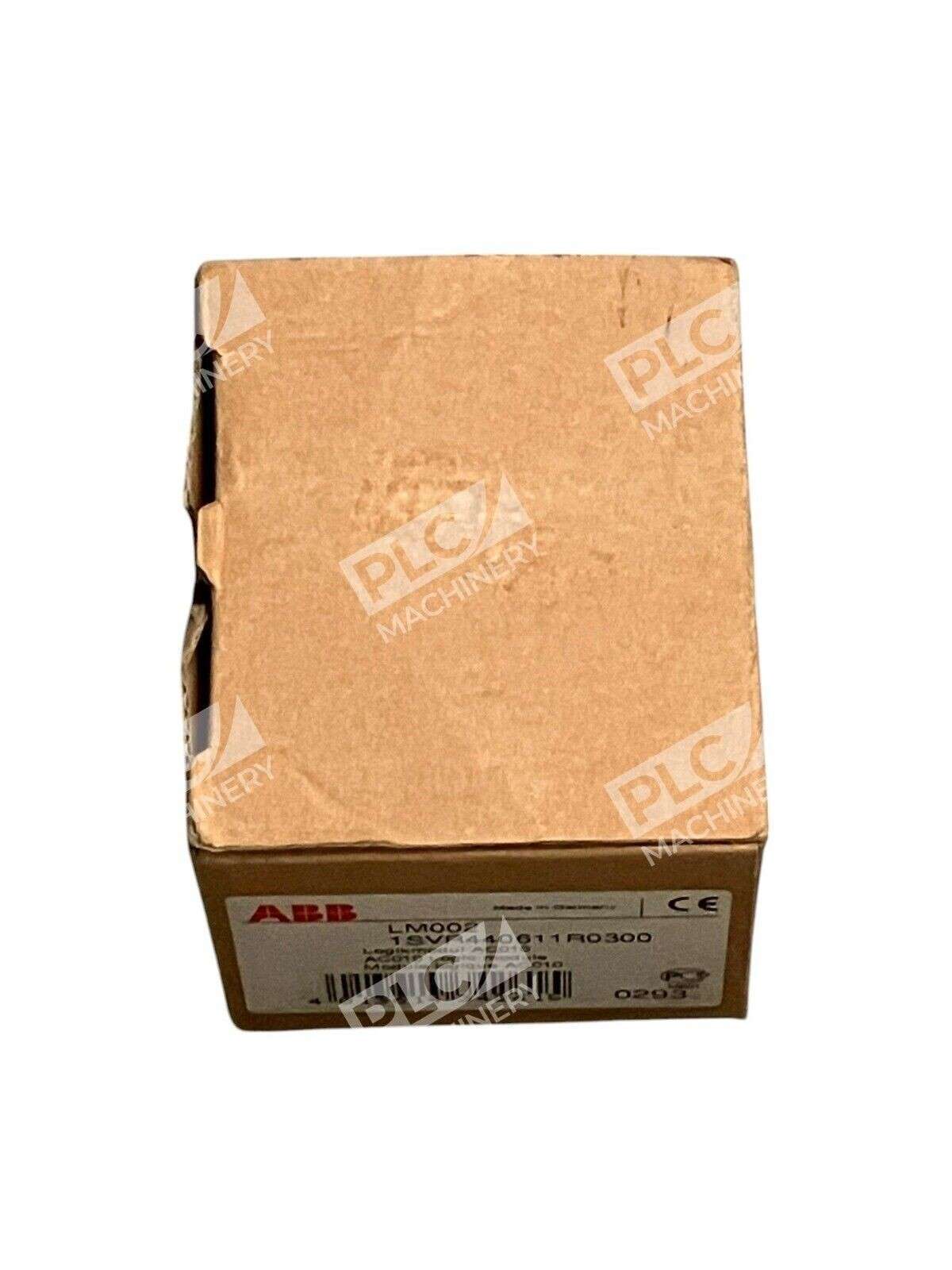

- Condition: New in Box
Typical Applications
The ABB LM002 AC010 is well-suited for:
- Small to medium industrial process control
- Machine automation and sequencing
- Building automation and HVAC control
- Pump and motor control systems
- Logic replacement for legacy relay panels
- Time-based scheduling and counting operations
Compatibility & Replacements
The ABB LM002 AC010 is part of ABB’s logic module family and serves as a modern replacement for traditional hardwired logic relay panels. The module integrates seamlessly into systems requiring modular, expandable control. When planning replacements or upgrades, consult ABB’s compatibility matrix and the specific system documentation to ensure proper integration with existing I/O modules and expansion cards. OEM part number 1SVR440611R0300 ensures authentic ABB quality and warranty compliance.
