Overview

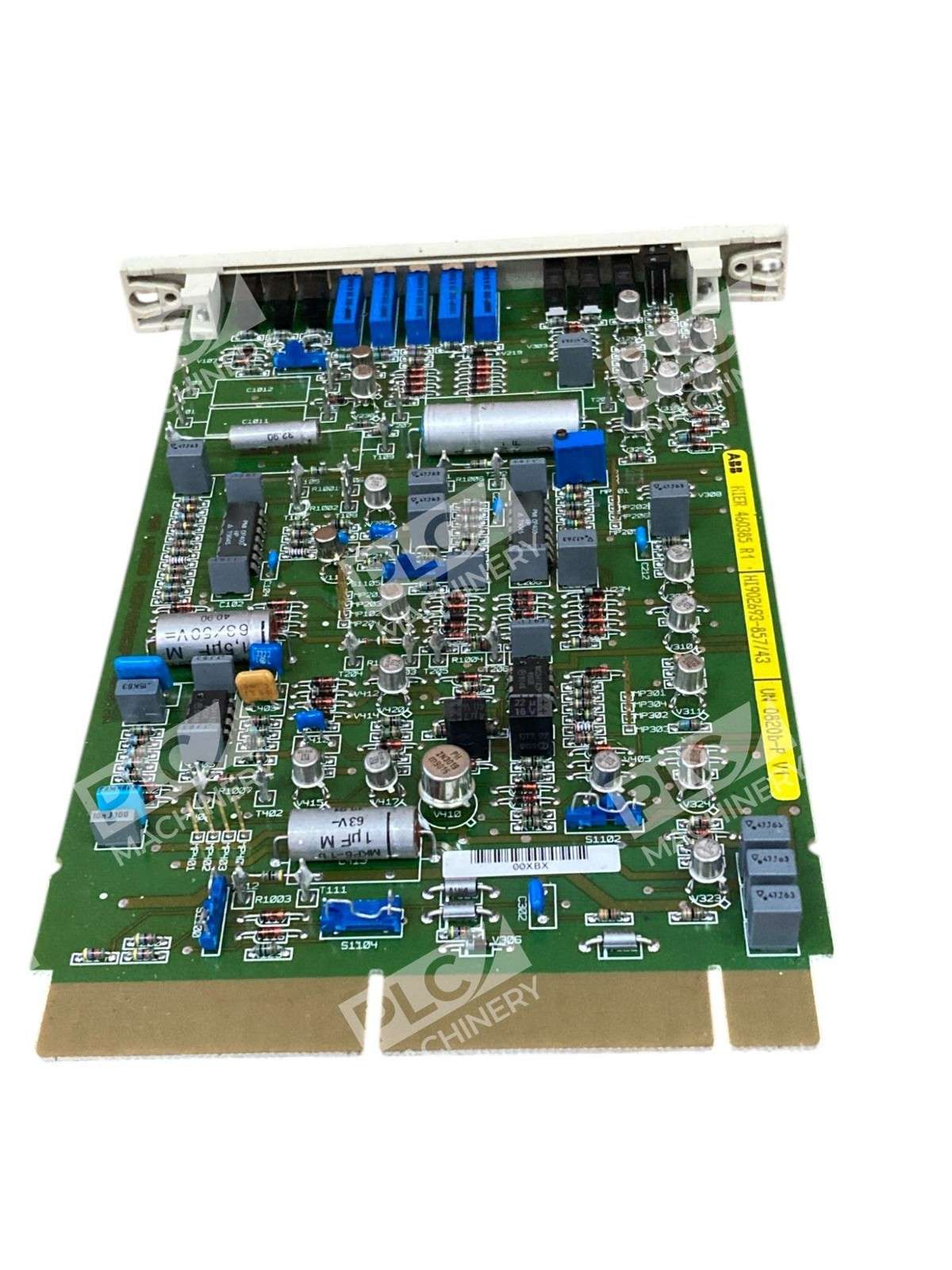

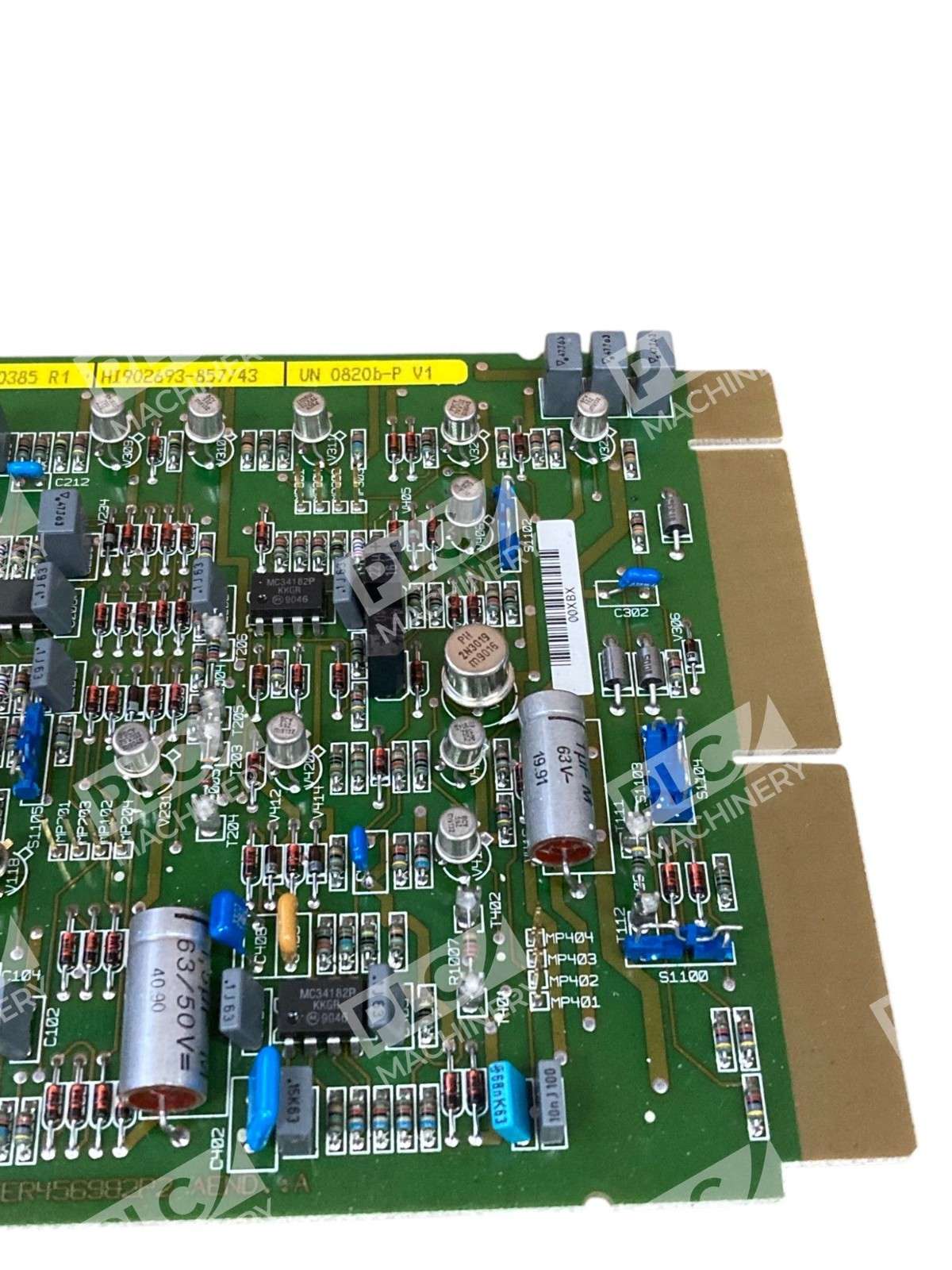

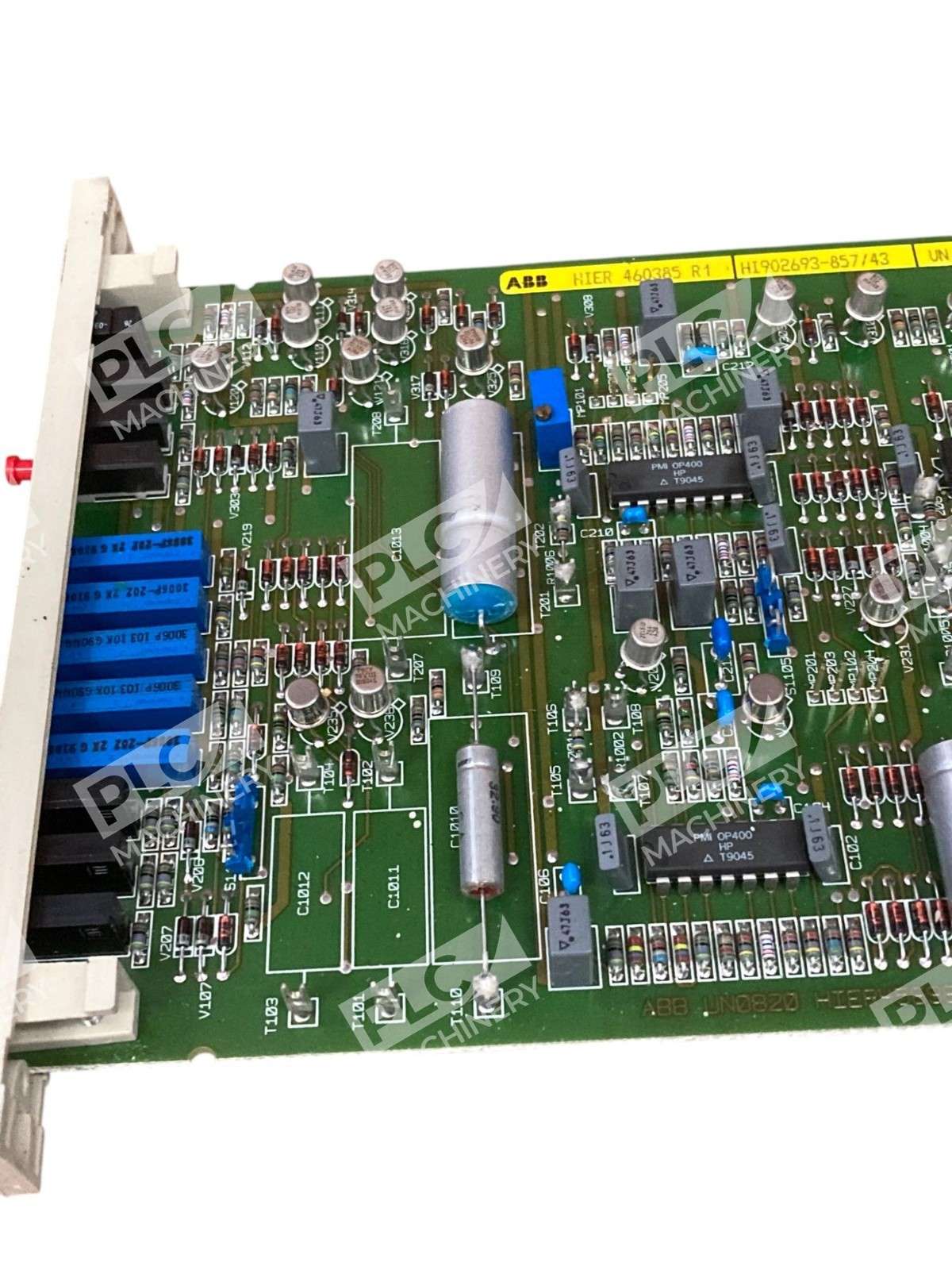

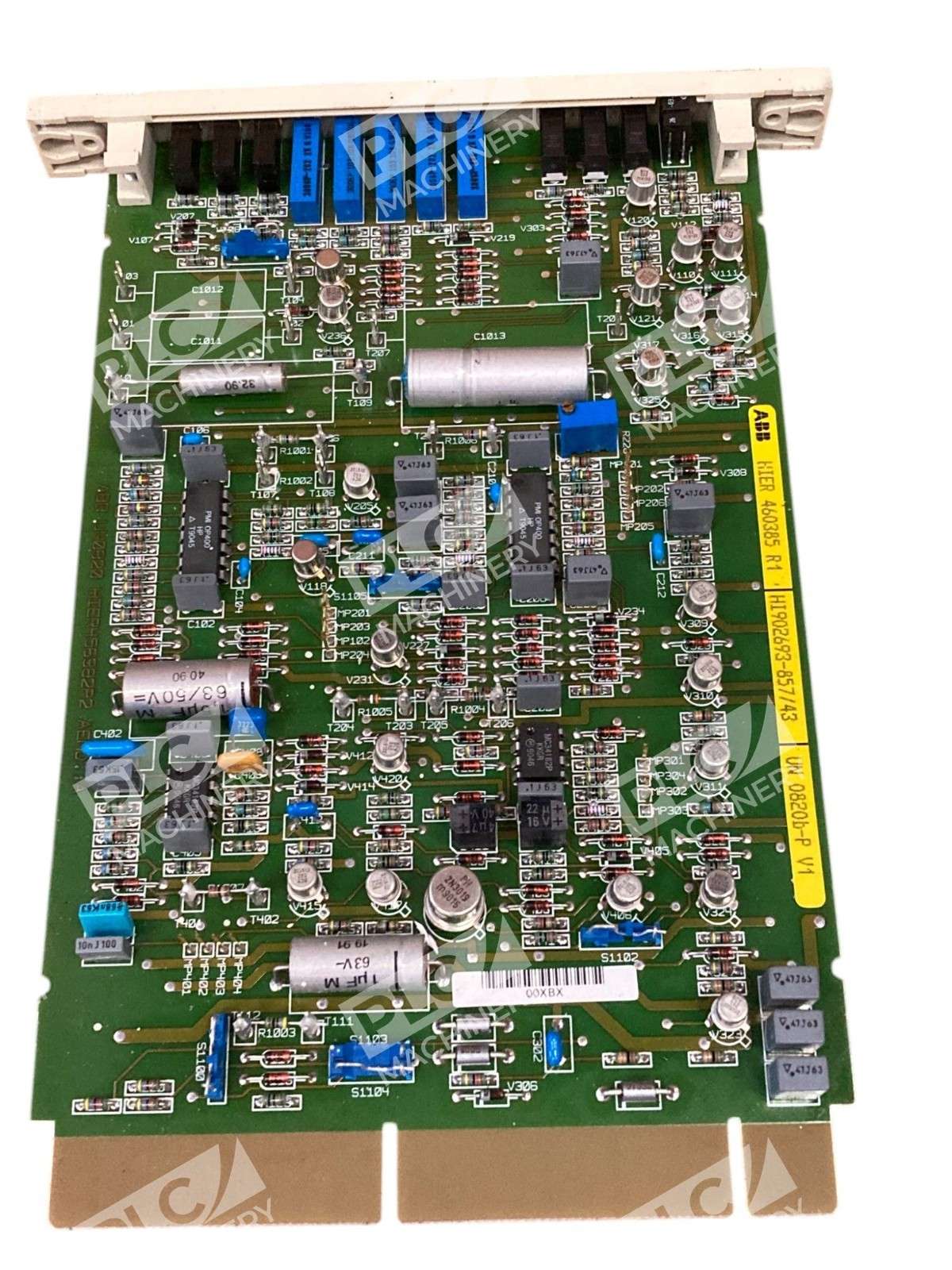

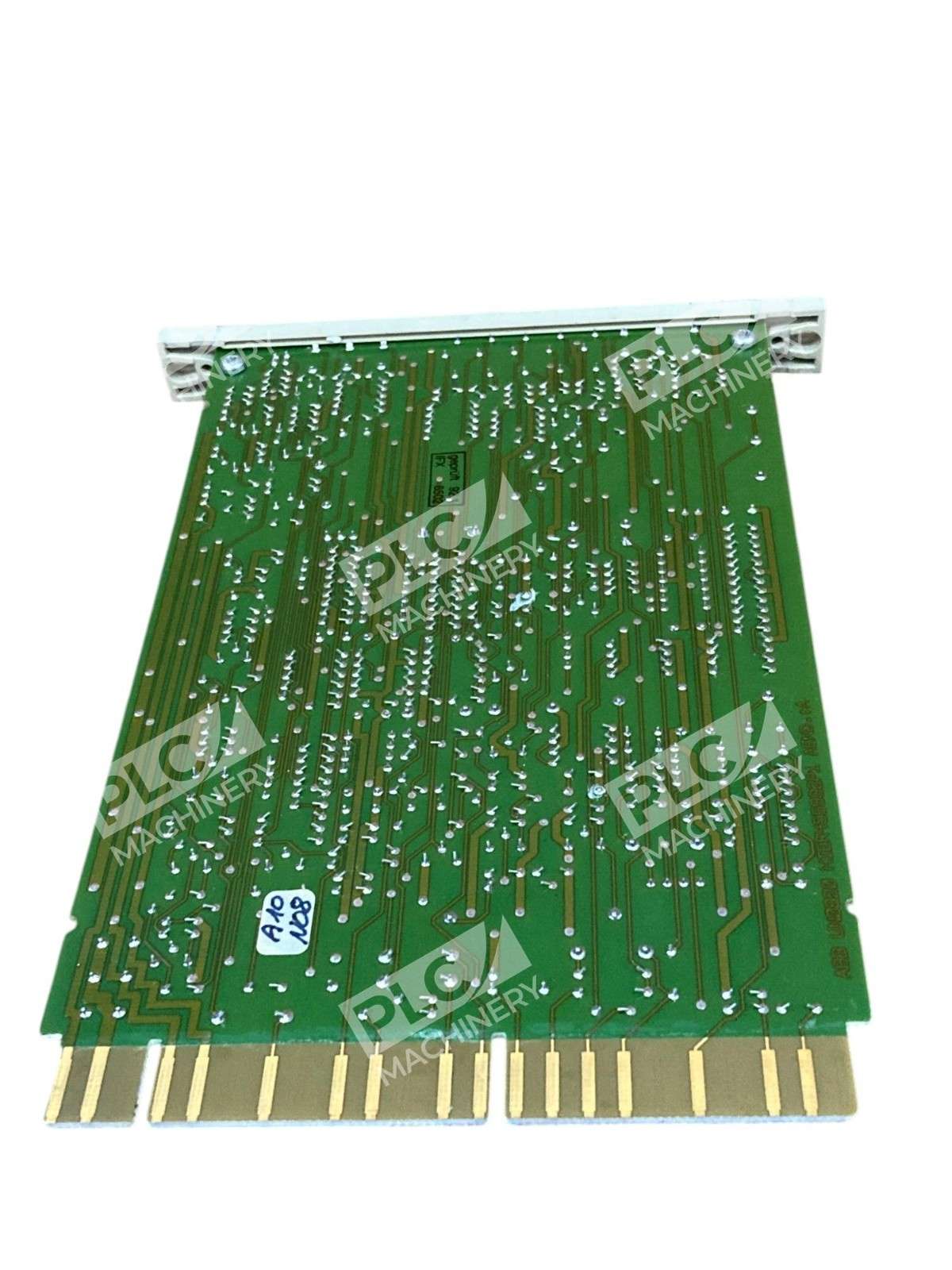

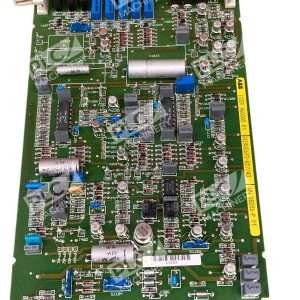

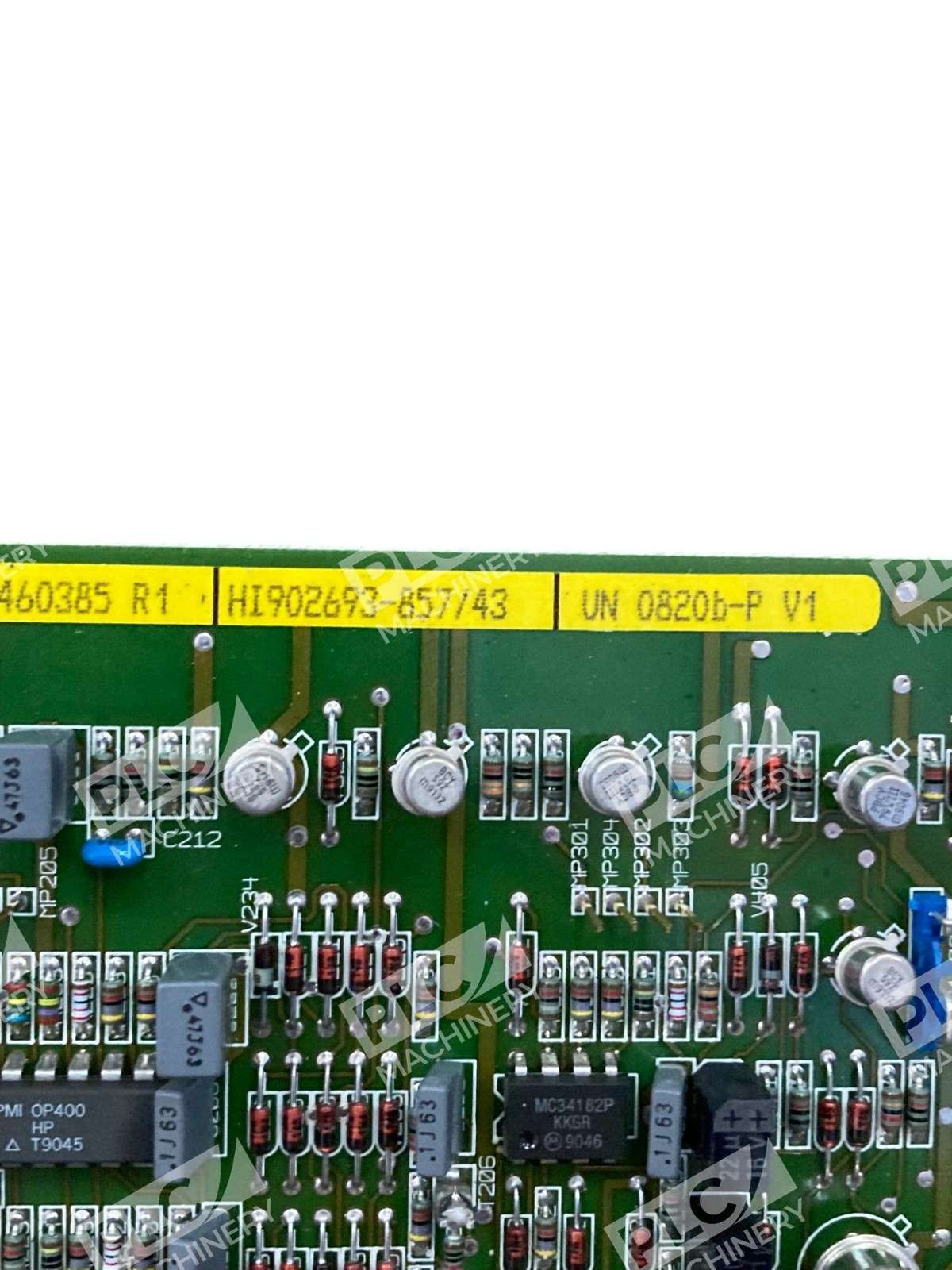

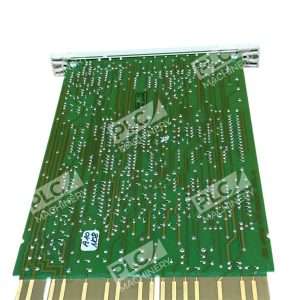

The ABB HIER 460385 R1 chopper control board is a specialized component designed to manage dynamic braking and energy dissipation in industrial drives and motion control systems. This control board regulates the DC link voltage during deceleration events by conducting excess energy to an external brake resistor, protecting the drive and extending component lifespan. The R1 frame designation indicates compatibility with smaller-frame industrial drive applications.
Key Features
- Dynamic braking energy management for AC and DC drive systems
- DC link voltage regulation and overvoltage protection
- Precise chopper switching control for efficient energy dissipation
- Frame R1 designation for compact industrial applications
- Designed for integration with ABB drive systems and external resistor networks
- Robust design for continuous industrial operation
Technical Specifications
The HIER 460385 R1 operates as a brake chopper module controlling semiconductor switching devices to manage power dissipation during regenerative braking cycles. The board integrates gate drive circuitry and protection features typical of ABB motion control architectures. Specific operating parameters and switching frequencies are configured for R1-frame drive compatibility.
Typical Applications
- Industrial machinery requiring dynamic braking (cranes, hoists, conveyors)
- Motion control systems with frequent deceleration cycles
- ABB ACS series general-purpose and compact drives (ACS380, ACS480, ACS550)
- Material handling equipment with regenerative load conditions
- Automation systems requiring energy recovery and safe braking
Compatibility & Replacements
The HIER 460385 R1 is used in ABB R1-frame drive systems requiring external or modular braking chopper functionality. Compatible replacement boards include other ABB chopper modules designed for similar frame sizes and voltage classes. Verify mounting compatibility and connector specifications with your drive documentation before installation. For systems requiring upgraded braking capacity, ABB offers alternative chopper configurations for larger frame sizes (R2, R3, etc.). Always consult with technical support to confirm functional equivalence and system compatibility before substitution.
