Overview

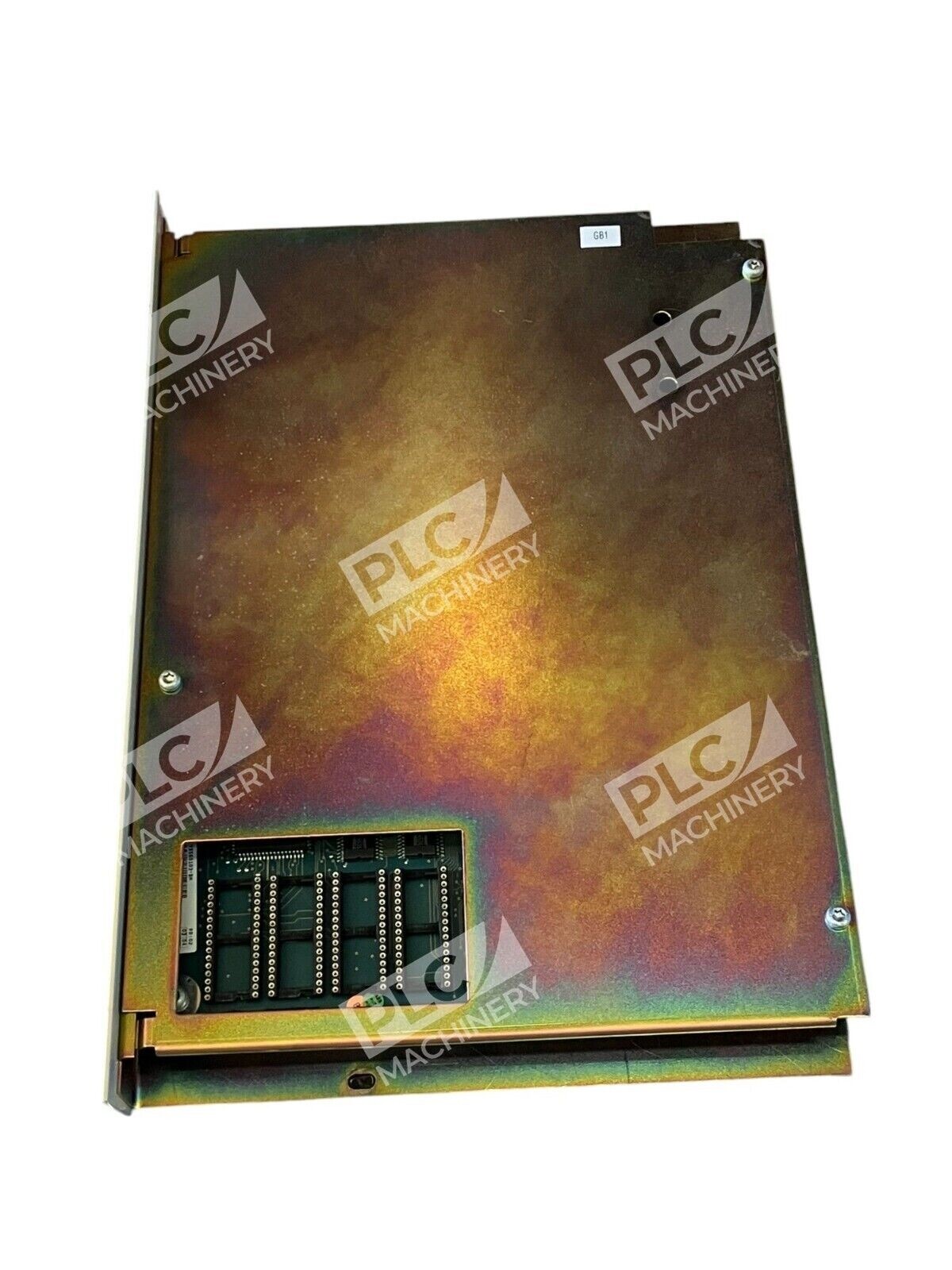

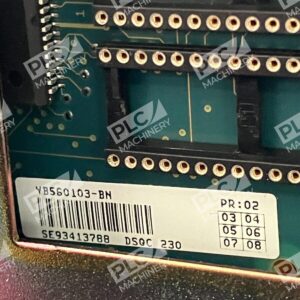

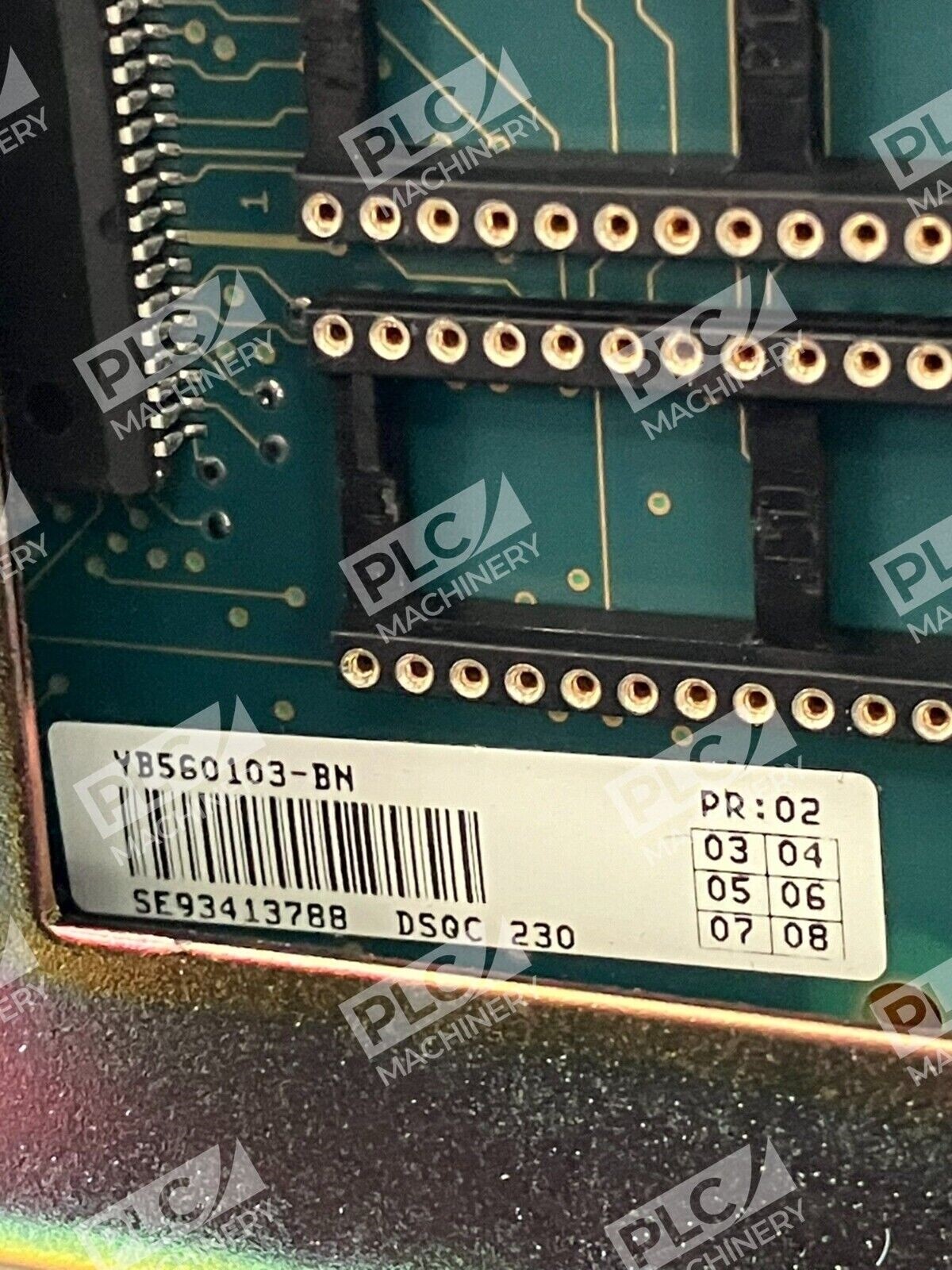

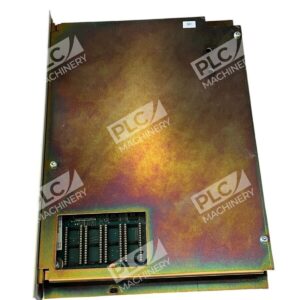

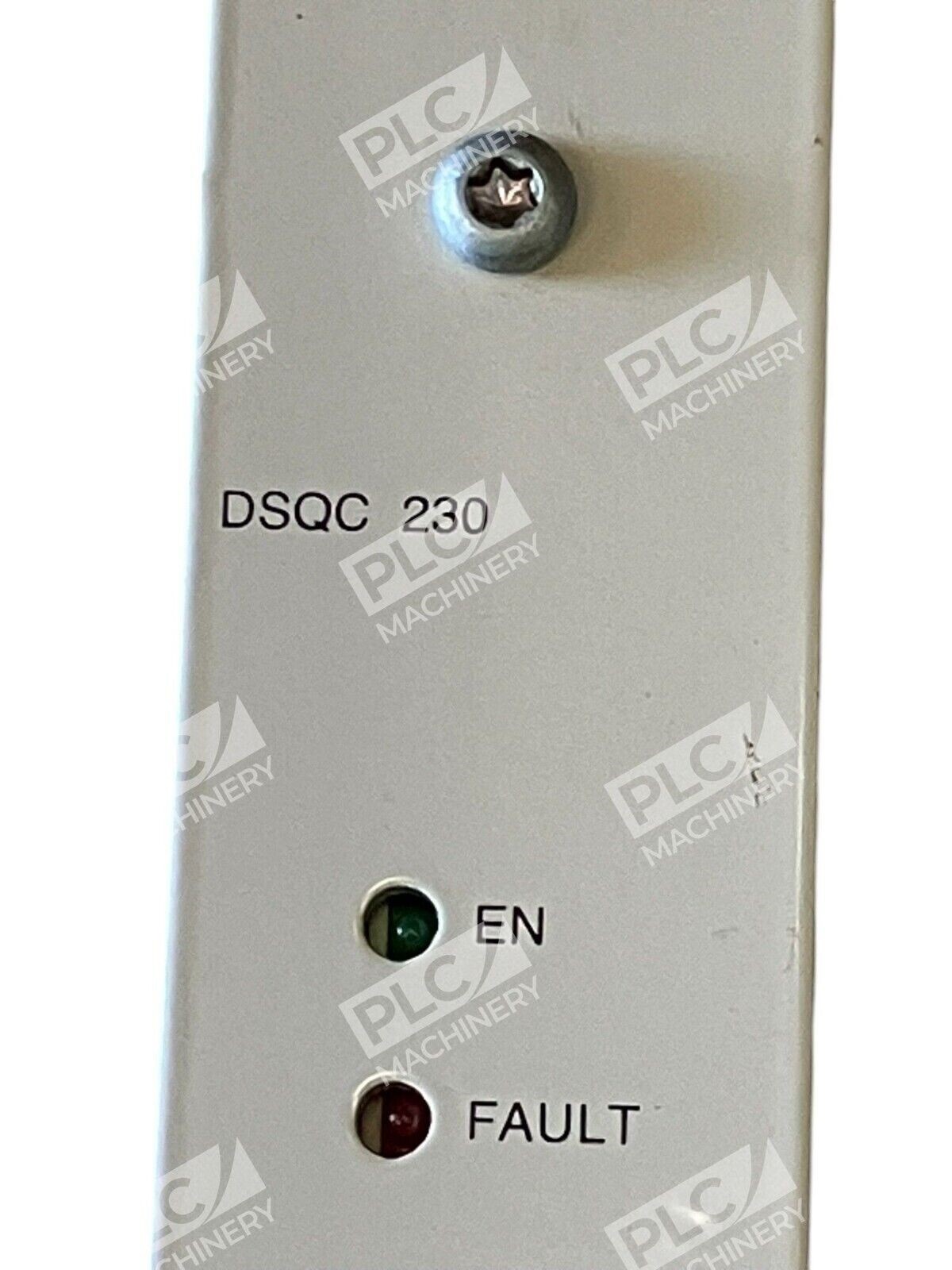

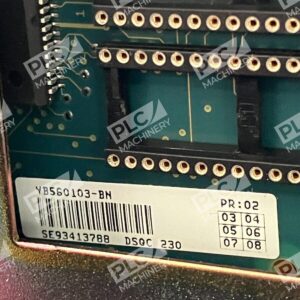

The ABB DSQC230 YB560103-BN is a proven robotics control board engineered for demanding industrial automation and motion control applications. This CPU module delivers reliable servo drive functionality in ABB robot control systems, providing the precision and stability required for high-performance robotic operations.
Key Features
- Dual connector interface (96-pin and 64-pin connectors) for flexible system integration
- Modbus TCP/IP communication protocol support for seamless device and system interoperability
- Built-in diagnostic capabilities for rapid troubleshooting and reduced downtime
- Robust design suitable for diverse temperature environments and production conditions
- Precise servo control for robotics, machine tools, and complex production lines
Technical Specifications
The DSQC230 board supports modular expansion and integrates into ABB’s servo drive architecture. Key operational features include:
- Communication: Modbus TCP/IP
- Connector Type: 96-pin and 64-pin
- Suitable for robotics and motion control applications
- Built-in diagnostics for system monitoring
- Compatible with ABB S3 and M93 robot control systems
Typical Applications
The ABB DSQC230 board is widely used in:
- Industrial robot arm control and coordination
- Multi-axis servo motor control systems
- Machine tool automation and CNC equipment
- Complex production line motion coordination
- High-precision manufacturing environments
Compatibility & Replacements
The YB560103-BN is part of ABB’s DSQC230 servo control platform. When sourcing replacement or upgrade modules, ensure compatibility with your existing ABB robot controller series (S3, M93, or equivalent). This unit is a direct fit for systems originally equipped with this part number. As a used board in good working condition, it provides excellent value as a replacement, upgrade, or spare component for operational ABB robotics systems.
