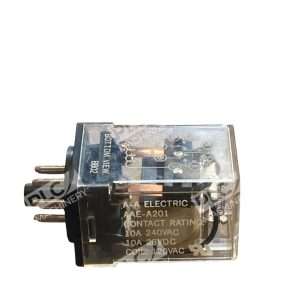

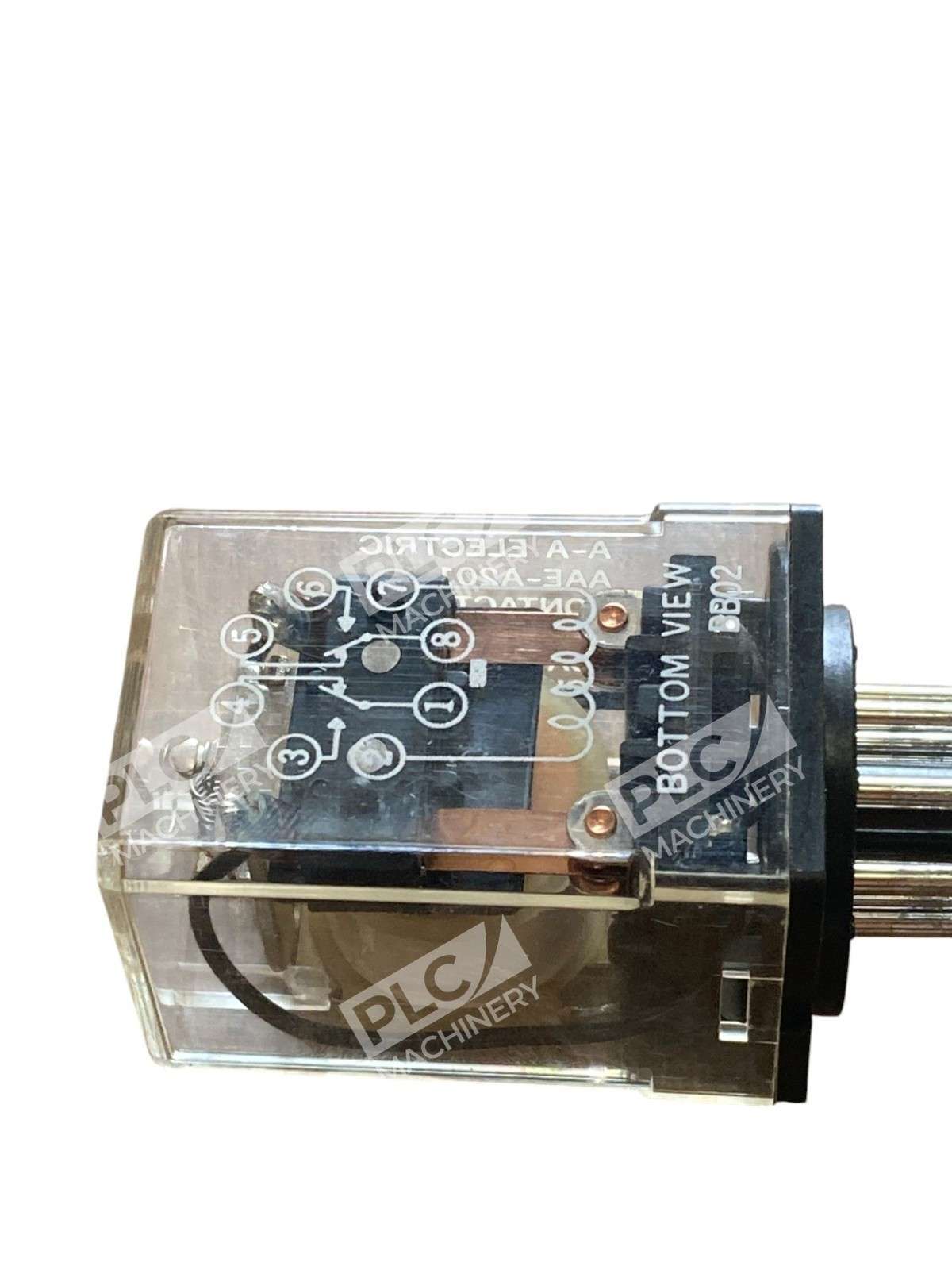

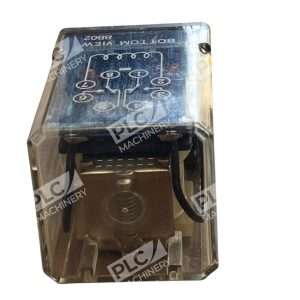

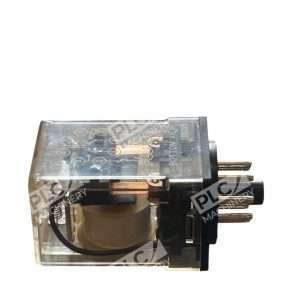

The A-A Electric AAE-A201 Relay is a dependable and versatile component designed for various electrical applications.
Key Features

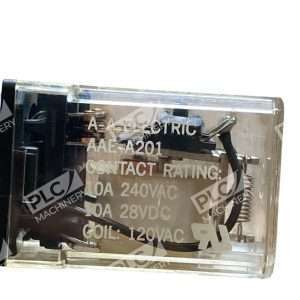

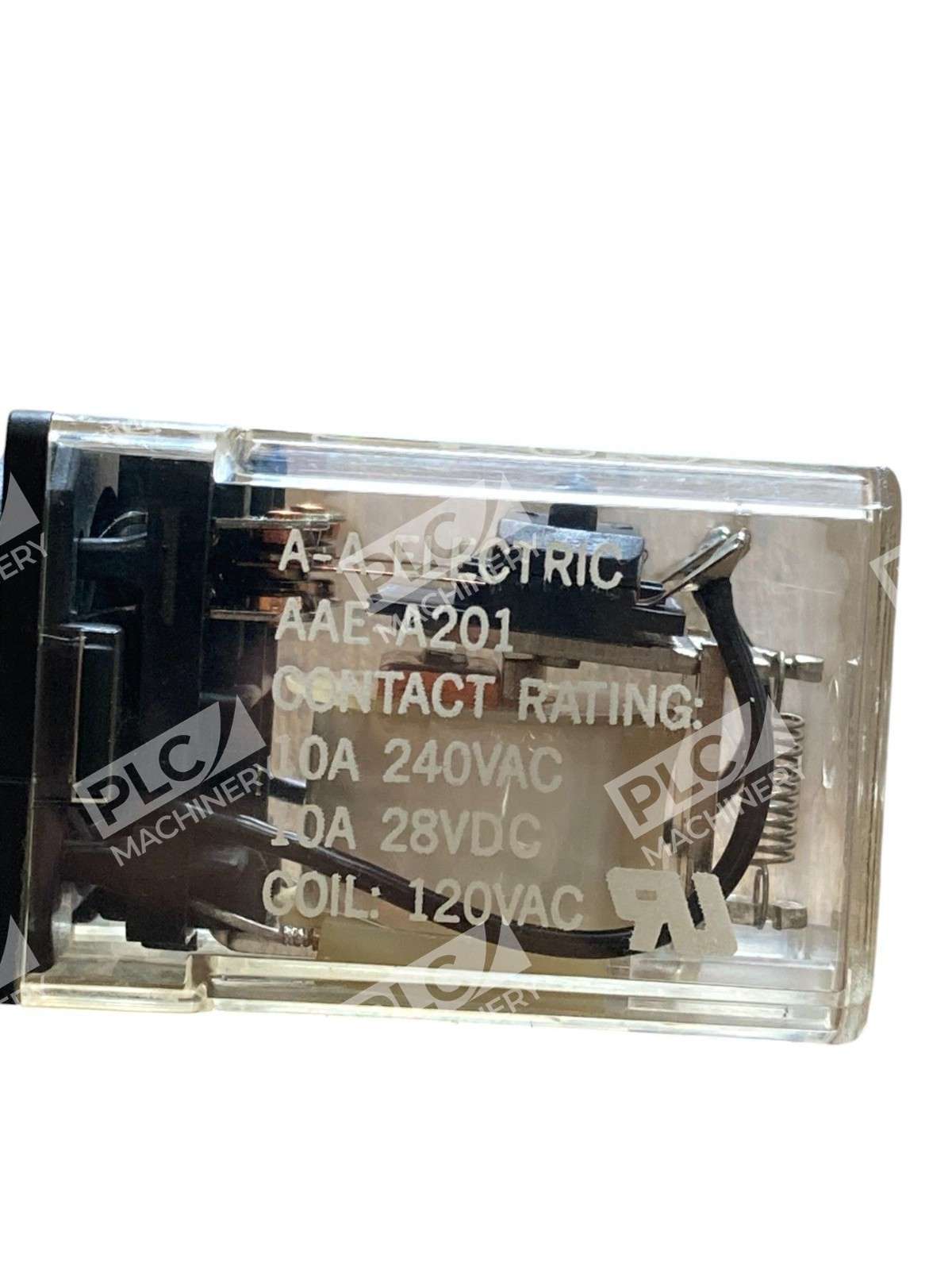

- Contact Rating: 10 Amperes
- Coil Voltage: 120 Volts AC
- Contact Configuration: Double Pole Double Throw (DPDT)

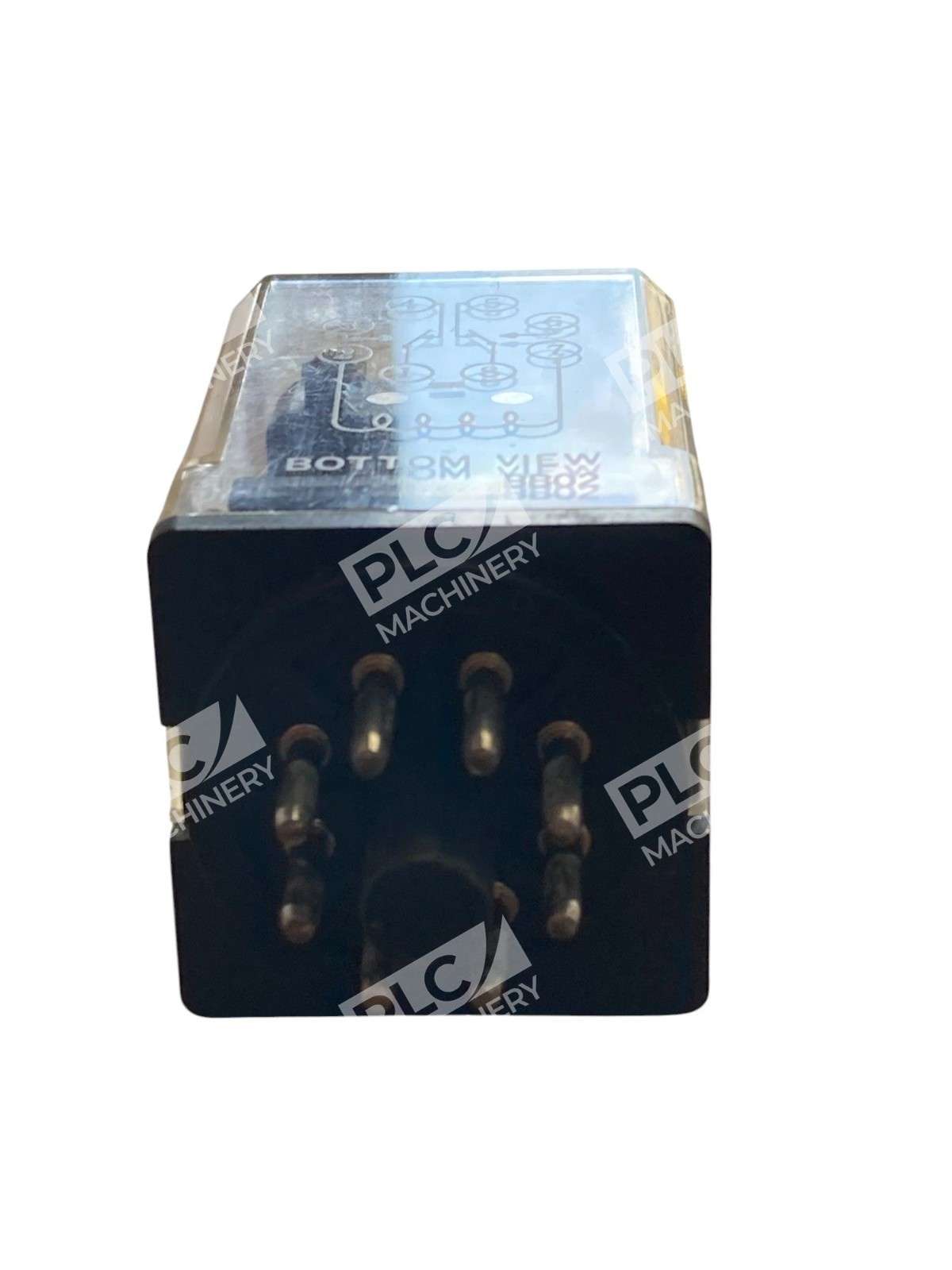

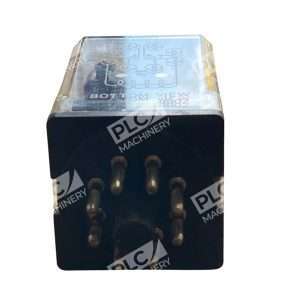

- Number of Pins: 8-Pin Plug-In Design
- Operating Voltage: Up to 240 Volts AC or 28 Volts DC
- Country of Manufacture: Taiwan
Design and Construction
The AAE-A201 Relay features a compact and lightweight design, facilitating easy installation in various settings. Its 8-pin plug-in configuration ensures straightforward integration into existing systems. The relay’s contacts are crafted from silver cadmium oxide, enhancing conductivity and durability. ([a-aelectric.com](https://www.a-aelectric.com/uploads/AA-Relays.pdf?utm_source=openai))
Performance and Reliability
Engineered for high reliability, the AAE-A201 Relay operates with a pick-up time of up to 30 milliseconds and a drop-out time of up to 20 milliseconds. It maintains insulation resistance of at least 100 megohms and can withstand dielectric strength up to 1500 VAC at 50/60 Hz for one minute. ([a-aelectric.com](https://www.a-aelectric.com/uploads/AA-Relays.pdf?utm_source=openai))
Applications
This general-purpose relay is suitable for a wide range of applications, including motor control, lighting systems, and alarm circuits. Its robust construction and reliable performance make it an ideal choice for both industrial and commercial environments.
Installation and Compatibility
The AAE-A201 Relay is compatible with standard sockets such as the PF083A or DS8, allowing for flexible mounting options on tracks or surfaces. ([a-aelectric.com](https://www.a-aelectric.com/uploads/AA-Relays.pdf?utm_source=openai))
In summary, the A-A Electric AAE-A201 Relay combines durability, reliability, and versatility, making it a valuable component for various electrical applications.
