Overview

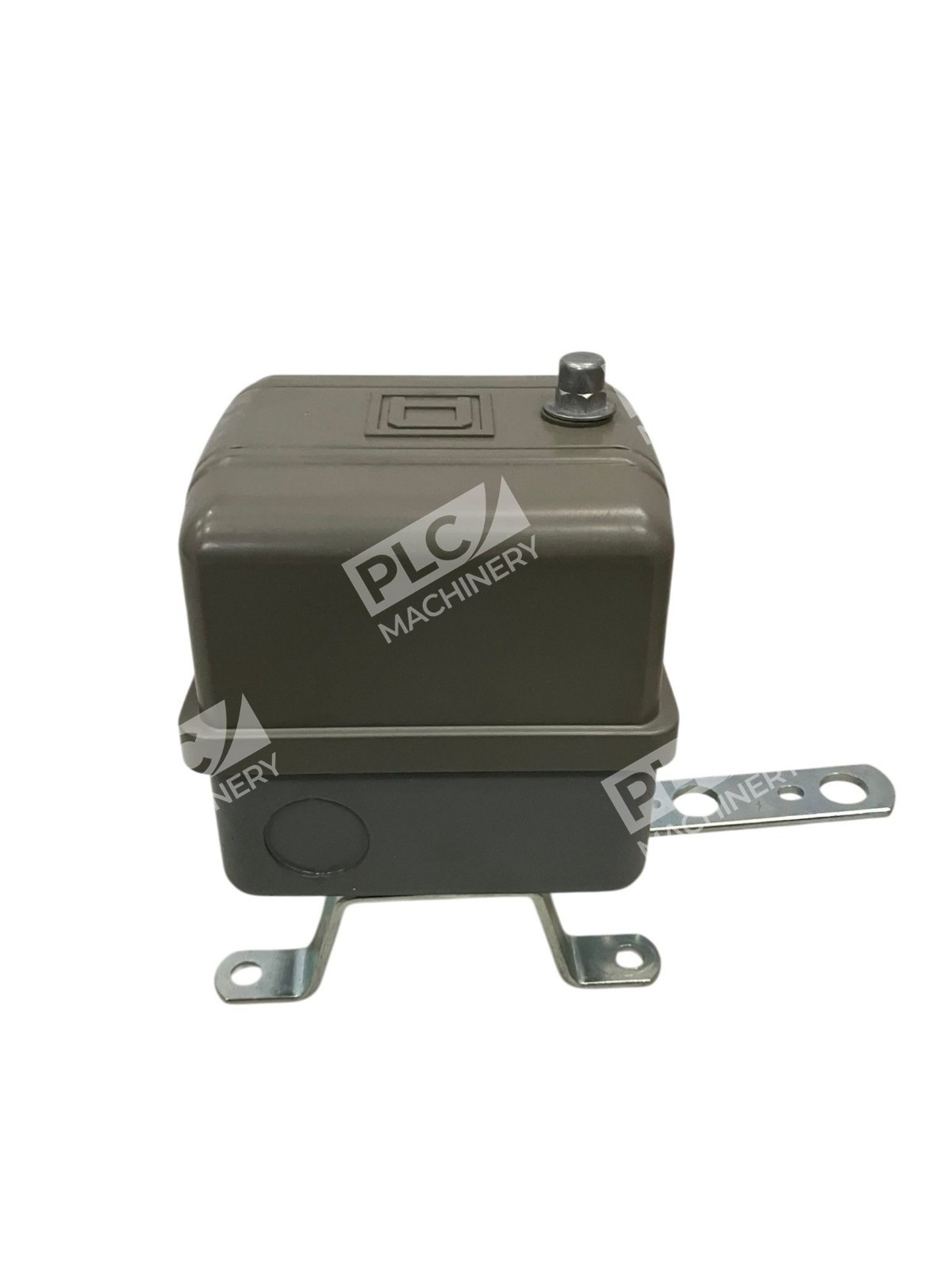

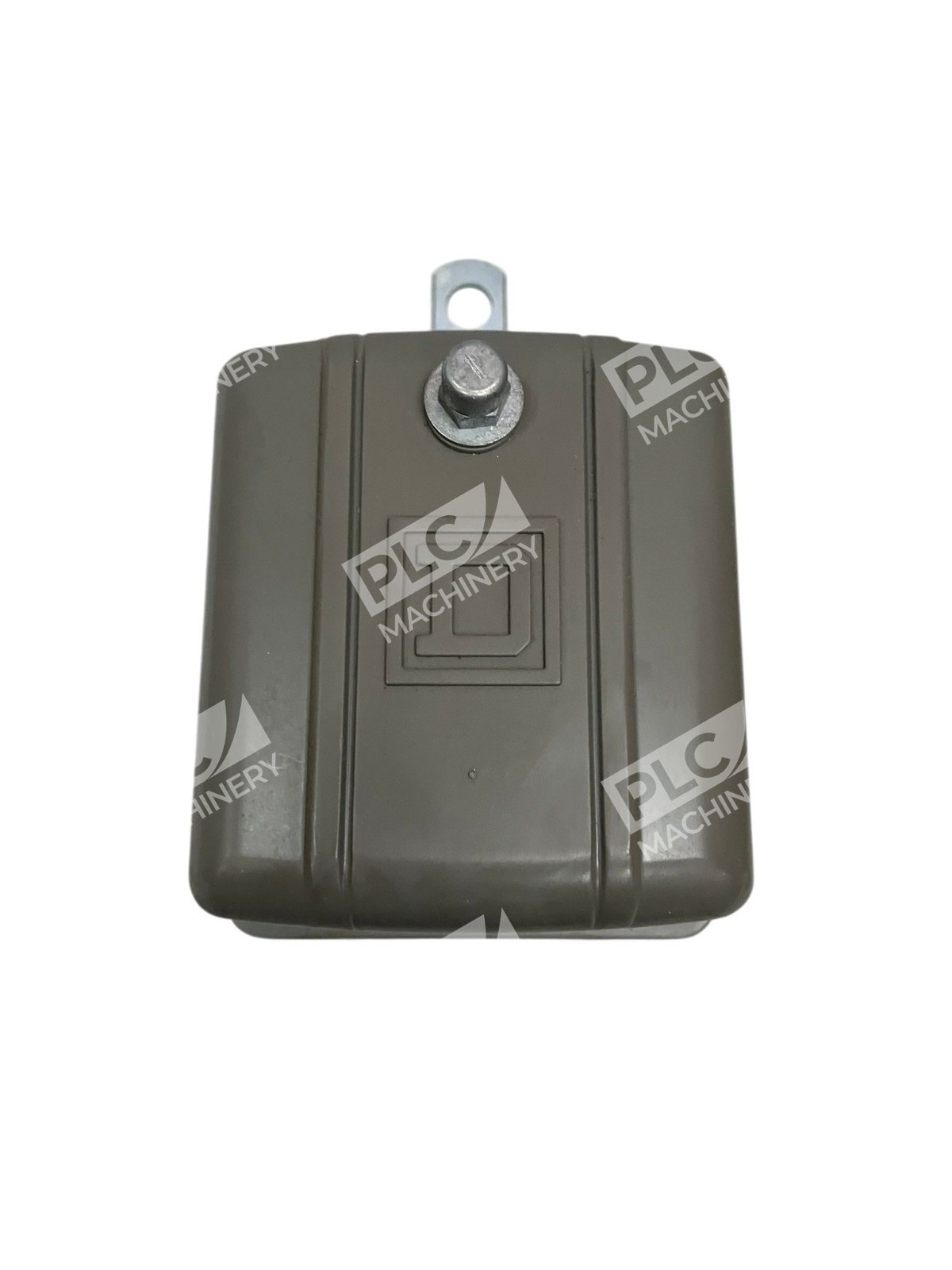

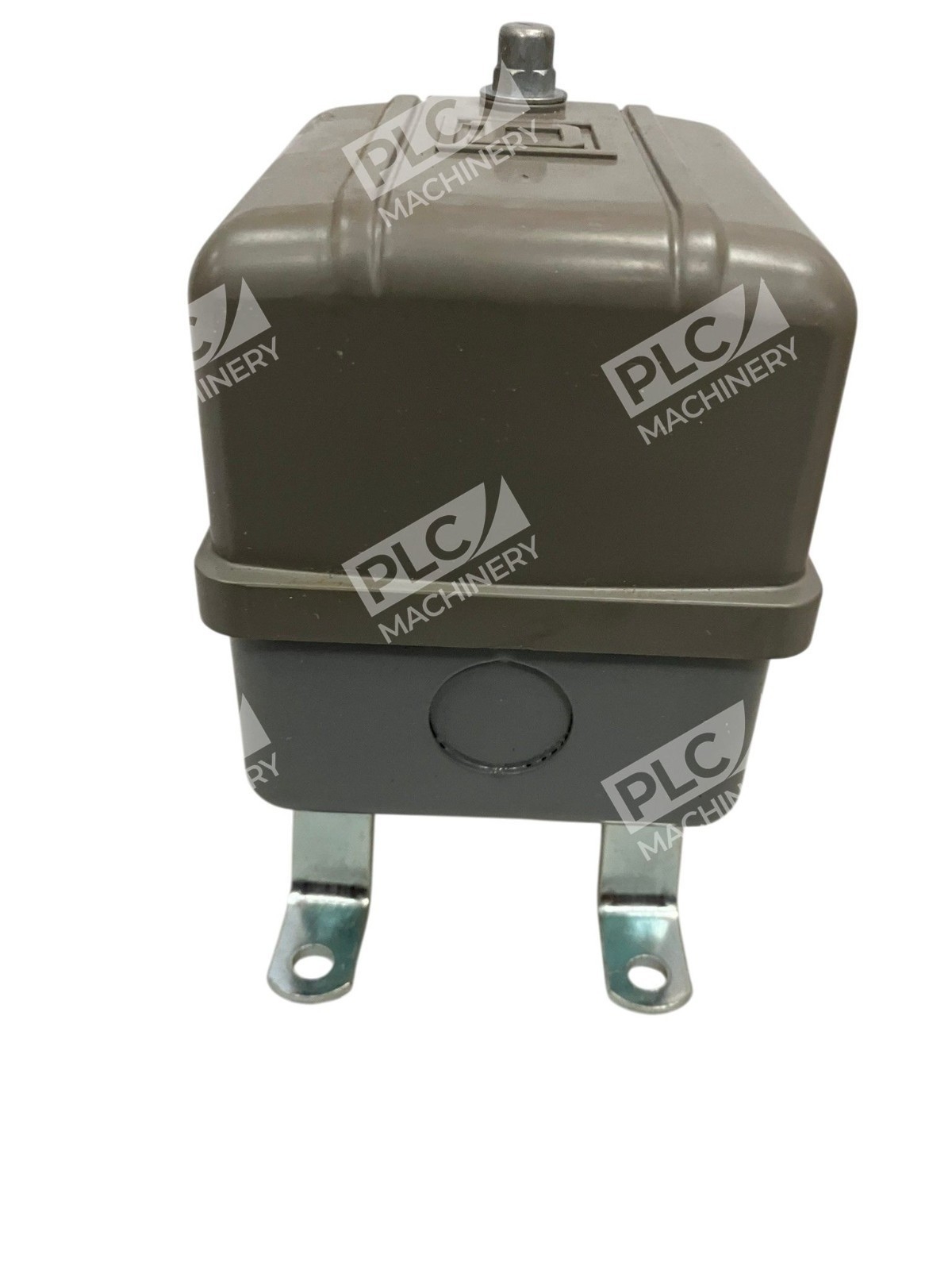

The Square D 9036GG2 is a pedestal-mounted float switch designed for open tank and sump applications. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. Rated at 575 VAC, 20 A, 3.7 kW Wattage with NEMA 1 Enclosure and -22 to 220 deg F Operating temperature range. The unit features a single lever arm operator for manual control and is suitable for critical liquid level sensing in pumps, compressors, and industrial machinery.
Key Features
- Lever operated and designed for open tank applications
- Supports pedestal mounting method and vertical float rod angle for operating in any position
- Furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2 inch conduit
- Electrical durability of 100 cycles and mechanical durability of 300 cycles
- Certified by CE, CSA and UL, meets UL 508 standards
- Enclosure made of NORYL thermoplastic resin or equivalent material
Technical Specifications
- Contact Configuration: 2 normally closed, snap action, DPST-DB contacts
- Voltage Rating: 120 To 600 Vac, 125/250 Vdc
- Power Rating: 5HP rating at 3-phase
- Current Capacity: 20 A
- Wattage: 3.7 kW
- Operating Temperature: -22 Degrees to 220 Degrees F
- Enclosure Rating: NEMA 1
- Mounting Method: Pedestal mounting with vertical float rod angle
- Connection Type: Screw Clamp Connection
- Conduit Knockouts: 3 knockouts for 1/2 inch conduit
- Dimensions: 5.56 H x 3.87 W x 3.43 D inches
- Weight: 2.17 lb
Typical Applications
Suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. Commonly used in reservoir level control, sump pump activation, and industrial tank monitoring where reliable, cost-effective level sensing is required.
Compatibility & Replacements
Compatible With
- Schneider Electric / Square D Pumptrol control systems
- Open tank and sump pump installations
- Industrial machinery requiring Level Control (water pumps, air compressors, injection systems)
- NEMA 1 control enclosures and panel designs
- 3-phase motor starters and pump control circuits
Replaces / Drop-In Replacement For
Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The 9036GG2 may replace earlier generation float switches in the 9036 series; verify model compatibility with your system integrator before ordering.
Works With
- Square D and Telemecanique motor starters and pump controllers
- Pneumatic and hydraulic systems requiring level sensing
- Single-phase and three-phase pump control circuits
- Industrial automation and process control applications
- Standalone or panel-mounted installations
