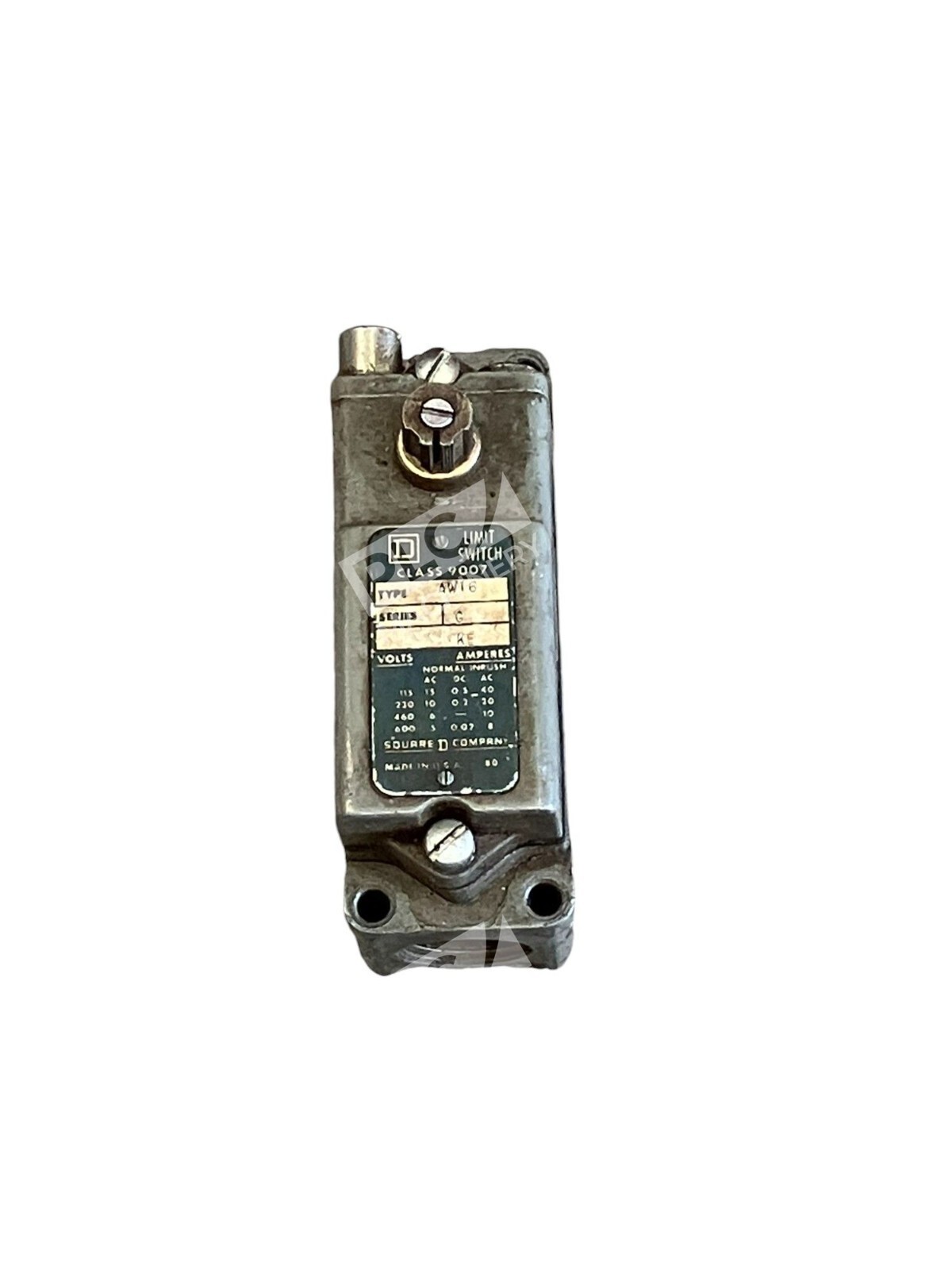

Square D 9007-AW16 /C is a Class 9007 Series C precision limit switch engineered for industrial control and position-sensing applications. This unit combines robust mechanical design with electrical reliability for demanding automation environments.
Overview
The Square D 9007-AW16 /C limit switch delivers consistent position detection in manufacturing, material handling, and mechanical systems. This Series C model features a single-pole double-throw (SPDT) contact configuration with screw terminals for secure, permanent installation. The unit is rated for both AC and DC applications up to 600V, making it compatible with a wide range of control circuits.
Key Features
- Class 9007 precision limit switch body with AW16 arm assembly
- Single Pole Double Throw (SPDT) contact configuration for flexible logic control
- 600V AC/DC contact rating with 15 Amp capacity
- Series C design with proven field reliability in heavy industrial duty
- Screw terminal connections for permanent installation
- Compact profile suitable for tight mounting spaces
Technical Specifications
- Contact Configuration: Single Pole Double Throw (SPDT)
- Contact Rating: 600V AC/DC
- Current Rating: 15 Amperes
- Termination Type: Screw
- Series: C
- Arm Type: AW16 (roller arm)
- Operating Principle: Mechanical position switch
- NEMA Types: 2, 4, 5, 12
- Application Category: Precision/Contact
Typical Applications
- Machine tool position detection and end-of-travel limits
- Conveyor and material handling system safety interlocks
- Production line motion control and sequencing
- Access door and guard interlocking circuits
- Industrial press and automated equipment travel limits
Compatibility & Replacements
Compatible With
- Square D Class 9007 control systems and limit switch assemblies
- Industrial PLC input circuits rated 600V AC/DC
- Motor starter and contactor auxiliary circuits
- NEMA 2, 4, 5, and 12 rated control enclosures
- Standard 24V to 600V AC/DC control voltage systems
Replaces / Drop-In Replacement For
- Square D 9007-AW16 (standard version without /C suffix)
- Verify compatibility with your system integrator before ordering to ensure the Series C variant meets your specific application requirements
Works With
- Square D PLCs and control modules with standard discrete input modules
- Allen-Bradley and other manufacturer PLC input modules (600V AC/DC compatible)
- Rockwell Automation CompactLogix and MicroLogix systems via compatible input interfaces
- Electromechanical motor starters and magnetic contactors
- Standard industrial 24V DC and 120V AC control circuits
