Overview

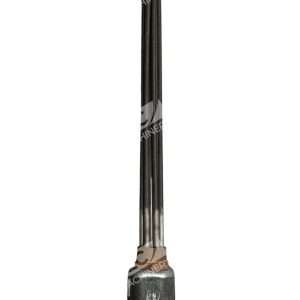

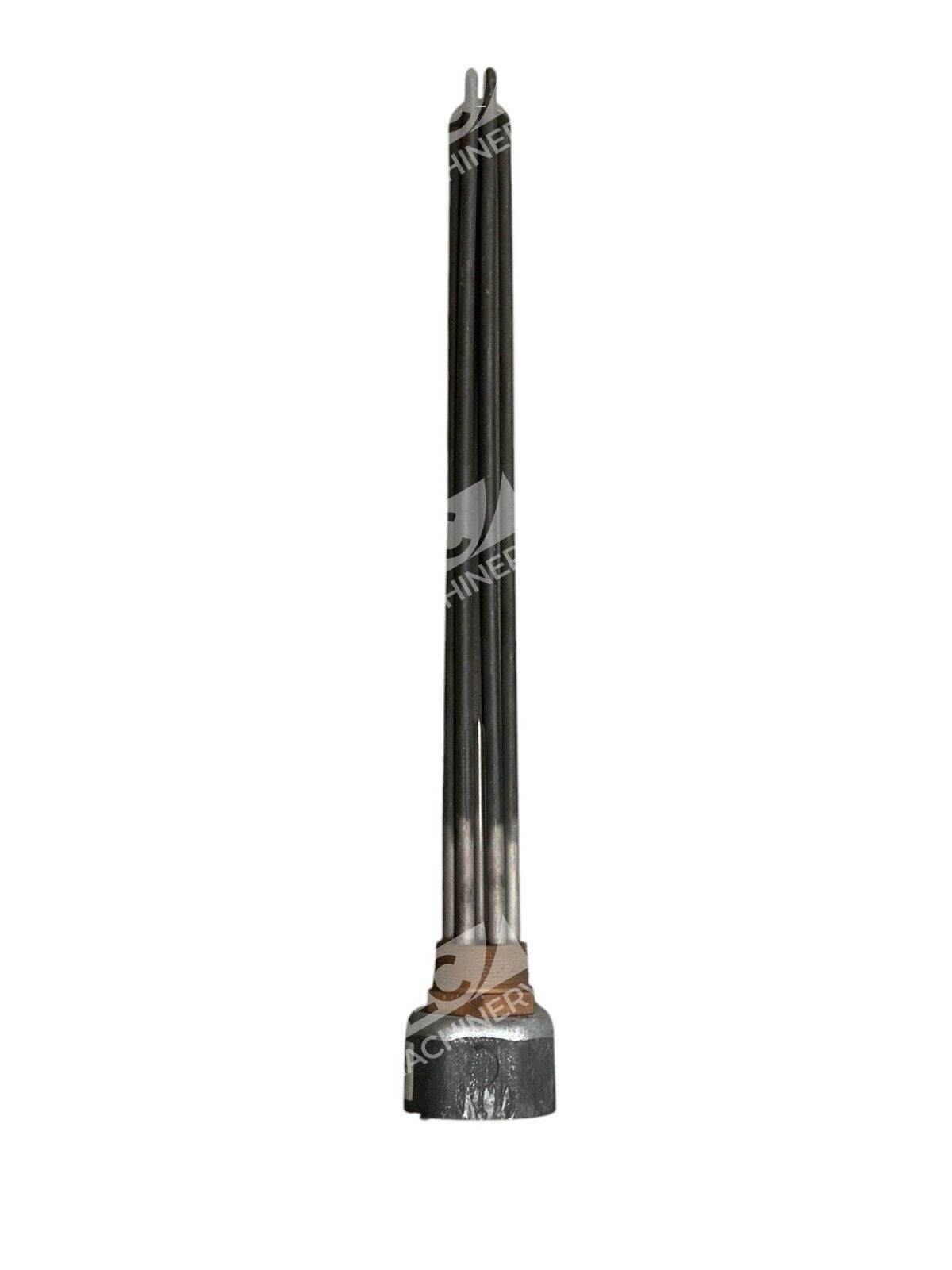

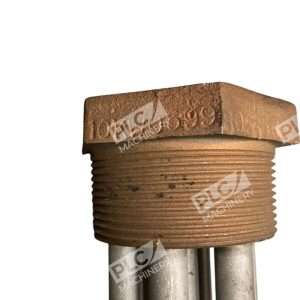

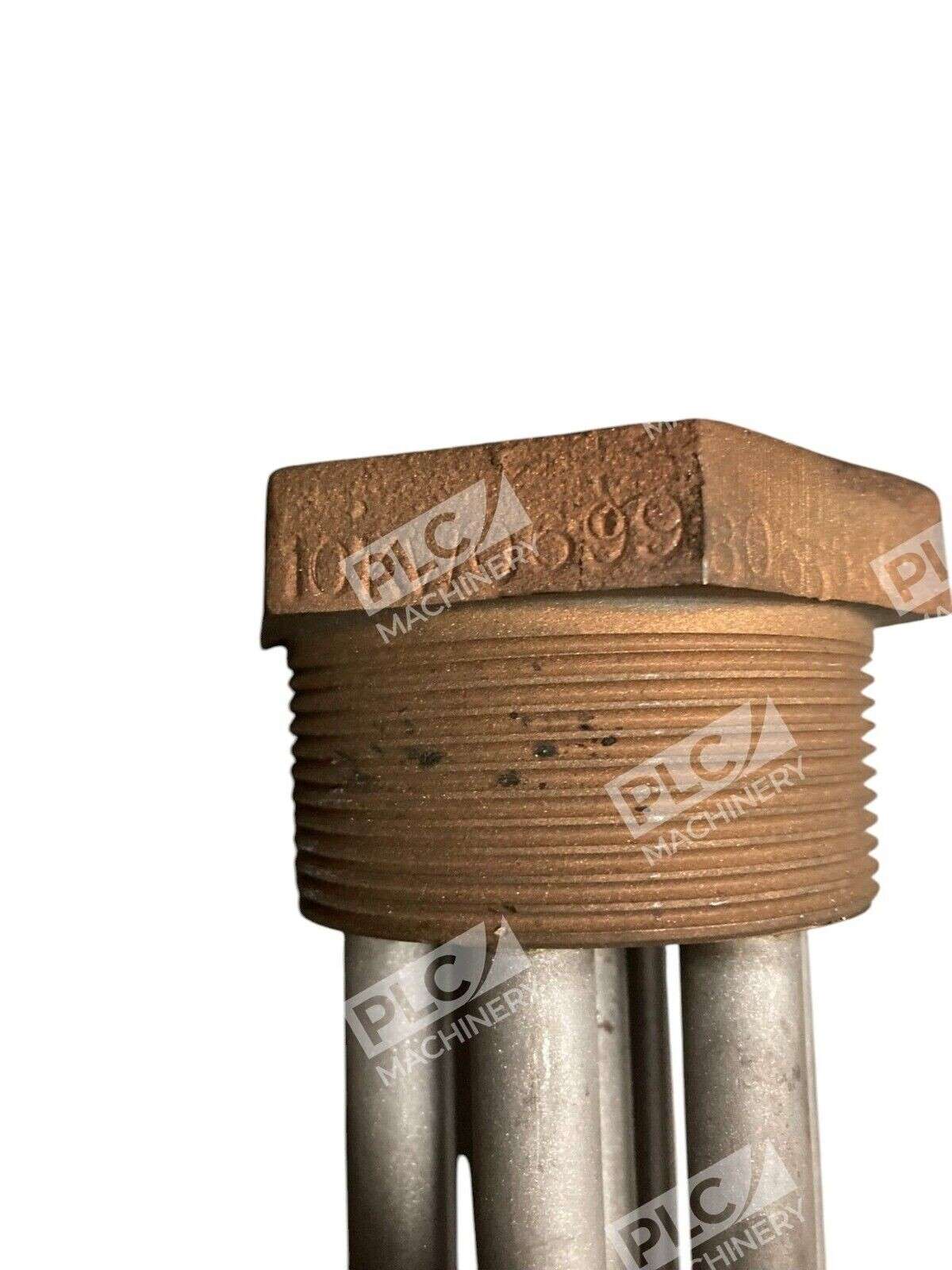

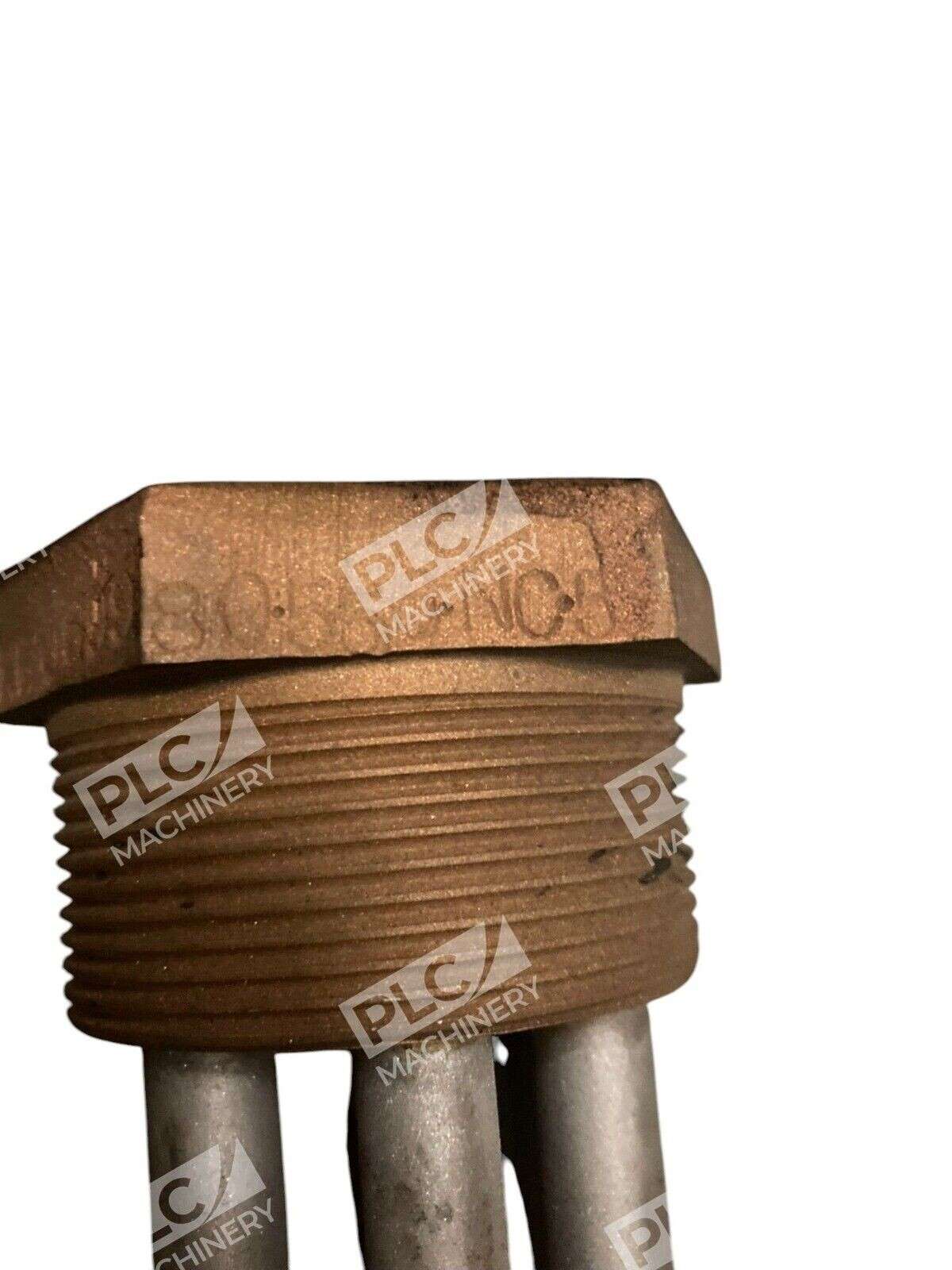

The 10KW0699 immersion heater is a 10 kW component heater designed for direct immersion in industrial tanks and vessels. This used unit is suitable for heating water, oils, and compatible process fluids in manufacturing, chemical processing, and maintenance applications. As a component-level heater, it integrates into existing heating systems and temperature control circuits.
Key Features
- 10 kilowatt heating capacity for medium-duty thermal applications
- Direct immersion design for efficient liquid heating
- Industrial-grade construction suitable for recurring heating cycles
- Component-level unit integrates with external control systems
- Compatible with standard pipe thread or flange mounting configurations typical of immersion heater assemblies
Technical Specifications
The following specifications are based on standard 10 kW immersion heater ratings. Verify exact voltage, phase, and terminal configuration with the control system before installation.
- Power Rating: 10 kW
- Component Type: Immersion Heating Element
- Typical Voltage Range: 240 VAC or 480 VAC (verify actual configuration)
- Phase: Single or three-phase (configuration-dependent)
- Operating Temperature: Up to 600–750°F (depending on sheath material)
- Sheath Material: Steel, stainless steel, or alloy (verify actual specification)
- Mounting: Screw-plug or flange-mounted (depends on vessel design)
- Condition: Used
Typical Applications
Immersion heaters of this capacity are commonly used in:
- Industrial water heating and preheating
- Oil tank heating (light and heavy oils)
- Chemical process solution heating
- Circulation heater systems
- Thermal conditioning in manufacturing facilities
- Tank or vessel heat maintenance during production standby
Compatibility & Replacements
Compatible With
- Standard immersion heater terminal enclosures (NEMA 1, NEMA 4, or NEMA 4X rated)
- Industrial temperature controllers and thermostats
- Circulating pump systems for indirect heating
- Flange-mounted or screw-plug vessel connections
- Three-phase or single-phase electrical panels with proper circuit protection
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Without confirmed manufacturer data, direct replacement model numbers cannot be specified. Common replacement heaters in the 10 kW range may include models from manufacturers such as Watlow, Indeeco, Durex, or Wattco, but specific cross-reference requires verification of voltage, phase, mounting style, and sheath material.
Works With
- Industrial PLC-based temperature control systems
- Manual thermostat switching (if equipped)
- Soft-start or variable frequency drive circuits (with appropriate derating)
- Process control instrumentation and data logging
- Standard industrial electrical codes and National Electrical Code (NEC) compliance frameworks
