Overview

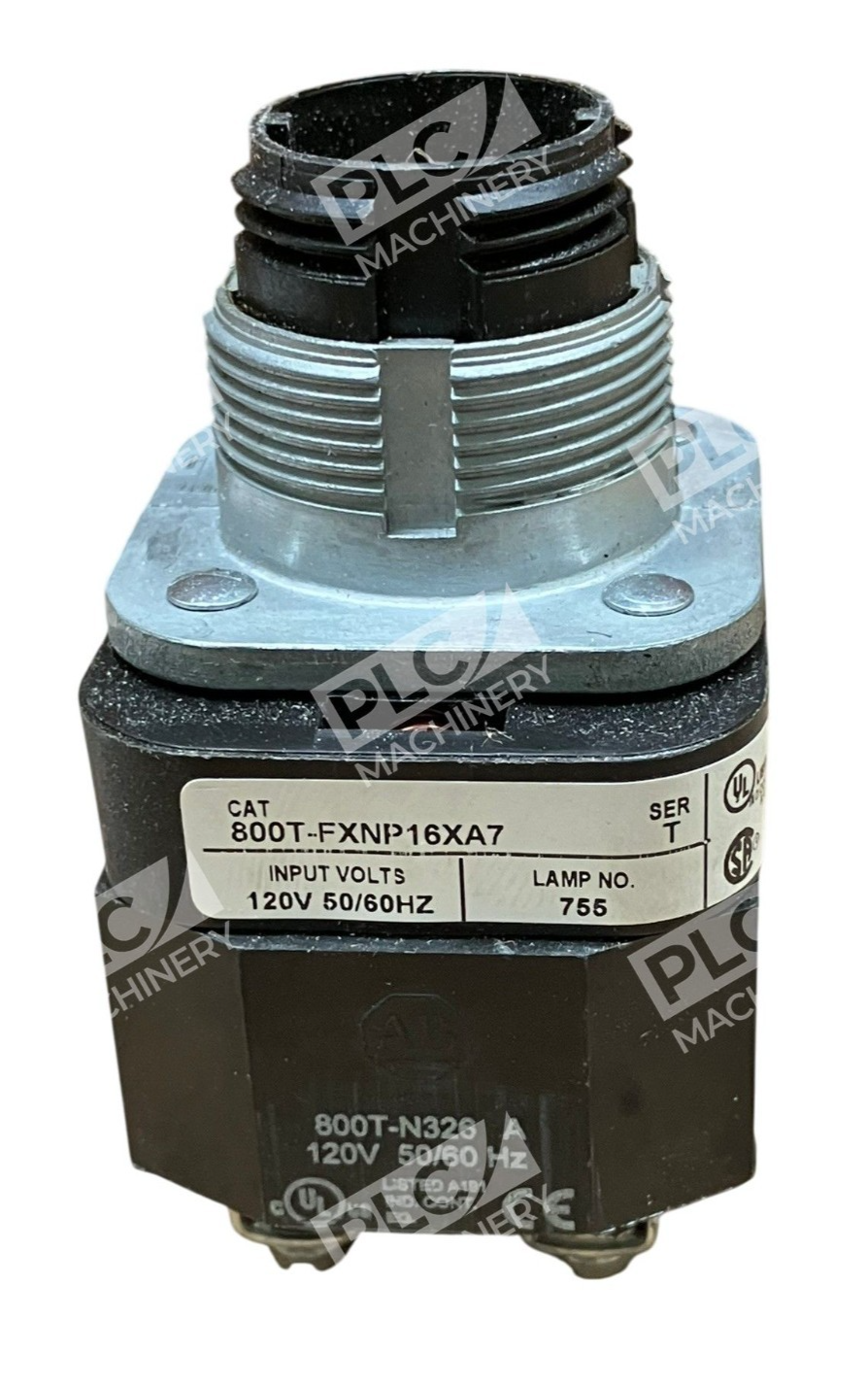

The Allen-Bradley 800T-FXNP16XA7 is a 30mm illuminated push-pull control switch engineered for demanding industrial automation and control applications. This 3-position device features a momentary-maintained-momentary action with integrated illumination at 120VAC, making it ideal for operator interface stations in NEMA 4/13 (Type 4/13) watertight and oiltight environments.
Key Features
- 30mm form factor with rugged aluminum construction for durability in harsh industrial settings
- 3-position push-pull operator with mushroom head design for ergonomic control
- 120VAC illumination provides clear visual feedback under all lighting conditions
- Momentary-maintained-momentary switching action enables flexible control logic configuration
- NEMA 4/13 (Type 4/13) rating ensures reliable operation in watertight and oiltight enclosures
- Normally closed contact configuration for safety-critical control circuits
Technical Specifications
- Manufacturer: Rockwell Automation (Allen-Bradley)
- Part Number: 800T-FXNP16XA7
- Button Type: Push-Pull Illuminated Control Switch
- Mounting Size: 30mm (1.18 inches)
- Positions: 3-position
- Operator Type: Push-pull with mushroom head
- Illumination Voltage: 120VAC
- Contact Type: Normally Closed (N.C.) with late-break contacts
- NEMA Rating: Type 4/13 (Watertight/Oiltight)
- IEC Rating: IP66/IP65
- Operating Temperature: –40°F to +131°F (–40°C to +55°C)
- Mechanical Life: 250,000 cycles minimum (illuminated)
- Mounting Hole: 30.5mm
Typical Applications
- Industrial machine control panels and operator stations
- Process automation systems requiring manual override or mode selection
- Emergency stop and safety-critical control circuits
- Food, beverage, and pharmaceutical processing equipment
- Chemical and water treatment facilities with washdown or wet environments
- Packaging, assembly, and material handling equipment
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix programmable logic controllers
- Control circuits using 120VAC pilot duty power supplies
- Rockwell Automation Studio 5000 design and programming environments
- Standard industrial control enclosures with 30.5mm mounting holes
- EtherNet/IP and other standard industrial networks for data acquisition
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 800T-FXNP16XA7 may replace earlier 800T series push-pull models with identical mounting and contact configurations. Consult your local Allen-Bradley distributor for equivalent substitute models.
Works With
- Rockwell Automation Studio 5000 and RSLogix 5000 programming platforms
- Allen-Bradley I/O modules and local control networks
- Standard industrial relay logic and PLC ladder diagrams
- NEMA 4/13 enclosure systems and control stations
- Third-party SCADA and HMI systems communicating via standard protocols
