Overview

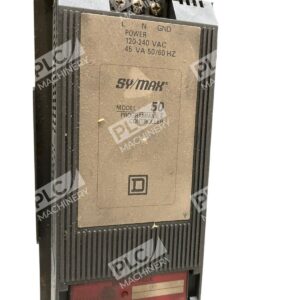

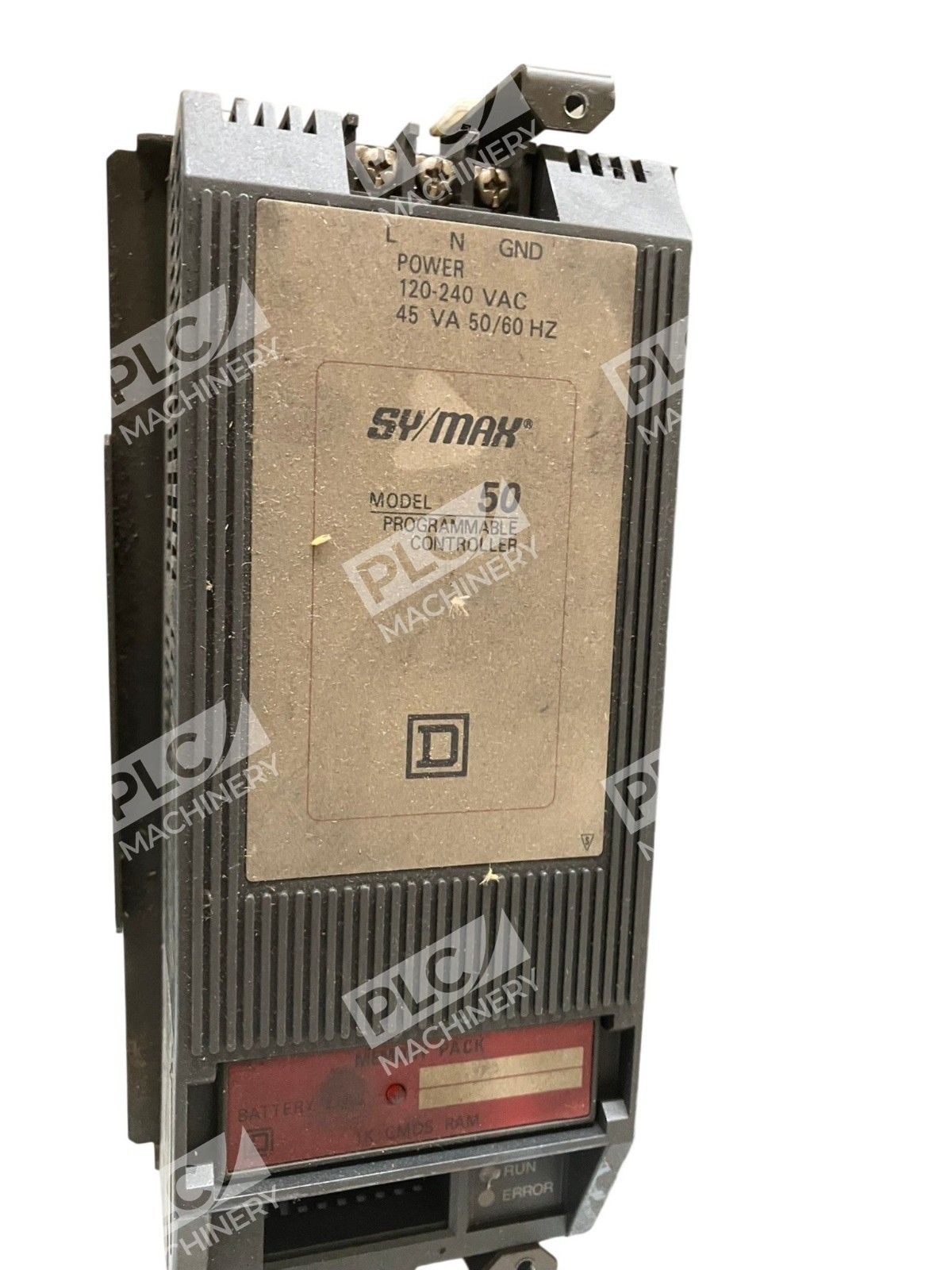

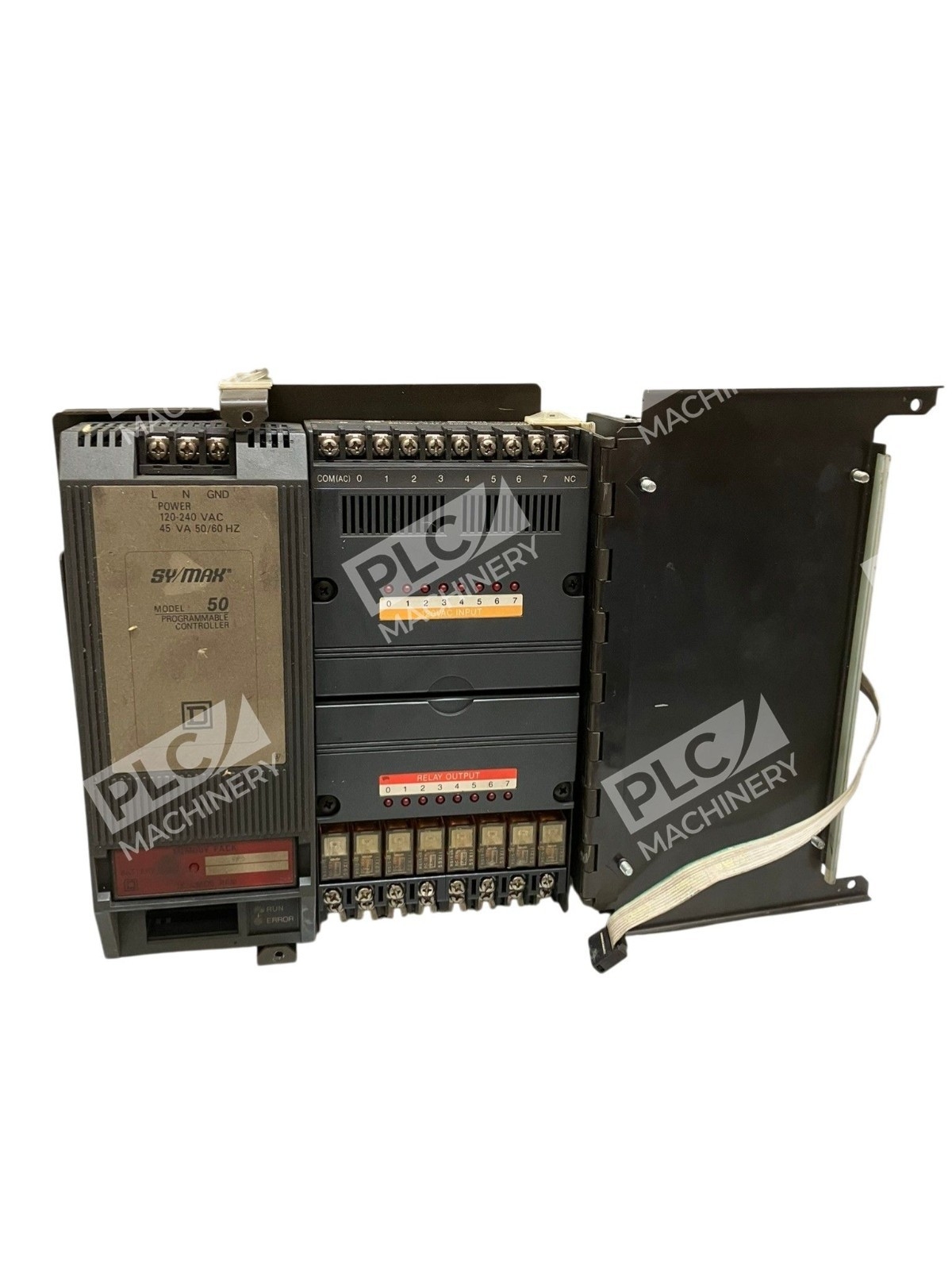

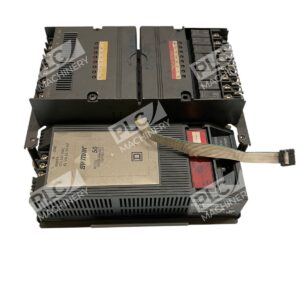

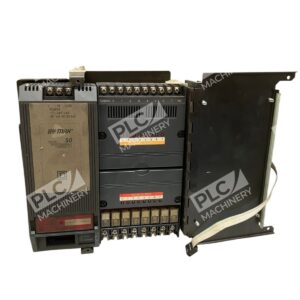

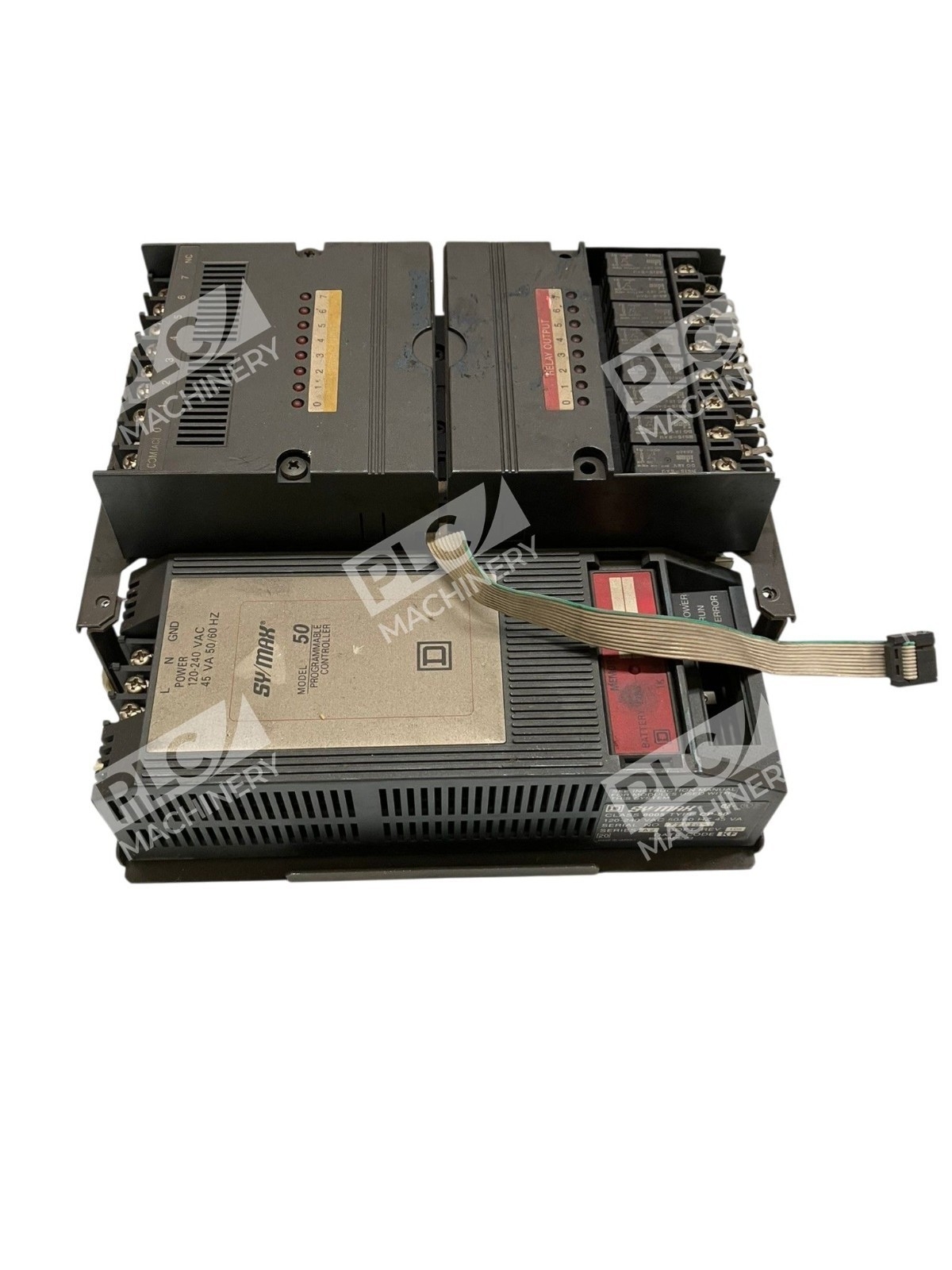

The Square D 8005 Model 50 is a modular programmable logic controller from the SY/MAX Class 8005 series. This processor is part of the SY/MAX Class 8005 Series A-2 (revision 1.05) Model 50 Programmable Controller family. The processor unit comprises a processor, built-in power supply, and a base for attaching two I/O modules. The SY/MAX line of PLCs continues to be supported by Schneider Electric, though production has been discontinued and this unit is now available as a used/surplus component.
Key Features
- Built-in power supply and base for mounting up to two I/O modules
- 8 millisecond scan time per 1,000 logic steps
- Supports logic symbol programming with 15 basic instructions and 26 applied instructions

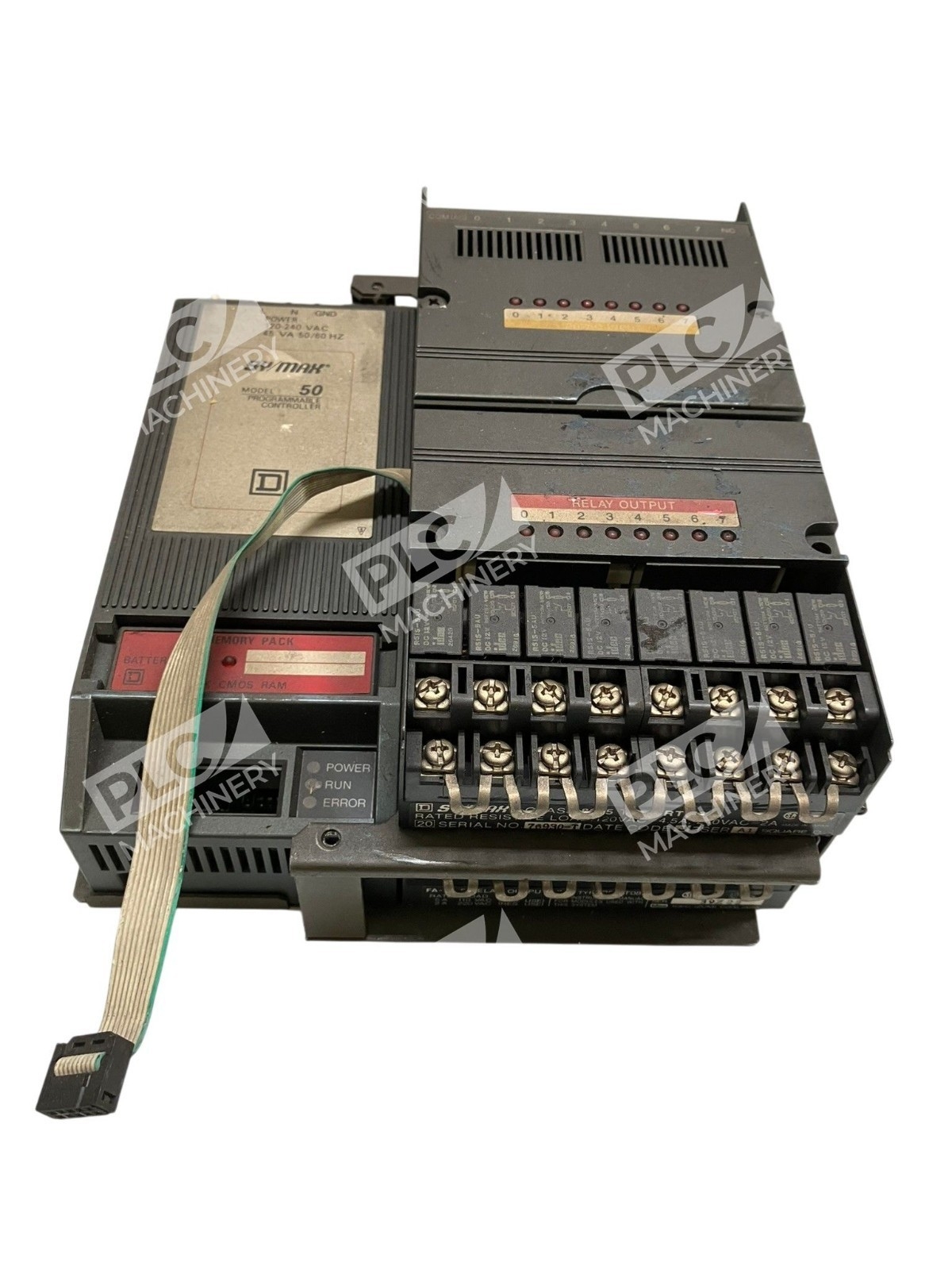

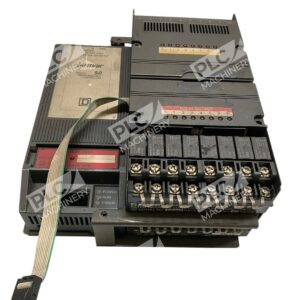

- Three LED status indicators: power, run, and error
- Two I/O module slots accessible on the right side for easy expansion
- Compact, modular design for straightforward maintenance and upgrades
Technical Specifications
- Power Supply: 120/240 VAC input
- Power Consumption: 45 VA (AC) / 22 W (DC)
- Power Supply Output: 650 mA capacity
- Frequency: 50/60 Hz
- Scan Time: 8 msec/1k steps
- Weight: Approximately 1 kg
- Shock Resistance: 10G shock resistance; 16.7 Hz 2G vibration resistance
- Programming Memory: Memory packs sold separately (CMOS-RAM, EEPROM, or EPROM)
- Mounting: DIN rail or panel mount via base connector
Typical Applications
The Square D 8005 Model 50 is widely used in:
- Industrial process control and automation
- Manufacturing line control and sequencing
- HVAC and environmental monitoring systems
- Legacy system replacements and repairs
- Machine tool control and monitoring
- Discrete and continuous control applications
Compatibility & Replacements
Compatible With
- SY/MAX Class 8005 series I/O modules (digital input, digital output, analog modules)
- Expansion bases and expansion power supplies (8005-EPS-50)
- Model 50 programmer cable (8005-LCB-10)
- Model 50 programmer loader (8005-PR-4)

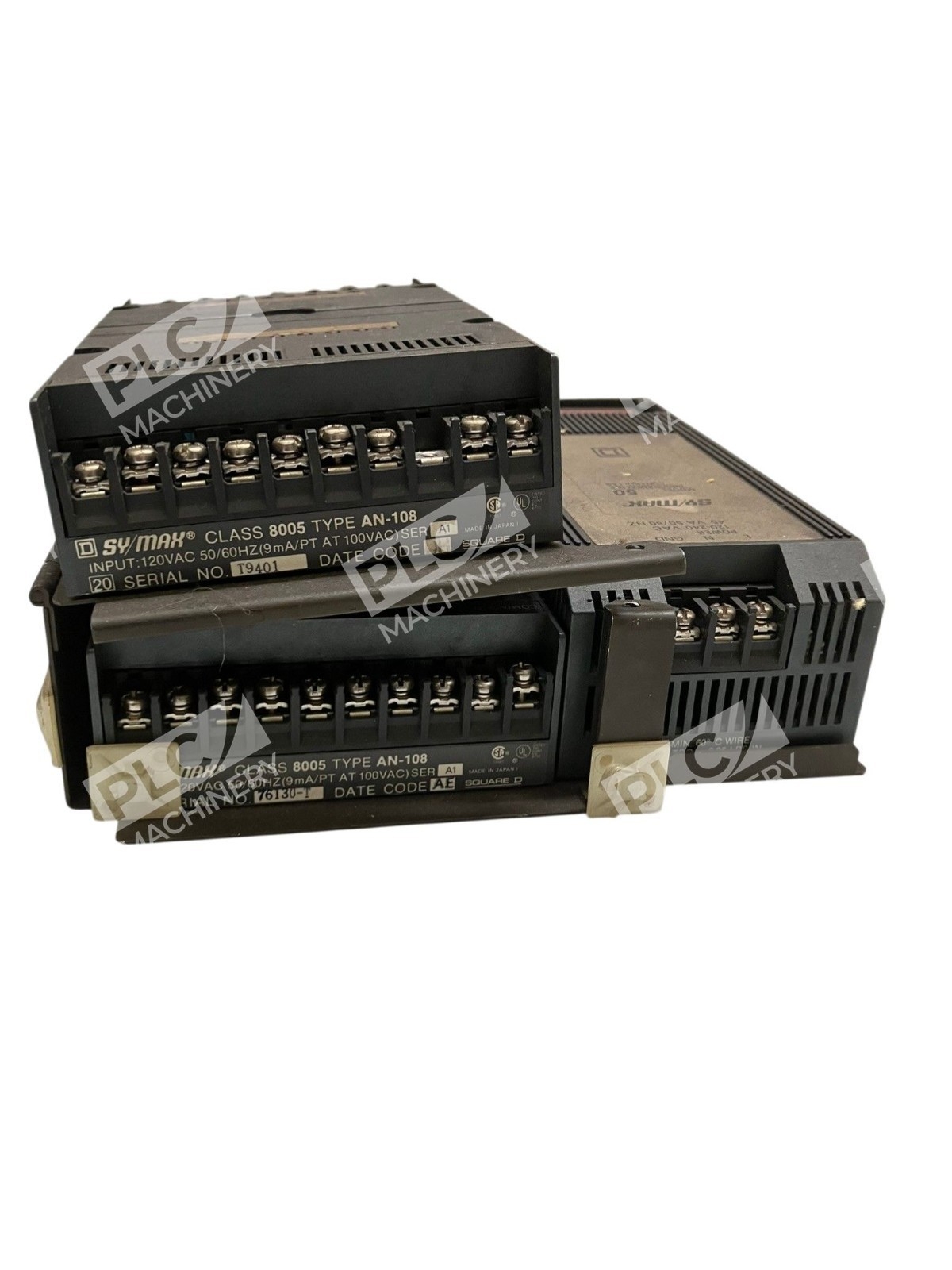

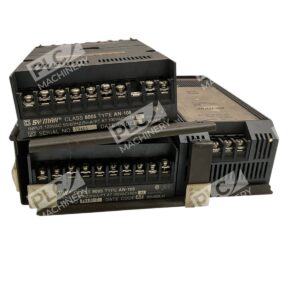

- Sy/Max digital input modules (8005-AN-108, 8005-AN-109, similar)
- Sy/Max relay and transistor output modules
Replaces / Drop-In Replacement For
- Square D 8005 Model 50 processors (original or failed units)
- Legacy Sy/Max control systems requiring processor replacement
- Earlier revision 8005-CP-50 units
Works With
- Sy/Max proprietary programming language (logic symbol format)
- Square D 8005-PR-4 programming loader for offline and online programming
- Sy/Max AC/DC input modules and relay/transistor output modules
- Analog modules (0-10 VDC input/output)
- Expansion I/O bases and remote terminal units
