Overview

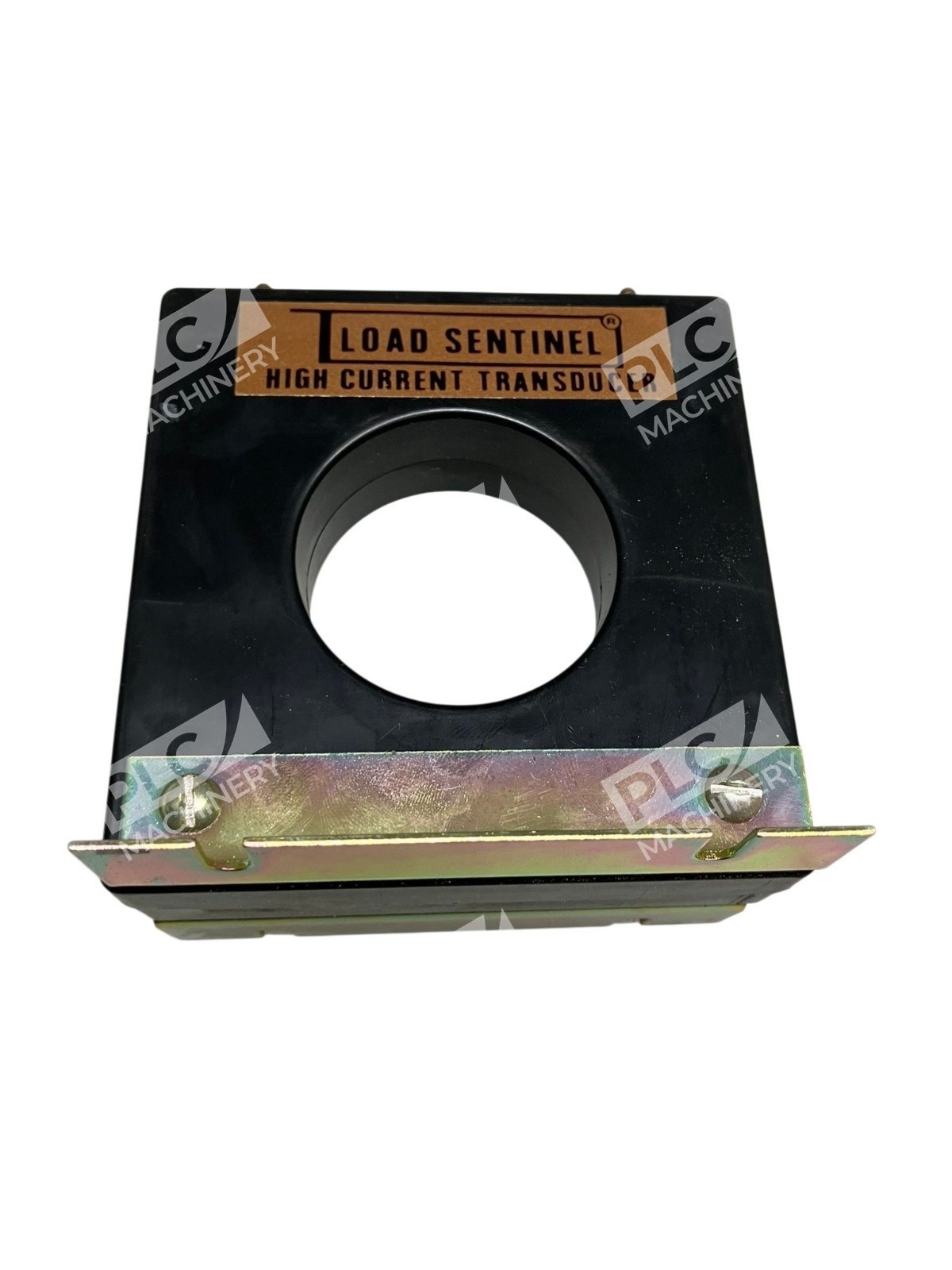

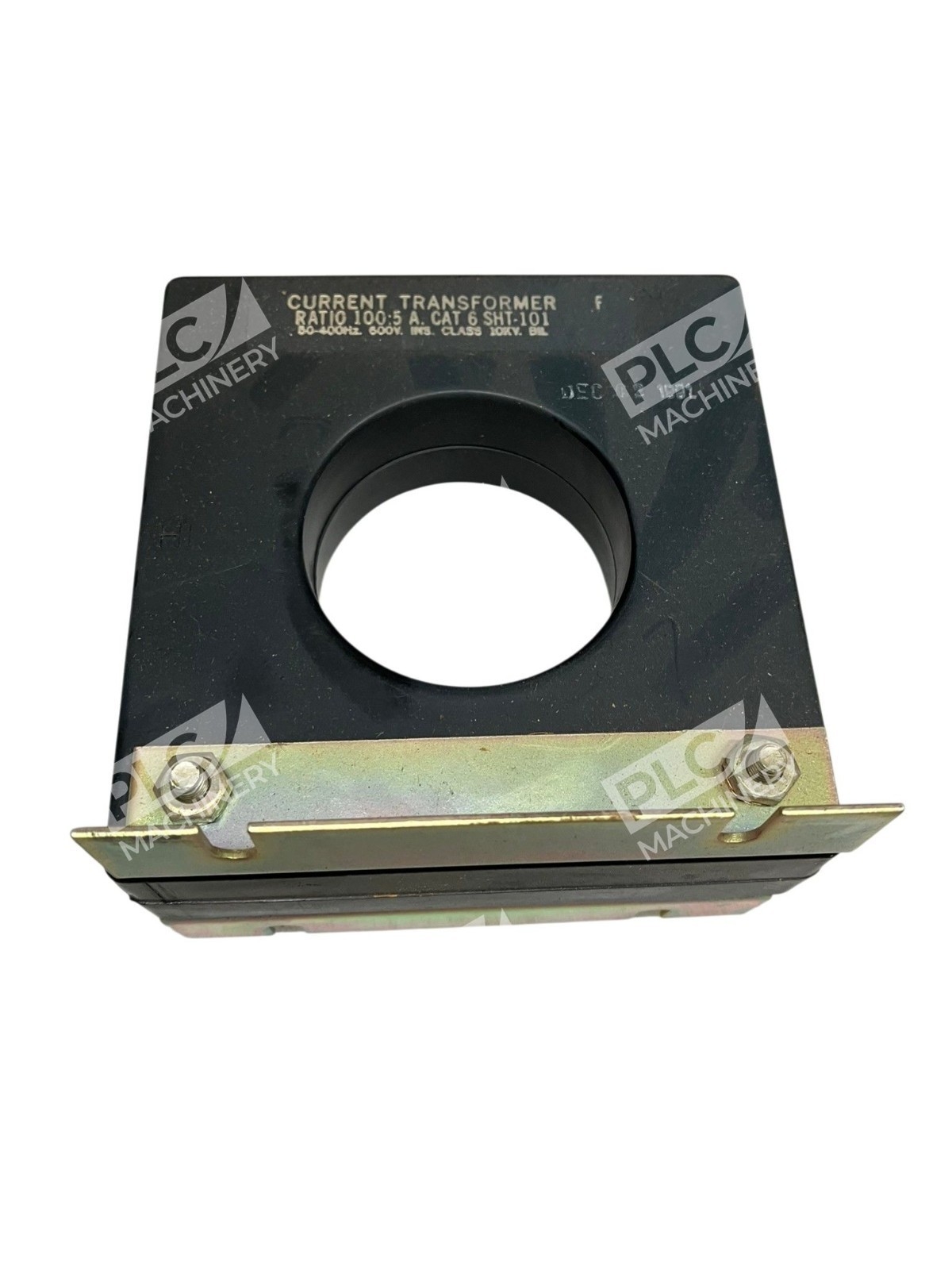

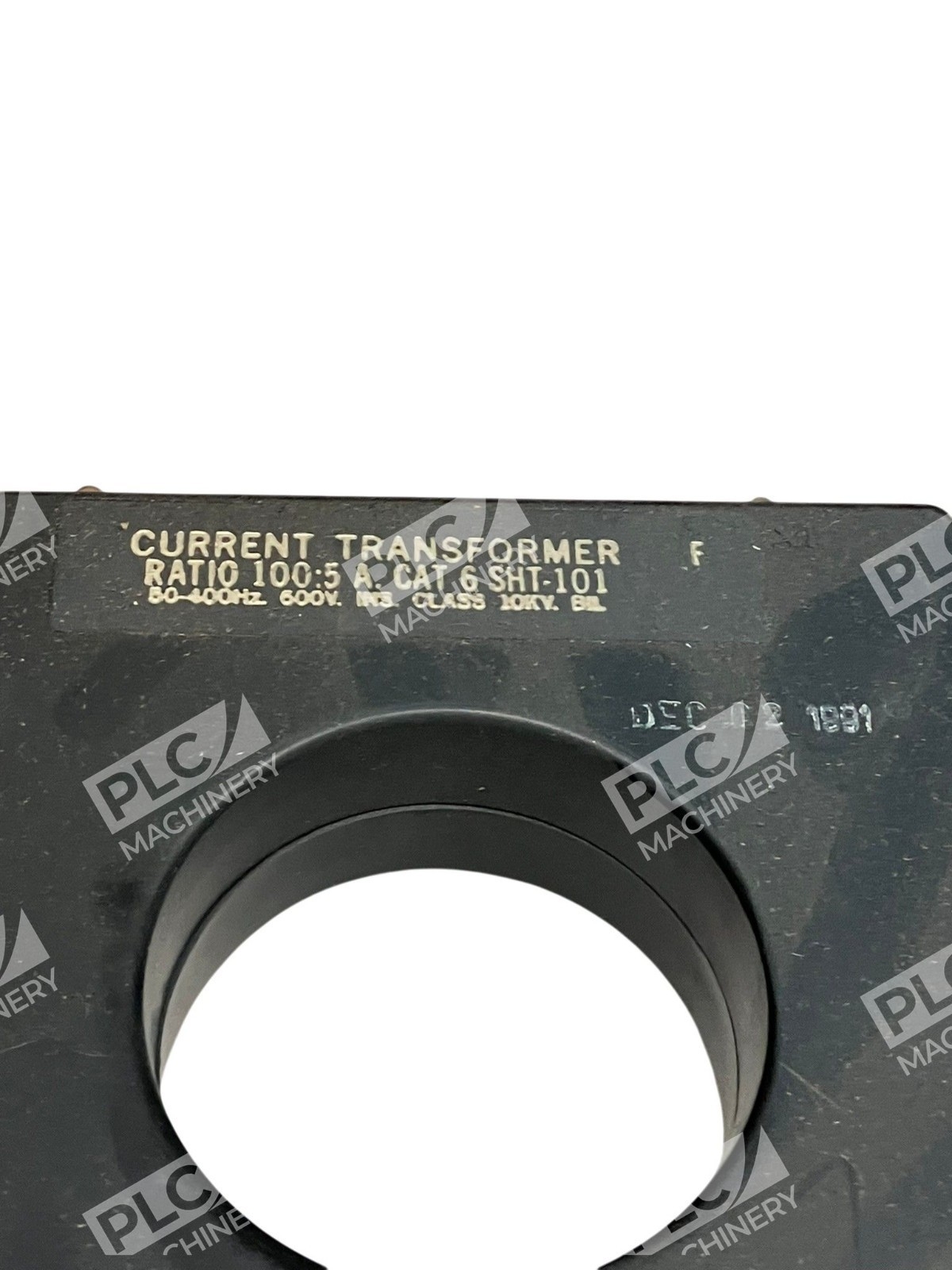

The 6 SHT-101 current transformer is a non-ANSI rated, window-type instrument transformer engineered for precision current measurement and signal conditioning in industrial automation and electrical systems. With a standard 100:5A primary-to-secondary ratio, this CT converts high primary currents into safely measurable 5A secondary signals suitable for analog instrumentation, power metering, and protective relaying circuits.
Key Features
- 100:5A current ratio for versatile metering applications
- Window-type (toroidal) core design accepts conductor pass-through
- 600V, 10 kV BIL insulation class for standard industrial voltages
- Class 2 accuracy (±2% at 60 Hz) for reliable measurement
- Frequency range 50–400 Hz supports global power systems
- Brass stud terminals (#8-32 UNC) with standard washers and nuts
- UL 1015 105°C flexible lead connections, CSA approved
Technical Specifications
- Current Ratio: 100:5A (20:1 turns ratio)
- Primary Current Rating: 100A nominal
- Secondary Current Output: 5A nominal
- Accuracy Class: Class 2 (±2% @ 60 Hz)
- Power Rating (Burden): 2 VA
- Window Diameter: 52.3 mm (2.06″)
- Insulation Level: 600V, 10 kV BIL full-wave
- Frequency Range: 50 Hz to 400 Hz
- Terminals: Brass studs, #8-32 UNC with flat washer, lock washer, nut
- Connection Type: Flexible leads, UL 1015 105°C, CSA approved
- Approximate Weight: 1.0 lb

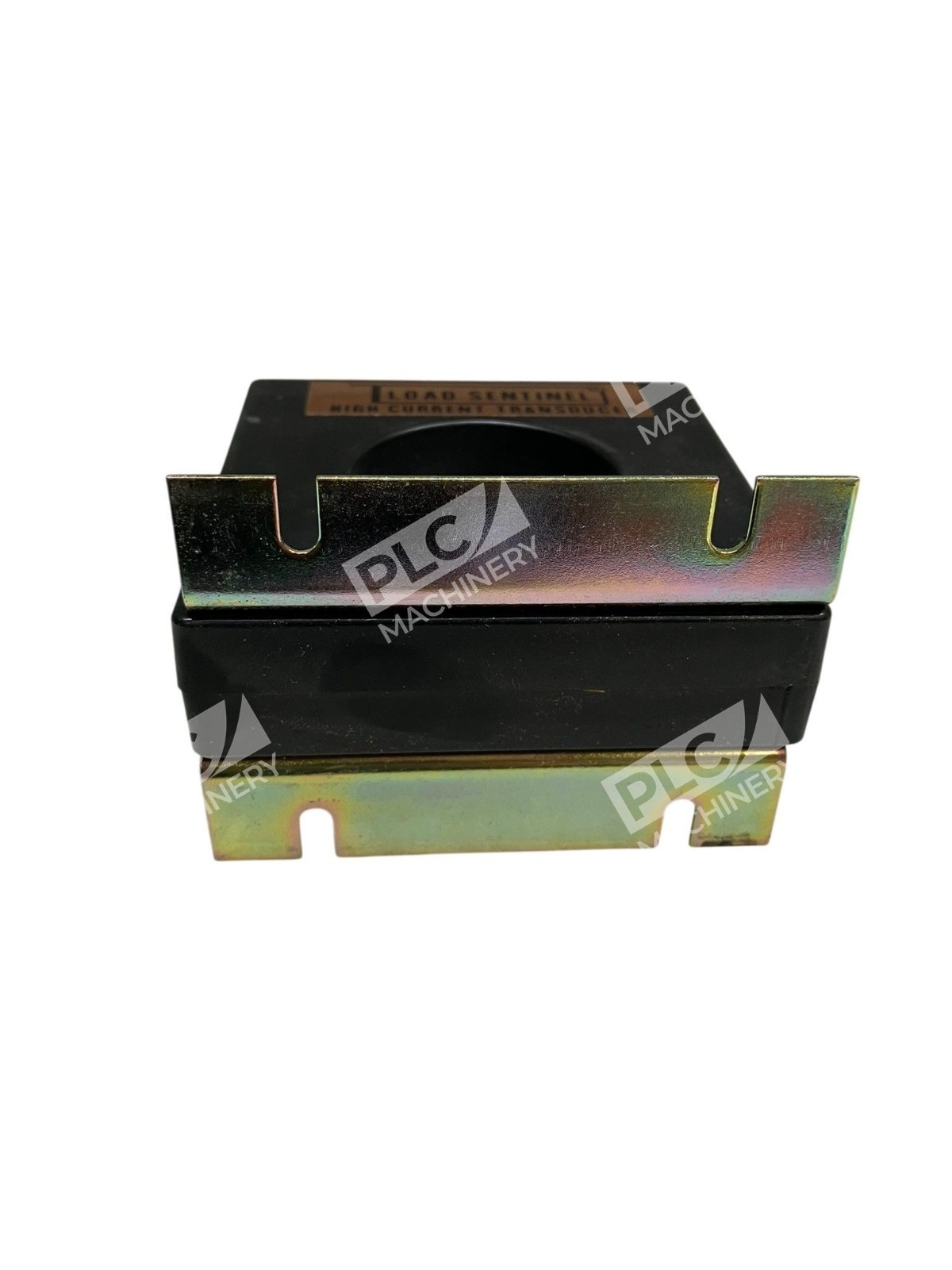

- Construction: Non-ANSI rated window type, feet mount
- Case Style: SHT (also available as SHL with pre-attached leads)
- Condition: New, No Original Box
Typical Applications
The 6 SHT-101 is ideal for:
- AC ammeter circuits and panel-mount analog measurement
- Power metering and kWh integrators
- Cross-current compensation in balanced three-phase systems
- Industrial control and load monitoring
- OEM test and measurement equipment
- Power quality analysis and protective relaying support
Compatibility & Replacements
Compatible With
- Standard 5A secondary ammeter movements and analog gauges
- Power measurement transducers and metering modules
- Industrial control systems using analog current inputs
- Three-phase power distribution systems (50/60 Hz)
- Protective relay circuits requiring current signals
- Test and measurement instrumentation
Replaces / Drop-In Replacement For
- Crompton 5SHT-101 (window-type, same ratio and insulation class)
- Crompton 5SFT-101 (metering variant, 100:5A)
- Sifam Tinsley Omega 30C 6SFT-101 (equivalent modern designation)
- Similar non-ANSI window-type CTs with 100:5A ratio and Class 2 accuracy
Works With
- Legacy and modern industrial power systems operating at 50–400 Hz
- Panel-mount analog meters and indicators
- Programmable logic controllers (PLCs) with analog input modules
- SCADA and energy management systems
- Power quality monitoring equipment
- Facility-level load profiling and demand response systems
