Overview

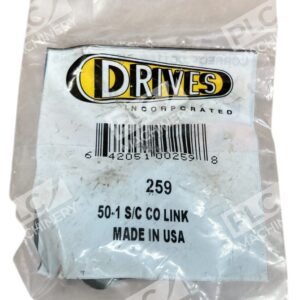

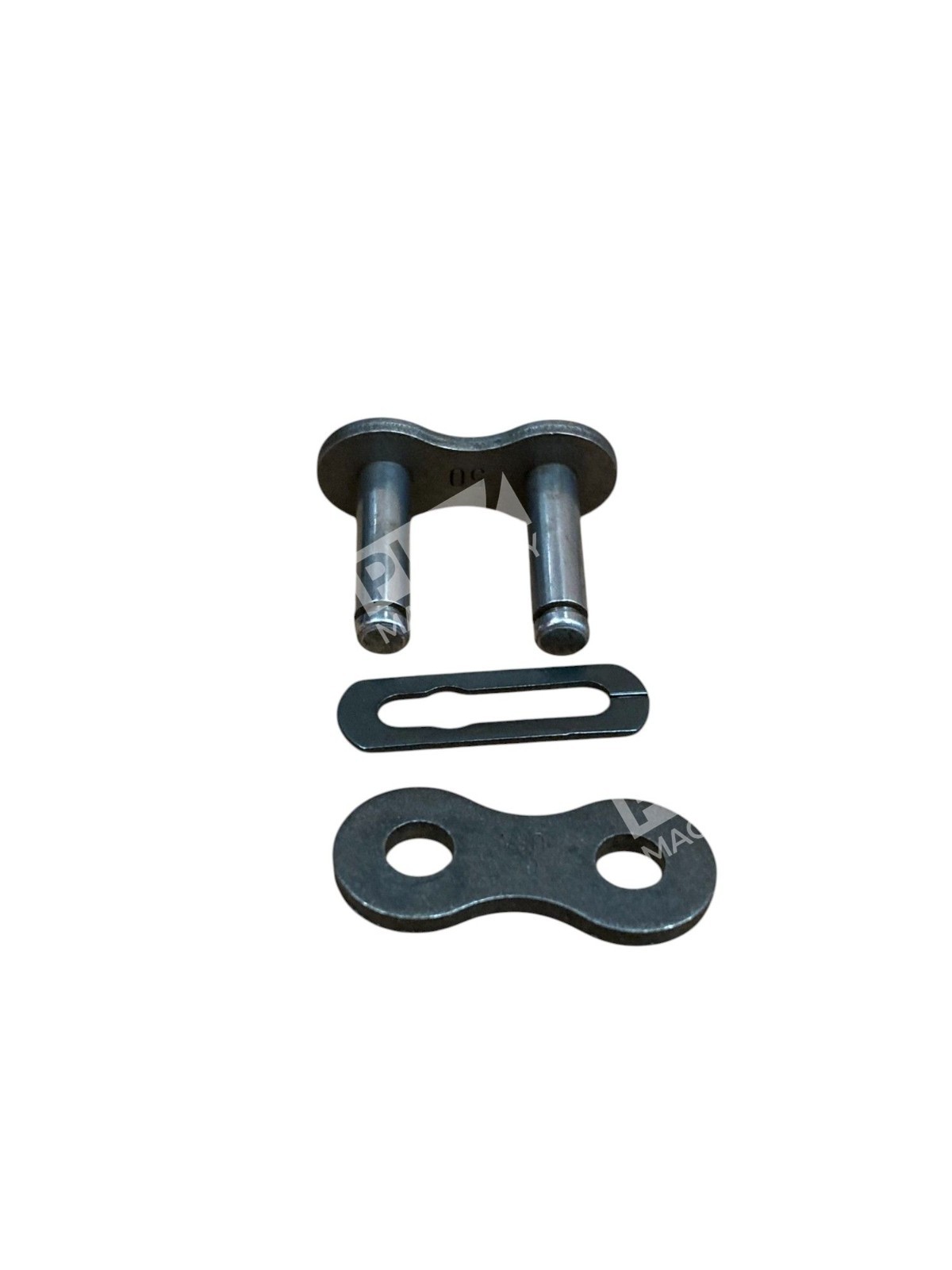

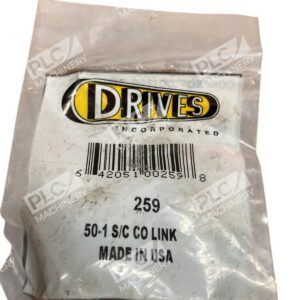

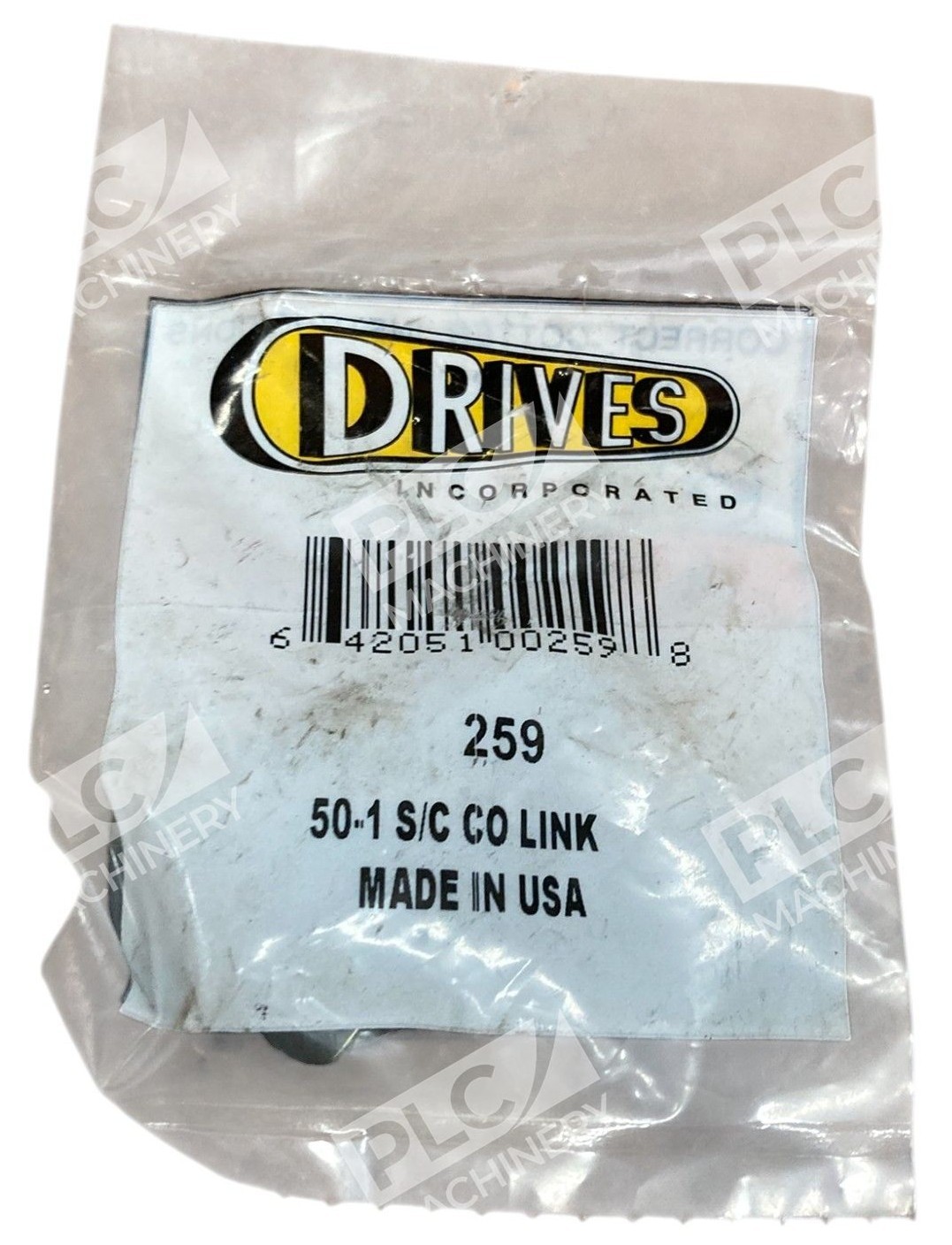

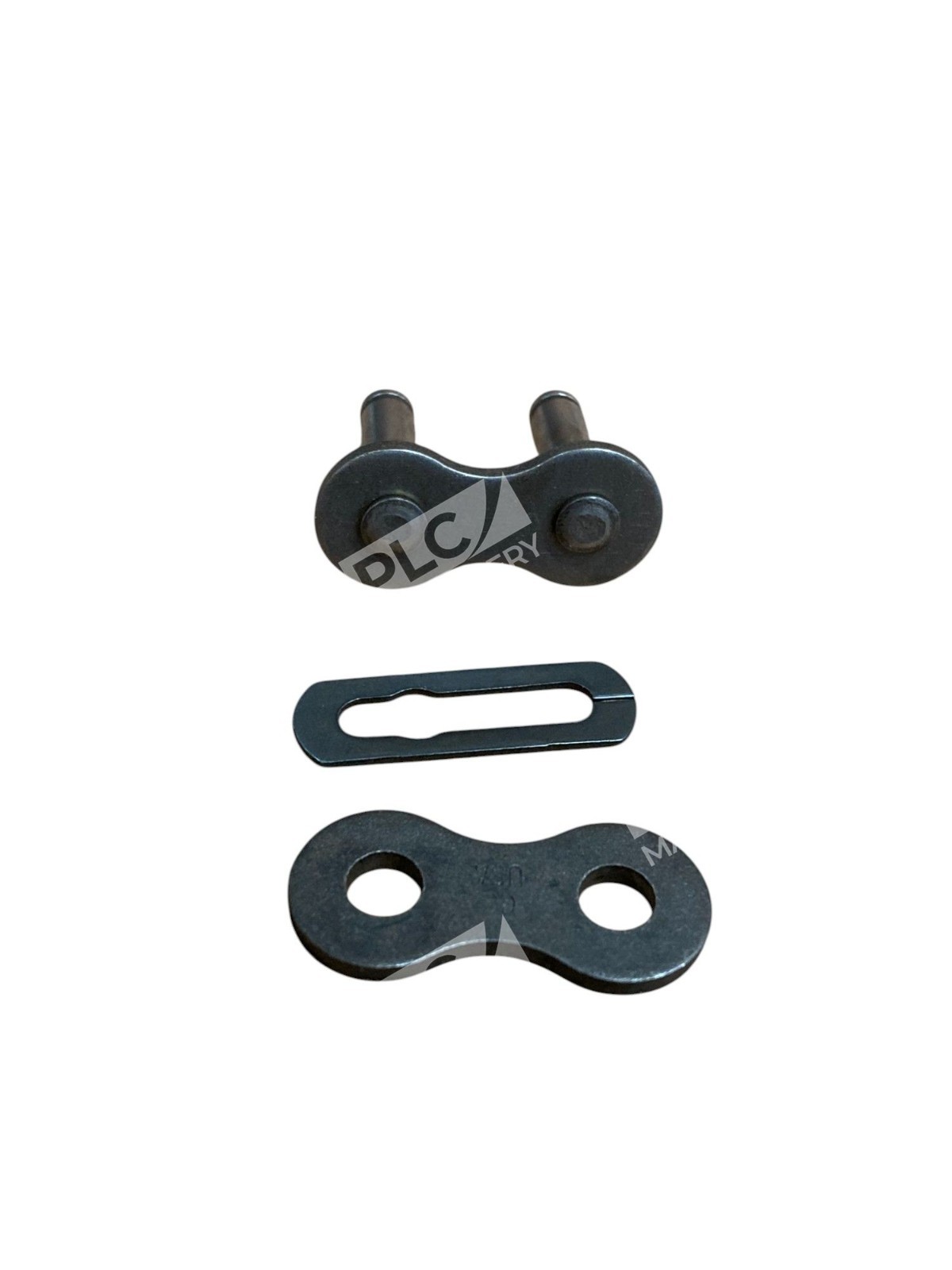

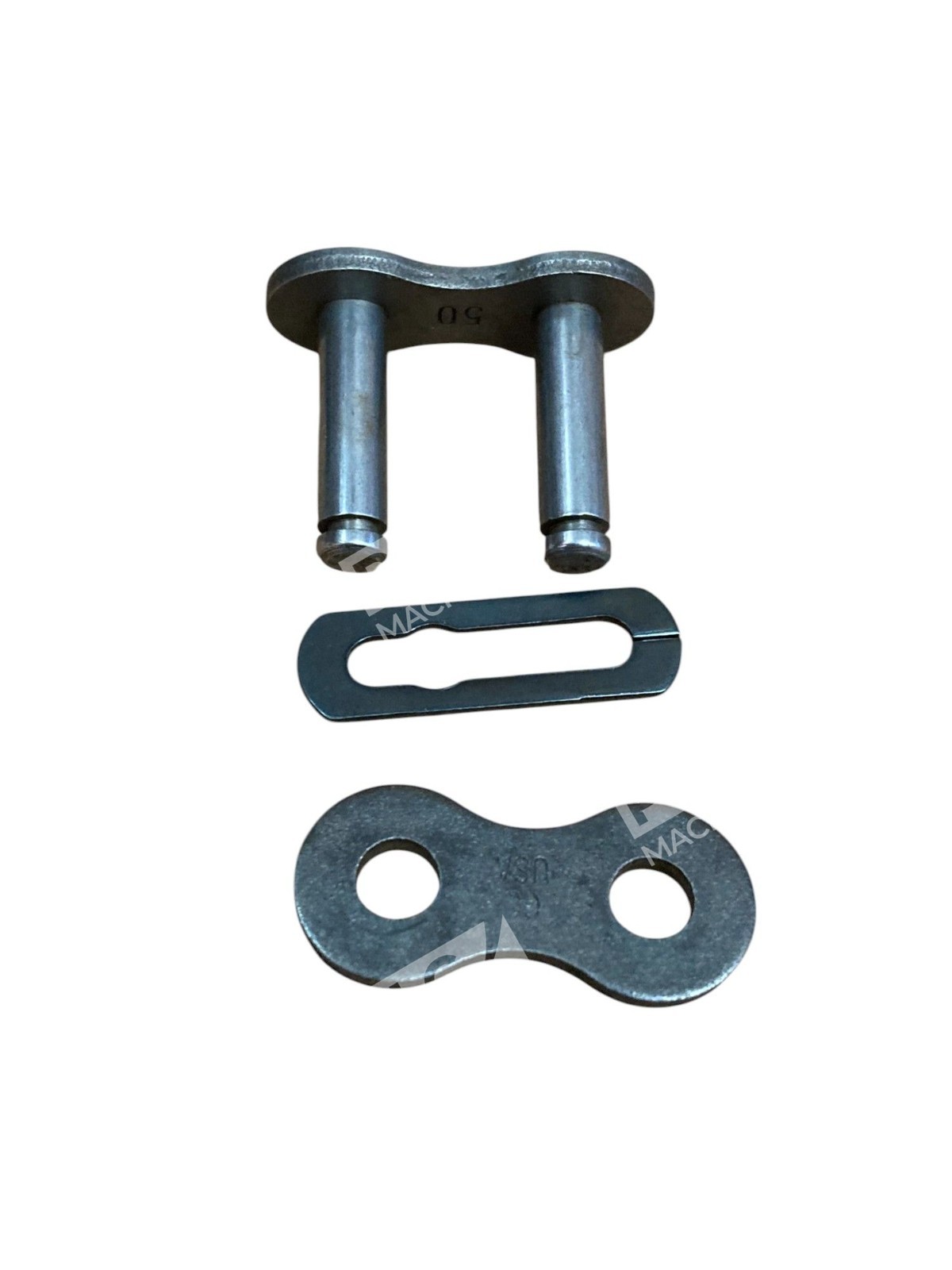

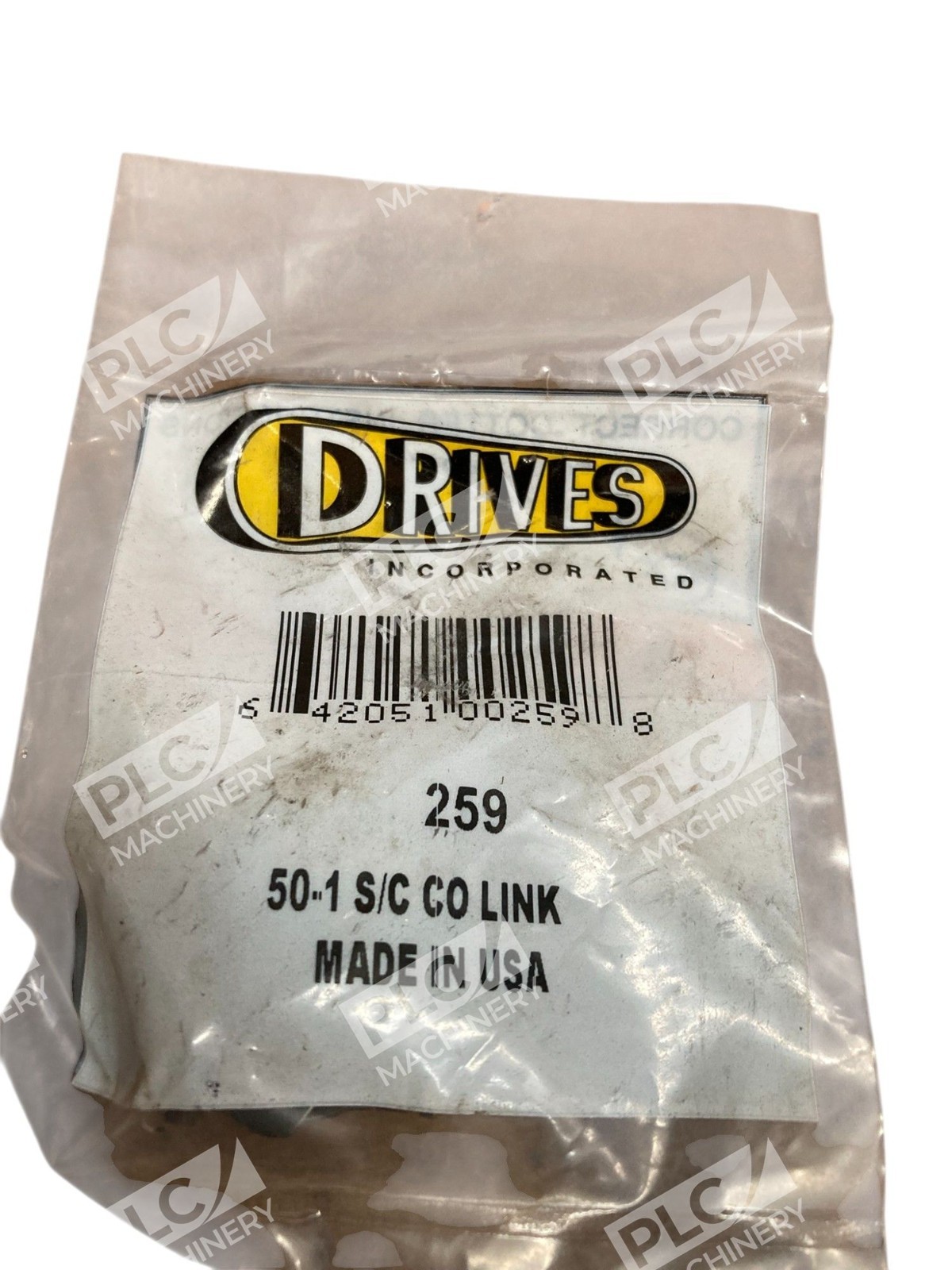

The Timken Drives 259 50-1 S/C connecting link is a roller chain connector designed for seamless integration with 50-1 ANSI standard roller chain. This lot contains 8 individually packaged connecting links, each engineered to provide reliable, secure connections in industrial power transmission applications. With carbon steel construction and hot-dip lubrication, these links deliver durability and extended service life in demanding environments.
Key Features
- Spring clip (S/C) design for quick, tool-free installation and removal
- Carbon steel material with hot-dip lubrication for corrosion resistance
- Compatible with 50-1 ANSI roller chain systems
- 5/8 inch pitch matching standard 50-1 chain specifications
- Compact package of 8 units, suitable for inventory or bulk replacement
Technical Specifications
The Timken Drives 259 connecting link meets the following dimensional and material requirements:
- Overall Width: 0.888 inches
- Pin Diameter: 0.2 inches
- Link Plate Height: 0.59 inches
- Link Plate Thickness: 0.08 inches
- Chain Pitch: 5/8 inch (50-1 standard)
- Material: Carbon Steel, hot-dip lubricated
- Weight per Link: 0.045 lb
- Connector Type: Spring Clip (S/C)
Typical Applications
The 50-1 connecting link is commonly used in:
- Industrial conveyor belt systems
- Agricultural machinery and equipment
- Power transmission assemblies
- Manufacturing and material handling systems
- Equipment maintenance and field repairs
- Spare parts inventory for 50-1 chain-driven equipment
Compatibility & Replacements
Compatible With
- 50-1 ANSI standard roller chain systems
- Sprocket assemblies with 50-1 pitch (5/8 inch)
- Standard industrial power transmission equipment
- Chains and drives manufactured to ANSI B29.1 specifications
Replaces / Drop-In Replacement For
- OEM Timken Drives 259 connecting links
- Generic 50-1 S/C roller chain connecting links meeting ANSI B29.1 standards
Works With
- 50-1 roller chain (ANSI B29.1 standard)
- Spring clip (S/C) compatible chain ends
- Carbon steel and lubricated chain systems
