Overview

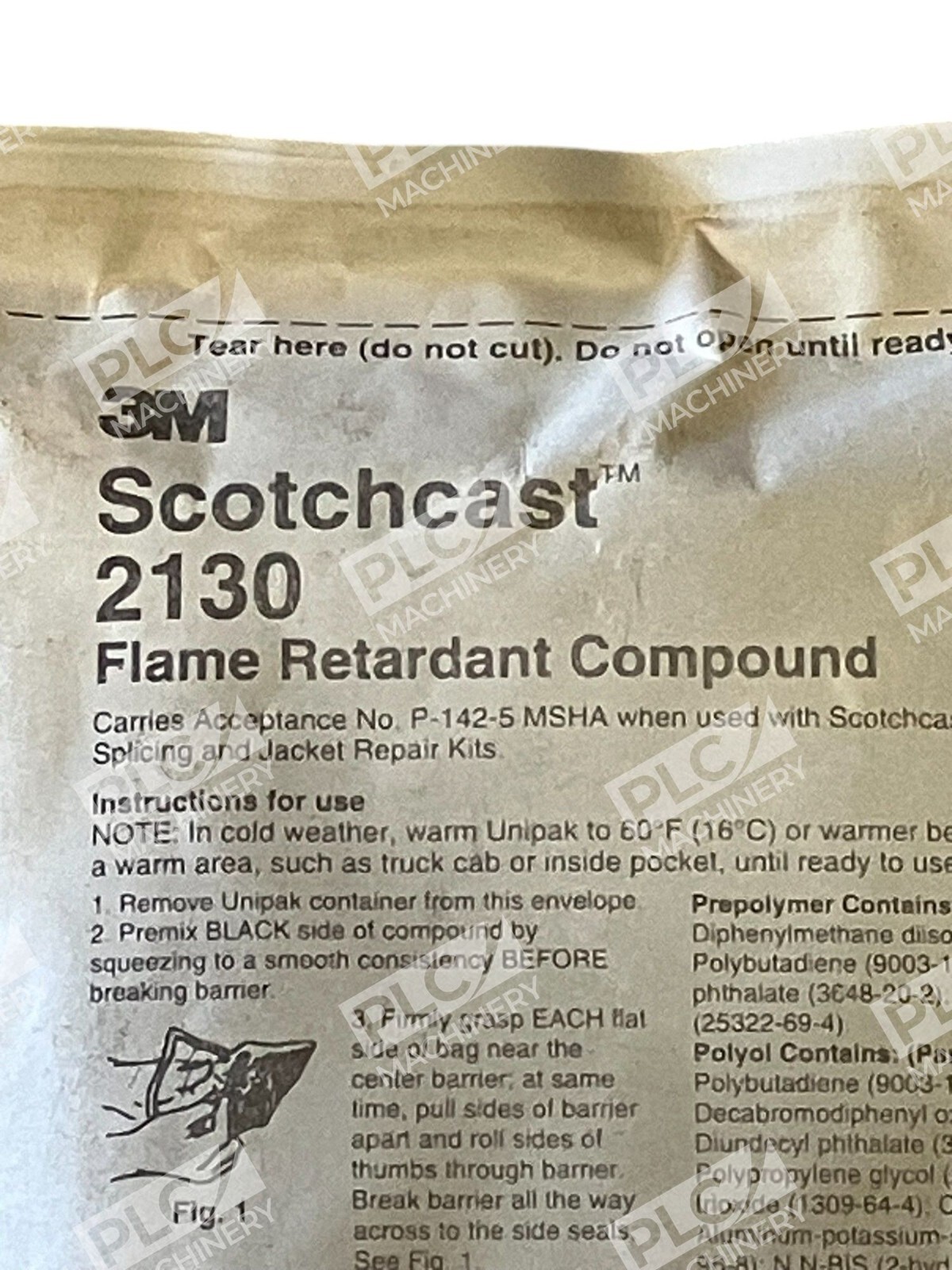

3M Scotchcast 2130 flame retardant compound is a two-part polyurethane resin designed to replace the cable jacket when splicing or repairing mine and portable cables. This semi-flexible resin ensures curing at room temperature and acts as an insulating material for cable splices. The compound adheres to most modern cable jackets and is MSHA and ASTM approved.
Key Features
- Offers jacket repair or splicing of portable cables in demanding environments
- Used as insulating material for cable splices operating at up to 1000 volts, designed for 90°C continuous use and 130°C overload
- Withstands a temperature range of 32 to 194 degrees F (0 to 90 degrees C)
- Helps seal the crotch or sheath when terminating multi-core cables
- Comes in a pouch for easy mixing and pouring
Technical Specifications
- Color: Black
- Hardness (ASTM D2240): 83 Shore A
- Density: 0.702 oz/in³ (1,215 g/cm³)
- Tensile Strength (ASTM D412): 1080 psi (75.9 kg/cm²)
- Elongation (ASTM D412): 377%
- Glass Transition Temperature: -112°F (-80°C)
- Gel Time @ 75°F (23°C): 17 minutes
- Dielectric Strength (ASTM D149): 371 V/mil (14.6 kV/mm)
Typical Applications
- Mine and portable cable splicing and repair
- Insulation between conductors in multi-core cable splices rated up to 1000 volts
- Cable sheath and jacket replacement in harsh operating conditions
- High-temperature cable termination in industrial electrical systems
- Emergency cable repairs in field conditions
Compatibility & Replacements
Compatible With
- Modern cable jacket materials including Neoprene, Hypalon, Nitrile, PVC, and EPDM
- Metal conductors (Steel, Aluminum, Copper)
- Portable and mine cable systems
- Electrical systems rated up to 1000 volts
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 3M Scotchcast 2130 is a standard industry product for cable repairs; confirm specific application requirements with technical support.
Works With
- MSHA-compliant mine cable systems (30 CFR 18.64)
- ASTM electrical cable standards
- Industrial portable power cable applications
- High-voltage electrical insulation systems
