Overview

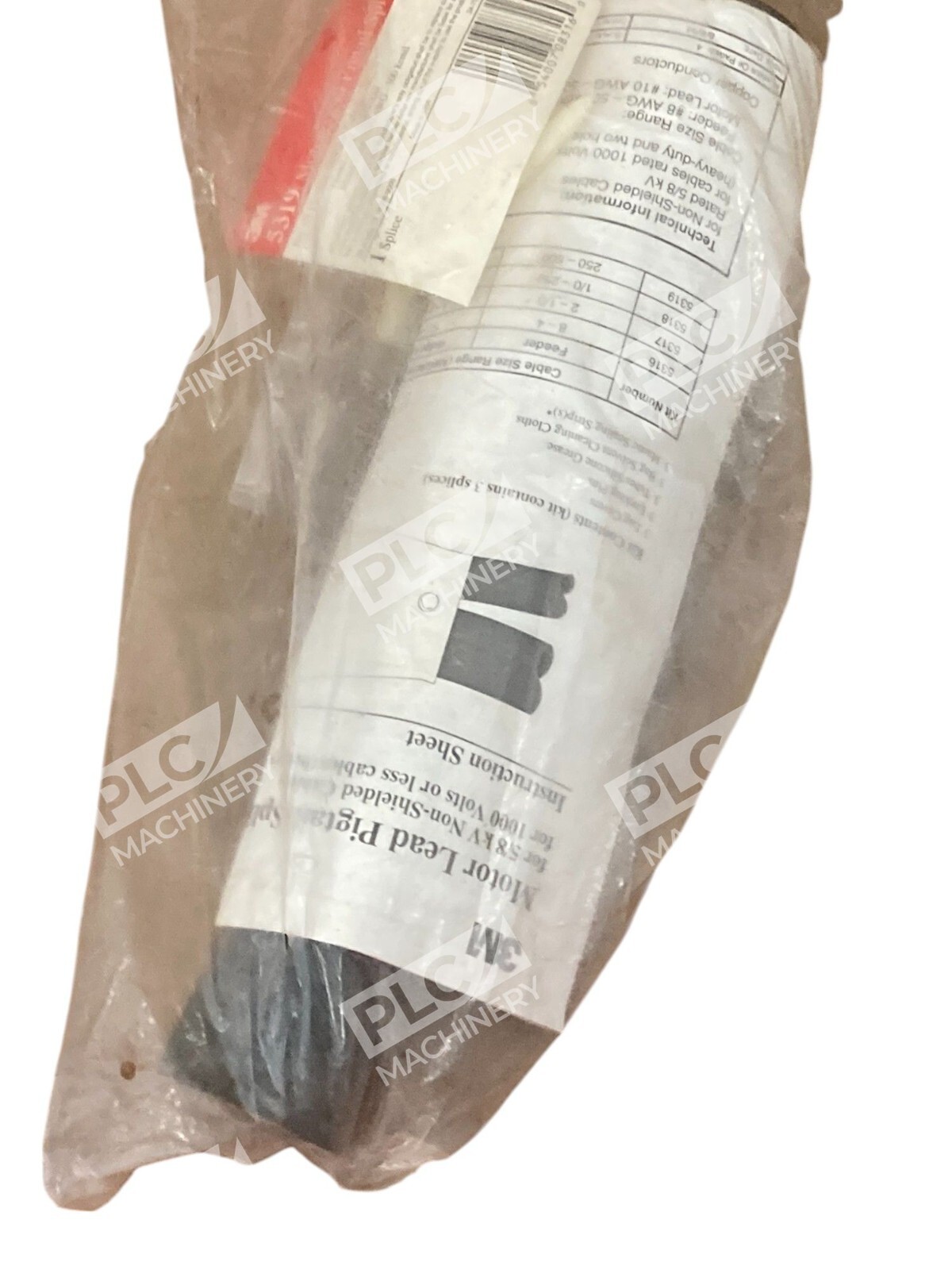

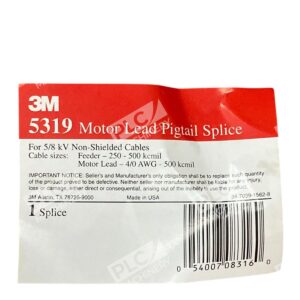

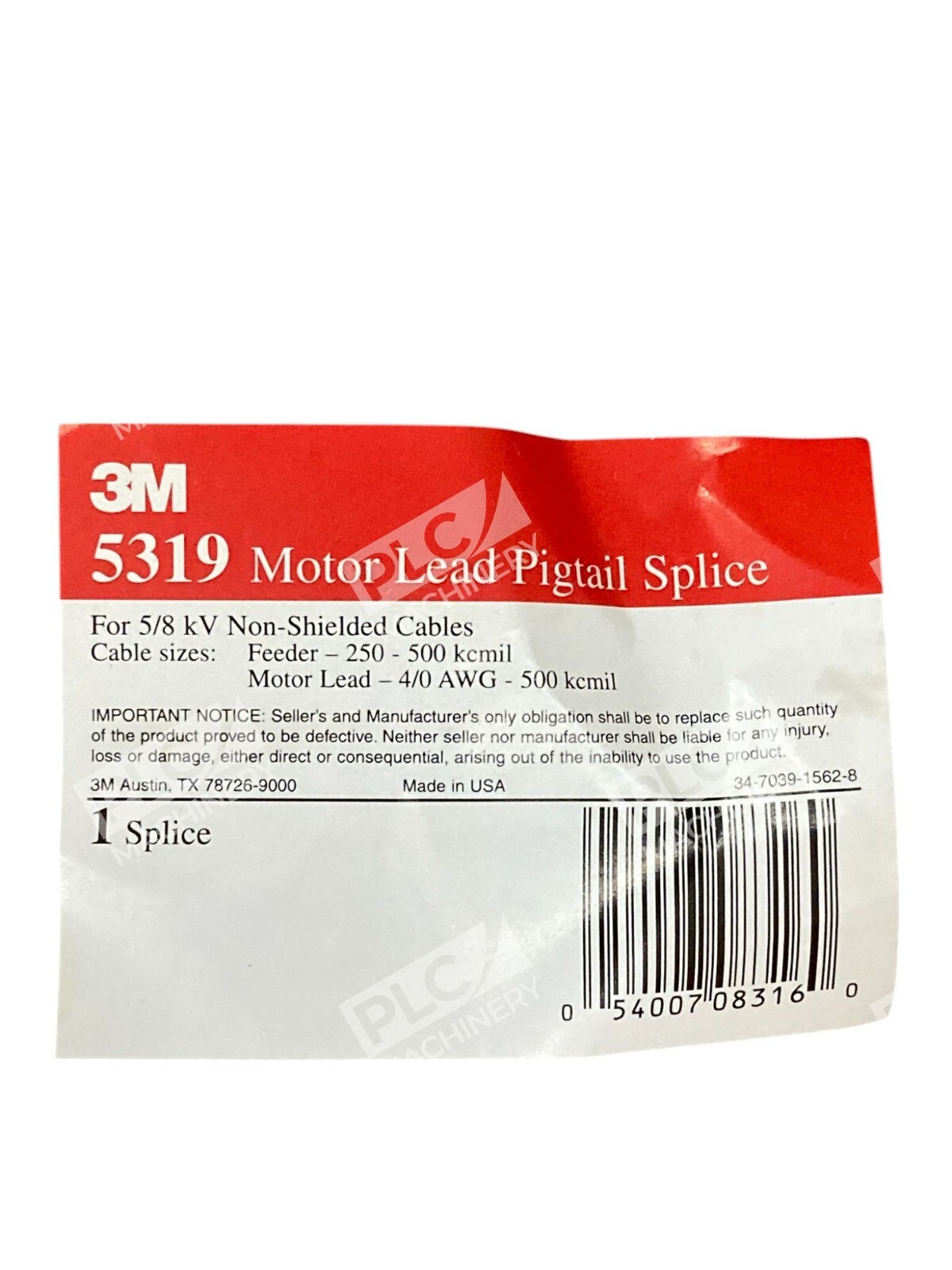

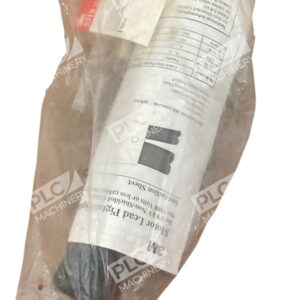

The 3M 5319 motor lead pigtail splice is a professional-grade kit designed for reliable electrical connections in high-voltage motor applications. 3M Motor Lead Pigtail Splice Kits 5316-5319 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. This is a non-shielded splice system rated for 5–8 kV service, ideal for industrial motor lead terminations requiring durable, moisture-sealed connections.
Key Features
- 2-Hole Lug Configuration: Motor lead pigtail type for feeder cable range 250 MCM–500 MCM, motor lead range 4/0–500 MCM, voltage range 1000V, with 2-hole lug (pigtail) connection

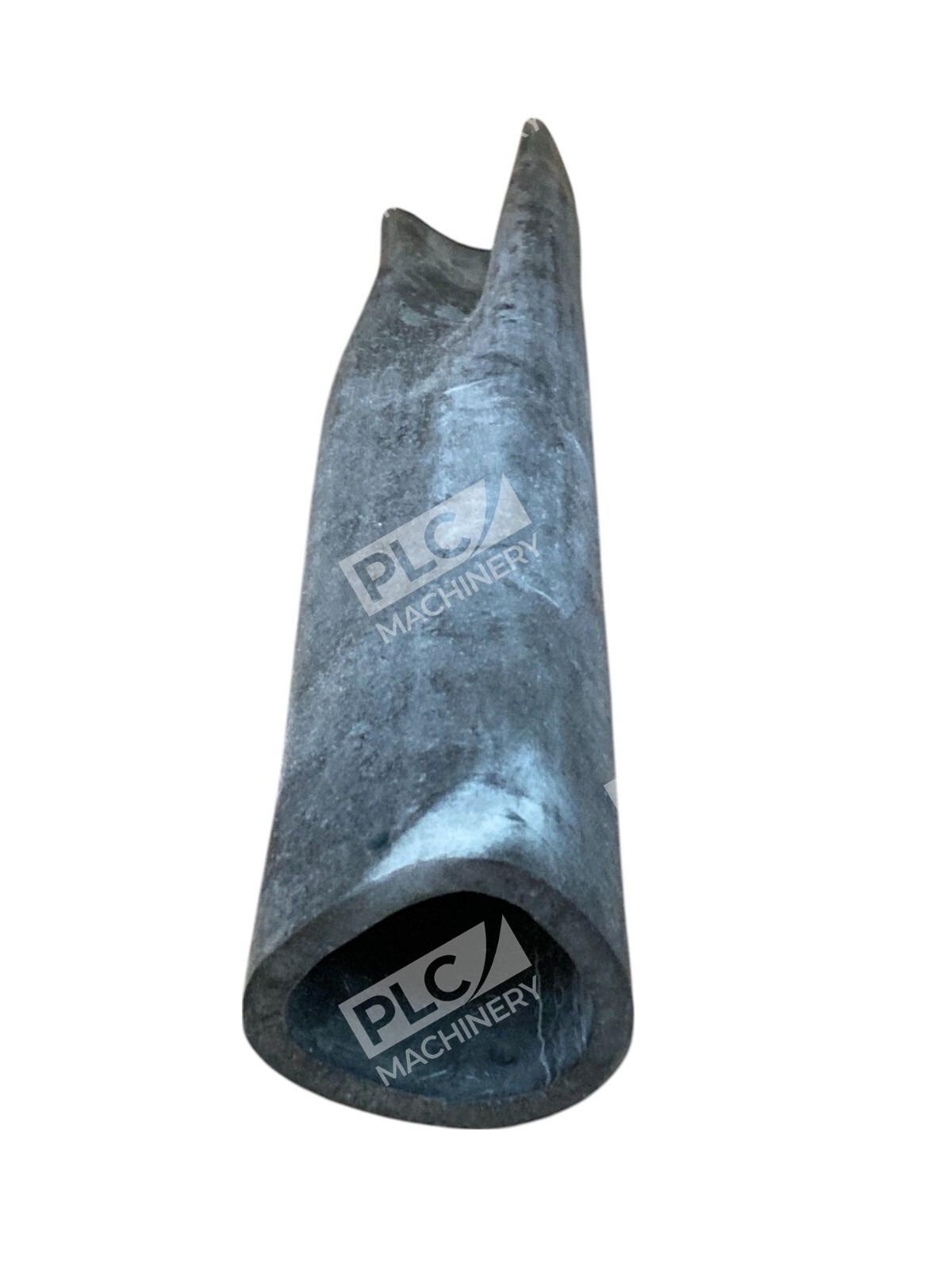

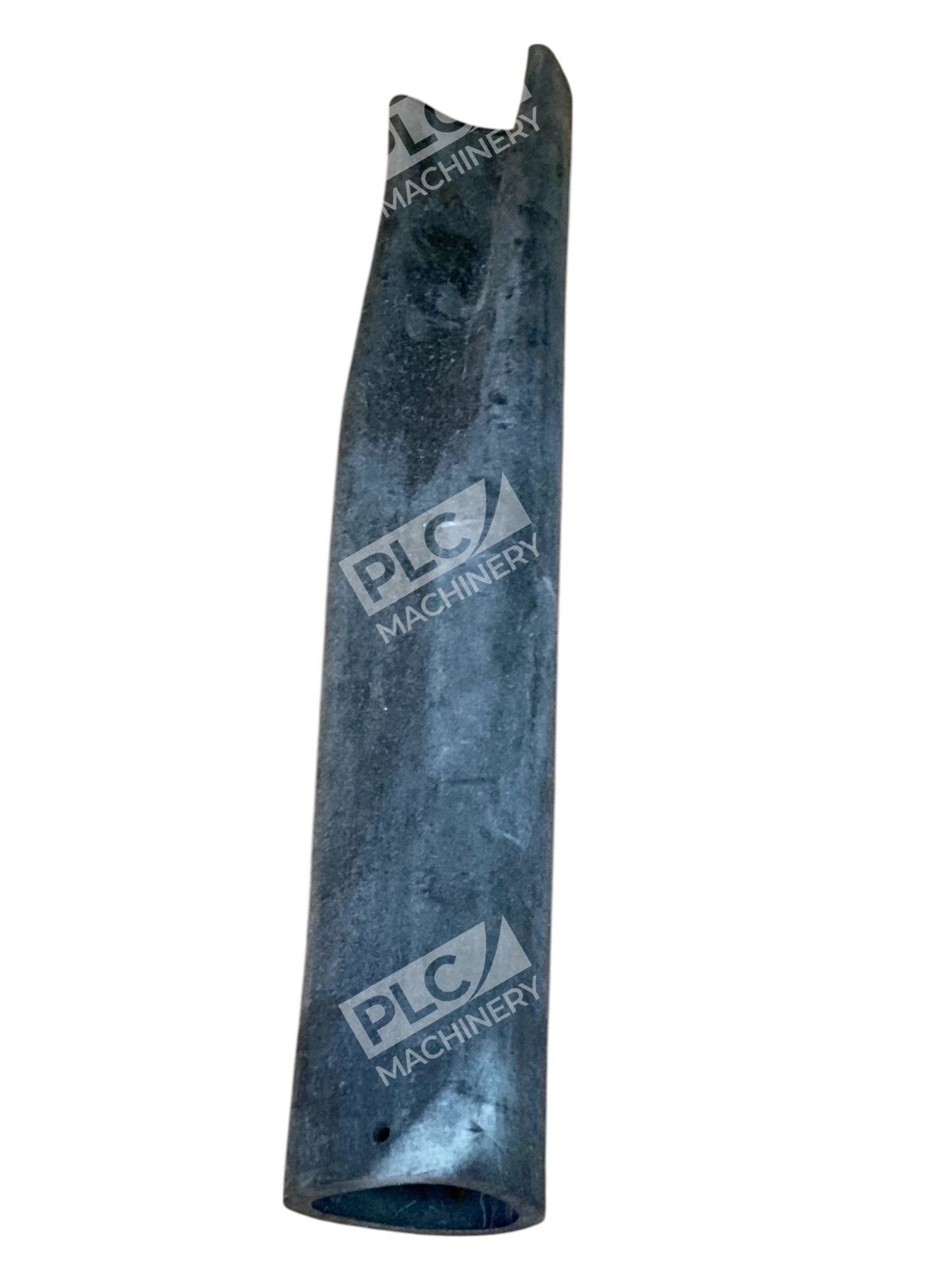

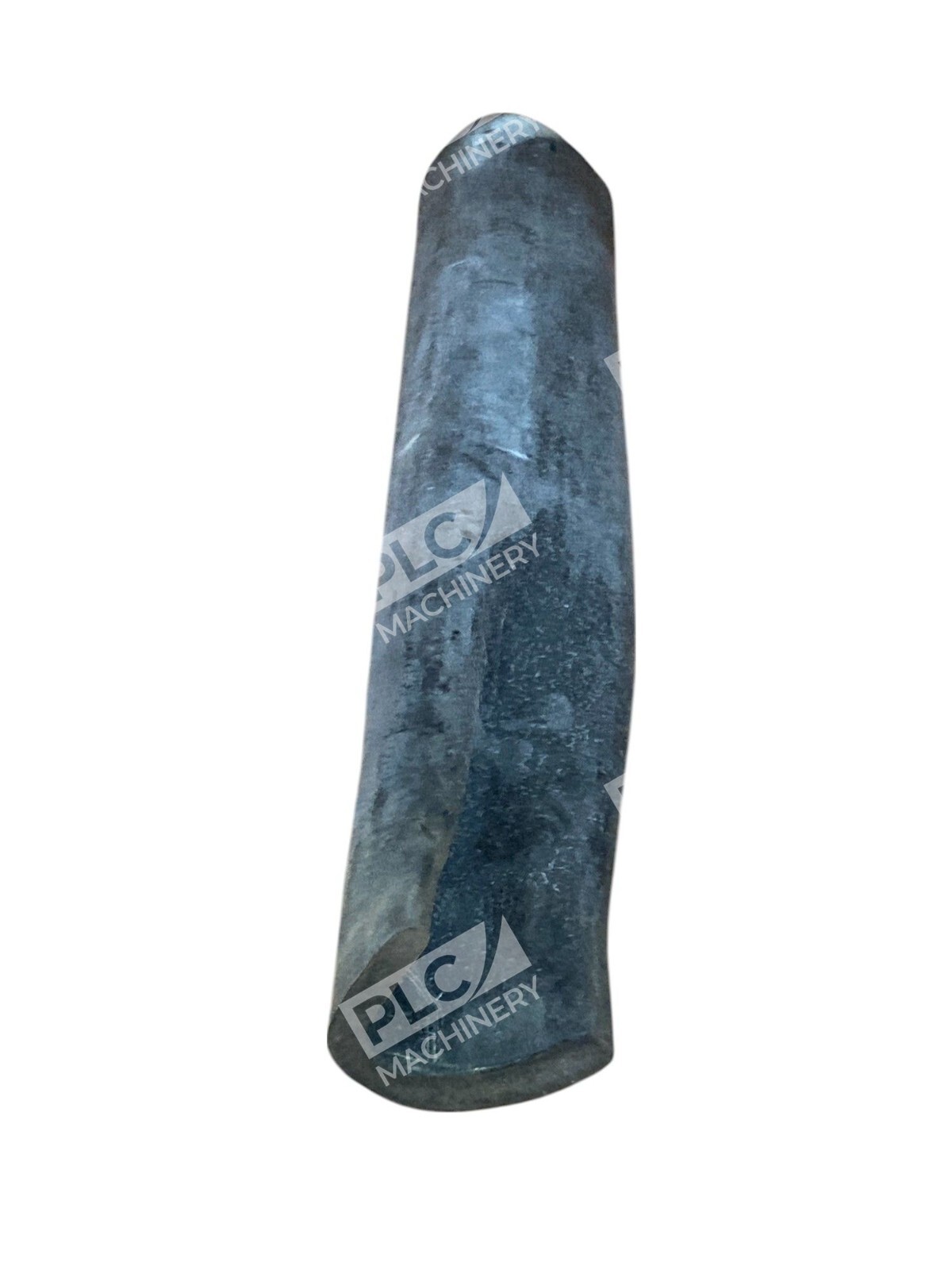

- EPDM Rubber Construction: The slip on splice cover is made from EPDM rubber.
- Moisture Sealing: A mastic strip is used for the moisture seal.
- Multiple Splices Per Kit: The 3M Motor Lead Pigtail Splice Kit makes three splices.
- Stress Control: Includes high dielectric constant stress control for reducing the size and electrical stress.
- CSA Certified: Splice kits 5300–5319 are CSA certified for motor lead applications up to 600 Volts.
Technical Specifications
| Voltage Rating | 5–8 kV (1000V and less for pigtail/inline connections) |
| Splice Type | Pigtail (2-hole lug) |
| Feeder Cable Range | 250 kcmil–500 kcmil |
| Motor Lead Range | 4/0 AWG–500 kcmil |
| Insulation Material | EPDM rubber slip-on cover |
| Moisture Seal | Mastic strip |
| Splices Per Kit | 3 |
| Lug Type | Copper compression, 2-hole |
| Certifications | CSA certified to 600V motor lead applications |
| Shielding | Non-shielded |
| Lug Inclusions | Not included (lugs purchased separately) |
Typical Applications
- Industrial AC motor lead terminations in manufacturing plants and mechanical systems
- High-voltage motor connections in HVAC and pump installations
- Electrical panel and switchgear motor feeder connections
- Cable splicing on polyethylene, cross-linked polyethylene (XLPE), and ethylene propylene rubber (EPR) cable types
- Marine, industrial, and utility applications requiring reliable moisture-resistant insulation
Compatibility & Replacements
Compatible With
- Copper compression lugs (1 or 2-hole, crimped connections)
- Polyethylene (PE) insulated cables
- Cross-linked polyethylene (XLPE) cables
- Ethylene propylene rubber (EPR) cable insulation
- Standard electrical motor branch circuits up to 1000V
Replaces / Drop-In Replacement For
- Previous-generation 3M 5319 kits (same part number, consistent specifications)
- Note: Lugs are not included in kits. Verify lug part numbers and sizes separately.
Works With
- 3M Scotch electrical tapes and splicing accessories
- Standard electrical test equipment (multimeter, high-pot testers)
- Field installation crews and maintenance technicians following ANSI/NFPA and NEC guidelines
