Overview

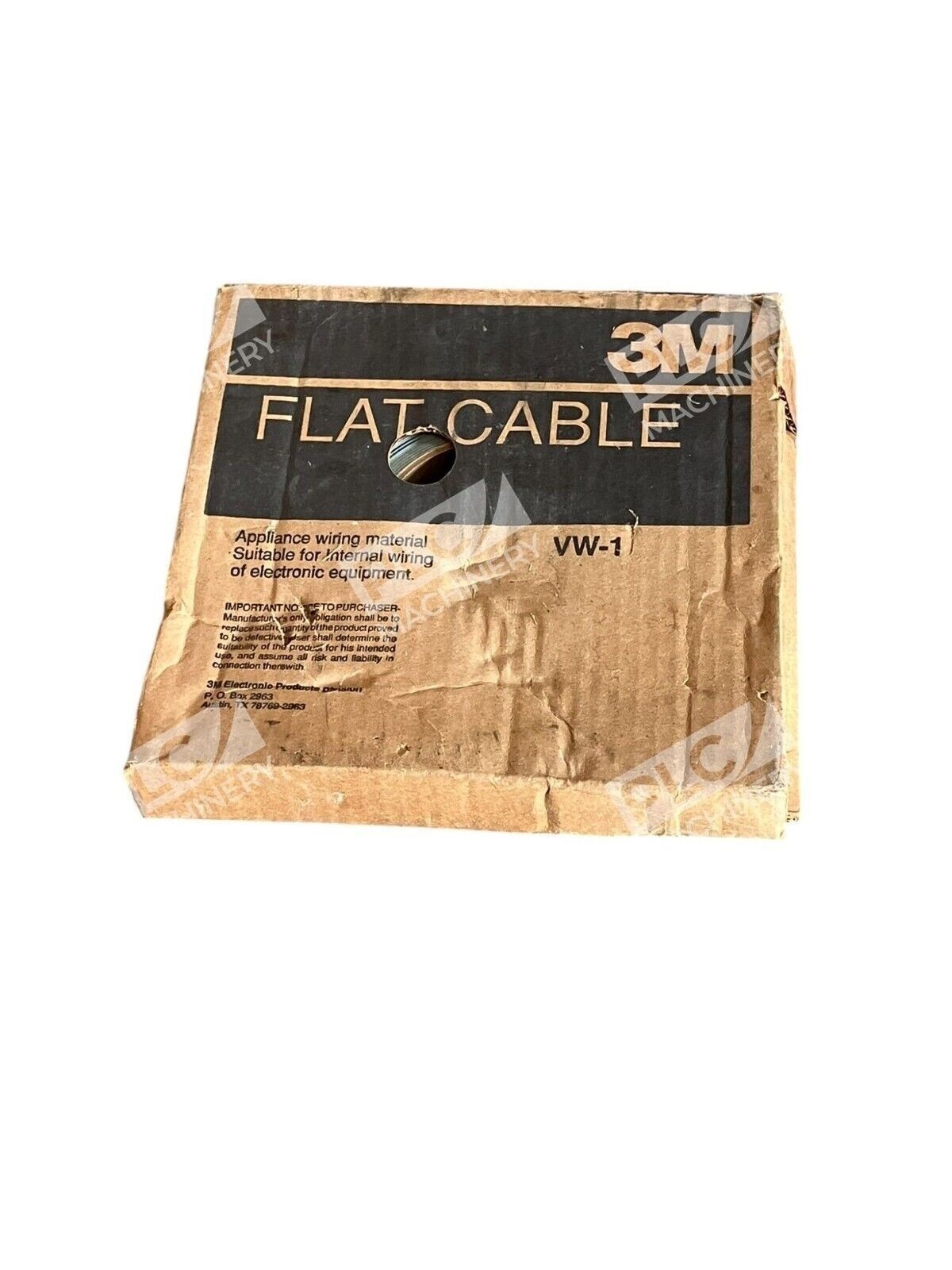

The 3M flat cable 34-7027-0948-5E is a VW-1 rated interconnect cable designed for applications requiring parallel conductor configuration. The cable comprises individually insulated copper conductors mechanically bonded in a parallel (flat) orientation, enabling efficient mass termination of connections. This 100-foot cable is manufactured to meet industry standards for reliable performance in electrical and electronic assembly applications.
Key Features
- VW-1 flame rating for safety compliance
- Individually insulated copper conductors
- Parallel flat configuration for mass termination
- 100 feet length per spool
- 1″ width format
- Designed for industrial and commercial interconnect applications
Technical Specifications

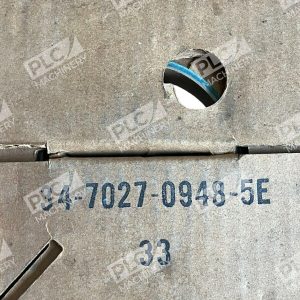

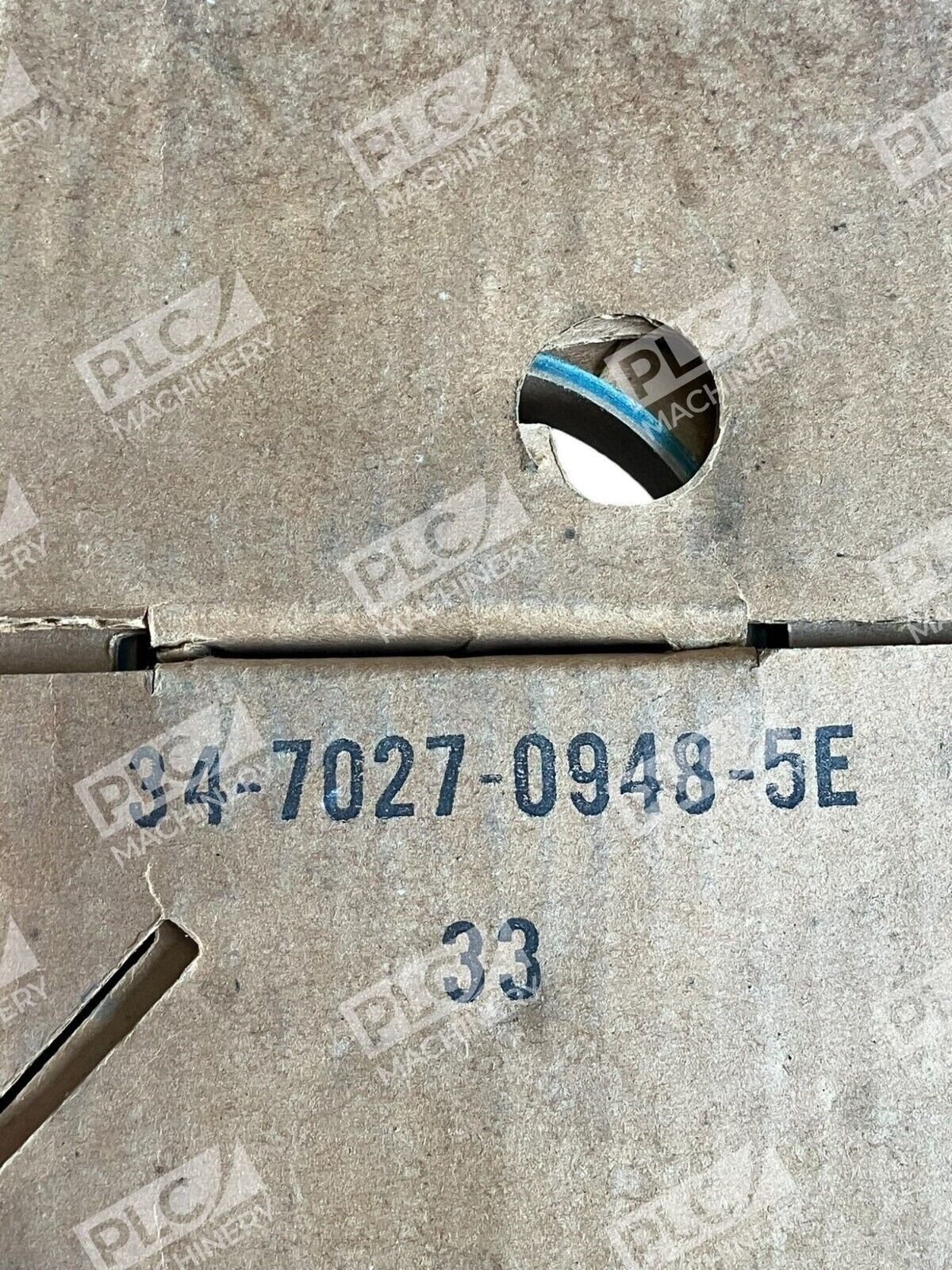

- Part Number: 34-7027-0948-5E
- Manufacturer: 3M
- Cable Type: Flat/Ribbon Cable
- Length: 100 feet
- Width: 1 inch
- Conductor Material: Copper
- Insulation Type: PVC

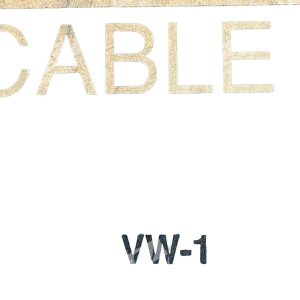

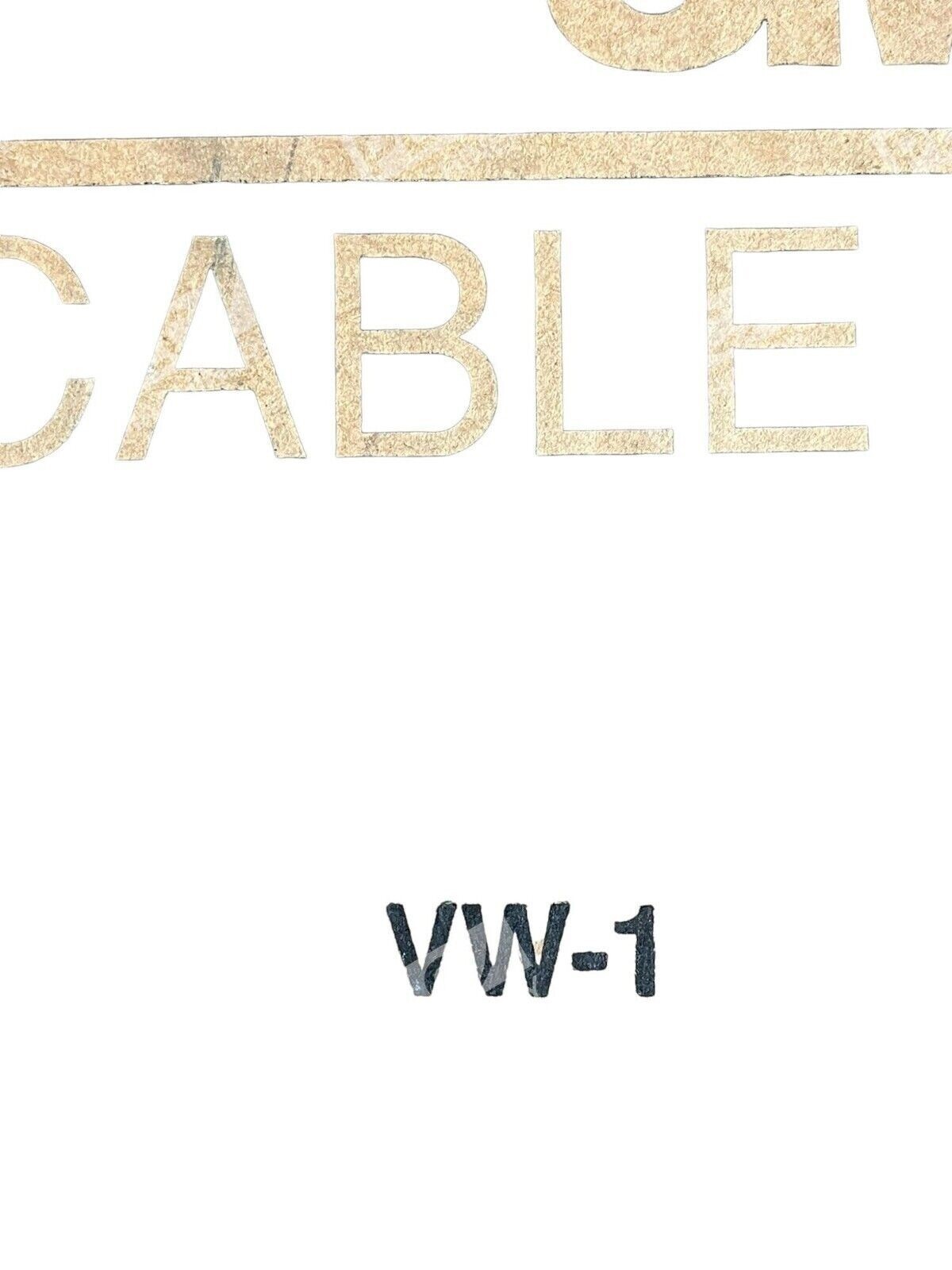

- Flame Rating: VW-1
- Series: 3365/10
- Conductor Gauge: 28 AWG
Typical Applications
- Cable management and routing in compact spaces
- Control panel wiring and interconnects
- Industrial equipment assembly
- Mass termination projects
- Ribbon cable replacement in legacy systems
- Electronic appliance wiring
Compatibility & Replacements
Compatible With
- 3M flat cable connectors and IDC (insulation displacement) termination tools
- Standard mass termination equipment
- Industrial control systems requiring flat conductors
- Applications with spatial constraints requiring compact cable routing
Replaces / Drop-In Replacement For
- Other 3M 34-7027 series flat cables with same conductor count and gauge
- Generic VW-1 rated flat cables in similar configurations
- Verify compatibility with your system integrator before ordering to ensure conductor count and spacing match your application requirements.
Works With
- 3M crimp connectors and termination systems
- Standard ribbon cable connectors (IDC type)
- Industrial control and automation equipment
- Legacy equipment requiring flat cable replacements
