Overview

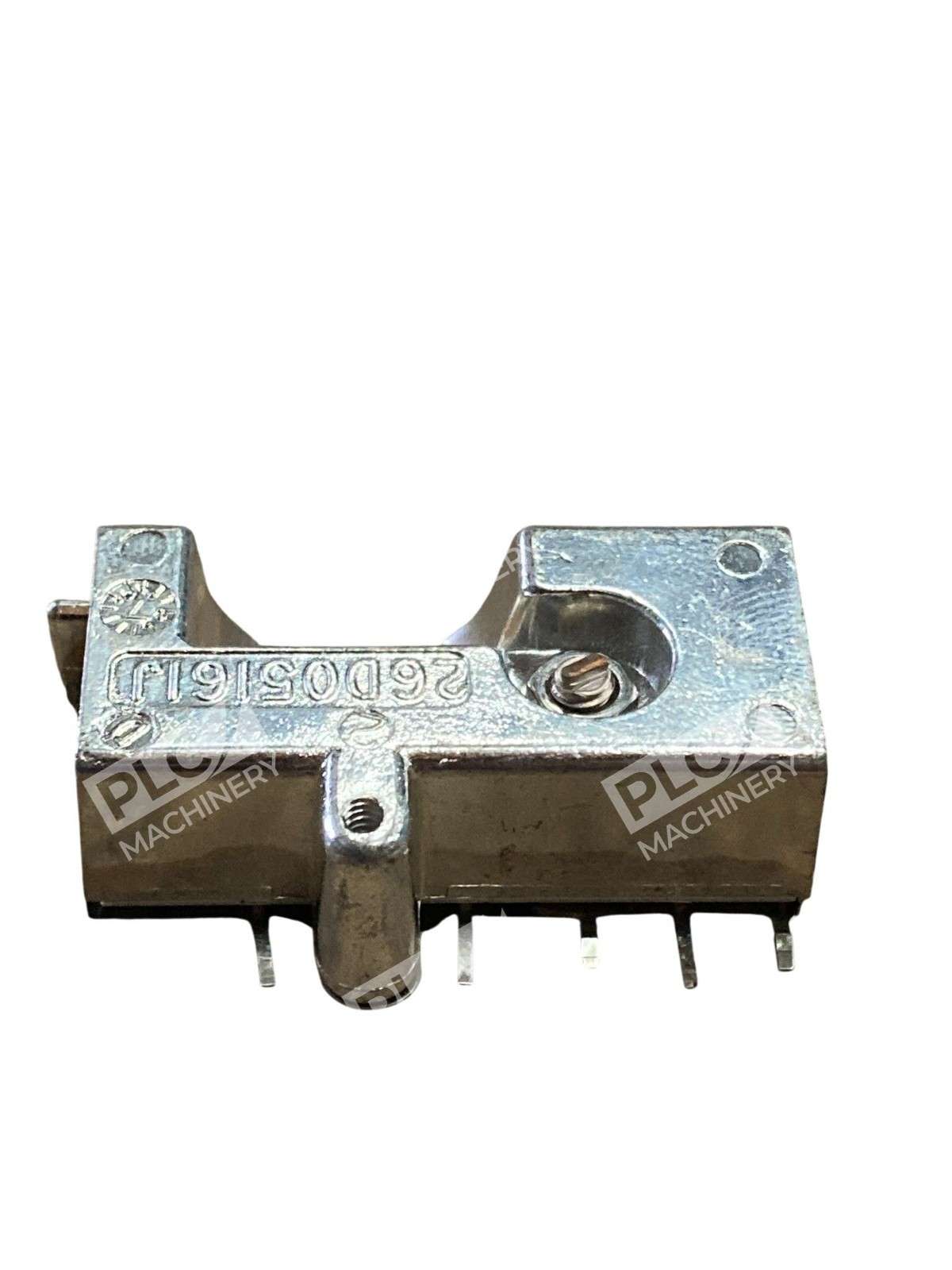

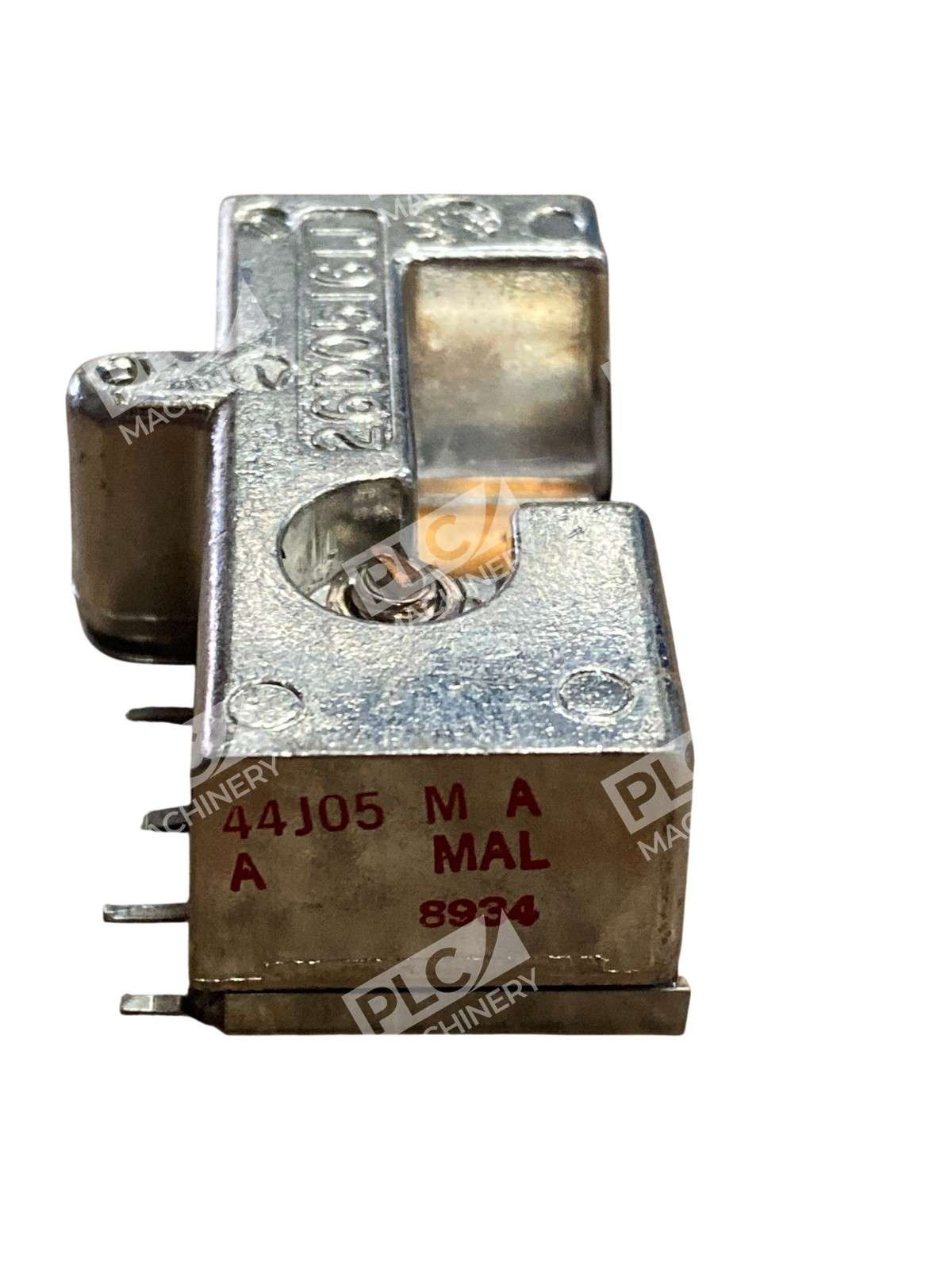

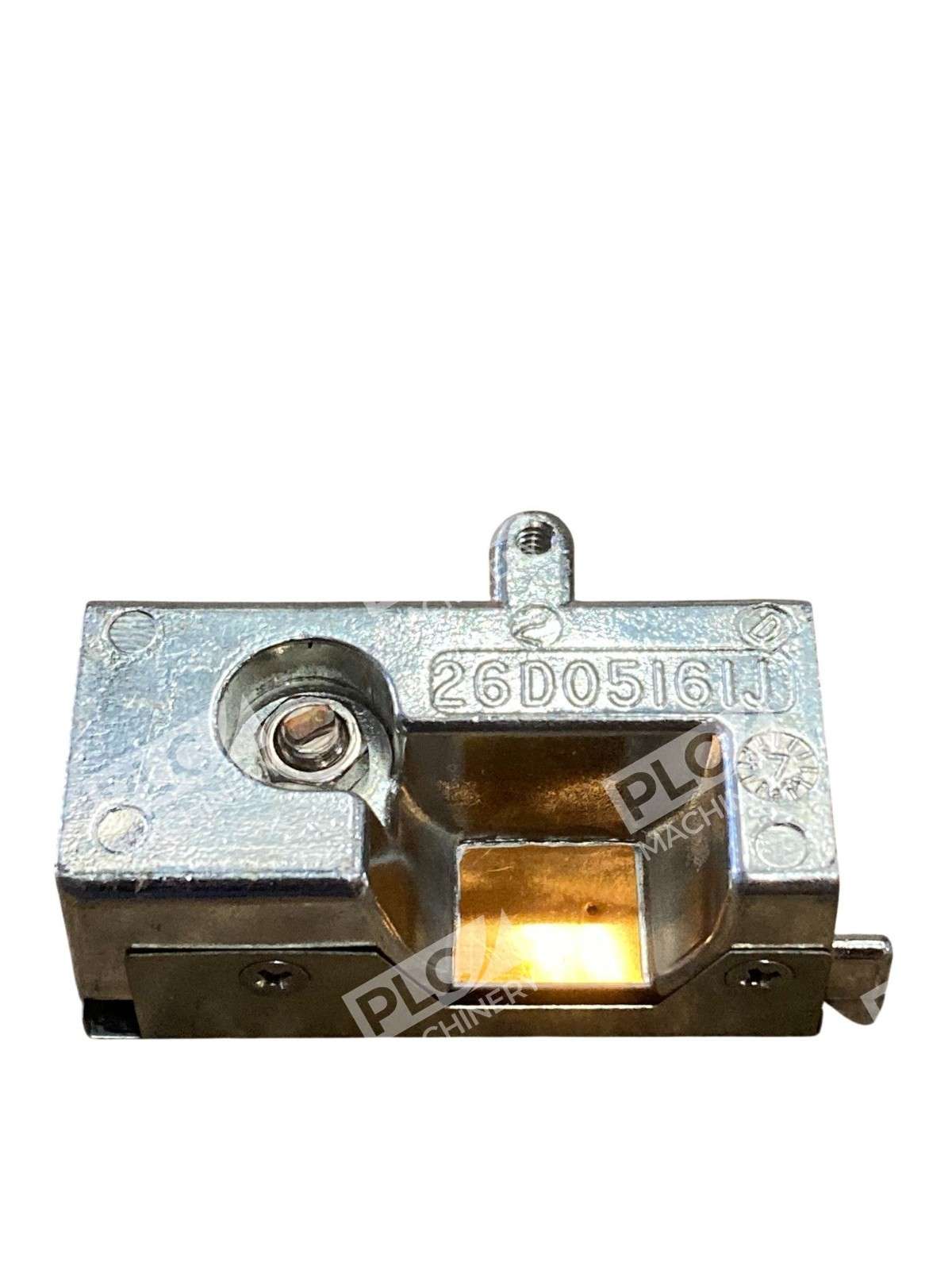

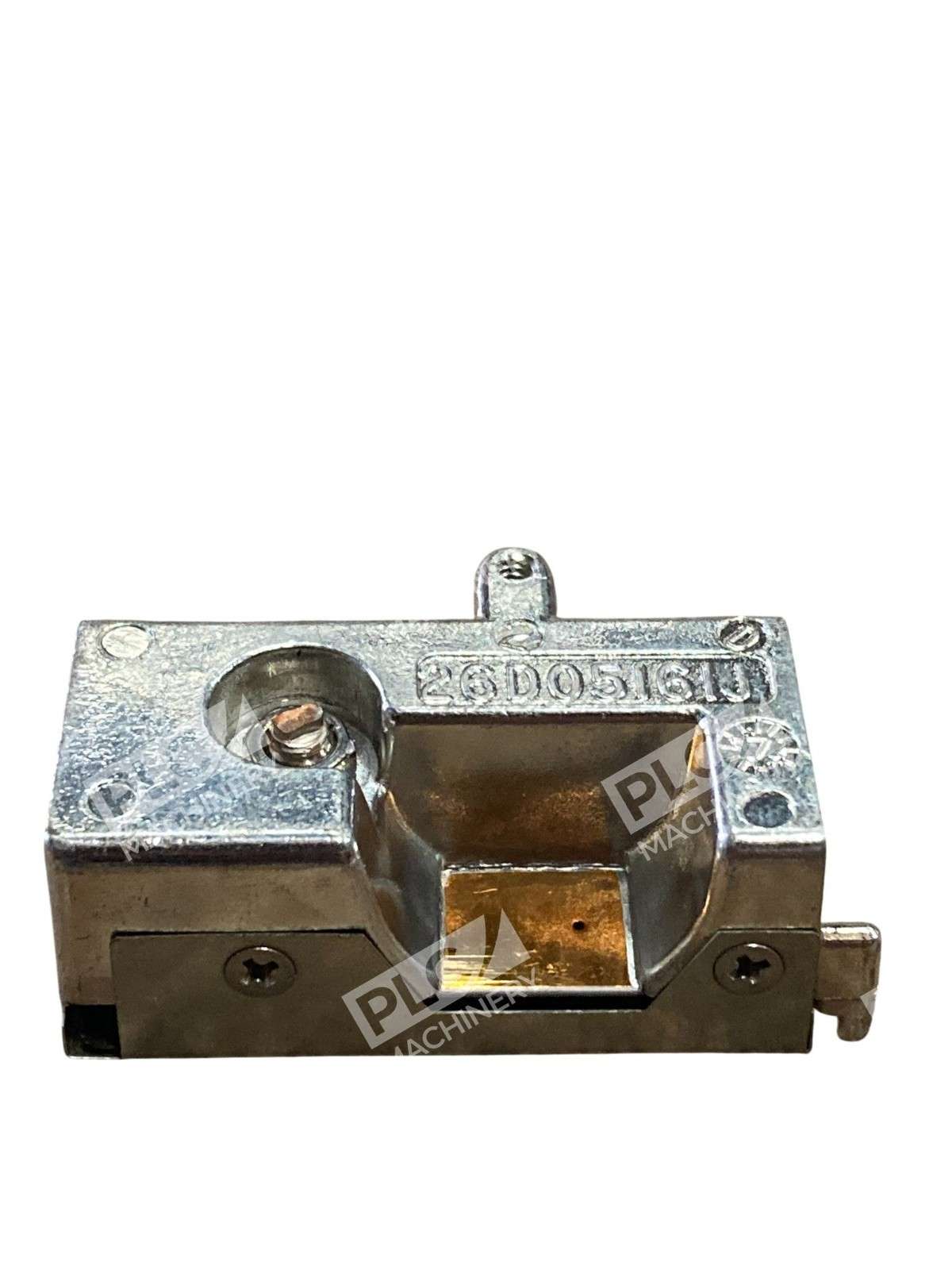

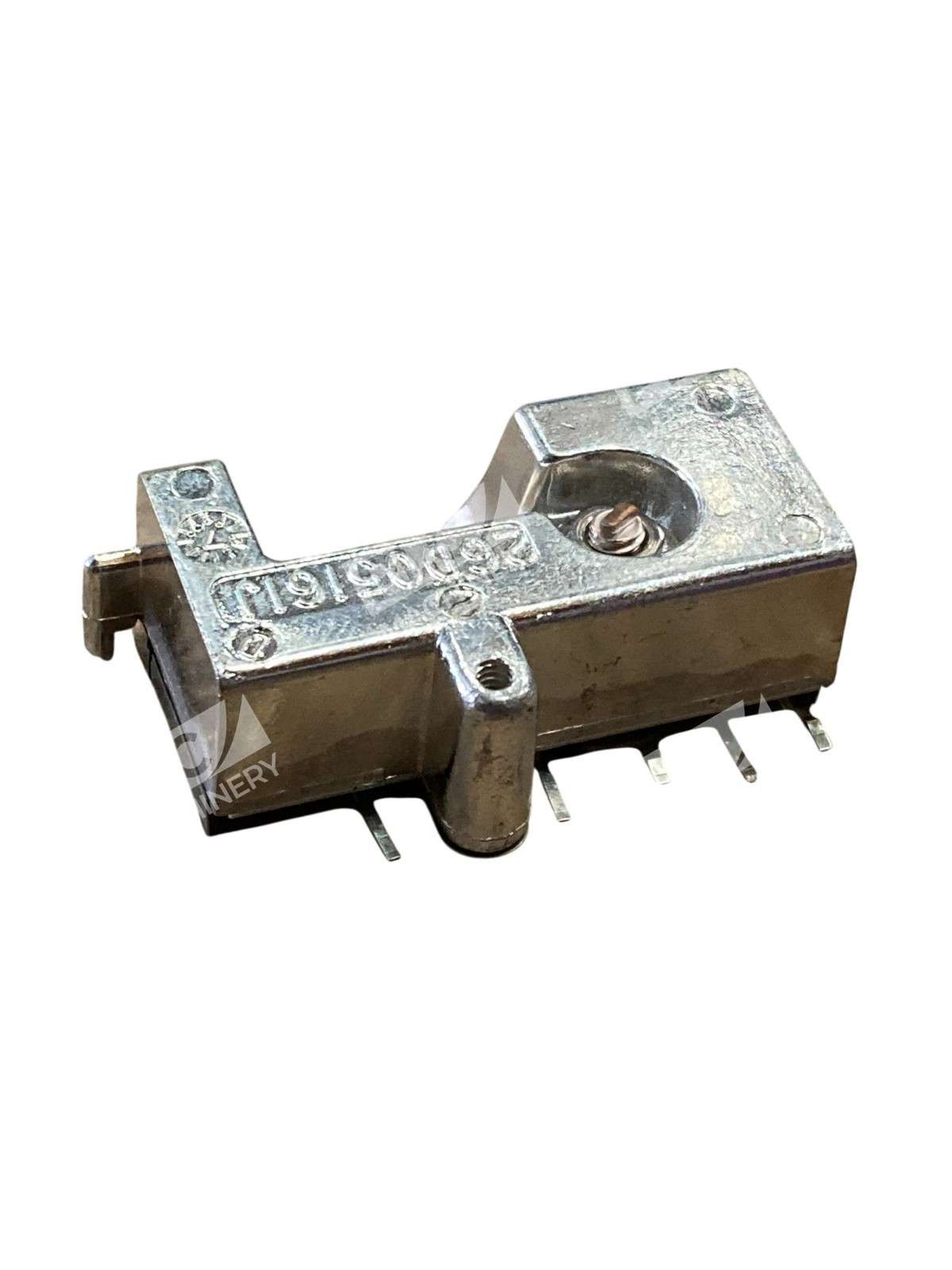

The 26D05161J adjustable bimetal thermostat is a temperature control switch engineered for precision sensing and switching in appliance and industrial applications. Bimetal construction provides accurate temperature response through the deflection of two different metal layers bonded together. The unit features adjustable temperature setpoint capability, allowing technicians to calibrate the switch for specific load requirements without replacement.
Key Features
- Snap-action bimetal disc: Fast contact separation for reliable switching and extended contact life
- Adjustable setpoint: Field-adjustable temperature range for flexible installation and replacement flexibility
- Direct-mount design: Compact form factor suitable for OEM appliance and equipment integration
- Single-pole/single-throw contact: Simple switching logic for heating element and fan control applications
- Cost-effective solution: Proven bimetal technology at competitive pricing
Technical Specifications

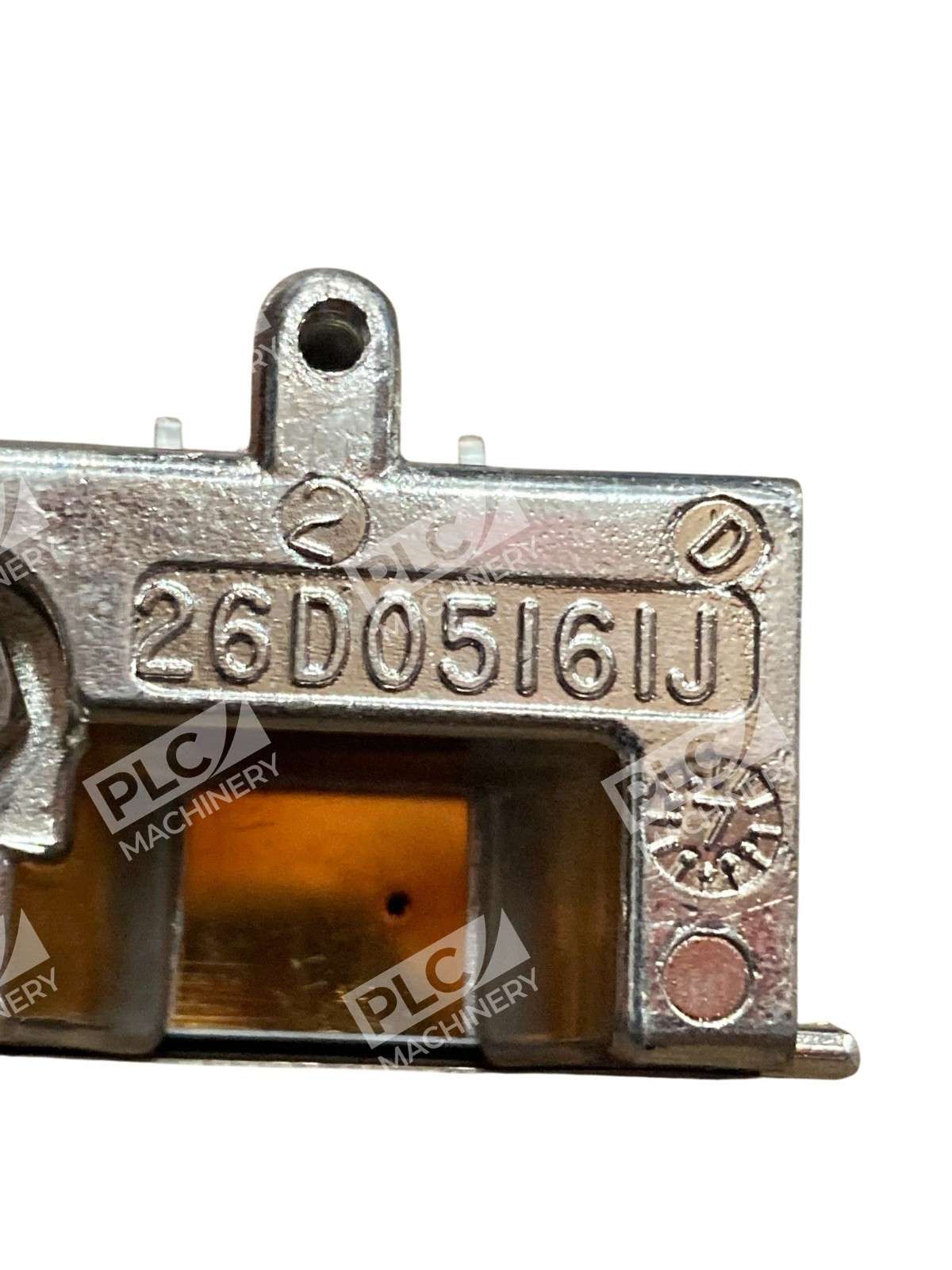

- Part Number: 26D05161J
- Thermostat Type: Adjustable bimetal snap-action disc
- Contact Configuration: Single-pole/single-throw (SPST)
- Sensing Element: Bimetallic strip with adjustable control arm

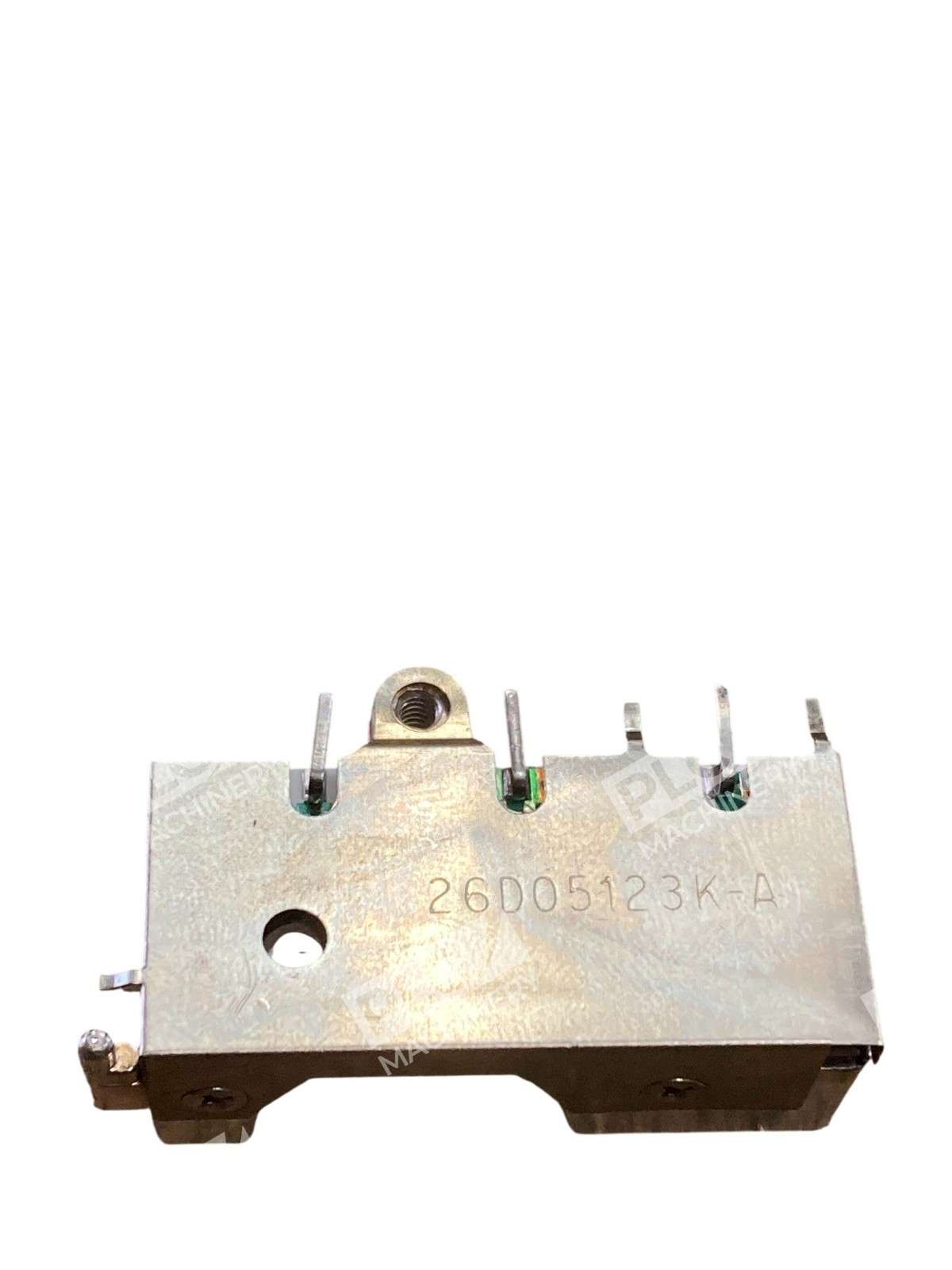

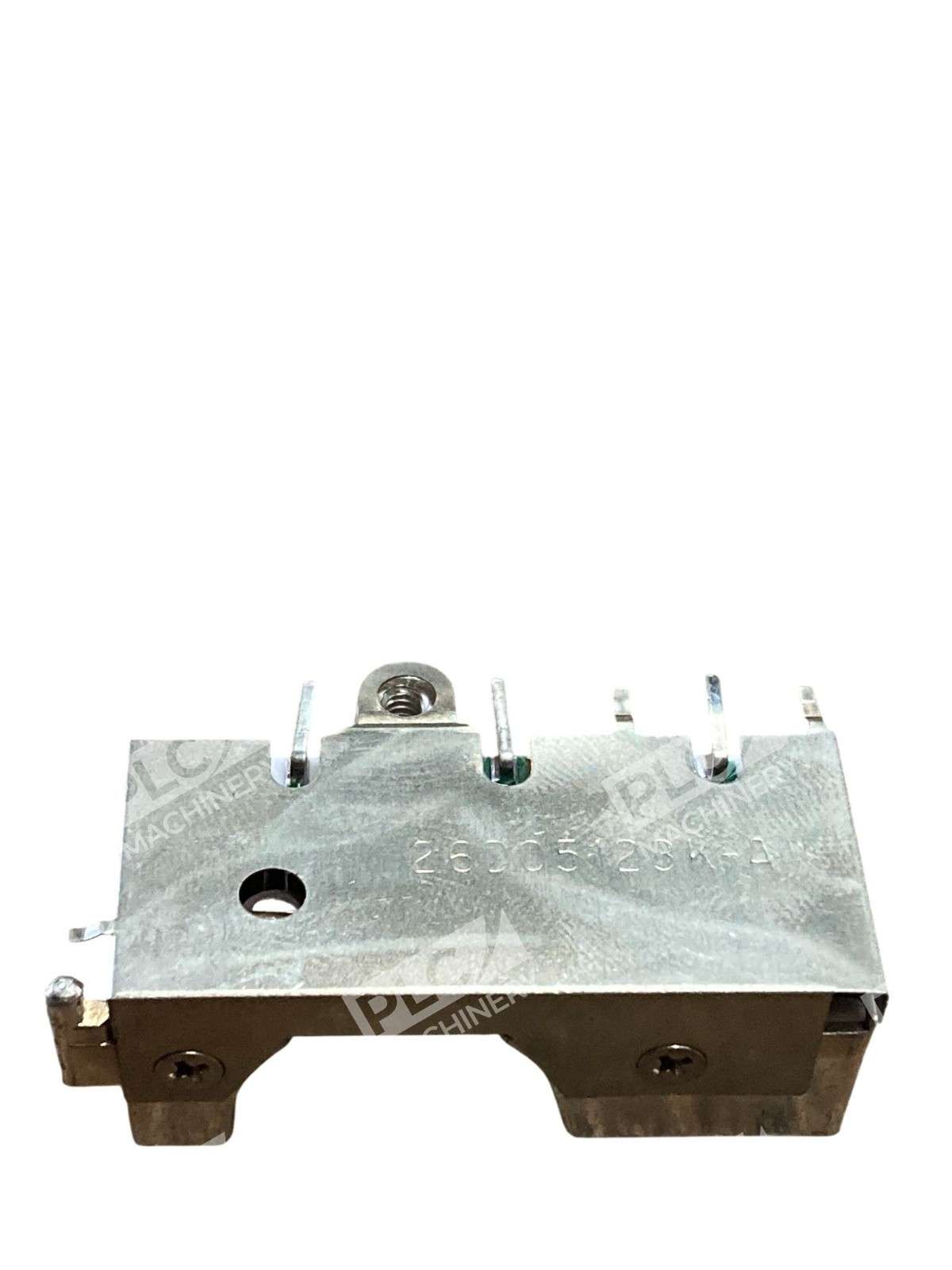

- Compatible Model: 26D05123K-A replacement
- Application Category: Appliance and industrial temperature control
- Mount Style: Direct attachment to heating cavity or mounting bracket
- Condition: New, no original packaging
Typical Applications
- Electric heating pads, blankets, and medical warming devices
- Coffee makers, kettles, and small kitchen appliances
- Industrial heaters, ovens, and thermal processing equipment
- Ventilation and HVAC systems requiring temperature cutoff protection
- Motor overload protection and thermal shutdown circuits
Compatibility & Replacements
Compatible With
- Direct-heat appliance thermowell cavities
- Heating element control circuits rated 120V–250V
- OEM appliance thermal management systems
- Industrial process heating and temperature shutdown applications
Replaces / Drop-In Replacement For
- 26D05123K-A (primary replacement model)
- Generic adjustable bimetal thermostats in equivalent configurations
Works With
- Line-voltage (120V–250V AC) heating element circuits
- Normally-open and normally-closed contact configurations (verify on your unit)
- Thermostatic switching applications requiring manual adjustability
