Overview

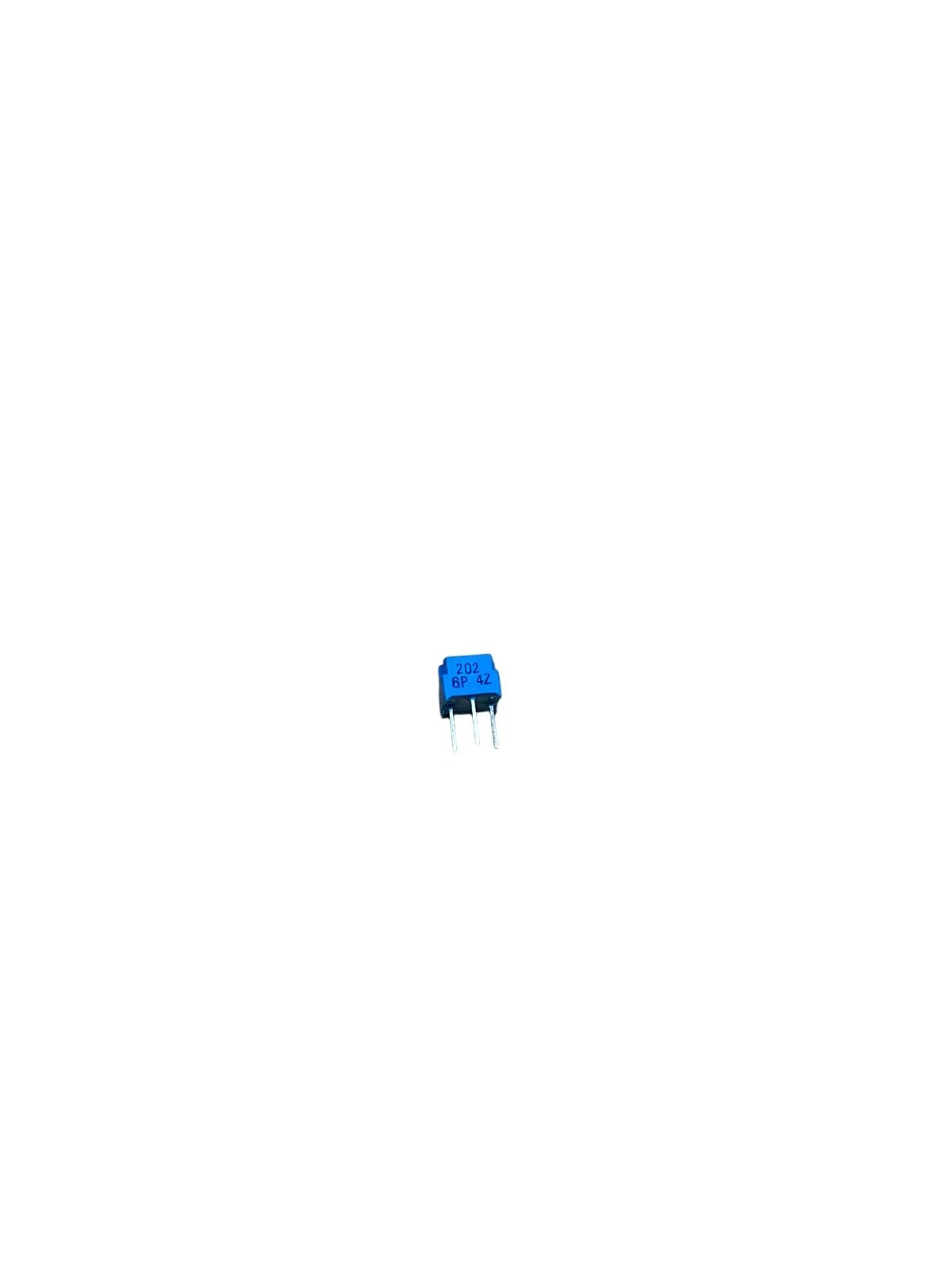

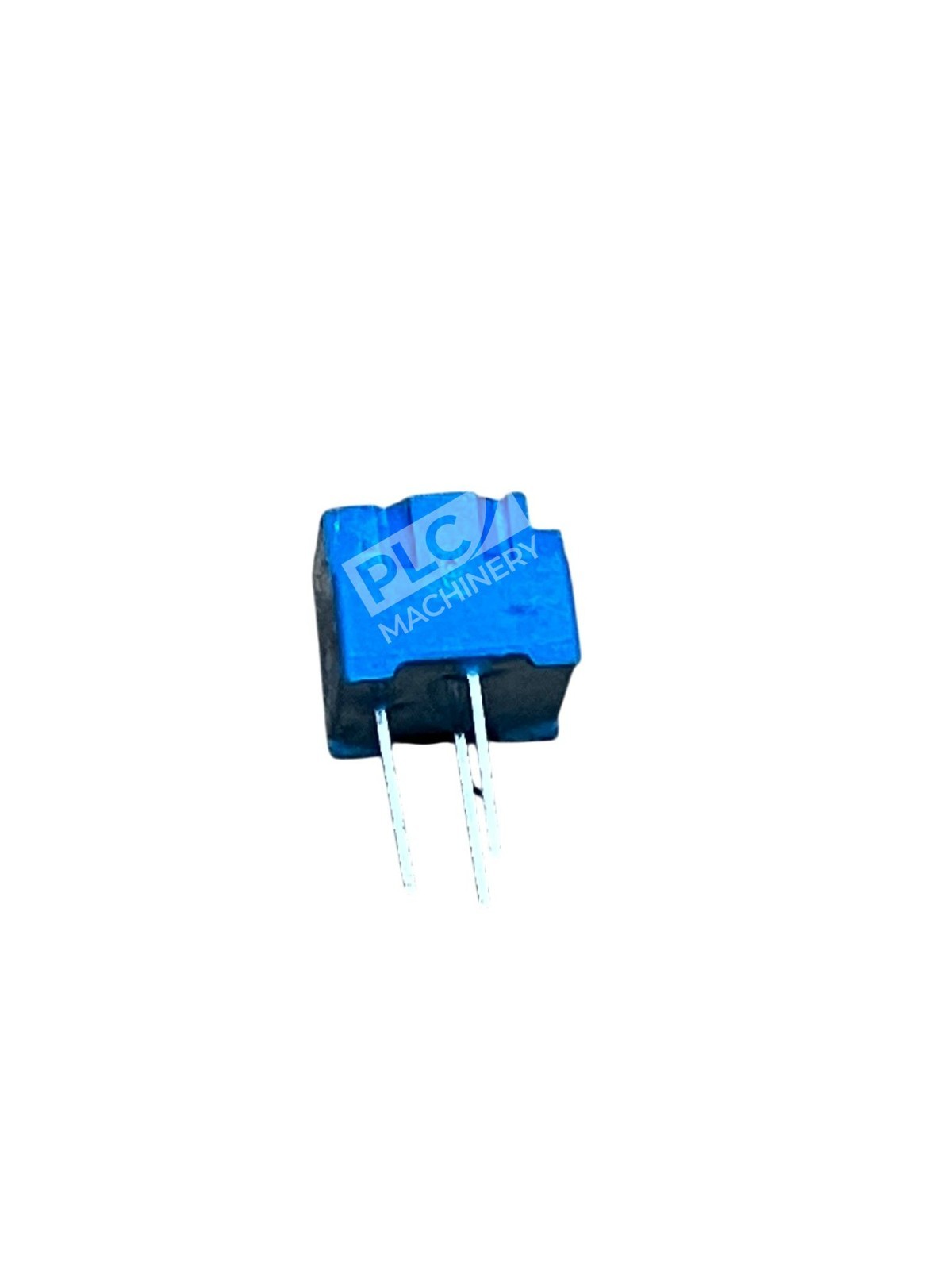

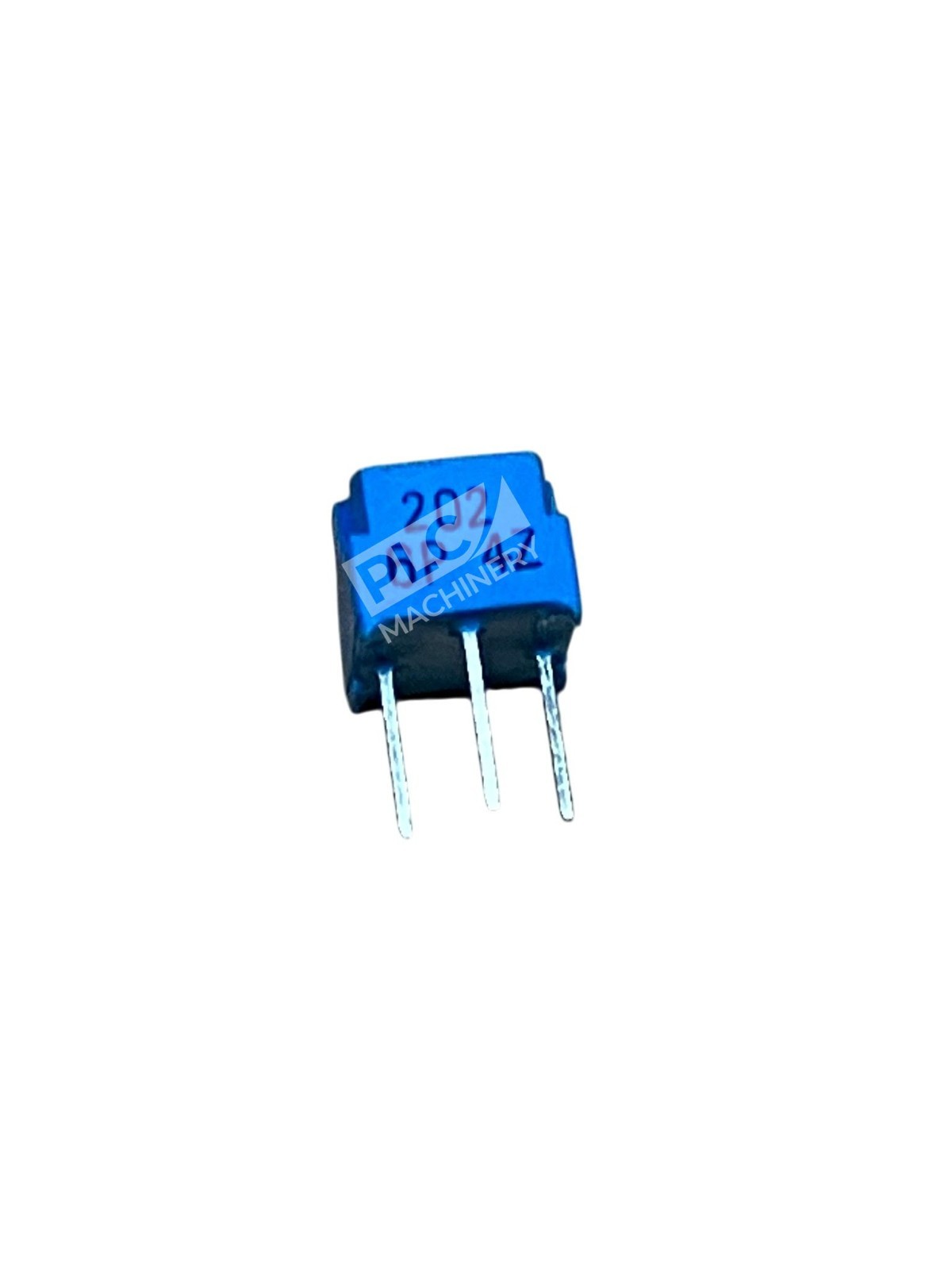

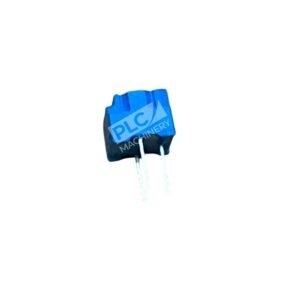

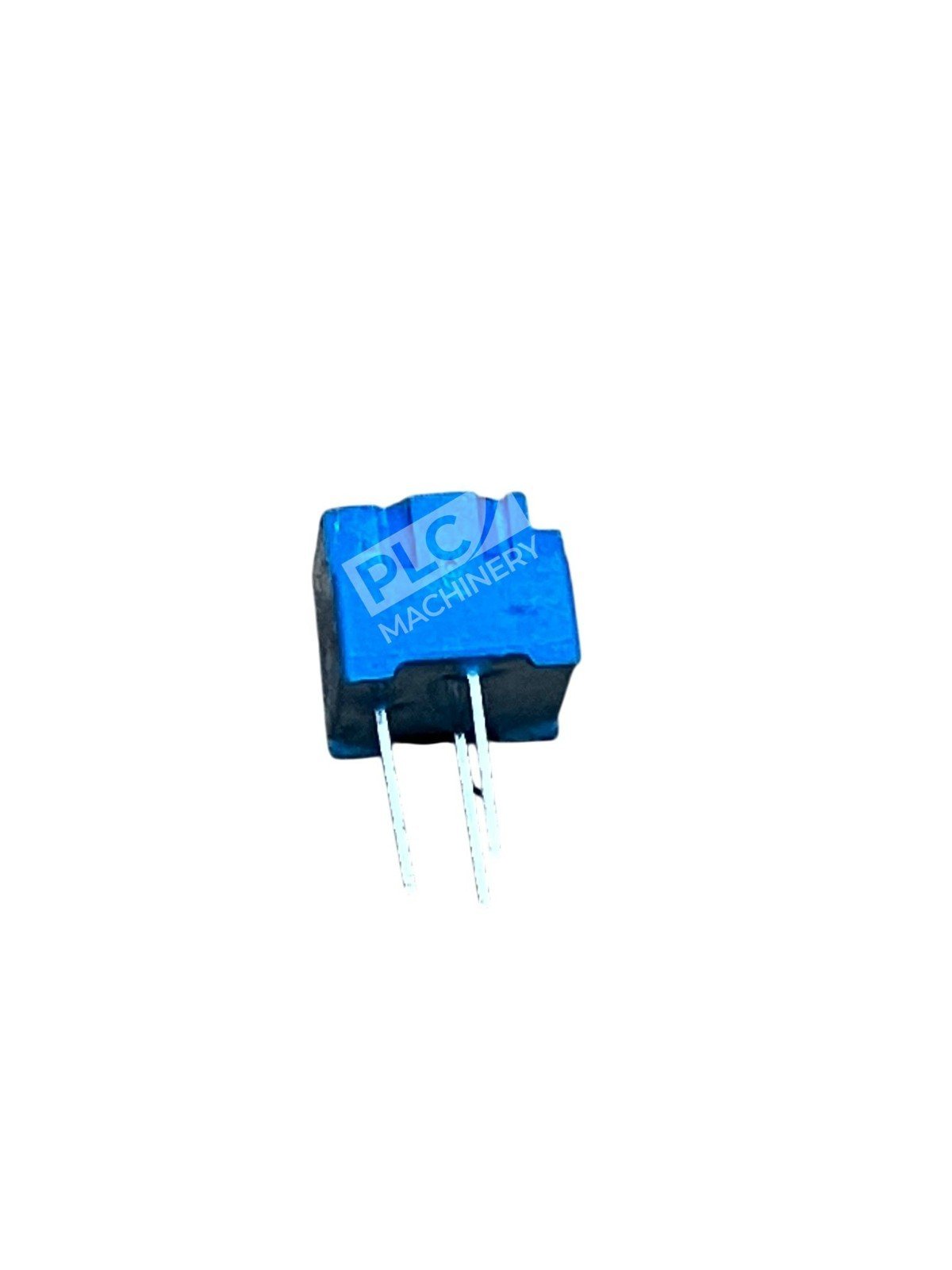

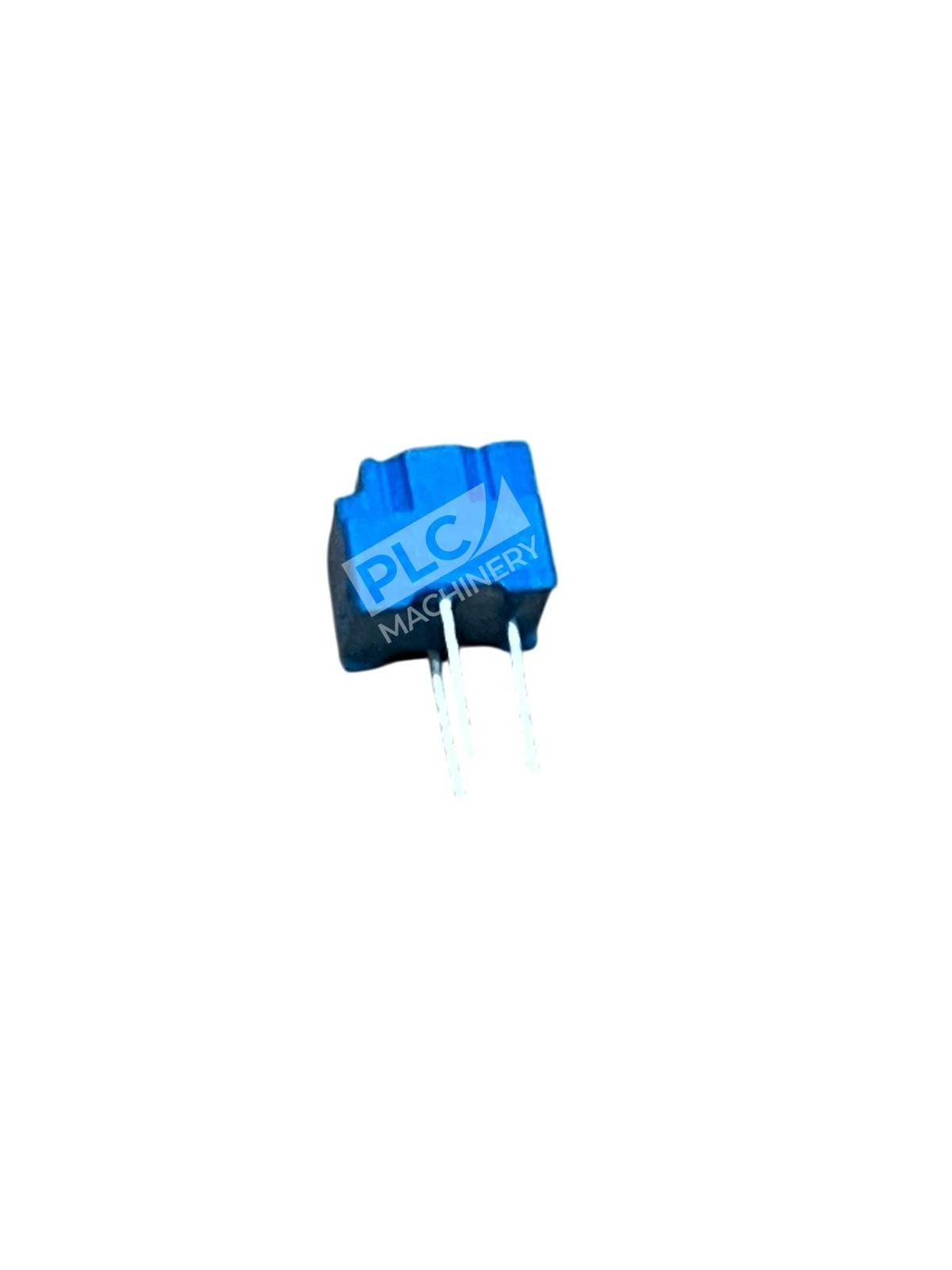

The Bourns 202 trimmer potentiometer is a multi-turn, PCB-mounted variable resistor designed for precise circuit adjustments in a wide range of electronic applications. With a 2K ohm resistance rating and sealed design, this trimmer delivers reliable performance for analog circuit tuning and impedance matching across commercial and industrial equipment.
Key Features
- Multi-turn potentiometer for fine-resolution adjustment
- 2K ohm resistance rating
- PCB mount configuration with 6P 4Z pin layout
- Sealed design protects against environmental contamination
- Standard Bourns Trimpot quality and precision
- Compact footprint suitable for dense circuit layouts
Technical Specifications
- Resistance: 2K ohms (2000Ω)
- Pin Configuration: 6P 4Z
- Mounting: PCB through-hole
- Type: Multi-turn trimmer potentiometer
- Design: Sealed
- Manufacturer: Bourns
- Part Number: 202
Typical Applications
- Audio equipment bias and gain adjustment
- Power supply output voltage trimming
- Sensor calibration and offset adjustment
- Test and measurement equipment tuning
- Signal conditioning circuits
- General analog circuit impedance matching
Compatibility & Replacements
Compatible With
- Standard PCB mount through-hole applications
- Single-supply and dual-supply circuits
- Voltage divider and rheostat configurations
- Industrial control and consumer electronics
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Alternative Bourns Trimpot models may offer similar performance; consult Bourns technical documentation for cross-reference details.
Works With
- Standard electronic assembly and soldering processes
- Through-hole PCB designs
- Analog circuit design methodologies
- Manual calibration and adjustment procedures
