Overview

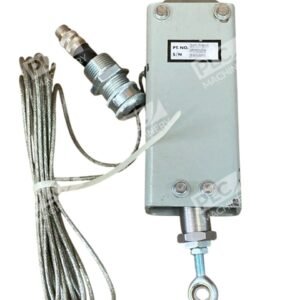

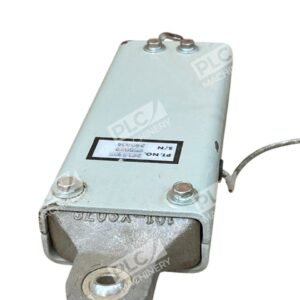

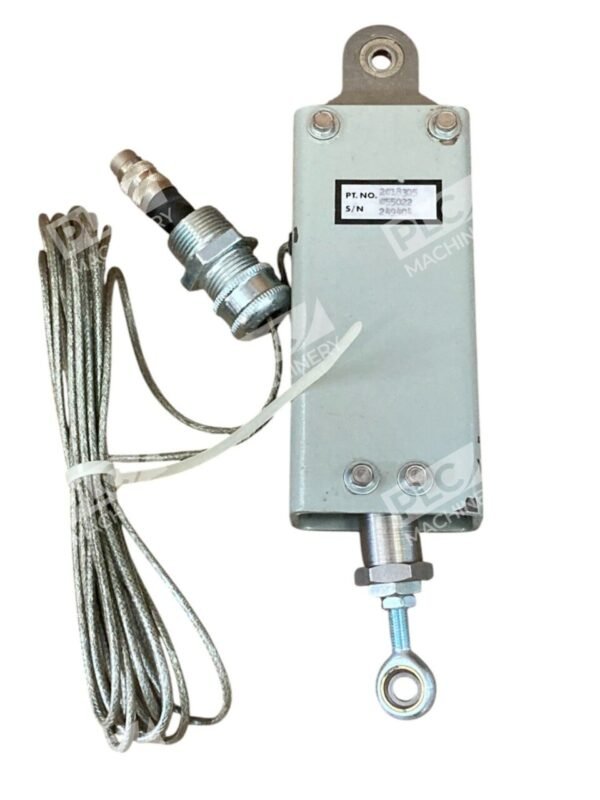

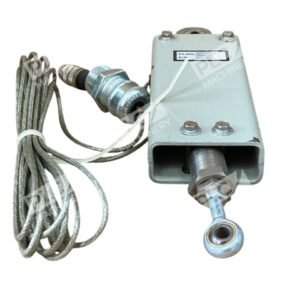

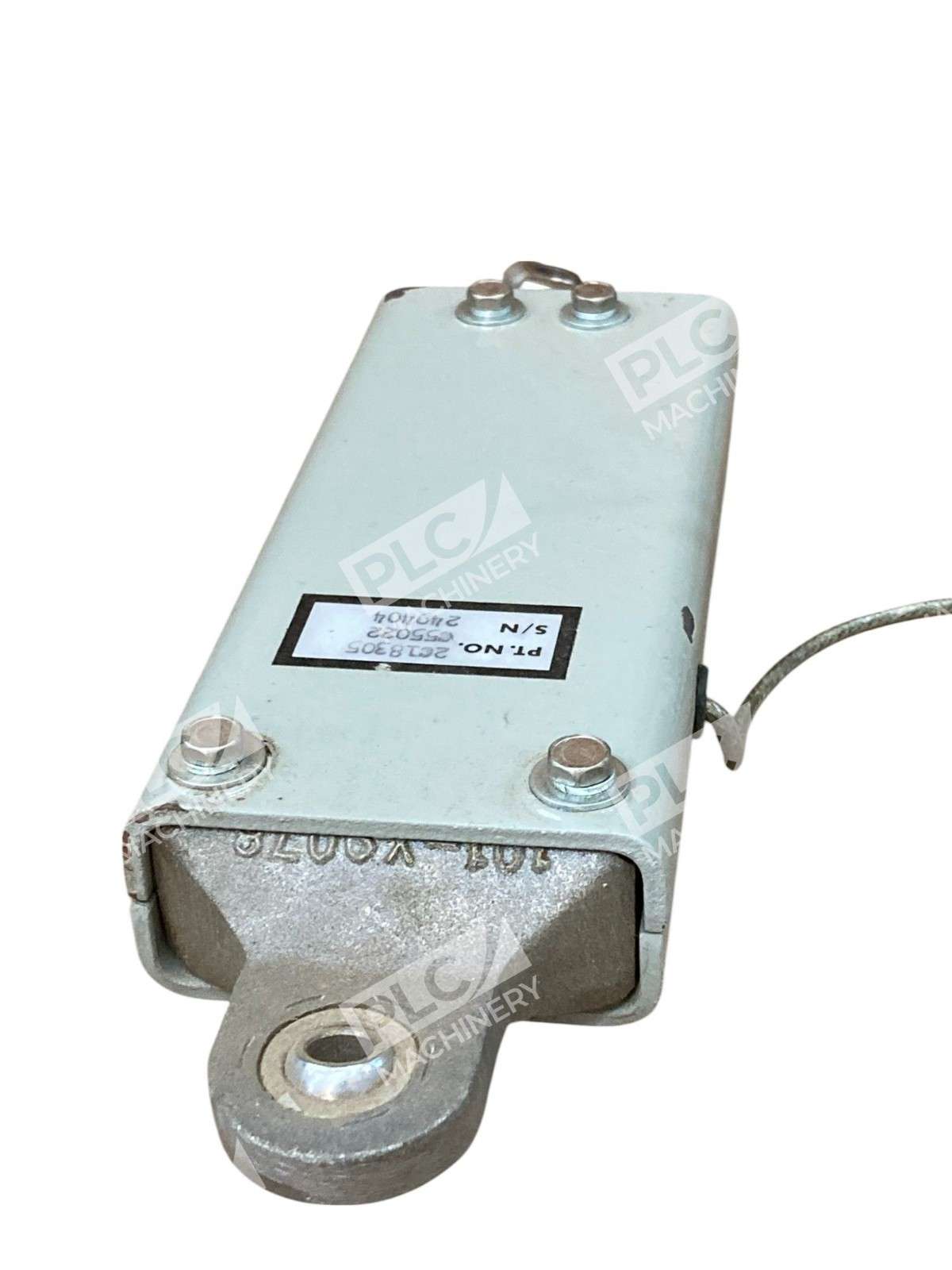

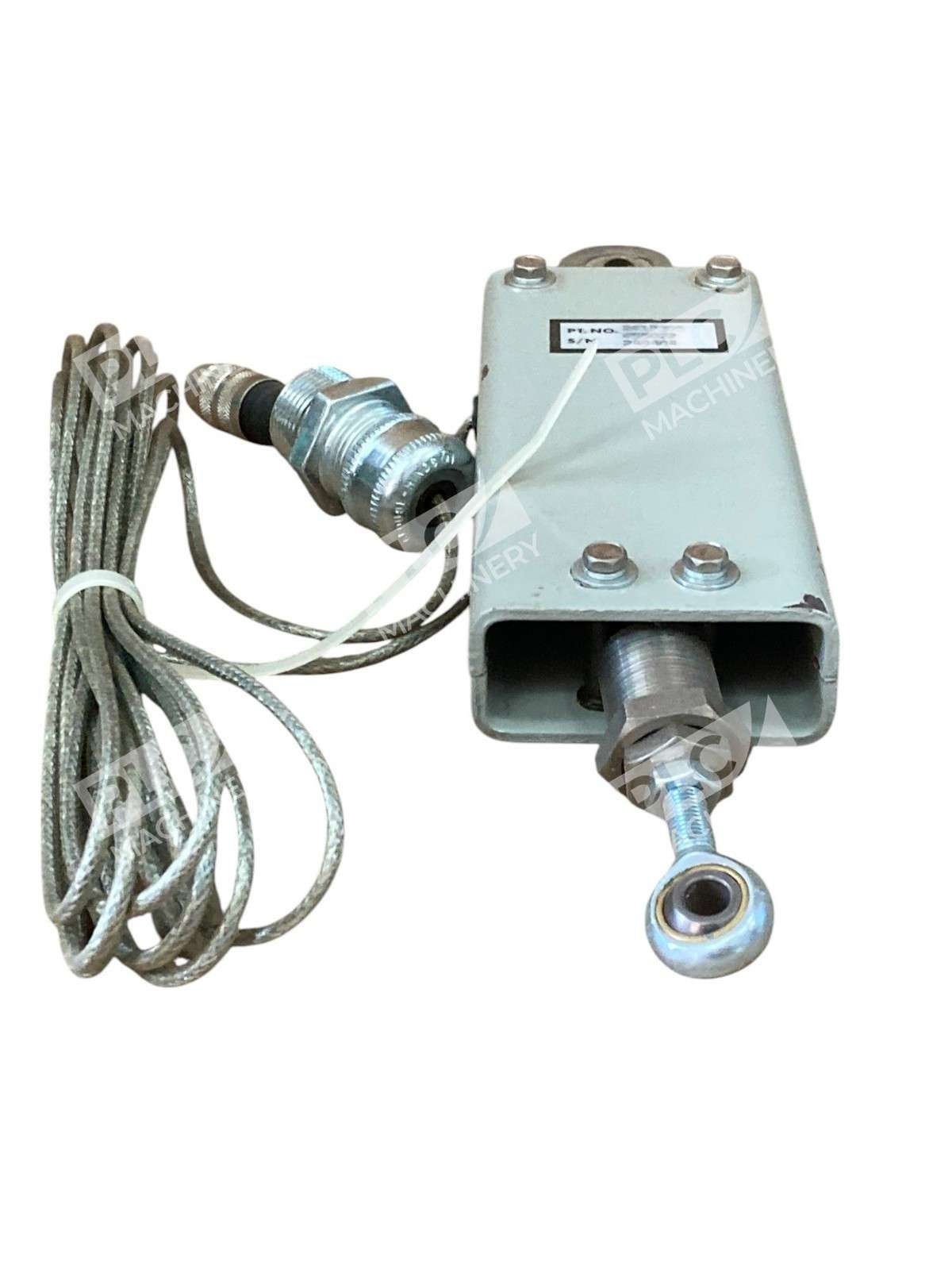

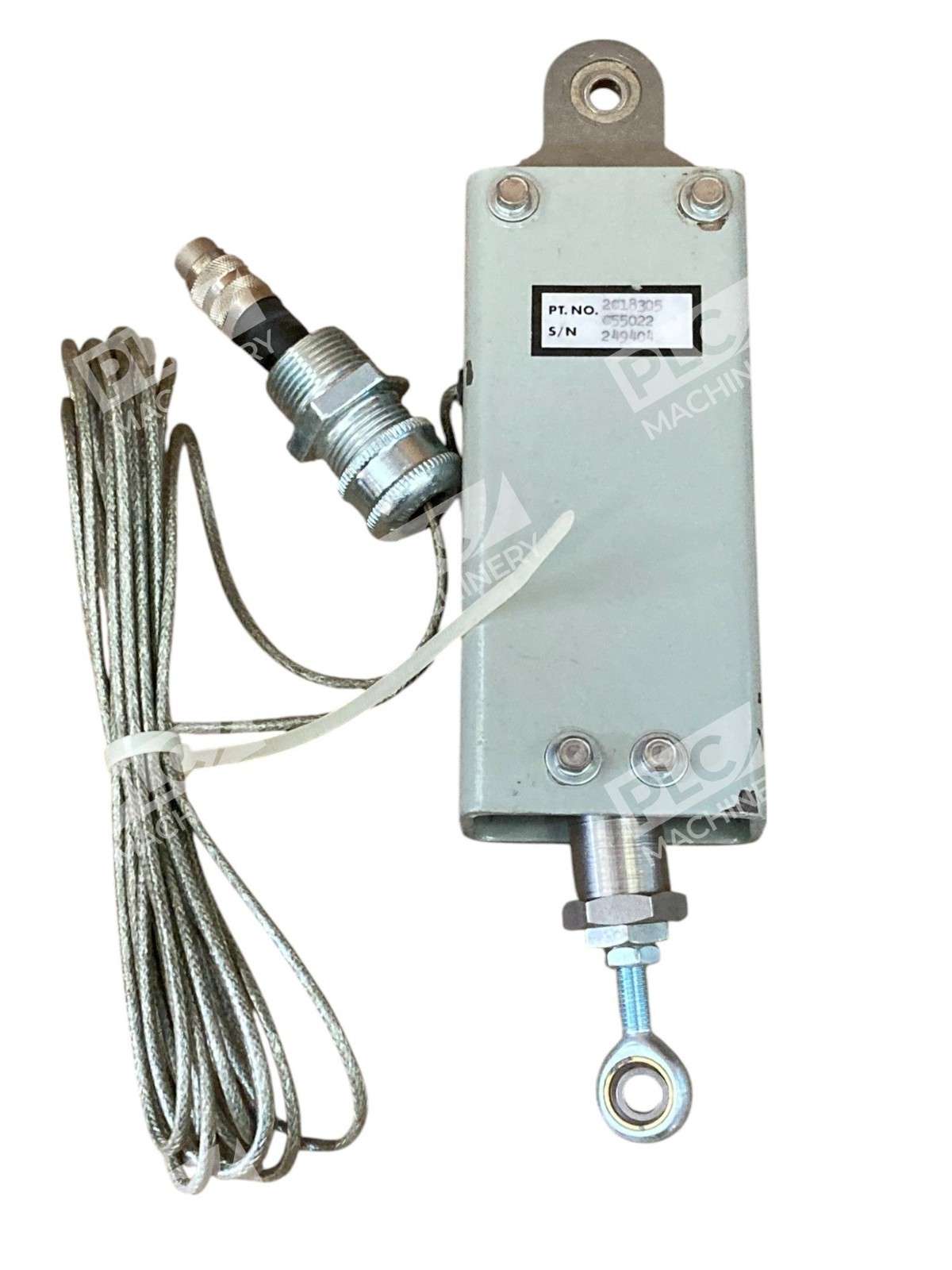

The 2018305 load cell is an industrial-grade force and weight measurement sensor engineered for precision applications in automation systems. This load cell converts mechanical force or weight into proportional electrical signals, enabling accurate real-time monitoring in production, weighing, and material handling systems.
Key Features
- Strain gauge technology for stable, repeatable force measurement
- Linear output signal proportional to applied load
- Durable construction for industrial environments
- Reliable performance across temperature-compensated operating range
- Electrical outputs compatible with standard instrumentation and PLC inputs
Technical Specifications
Specific detailed specifications for the 2018305 are not currently available from the manufacturer. For complete technical data including capacity, output signal, excitation voltage, operating temperature range, and mounting dimensions, please request a datasheet or contact your system integrator. Common load cell specifications typically include:
- Excitation voltage: 5V to 15V DC (typical)
- Output signal: 2–3 mV/V at full capacity (typical)
- Measurement principle: Strain gauge bridge
- Environmental rating: IP67 or higher (typical for industrial units)
- Operating temperature: −10°C to +50°C (typical range)
Typical Applications
The 2018305 is suited for use in:
- Platform and bench scales
- Conveyor system weight monitoring
- Hopper and silo level control
- Dosing and batching processes
- Material testing and force measurement
- Automation and process control systems
Compatibility & Replacements
Compatible With
- Industrial PLCs and controllers with analog input modules
- Standard analog instrumentation amplifiers
- Load cell indicators and weight displays
- SCADA and automation software platforms
- 4–20 mA signal conditioners
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Model interchangeability depends on capacity, output sensitivity, excitation voltage, and mounting configuration.
Works With
- Analog-to-digital converter inputs on PLCs
- Weigh modules and load cell junction boxes
- EtherNet/IP and PROFIBUS gateway devices
- Industrial weighing software and HMIs
- Standard 4-wire and 6-wire load cell harnesses
