Overview

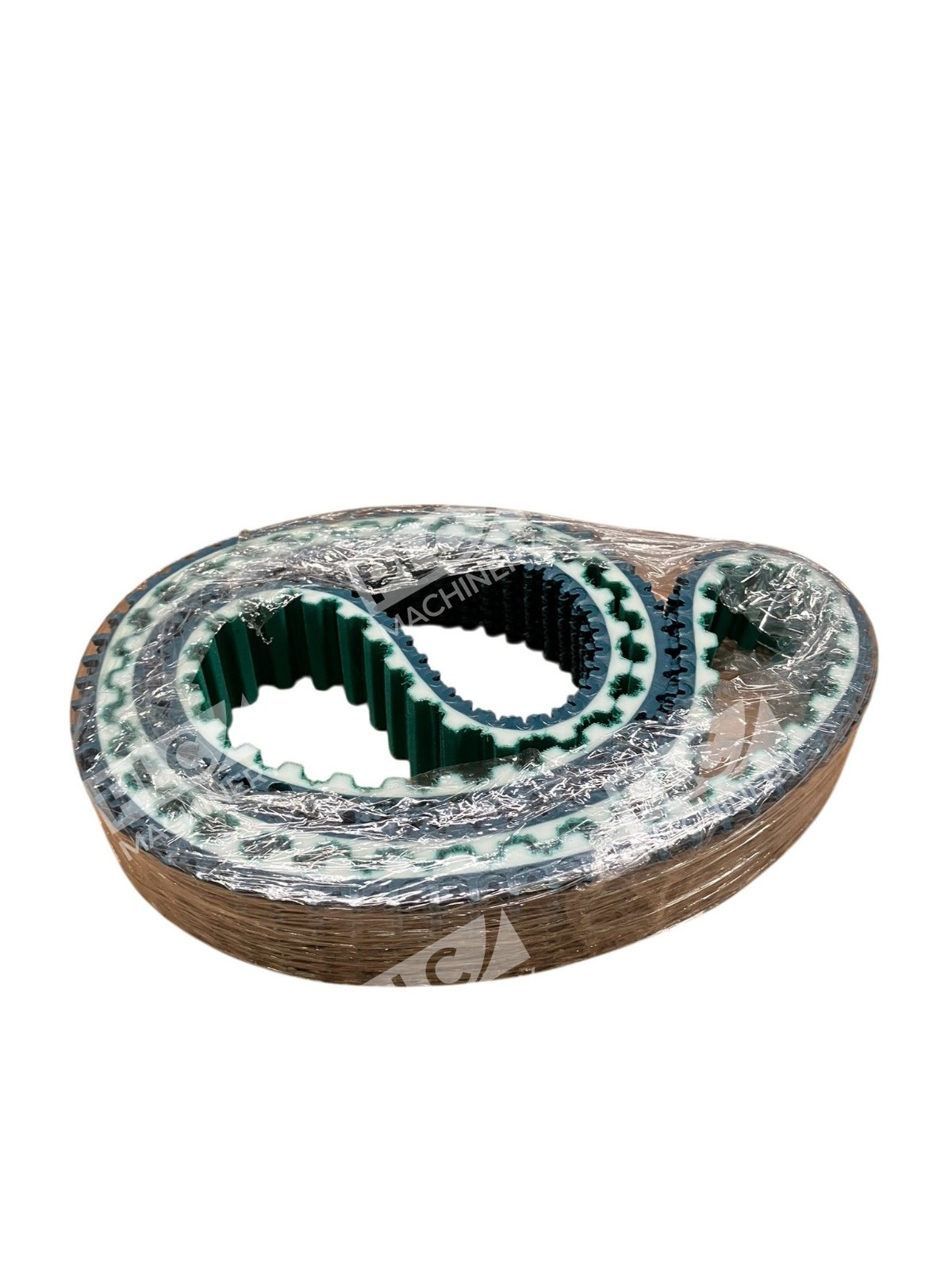

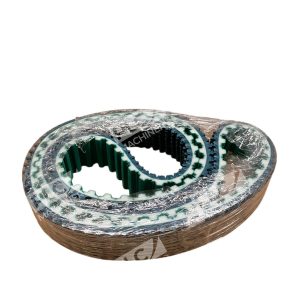

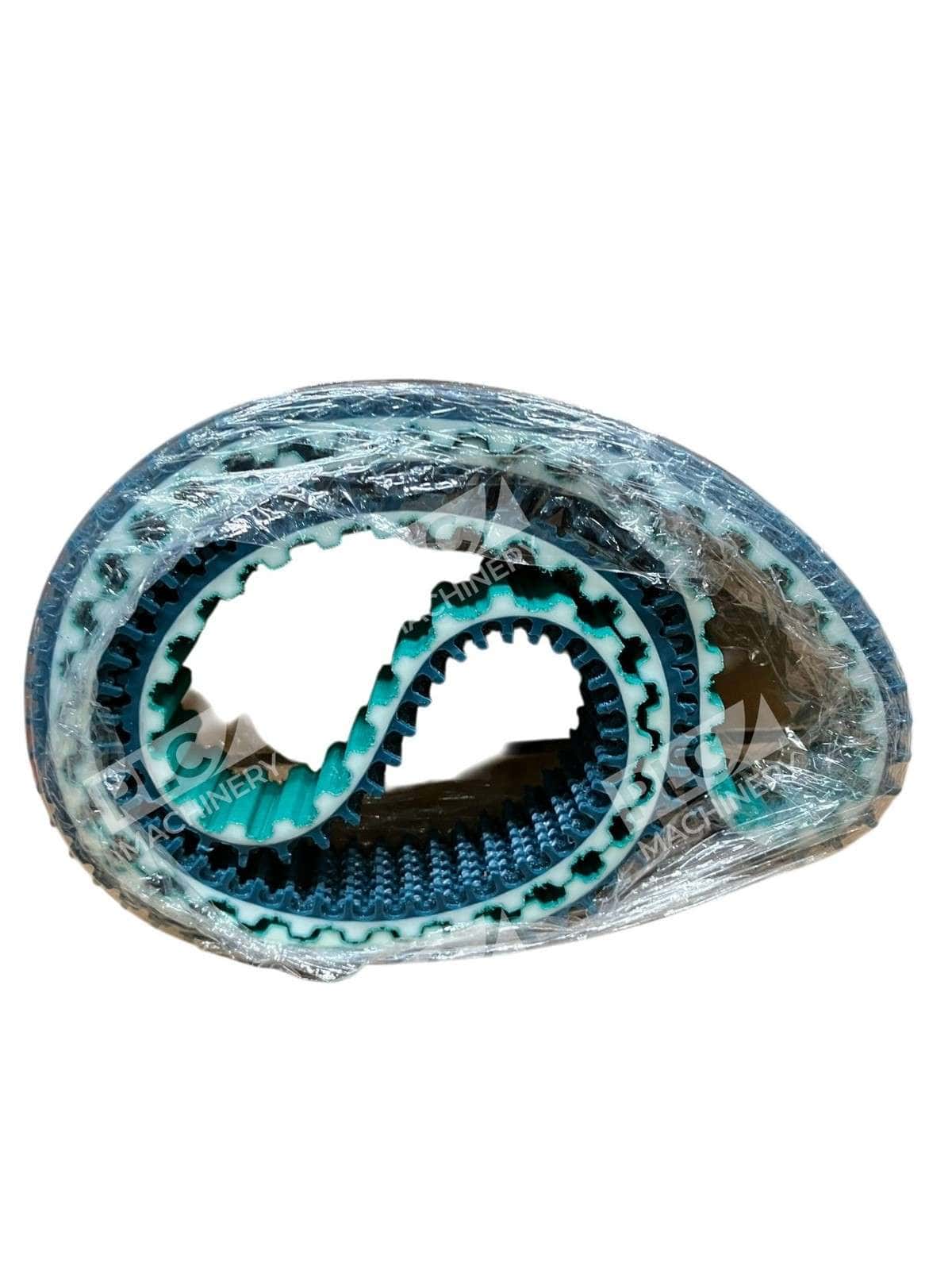

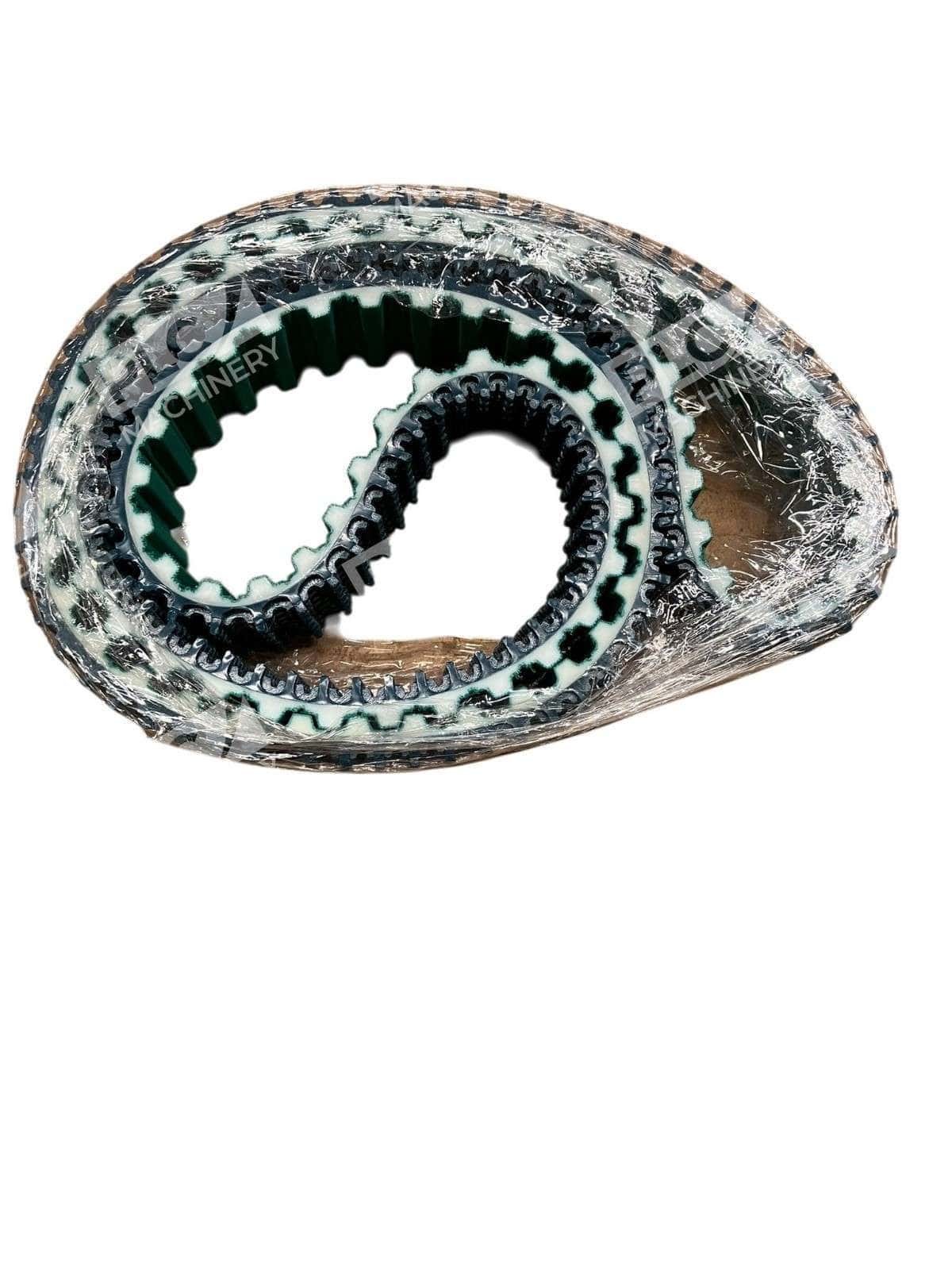

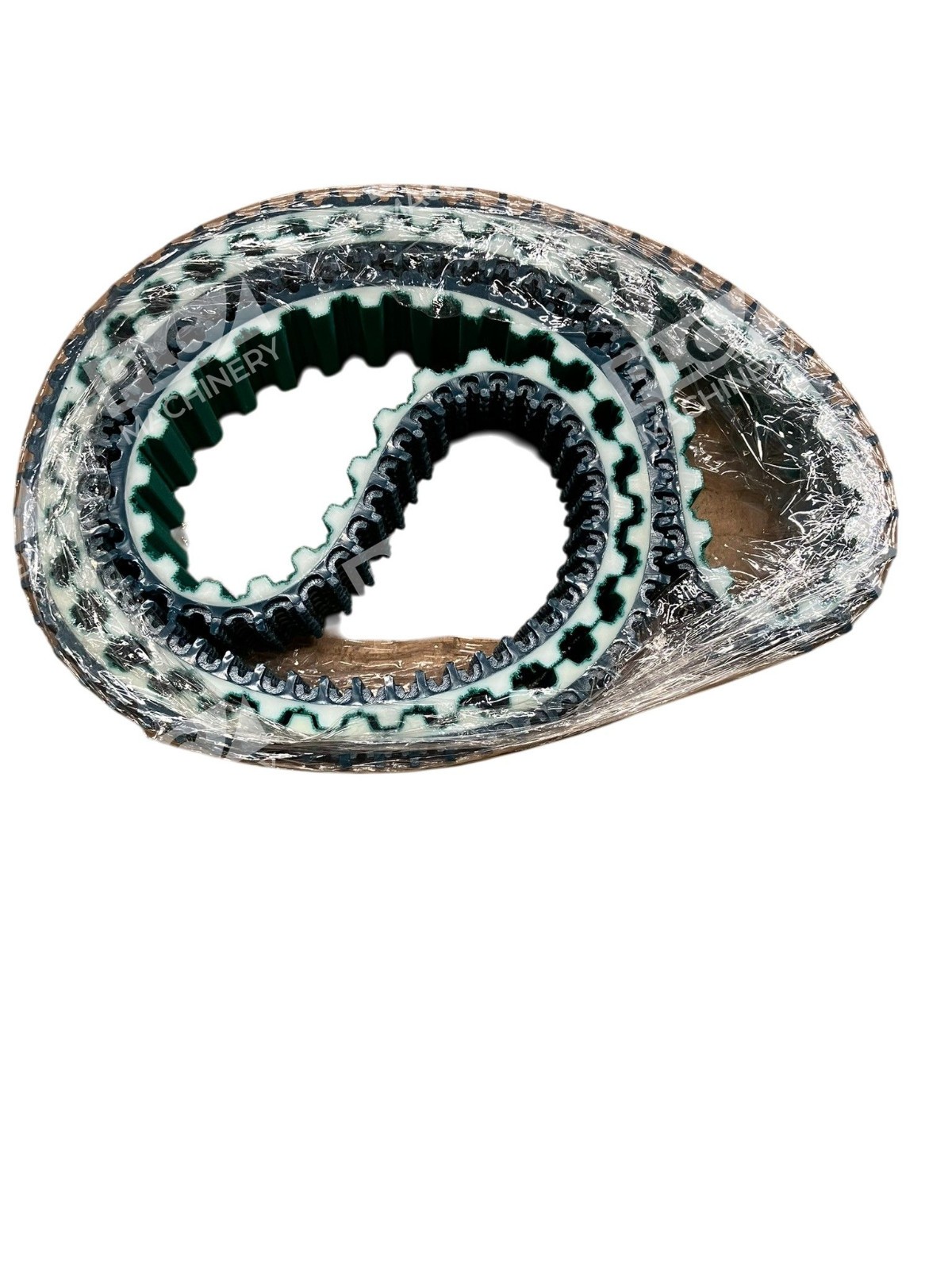

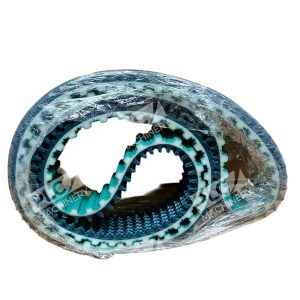

The 1FSM568432 PU Linear T10 Steel is a professional-grade polyurethane timing belt engineered for synchronous power transmission in industrial machinery and automation equipment. With a 10mm pitch and trapezoidal tooth profile according to DIN 7721, this belt delivers accuracy suitable for transport applications where good positioning is required. The steel reinforcement core provides robust tensile strength and consistent performance across diverse industrial applications.
Key Features
- Polyurethane construction with steel reinforced core
- 10mm pitch with trapezoidal tooth for high-accuracy positioning
- Minimal elongation ensuring reliable timing and consistent motion over extended periods
- Abrasion resistance and wear protection for demanding operating conditions
- Low friction tooth side, low noise operation, positive drive, wear resistant construction
- Linear drive system compatible design
Technical Specifications
The belt meets industrial standards for timing belt applications and is suitable for use across temperature ranges typical of manufacturing environments. Tooth profile conforms to metric ISO 17396, imperial ISO 5296-1, and curvilinear ISO 13050 standards depending on belt type.
Typical Applications
T10 polyurethane open timing belts find applications in machine tools, main and subsidiary drives, textile machines, and printing machinery. The 1FSM568432 is particularly suited for:
- Precision linear motion systems
- Synchronous power transmission in industrial drives
- Positioning and indexing mechanisms
- Automation control equipment
- Conveyor system components
- Material handling applications
Compatibility & Replacements
Compatible With
- T10 timing belt pulley systems (metric DIN 7721 standard)
- Industrial machinery using 10mm pitch synchronous belts
- Linear drive systems and transport mechanisms
- Power transmission and positioning equipment
Replaces / Drop-In Replacement For

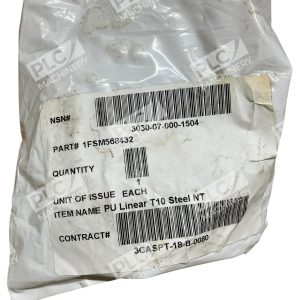

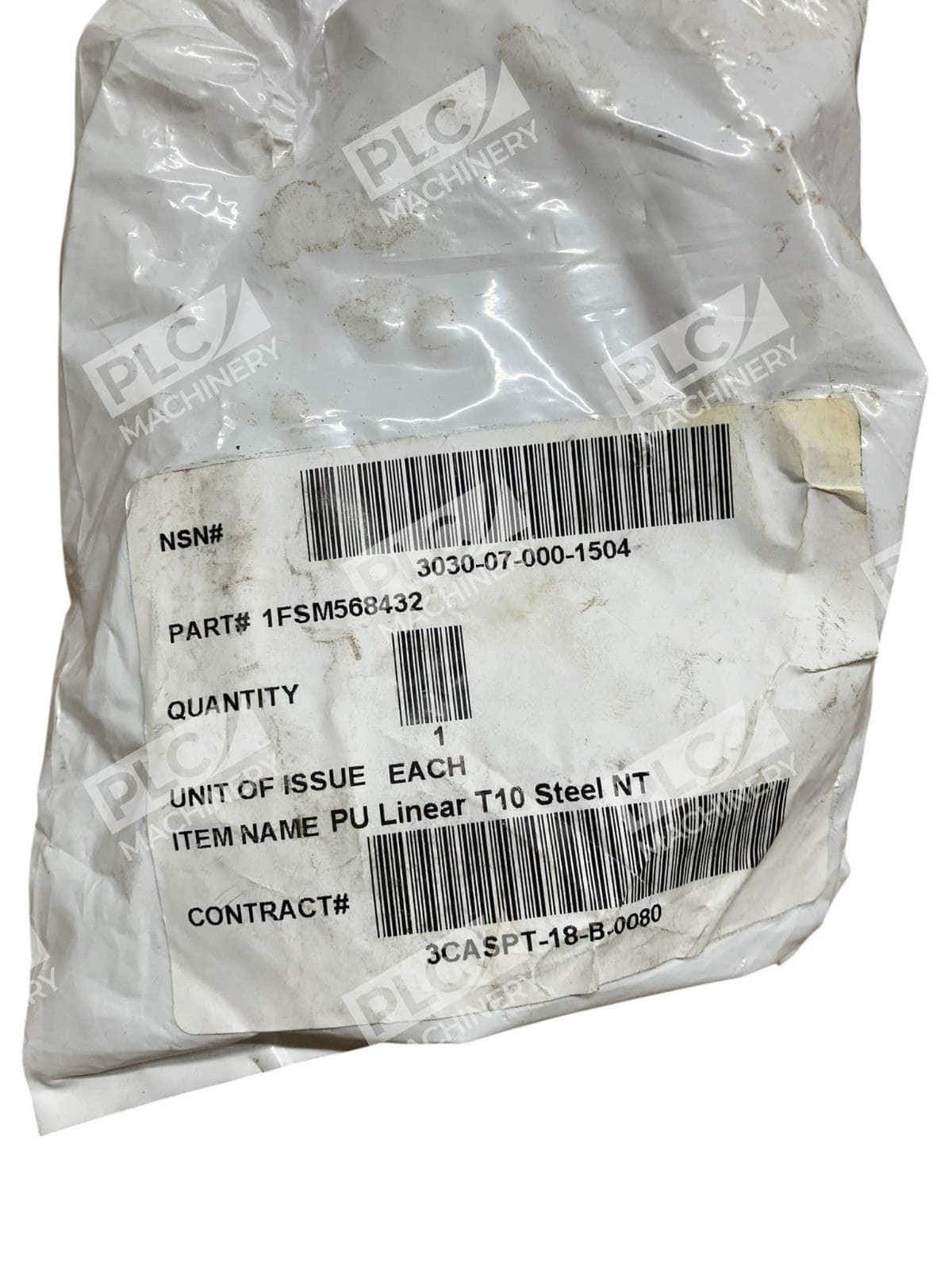

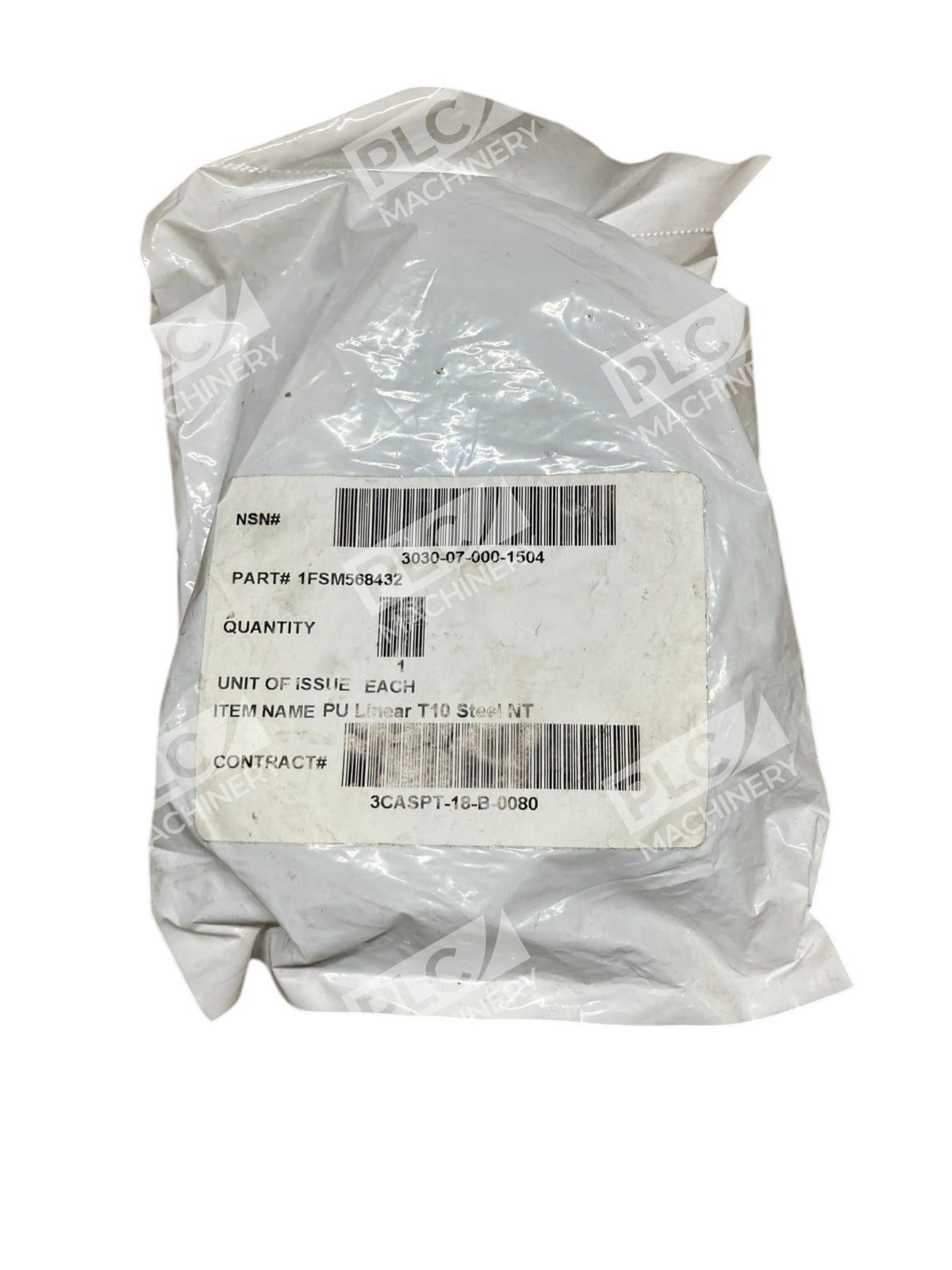

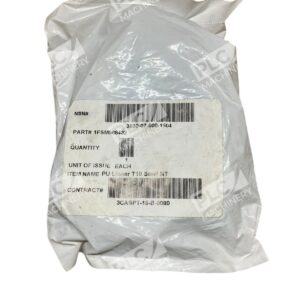

The 1FSM568432 is identified under NSN 3030-07-000-1504 for military and government supply chain applications. Verify compatibility with your system integrator before ordering to ensure proper fit and performance in your specific application.
Works With
- T10 timing pulleys (steel, aluminum, and composite materials)
- Tensioning systems and tracking components
- Industrial automation control systems
- Standard industrial drive mechanisms
