Overview
The Allen-Bradley 195-FA11 is a Type F Series A auxiliary contact block designed for add-on installation onto compatible Allen-Bradley contactors. This unit provides additional monitoring and signaling contacts for industrial automation and control circuits. With 1 normally open (NO) and 1 normally closed (NC) contact, the 195-FA11 enables interlocking, status indication, and circuit protection in motor control centers, pump stations, and machine automation systems.
Key Features
- 2-pole configuration with 1 NO and 1 NC contact pair for flexible circuit control
- Screw terminal connections for secure, toolless-free installation
- Type F Series A design ensures compatibility with legacy and current contactors
- Rated 10A at 600V AC for standard three-phase industrial applications
- Compact, modular form factor for easy mounting to contactor coil
Technical Specifications
| Part Number | 195-FA11 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Type | Auxiliary Contact Block, Type F, Series A |
| Contact Configuration | 2-Pole (1NO / 1NC) |
| Rated Current | 10A |
| Rated Voltage | 600V AC |
| Terminal Type | Screw |
| Mounting | Add-on block for contactors |
| Status | Discontinued by Manufacturer |

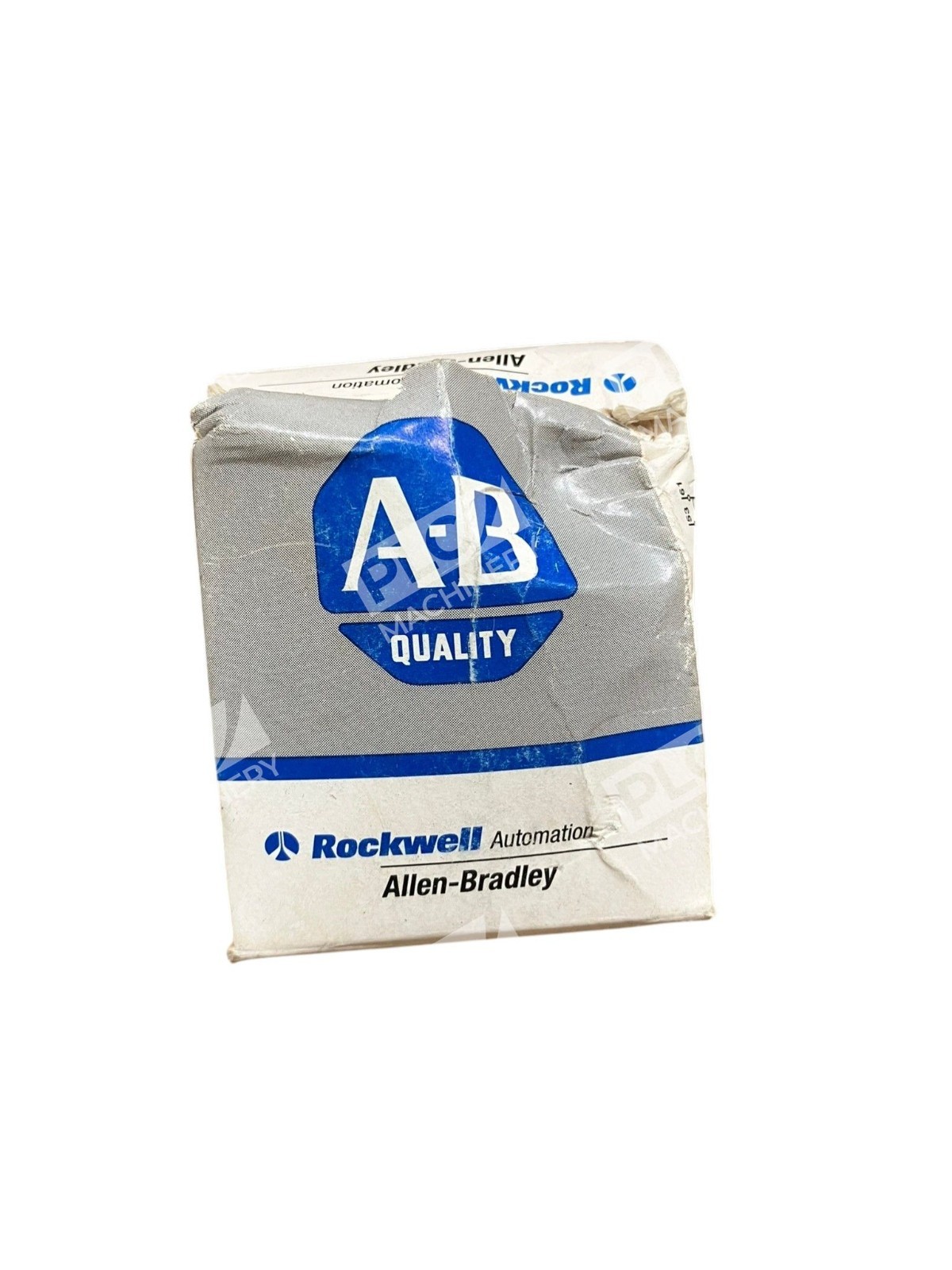

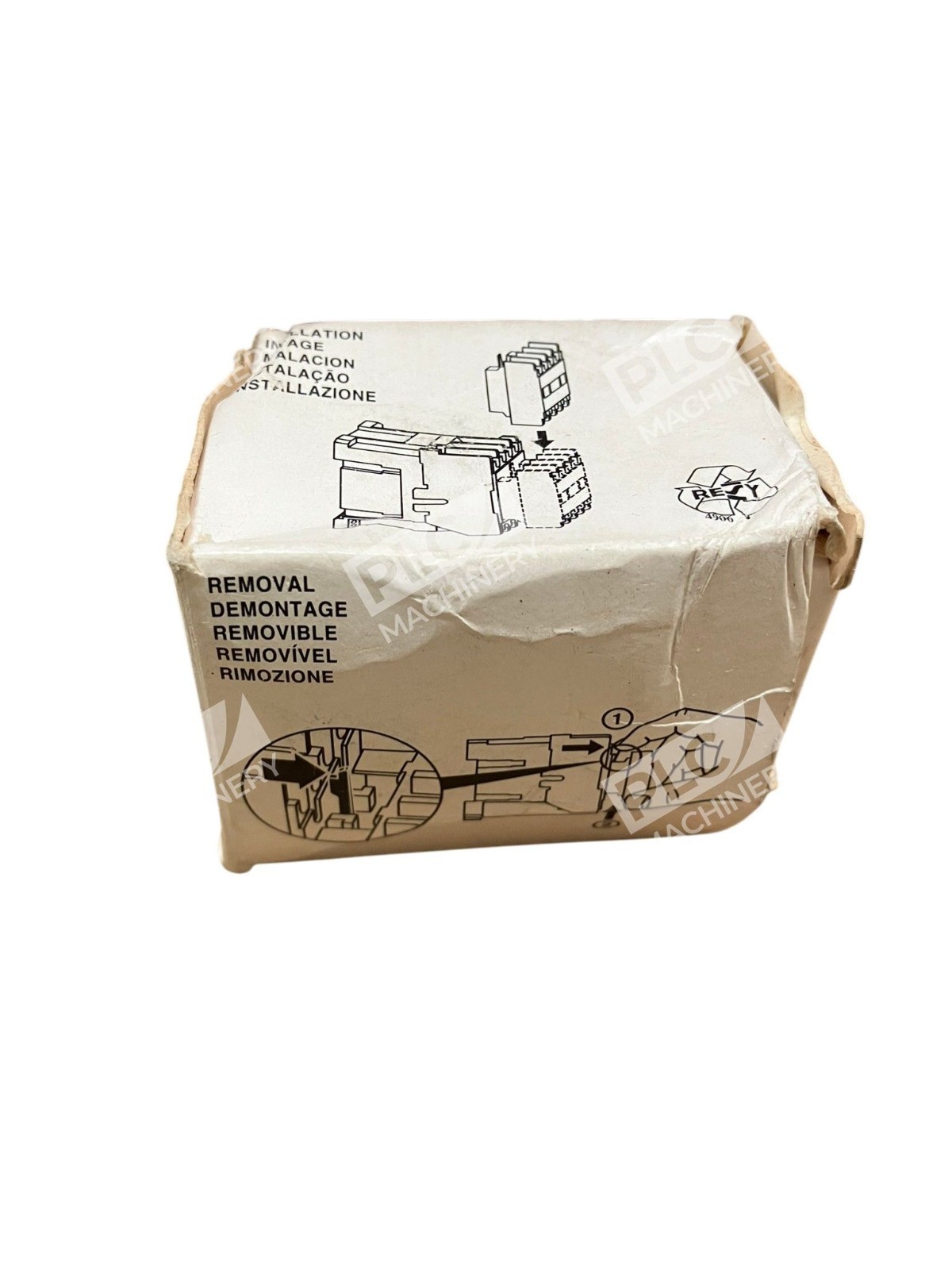

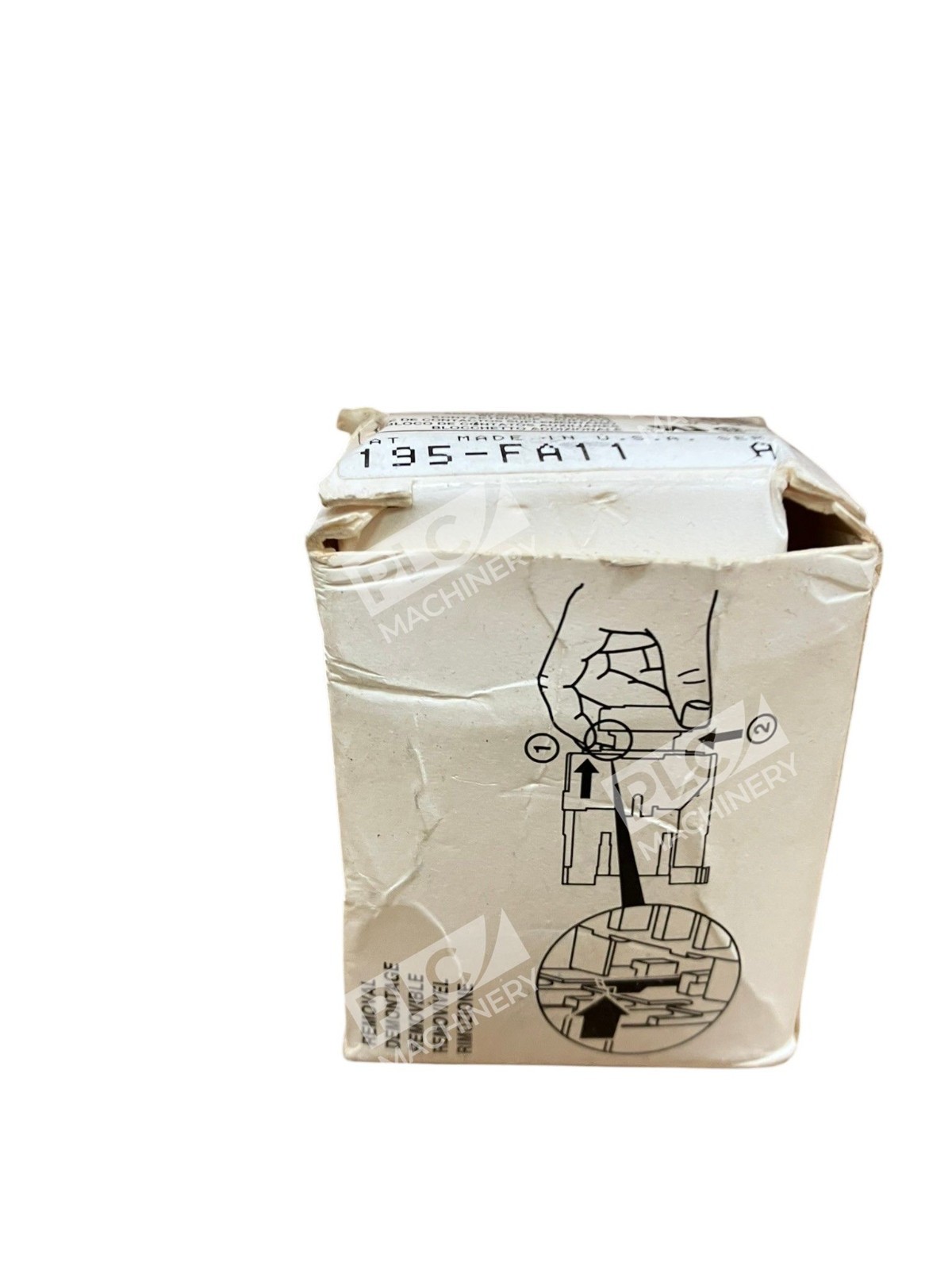

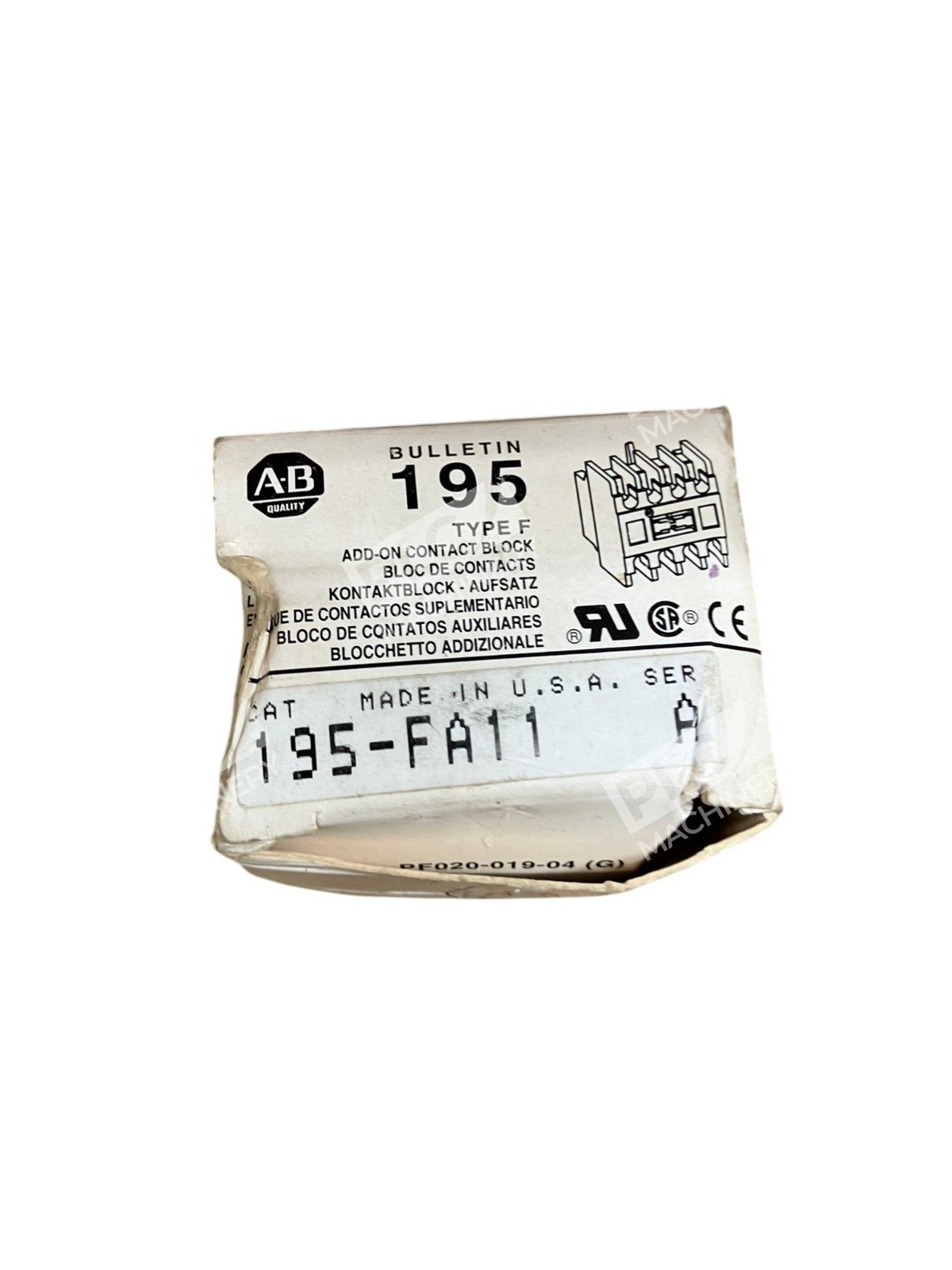

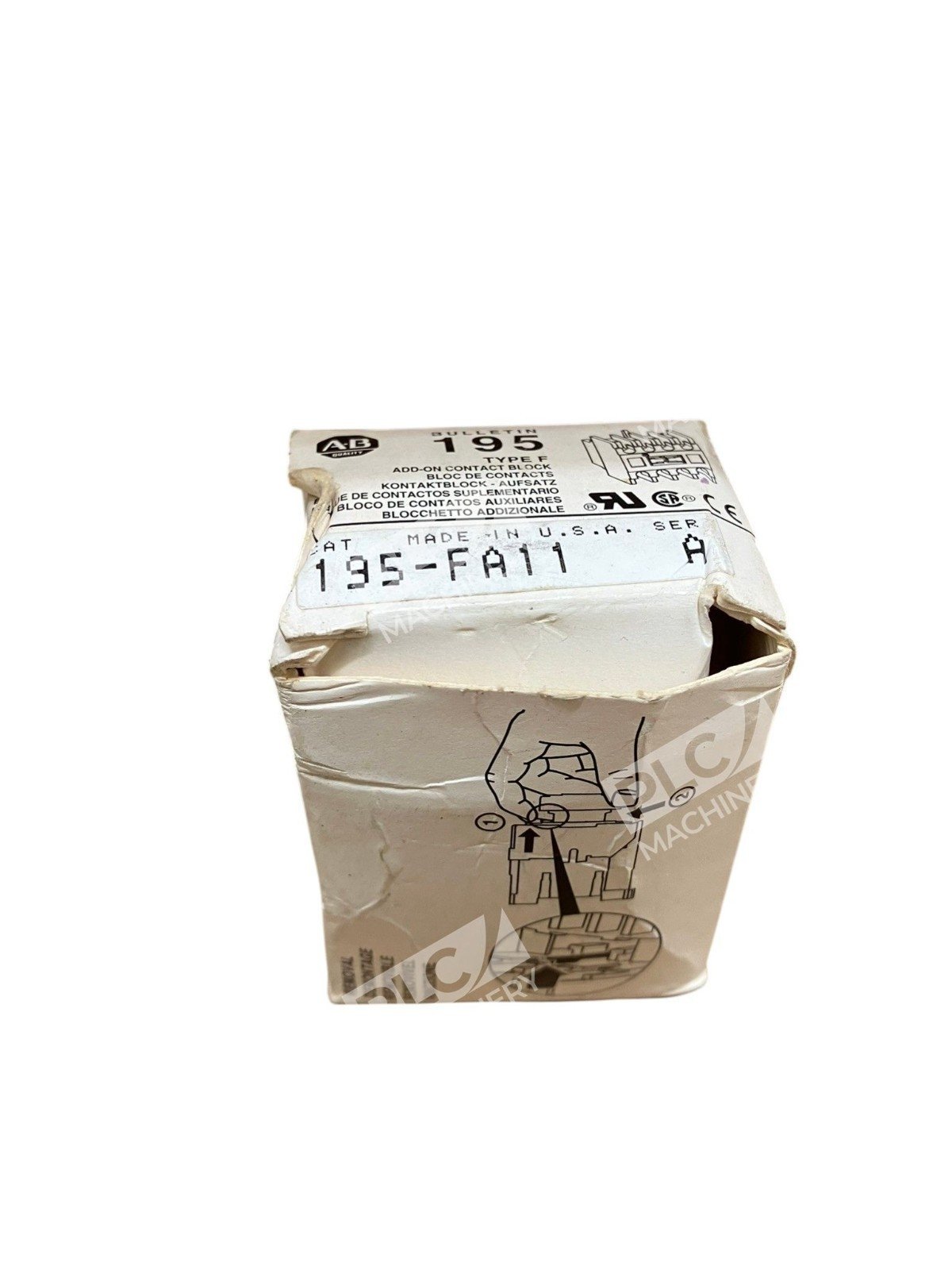

| Condition | New in Box |
Typical Applications
- Motor starter circuits requiring interlocking contacts for safety and sequencing
- Pump and compressor control with status indication to PLC or relay logic
- Machine automation systems using contactors for three-phase motor switching
- Electrical distribution and motor control centers (MCCs)
- Legacy industrial equipment retrofits where original contact blocks have failed
Compatibility & Replacements
Compatible With
- Allen-Bradley Type F Series A contactors (100-N, 500-N, and related series)
- Industrial three-phase motor control systems rated 600V or less
- Relay logic and PLC input modules for discrete status monitoring
- Standard electrical panel and motor control center installations
Replaces / Drop-In Replacement For
The 195-FA11 serves as a direct replacement for original auxiliary contact blocks on compatible Allen-Bradley Type F contactors. Verify the specific contactor model and mounting configuration with your system integrator or equipment documentation before ordering, as contact block attachment methods may vary by series.
Works With
- Allen-Bradley contactors and starters (Type F and compatible series)
- Industrial control relays and timing modules
- PLC discrete input modules (via hardwired status lines)
- AC three-phase power systems up to 600V
- Standard 50/60 Hz industrial power frequencies
