Overview

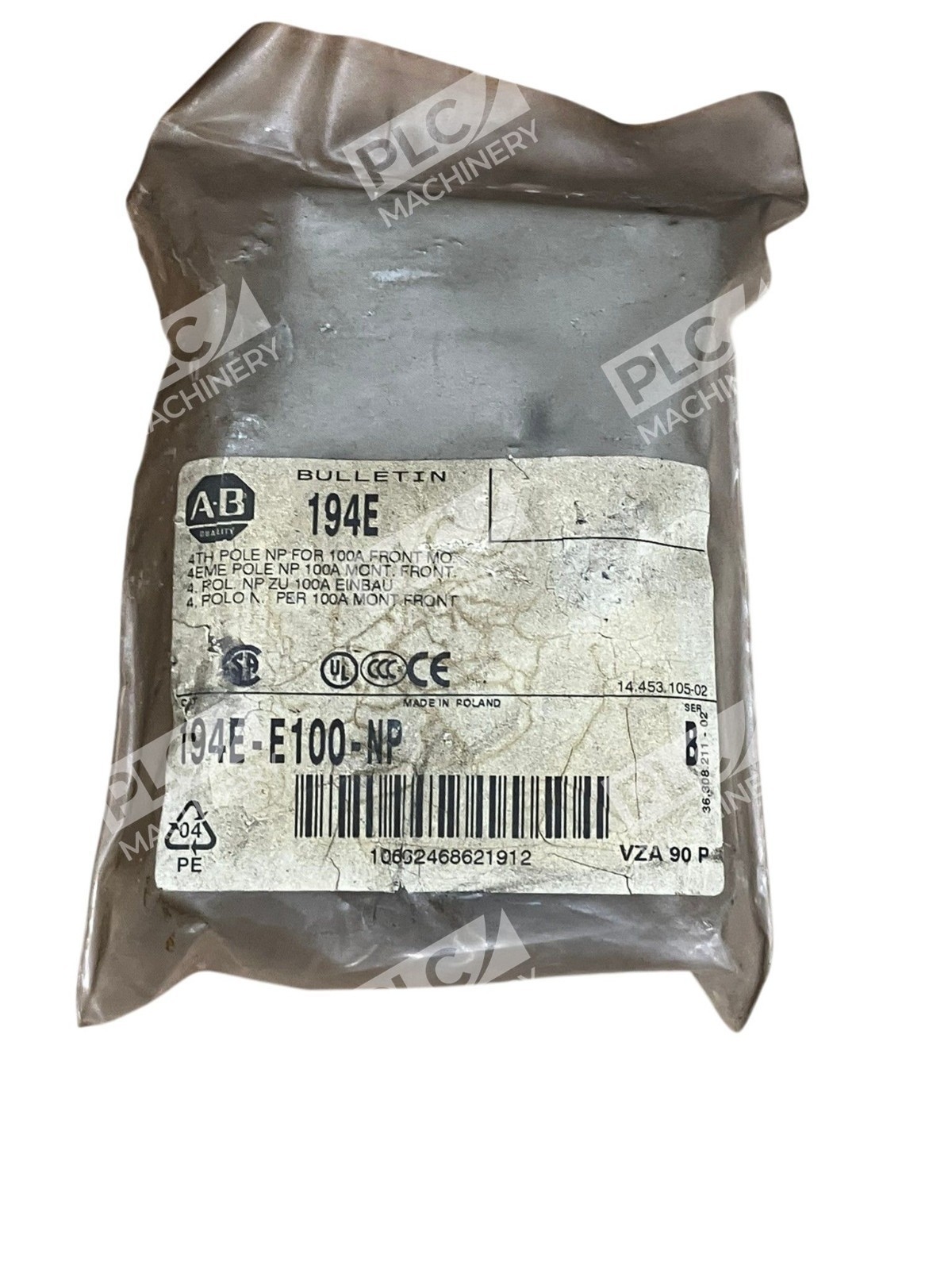

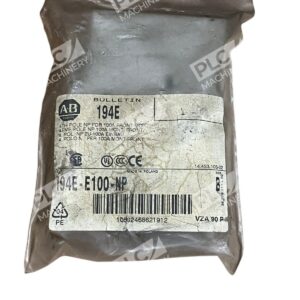

The Allen-Bradley 194E-E100-NP Series B is a 4th pole auxiliary contact module engineered for industrial automation control applications. Rated at 100A, this additional pole module provides flexible extension of the 194E load switch platform. Designed for industrial control systems requiring additional pole connections, it enhances system flexibility and reliability, suitable for various applications including automation, machinery control, and more. The -NP suffix indicates a non-padlocking design, allowing straightforward installation on compatible 194E switch bodies.
Key Features
- CE, UL, and CSA certified for global safety compliance
- 100A rated additional pole module for enhanced switching capacity
- Series B design compatible with standard 194E platforms
- High-quality copper construction ensures excellent conductivity and durability
- Easy installation in existing systems without requiring significant modifications
- Built to withstand harsh industrial conditions including extreme temperatures and vibrations; advanced design minimizes the risk of electrical faults
Technical Specifications
- Module Type: 4th Pole / Additional Pole Module
- Current Rating: 100A
- Design: Series B, Non-Padlocking (-NP)
- Certifications: UL, CE, CSA
- Condition: New in Box
- Manufacturer: Allen-Bradley / Rockwell Automation
Typical Applications
- Industrial machinery control and automation systems
- Facility-wide disconnect and load switching applications
- Multi-pole control system upgrades requiring additional switching contacts
- Heavy-duty industrial environments requiring robust electrical switching
- OEM equipment requiring modular 194E platform extensions
Compatibility & Replacements
Compatible With
- Allen-Bradley 194E-A series base-mounted load switches
- Allen-Bradley 194E-E series front-mounted load switches
- Standard 194E switch bodies and platforms (Series A and later)
- Multi-pole industrial control systems using 194E architecture
Replaces / Drop-In Replacement For
- 194E-E100-PE (alternative pole module variant)
- Earlier 194E additional pole modules rated 100A
- Verify compatibility with your system integrator before ordering.
Works With
- Rockwell Automation 194E load switch ecosystem
- Industrial electrical control systems using standard DIN mounting
- Multi-pole disconnect and sectionalizing applications
- OEM machinery platforms compatible with 194E modular architecture
