Overview

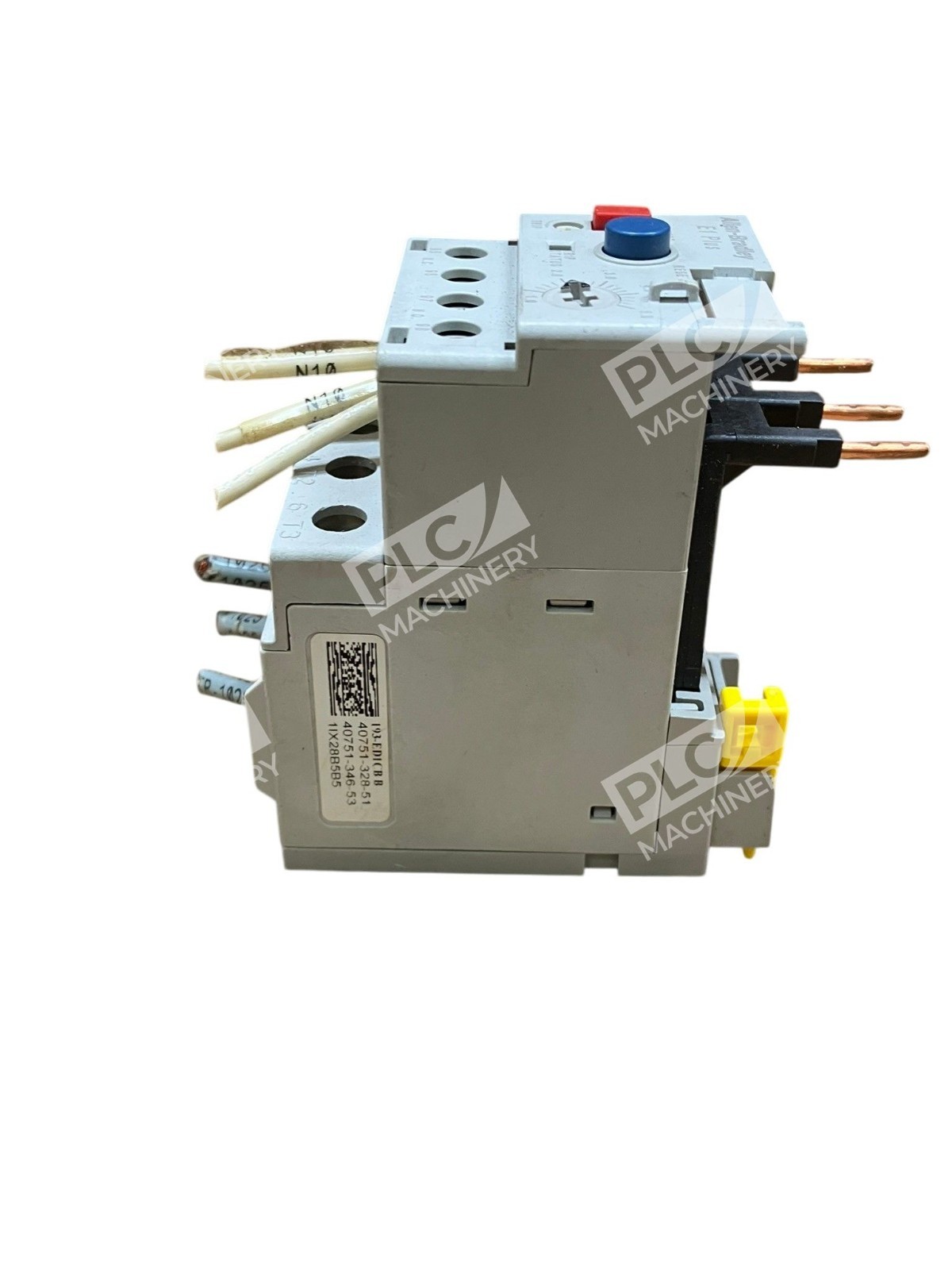

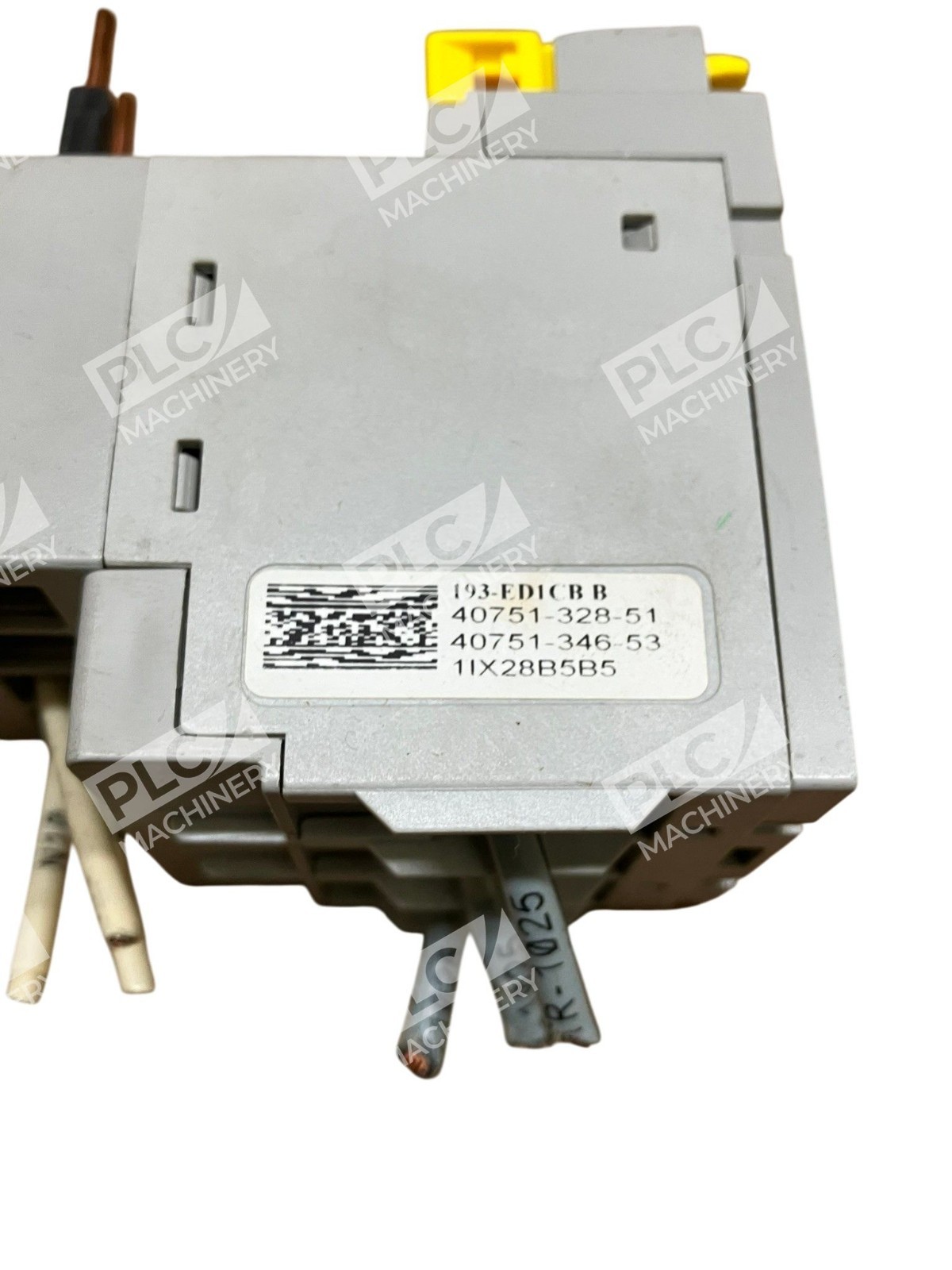

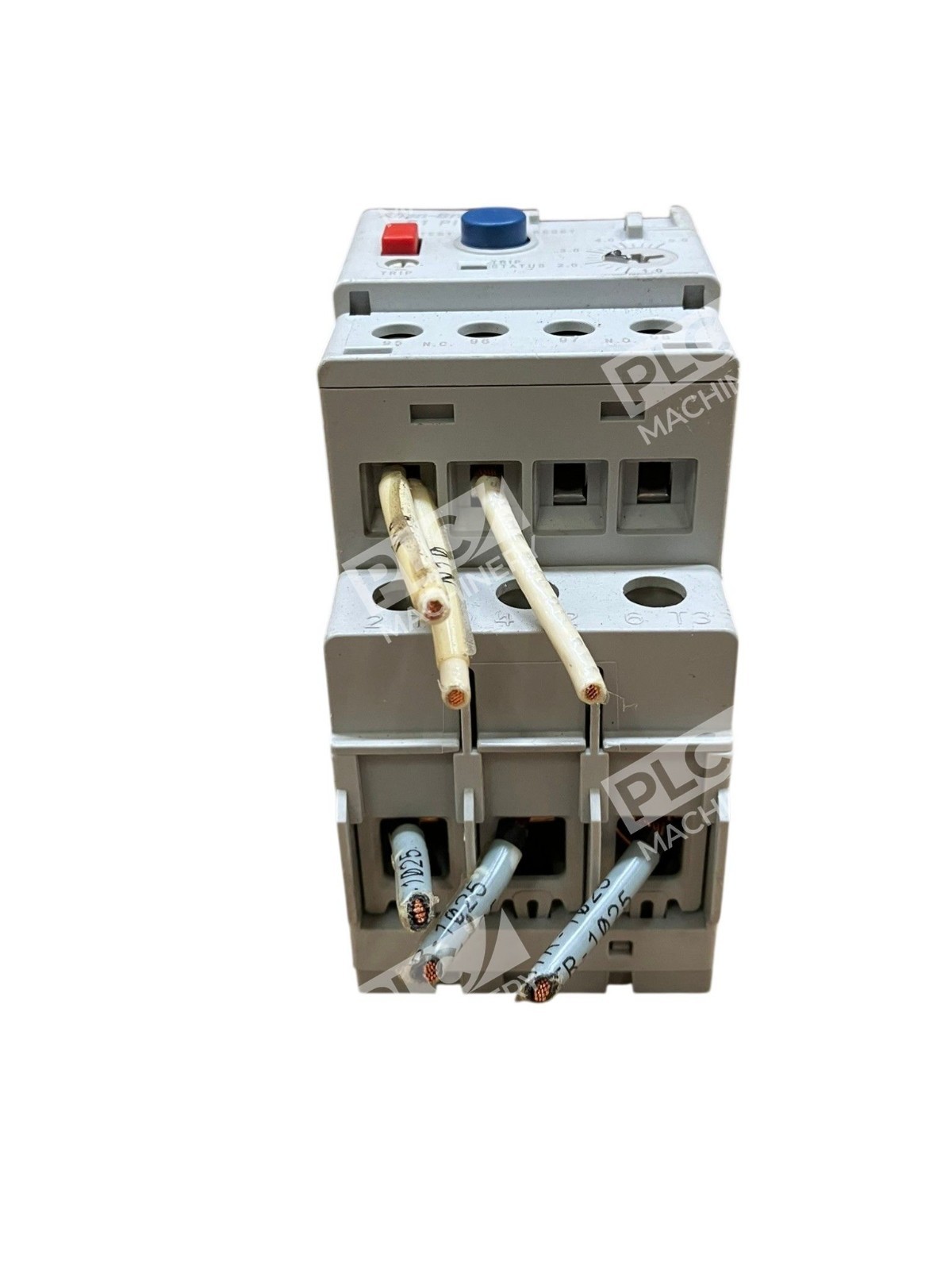

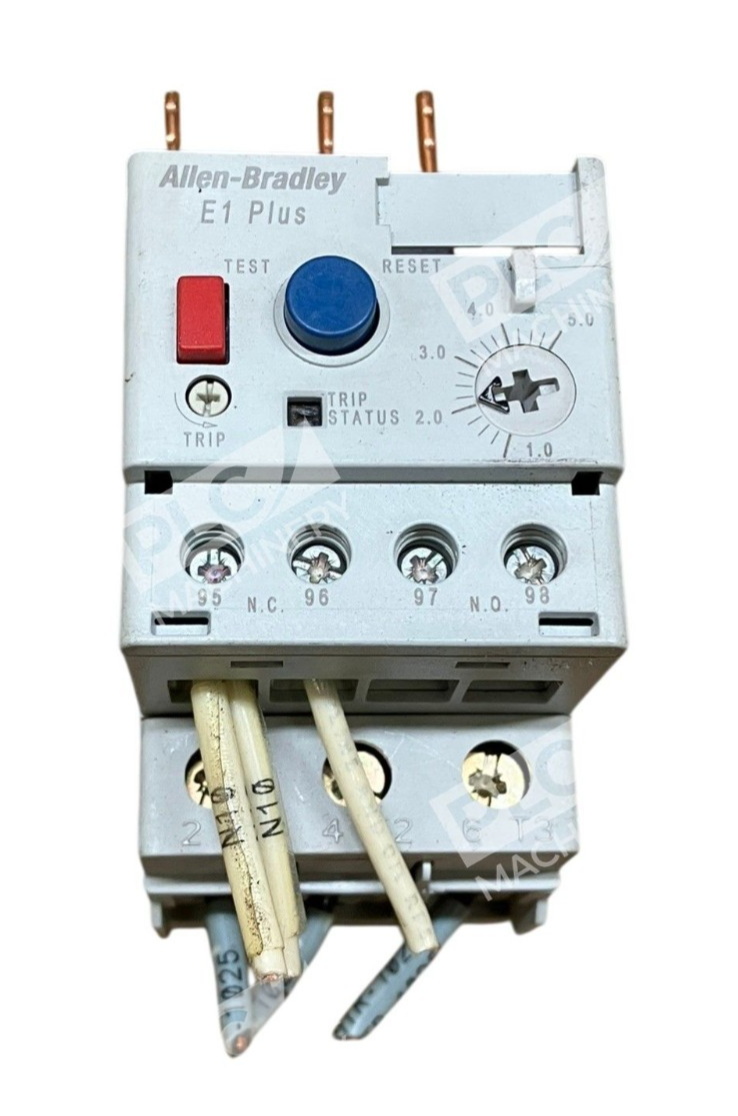

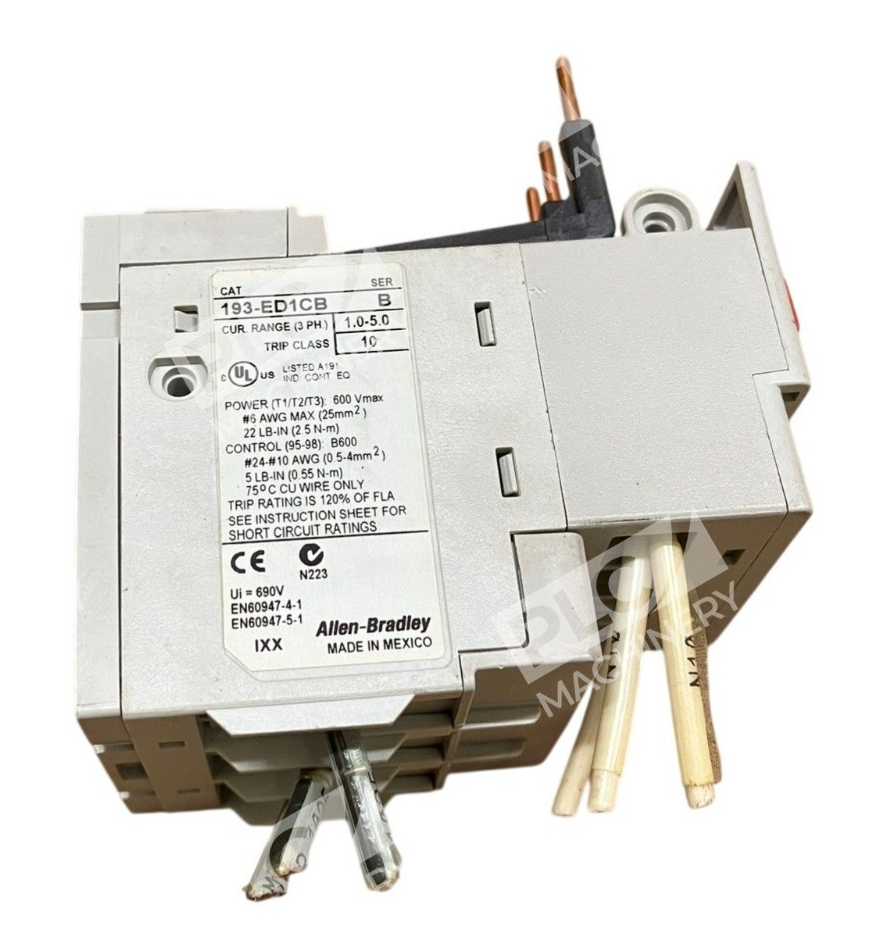

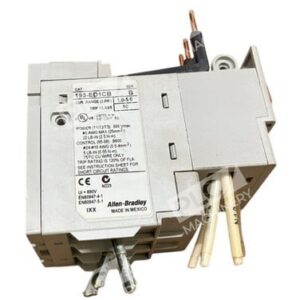

The Allen-Bradley 193-ED1CB is a solid-state IEC overload relay from the E1 Plus family, designed for motor control and overload protection in industrial automation applications. This 3-phase relay provides adjustable current protection from 1 to 5 Amps and operates at 600-690 VAC, 50/60 Hz. The relay mounts directly to Allen-Bradley contactors (sizes 100-C09 through 100-C23) and features self-powered operation, minimizing heat generation and simplifying installation without external power requirements.
Key Features
- Adjustable 1-5 Amp current range for flexible motor protection
- Class 10 trip protection (responds within 10 seconds at 600% overload)
- 3-phase IEC-compliant design for motor control applications
- Phase loss protection prevents single-phase operation damage
- Manual reset functionality with automatic trip capability
- Self-powered design eliminates external power supply requirements
- Secure screw-type terminals for reliable electrical connections
- Direct mounting to 100-C09 to 100-C23 contactor frame sizes

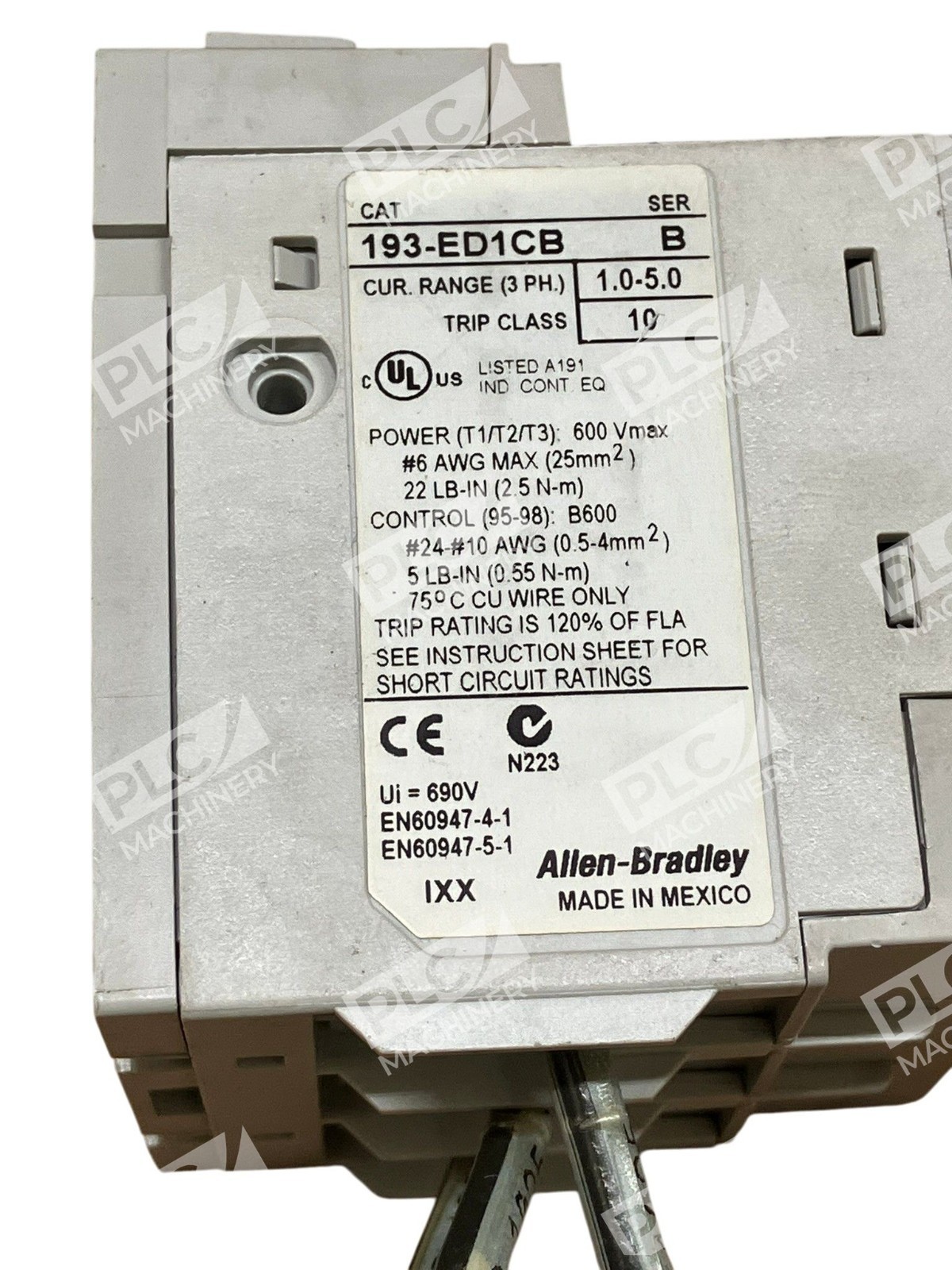

Technical Specifications
Electrical Ratings:
- Amperage: 1-5 Amp adjustable
- Voltage: 600-690 VAC, 50/60 Hz
- Phases: 3-phase
- Trip Class: 10 (IEC standard)
Contact Configuration:
- Contacts: 1 Normally Open (N.O.), 1 Normally Closed (N.C.)
- Terminal Type: Screw terminals
Operating Characteristics:
- Reset Type: Manual reset
- Protection Features: Phase loss protection included
- Power Supply: Self-powered (no external supply needed)
- Mounting: Direct mount to Allen-Bradley 100-C09 to 100-C23 contactors
Standards & Certifications:
- UL, CSA, CE, CCC, C-TICK, KC, Marine-rated
Typical Applications
The 193-ED1CB is used in motor control centers (MCCs), industrial machine automation, and equipment protection systems where reliable overload sensing is critical. Common applications include:
- Factory automation and production machinery motor protection
- HVAC system compressor motor control
- Pump and fan motor overload sensing
- Process equipment motor protection circuits
- Retrofit installations requiring drop-in replacement with existing E1 Plus relays
Compatibility & Replacements
Compatible With
- Allen-Bradley 100-C09, 100-C12, 100-C16, 100-C23 contactors
- Allen-Bradley E1 Plus control systems
- IEC-standard 3-phase motor control circuits
- Existing 193-ED1CB panel and DIN rail mounting adapters
Replaces / Drop-In Replacement For
- Other Allen-Bradley 193-ED1CB units in serviceable condition
- Equivalent E1 Plus 1-5A overload relays in compatible contactor frames
- Note: This product was discontinued by Rockwell Automation on July 31, 2021. The official direct replacement is the 193-1EECB. Verify contactor compatibility before ordering.
Works With
- IEC 60947-4-1 standard motor control circuits
- Allen-Bradley motor control center (MCC) architectures
- Single- and three-phase motor protection schemes
- Manual and automatic motor starter configurations
