Overview

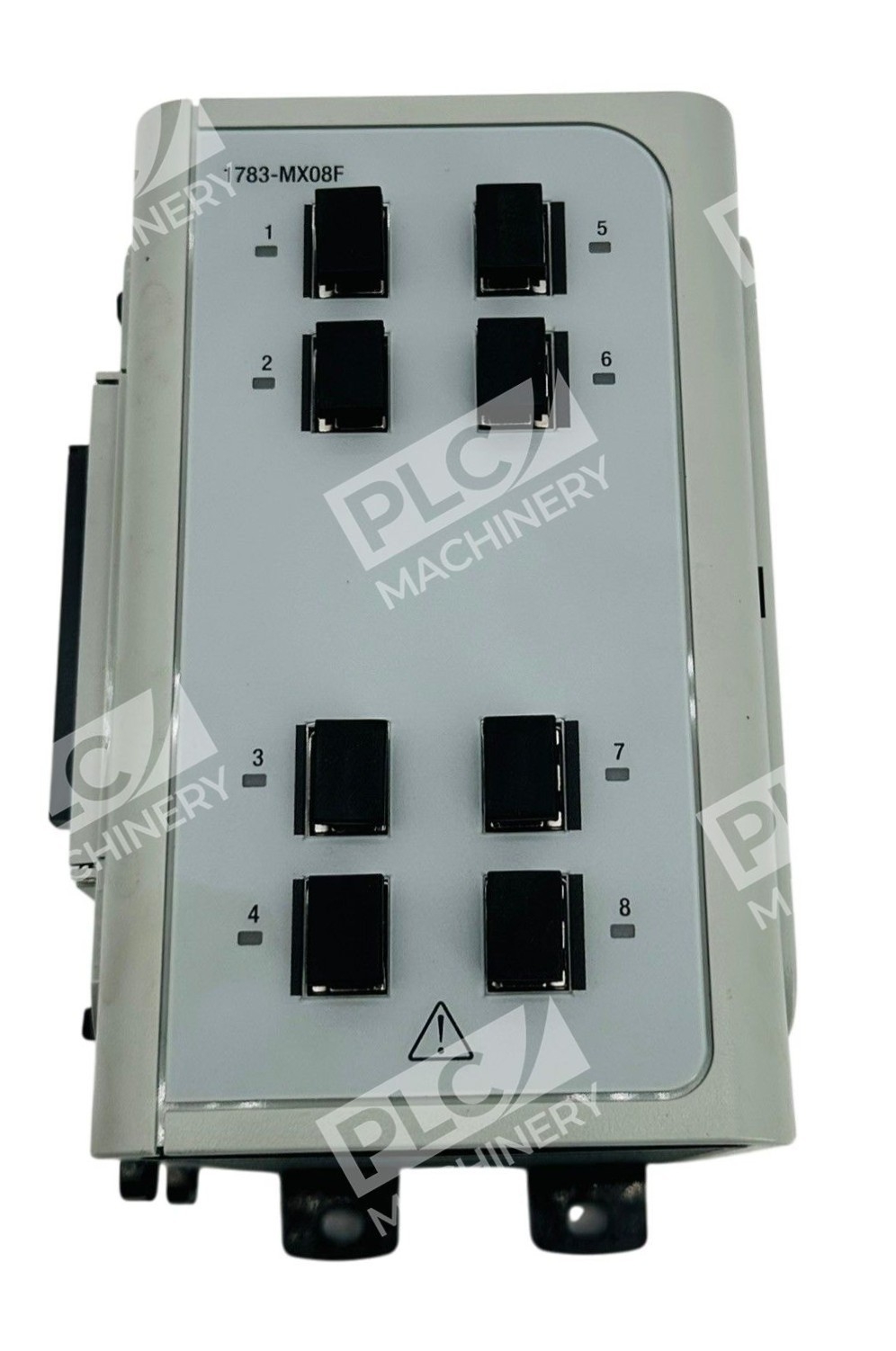

The Allen-Bradley 1783-MX08F is a fiber-optic expansion module designed for Stratix 8000 and 8300 managed Ethernet switches. This module adds eight 100 Mbps fiber ports equipped with LC connectors, enabling long-distance industrial network extensions with superior EMI immunity and isolation. It functions as a drop-in expansion card that attaches to compatible base switch units, supporting graded index multimode fiber runs up to 2000 meters.
Key Features
- Eight 100Base-FX fiber-optic Ethernet ports with full-duplex operation
- LC connectors for multimode (1310 nm) or singlemode fiber connectivity
- Mounts directly to Stratix 8000/8300 base units with latch mechanism
- Industrial temperature range: -40 to 60°C operating
- UL Listed for US/Canada industrial control equipment (File E65584)
- Supports up to 2000 m reach on graded index multimode fiber
Technical Specifications
Connectivity: The module provides eight 100Base-FX fiber ports. Connection mode is full duplex with 1310 nm optical wavelength. Optical link budget is 8 dB with 62.5/125 μm multimode cable and 4 dB with 50/125 μm multimode cable. Maximum cable length on graded index multimode fiber is 2000 meters. Connectors conform to IEC 61754-20 LC standard.
Power & Mounting: Requires 24 VDC or 48 VDC supply. Compact form factor measures 147 mm (H) × 97 mm (W) × 112 mm (D). Mounts via latch system to Stratix switch backplane; alternatively supports standard 35 mm × 7.5 mm or 35 mm × 15 mm DIN rail mounting.
Environmental Rating: Operating temperature -40 to 60°C; non-operating storage -40 to 70°C. Designed for indoor industrial cabinet environments with forced airflow compliance.
Typical Applications
- Extending Ethernet networks across factory floors and remote equipment locations
- Connecting plant-wide control systems via long-distance fiber backbones
- High-interference environments requiring optical isolation between network segments
- Mission-critical production lines with managed switch redundancy and diagnostics
- Integration with FactoryTalk View HMI and RSLogix 5000/Studio 5000 controllers
Compatibility & Replacements
Compatible With
- Stratix 8000 managed switches (1783-MS06T, 1783-MS10T)
- Stratix 8300 managed switches (1783-RMS06T, 1783-RMS10T)
- EtherNet/IP and PROFINET industrial networks
- RSLogix 5000 / Studio 5000 configuration via CIP interface
- FactoryTalk View and Rockwell Automation Integrated Architecture
Replaces / Drop-In Replacement For
The 1783-MX08F directly replaces earlier Stratix 8000 fiber expansion configurations. Verify compatibility with your system integrator before ordering if replacing legacy installations.
Works With
- Multimode fiber (50/125 μm or 62.5/125 μm) with compatible SFP transceivers (1783-SFP100FX)
- Singlemode fiber via optional 1783-SFP100LX or 1783-SFP1GLX transceiver modules
- Cisco IOS command-line interface (CLI) and Device Manager configuration tools
- Stratix network management and diagnostics software
