Overview

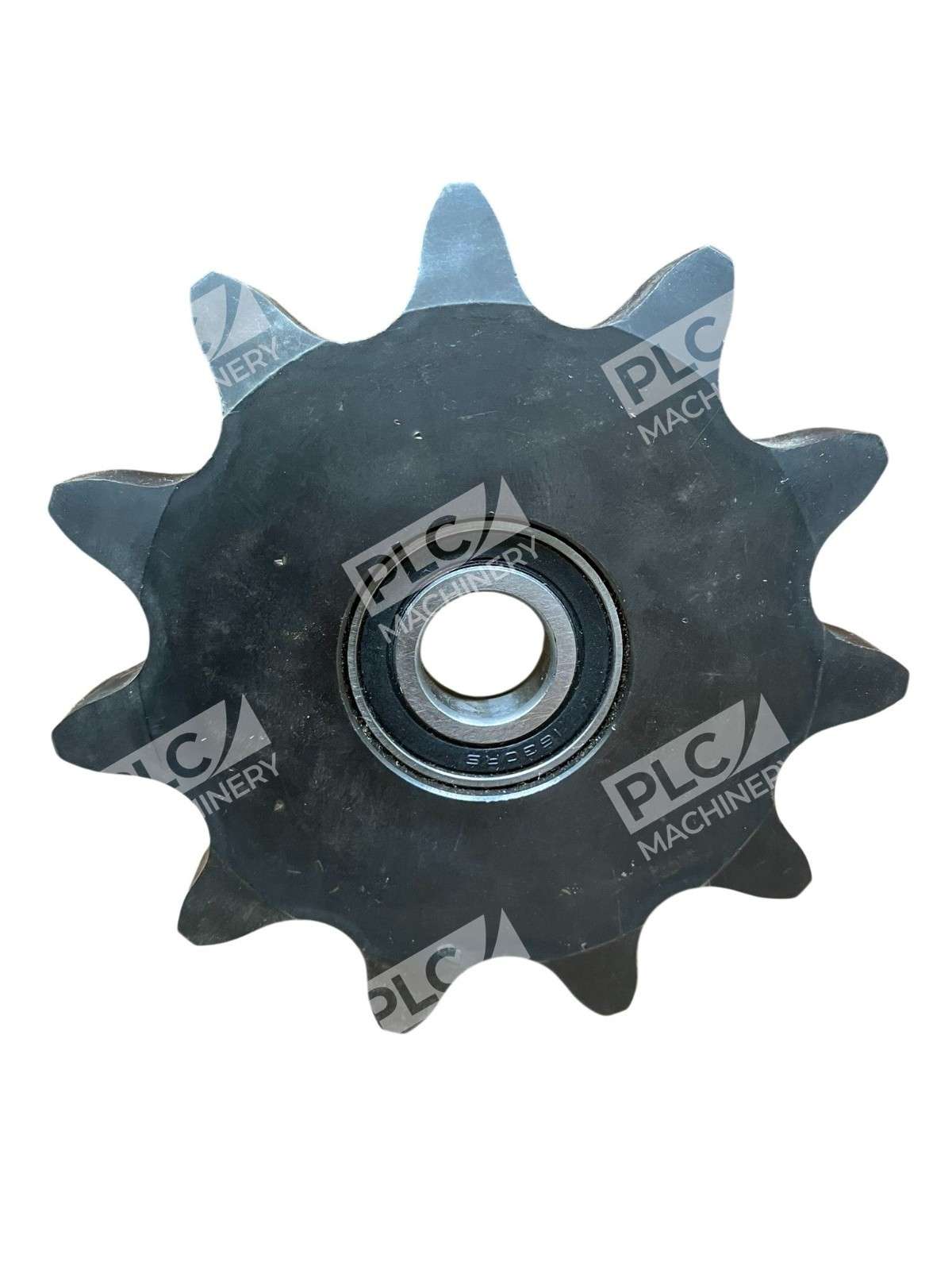

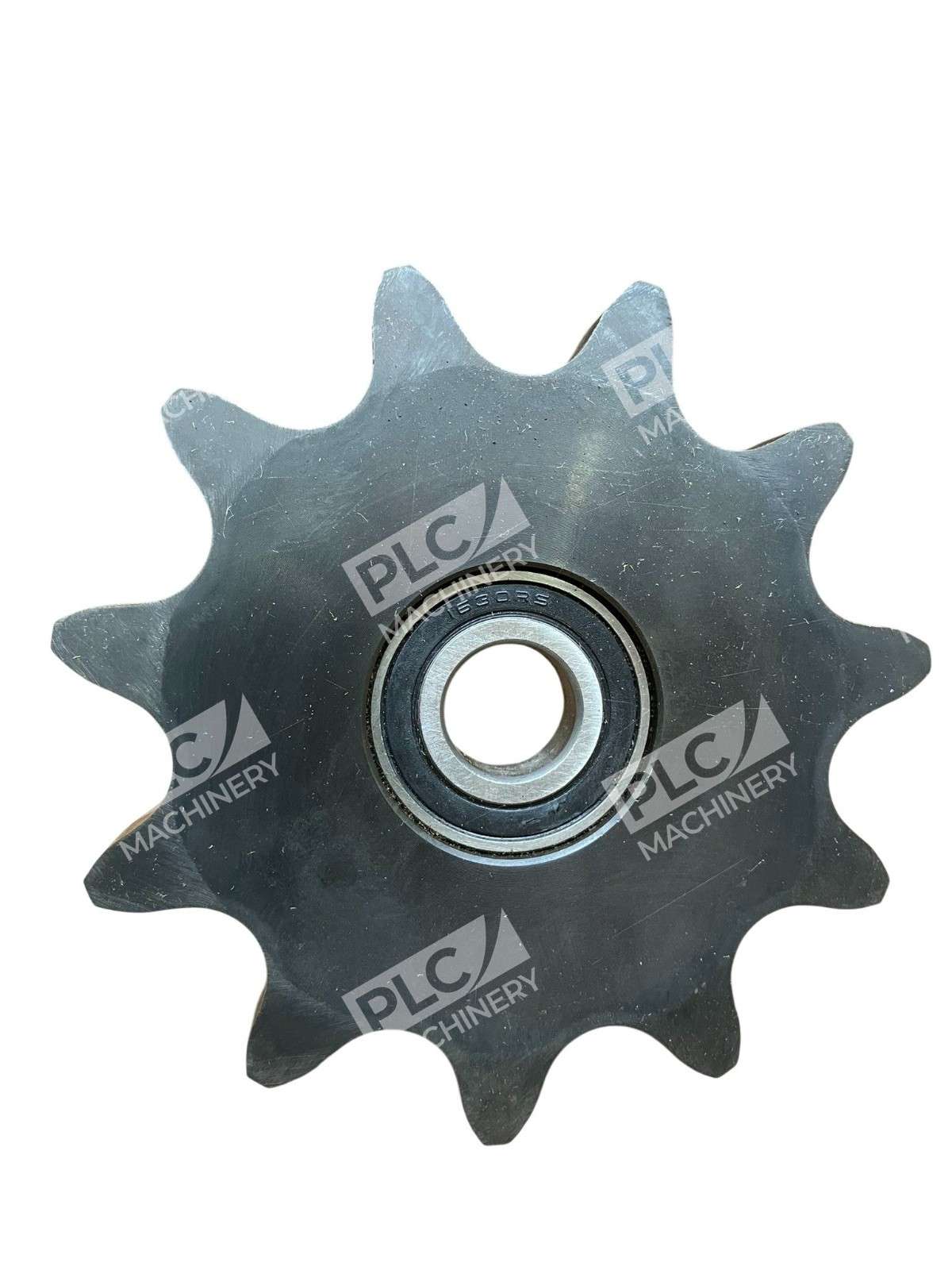

The 1630RS idler sprocket with internal ball bearing is a compact tension and guide assembly for #60 ANSI roller chain applications. The 1630RS bearing designation indicates a standard deep groove ball bearing with sealed contact (RS = sealed on both sides), integrated into the sprocket hub to provide smooth, low-friction operation. This unit features a hardened steel sprocket body with 11 teeth, designed for light to medium load industrial automation, material handling, and conveyor systems.
Key Features
- Deep groove 1630RS ball bearing with dual seals for protection against contaminants
- Sealed ball bearing ensures grease retention and extended service life
- 11-tooth sprocket compatible with #60 ANSI roller chain pitch

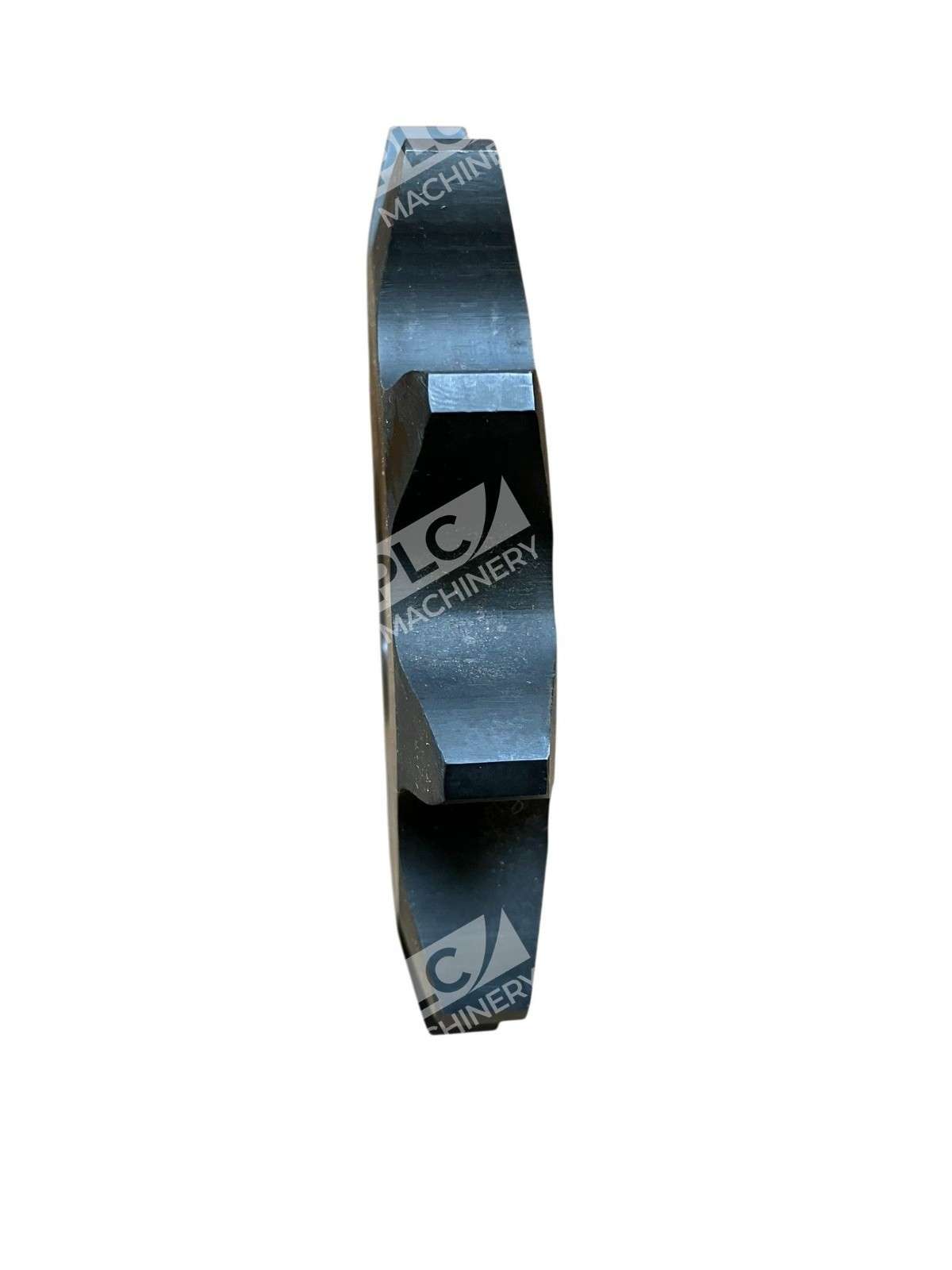

- Hardened steel teeth for resistance to wear and impact
- Ready-to-mount assembly—bearing pre-riveted into sprocket hub
- Suitable for fixed shaft mounting or tensioner arm installation
Technical Specifications
- Bearing Type: Deep Groove Ball Bearing (1630RS)
- Sprocket Teeth: 11
- Chain Pitch: #60 ANSI Roller Chain
- Bearing Seals: Rubber seals, both sides (RS)
- Sprocket Material: Carbon steel, heat treated
- Bore Options: Verify with supplier (typically 1/2″ or 5/8″ shaft bore)
- Bearing Dimensions (1630RS): Approximately 19.05 mm bore × 41.28 mm outer diameter × 12.7 mm width
- Condition: New – No Box
Typical Applications
- Industrial conveyor tensioning and load guidance
- Material handling machinery with #60 roller chain drive trains
- Packaging equipment and automated production lines
- Agricultural and forestry equipment
- Custom motion control assemblies in manufacturing environments
Compatibility & Replacements
Compatible With
- #60 ANSI roller chain systems
- Standard sprocket shafts and tensioner mounts
- Industrial automation and power transmission applications
- Any system requiring 11-tooth idler guidance and tension adjustment
Replaces / Drop-In Replacement For
- Standard 11-tooth #60 roller chain idler sprockets with 1630-series bearing integration
- Generic idler sprocket assemblies in light-to-medium duty conveyor systems
- Note: Verify bore size and chain pitch compatibility before substitution. Consult your system integrator or equipment manual to confirm exact replacement suitability.
Works With
- #60 ANSI standard roller chain links and connectors
- Fixed shaft installations on pillow blocks or flanged bearings
- Chain tensioner arms and spring-loaded idler assemblies
- Direct drop-in for existing 11-tooth sprocket positions requiring bearing upgrade
