Overview

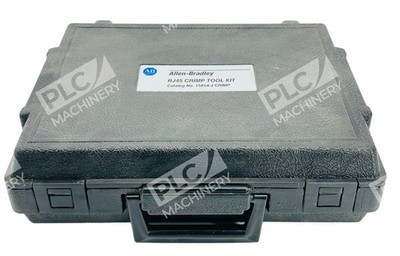

The Allen-Bradley 1585A-JCRIMP is a professional-grade crimp tool kit engineered for terminating RJ45 connectors on Ethernet media used in industrial automation and control systems. As an accessory to Allen-Bradley’s 1585 Ethernet media portfolio, this kit provides technicians and integrators with a complete solution for field installation and maintenance of network connectivity in manufacturing and process environments.
Key Features
- Dedicated RJ45 crimper for precise eight-pin connector termination
- Integrated cable stripper/cutter for preparing Ethernet cable jackets
- Conductor separator tool for organizing and aligning individual wire pairs
- Plastic handles for comfortable, sustained hand operation
- Meets CUL and KC safety standards for industrial environments
- Part of the proven Allen-Bradley 1585 Ethernet accessory ecosystem
Technical Specifications
- Part Number: 1585A-JCRIMP
- Manufacturer: Allen-Bradley / Rockwell Automation
- Tool Type: Crimp Tool Kit with Accessories
- Connector Type: RJ45 (Eight-Pin)
- Handle Material: Plastic
- Included Components: Crimper, Cable Stripper/Cutter, Conductor Separator
- Standards Compliance: CUL, KC
- UPC: 612598561872
- Lifecycle Status: Active
Typical Applications
- Industrial Ethernet network installation and troubleshooting
- On-Machine connectivity solutions and remote junction boxes
- Field termination of Cat5e and Cat6 cabling in control cabinets
- RJ45 connector assembly for EtherNet/IP networks
- Maintenance and retermination of existing industrial Ethernet links
- System integrator toolkits for automated manufacturing environments
Compatibility & Replacements
Compatible With
- Allen-Bradley 1585 Ethernet Media series cables and connectors
- Standard eight-pin RJ45 connectors (industrial grade)
- Cat5e and Cat6 twisted-pair Ethernet cabling
- Rockwell Automation industrial control networks
- EtherNet/IP enabled devices and gateways
- On-Machine I/O and Armor industrial connectivity products
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This is a tooling accessory and does not directly replace hardware components.
Works With
- Allen-Bradley/Rockwell Automation industrial Ethernet components
- Standard eight-pin RJ45 field-attachable connectors
- Industrial-grade twisted-pair Ethernet media (Cat5e, Cat6)
- EtherNet/IP protocol networks
- ISO/IEC 24702 and IEC 61918 compliant cabling standards
