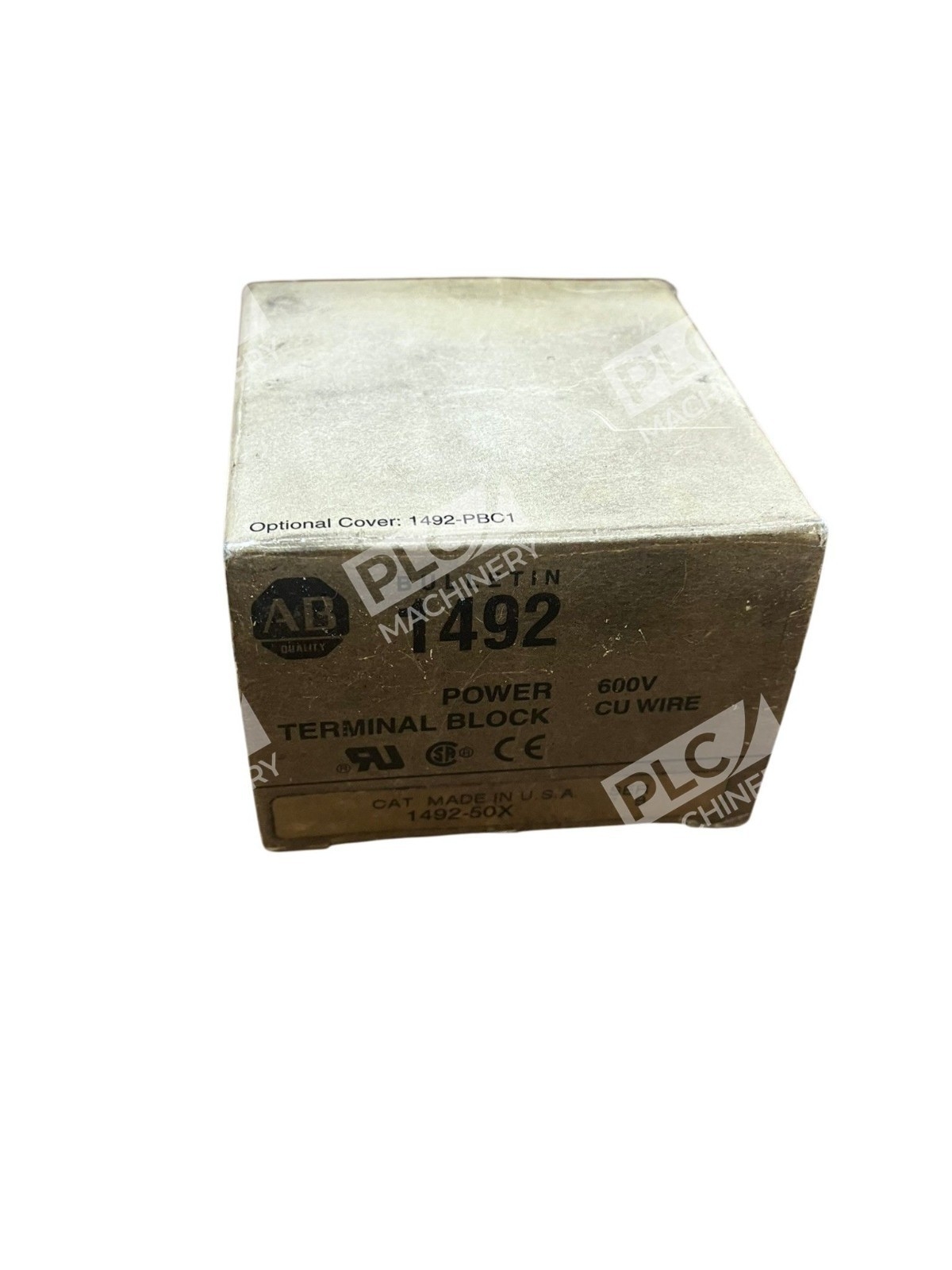

1492-50X Series B – Allen-Bradley – Power Terminal Block Copper 600V

Overview

The Allen-Bradley 1492-50X is a standard feed-through power distribution block from Rockwell Automation’s Bulletin 1492 terminal block family. Designed for industrial control and power distribution applications, this 3-pole block accommodates one line-side input and one load-side output, making it ideal for splicer and distribution tasks in electrical enclosures.

Key Features

• 3-Pole Configuration: Provides three independent circuits for power routing
• Feed-Through/Splicer Design: One opening on line side, one on load side for efficient wiring
• High Current Rating: 115-amp capacity supports substantial power distribution
• Wire Range #2–#14 AWG: Accepts copper conductors from #2 to #14 gauge
• 600V Rated: Suitable for standard industrial voltage applications
• Aluminum Construction: Corrosion-resistant material for cabinet mounting
• Tool-Free Installation: Requires only a flat-head screwdriver for assembly

Technical Specifications

• Voltage Rating: 600V AC/DC
• Current Rating: 115A
• Poles: 3
• Configuration: 1 Opening Line Side, 1 Opening Load Side
• Wire Range: #2–#14 AWG (copper)
• Material: Aluminum
• Mounting: DIN rail or panel
• Style: Open-style, feed-through block

Typical Applications

• Power distribution in industrial control enclosures
• Field wiring connections in factory automation systems
• Multi-load power routing for motor control centers
• Circuit splicer applications in PLC cabinets
• General power distribution in machinery control systems

Compatibility & Replacements

Compatible With

• Allen-Bradley Bulletin 1492 terminal block family
• DIN-rail mounted enclosures
• Industrial control cabinets (600V rated systems)
• Standard panel-mount installations

Replaces / Drop-In Replacement For

• Earlier versions or equivalent 3-pole 115A distribution blocks in legacy systems
• Verify compatibility with your original specification before ordering

Works With

• All Allen-Bradley Bulletin 1492 terminal block accessories
• Standard industrial circuit protection devices (breakers, fuses)
• Copper and aluminum wire connectors rated for 600V
• Terminal block markers and labeling systems
