Overview

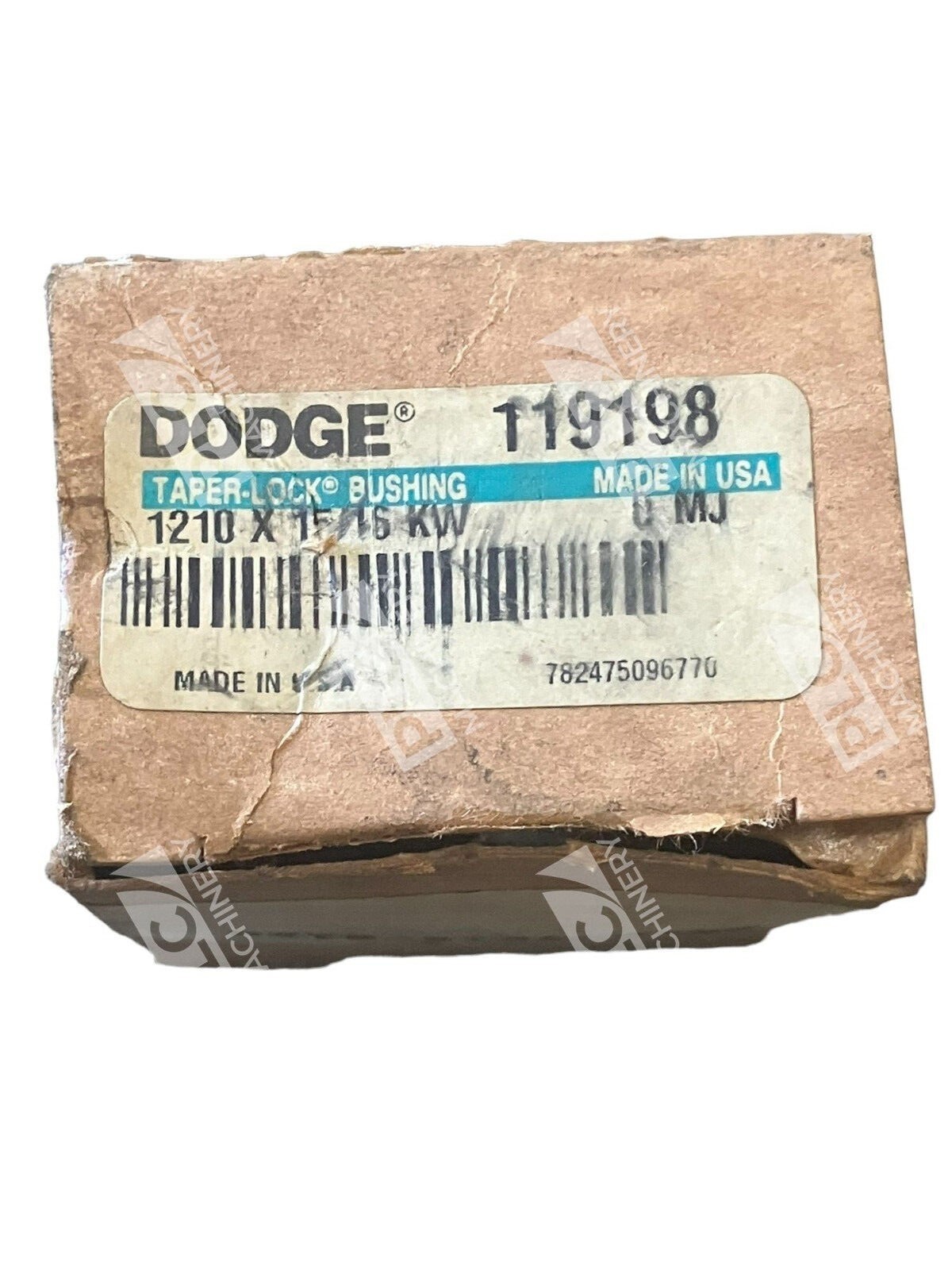

The Dodge 119198 is a heavy-duty taper-lock bushing designed for reliable shaft engagement in industrial power transmission applications. This 1210 size bushing accommodates a 15/16″ shaft diameter and features a tapered design that eliminates wobble and provides a precise, secure fit. Supplied as a lot of 5 units in new factory condition, these bushings are ready for immediate deployment in your machinery.
Key Features
- 8-degree tapered surface for secure locking and elimination of shaft wobble
- Flangeless, compact design suitable for clean industrial applications
- Installation screws enable tool-free setup and removal without special pullers
- Cast iron construction delivers durability in demanding duty cycles
- Compatible with standard industrial hubs and power transmission assemblies
- Sold as lot of 5 for bulk availability and cost efficiency
Technical Specifications
- Bushing Size: 1210
- Shaft Bore Diameter: 15/16″ (0.9375″)
- Keyway Size (Shaft): 1/4″ × 1/8″
- Keyway Size (Integral): 1/4″ × 1/8″
- Overall Length: 0.9375″
- Weight Per Unit: 0.5 lbs
- Taper Angle: 8 degrees
- Material: Cast Iron
- Quantity: 5 units per lot
- Condition: New in Box
Typical Applications
Dodge 119198 bushings are widely used across industrial sectors including conveyor systems, pump and motor couplings, reduction gearboxes, and general machinery drive trains. Their tapered design and compact footprint make them ideal for space-constrained applications requiring rapid assembly and disassembly. Common uses include industrial fans, blowers, agitators, compressors, and process equipment where vibration-free torque transmission is critical.
Compatibility & Replacements
Compatible With
- Dodge industrial hubs and sheaves designed for 1210 bushing size
- Standard shaft diameters: 15/16″ (0.9375″)
- 1/4″ × 1/8″ keyway shafts and hubs
- Industrial power transmission systems and drive assemblies
- Conveyor, fan, pump, and motor coupling applications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Dodge 119198 is the factory part number for this specific 1210 taper-lock bushing configuration. Check hub manufacturer documentation to confirm dimensional and functional compatibility with your existing equipment.
Works With
- Dodge Taper-Lock bushing installation systems and mounting procedures
- Standard industrial wrench torque specifications for cap screw tightening
- Conventional and reverse mounting configurations
- Factory rebore and keyseat services (available through Dodge)
