Overview

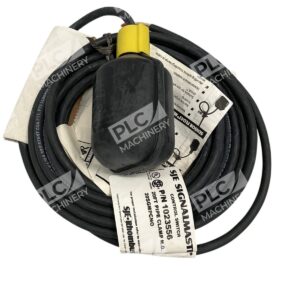

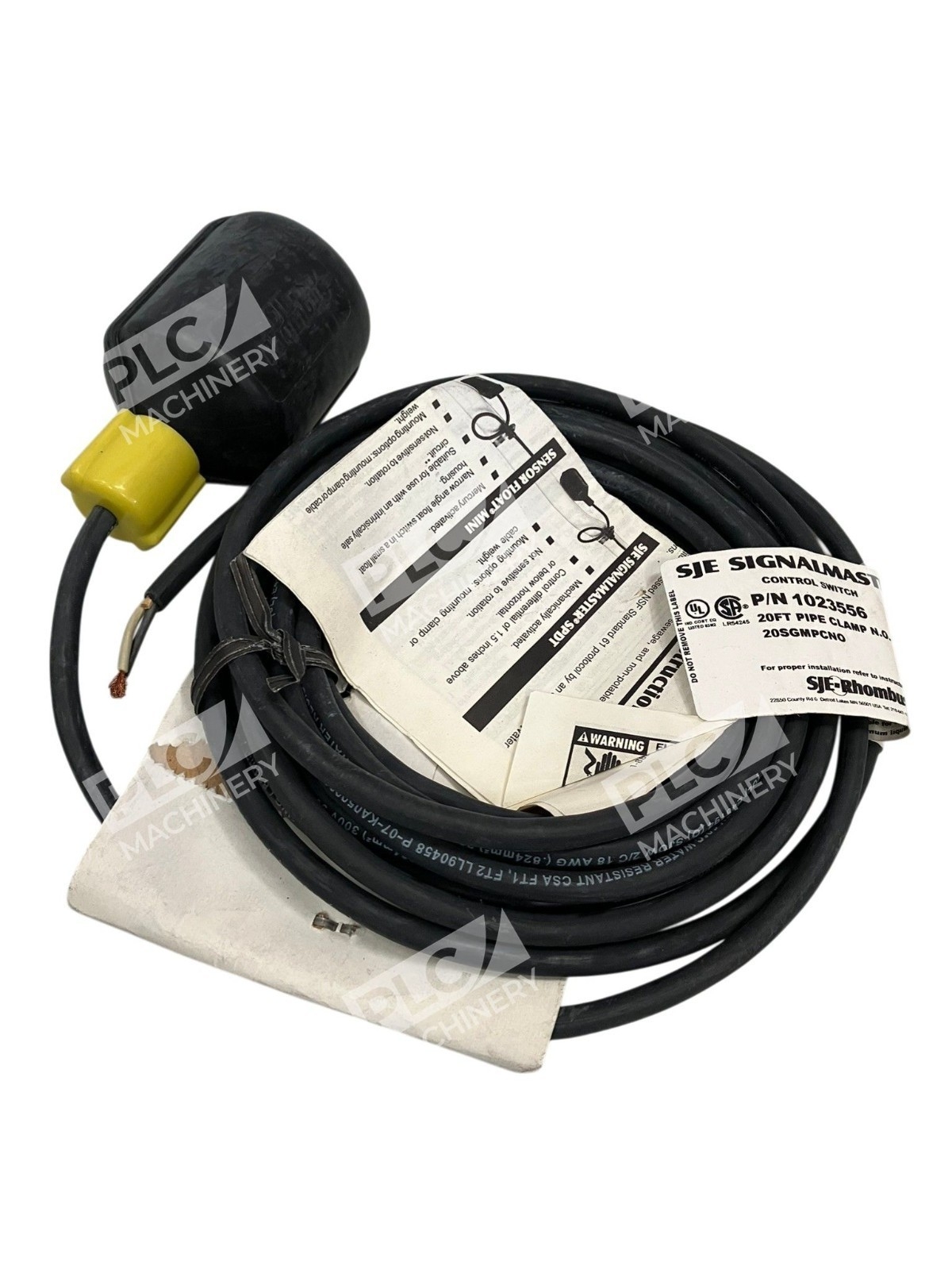

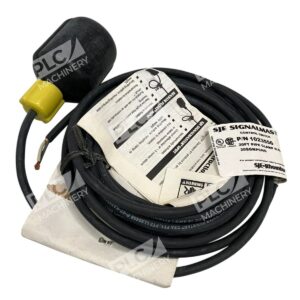

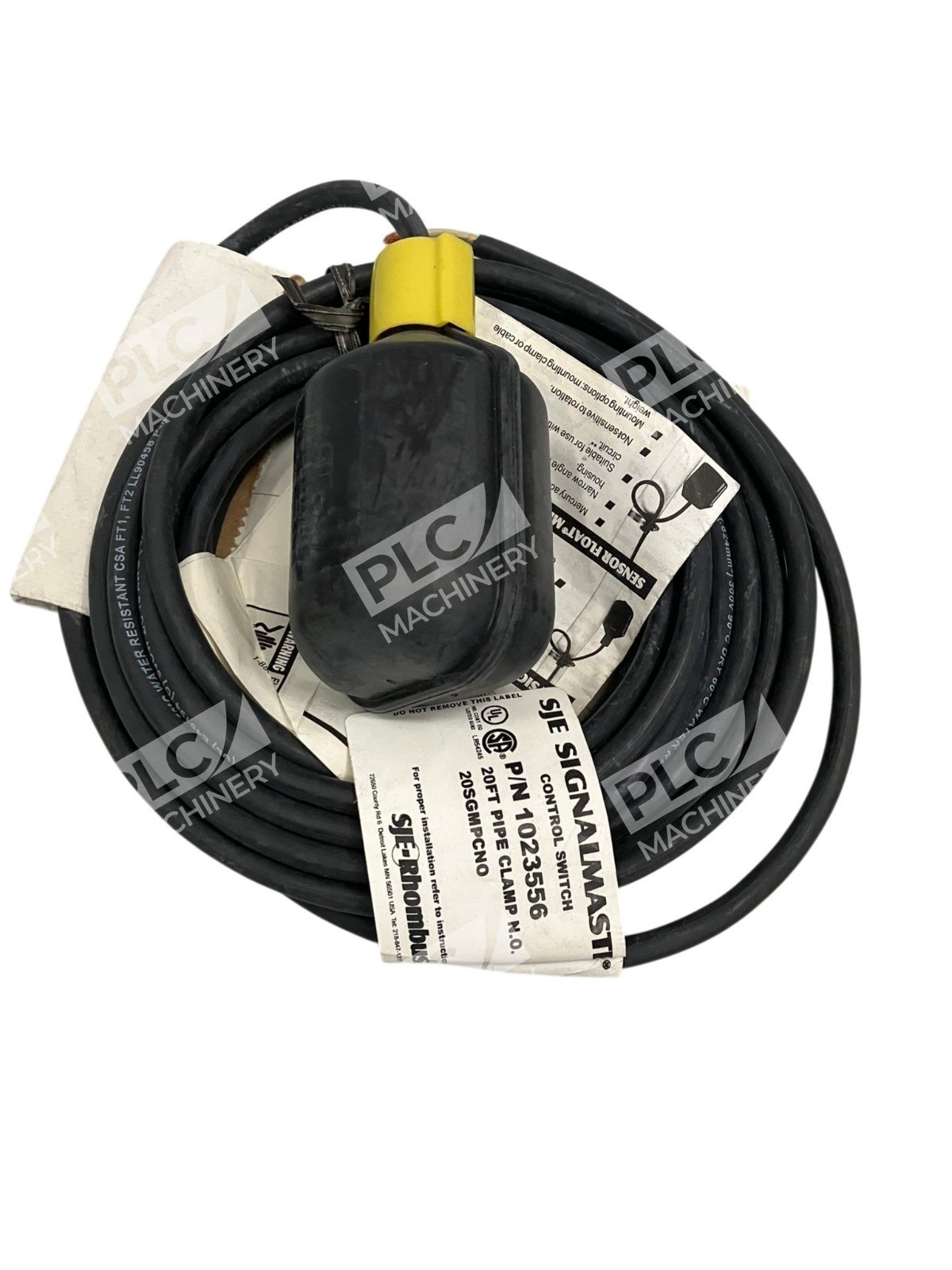

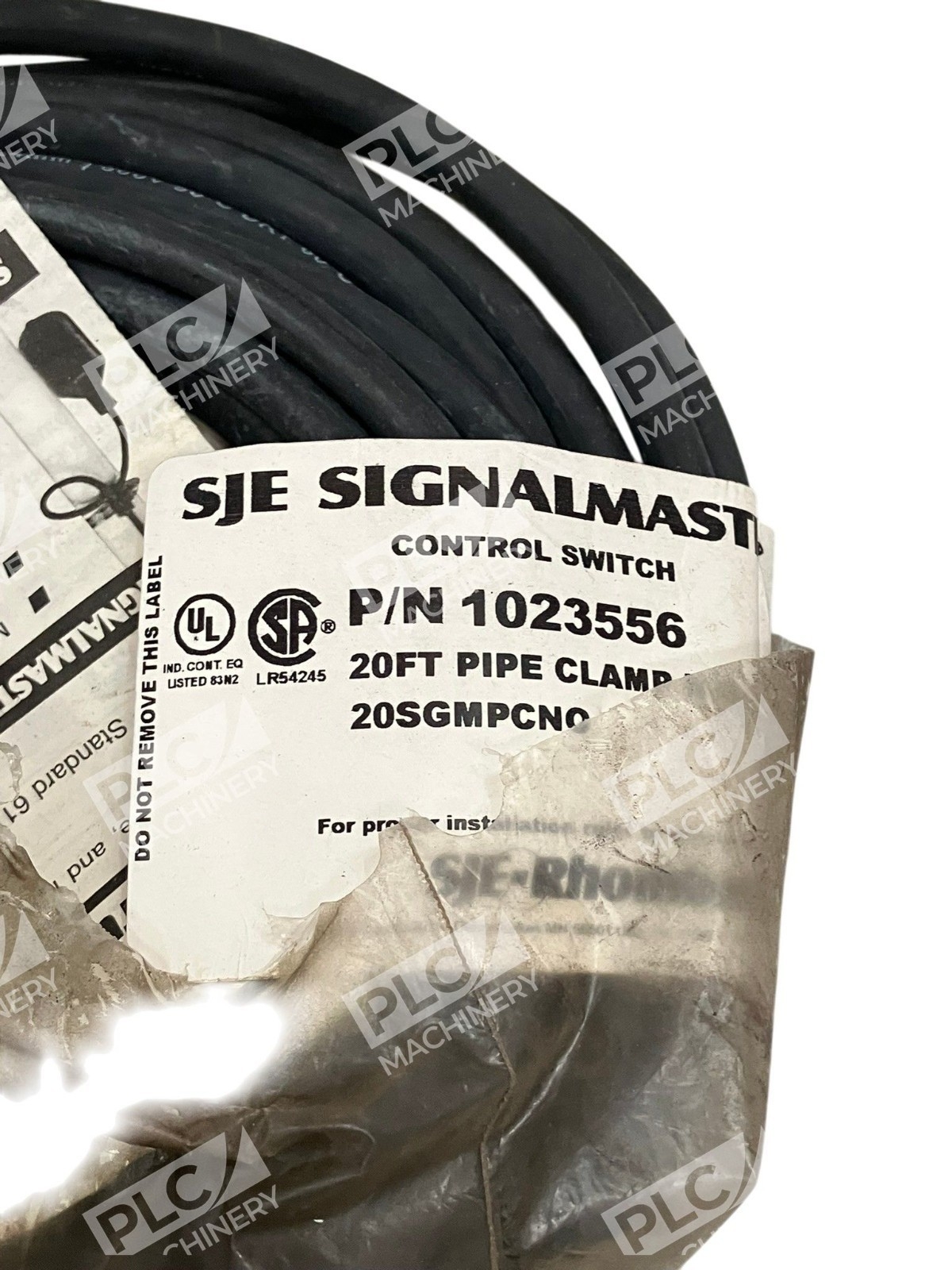

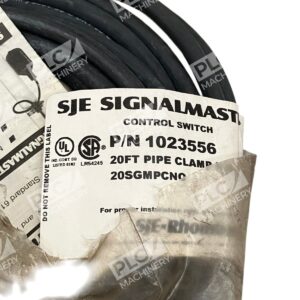

The SJE 1023556 SignalMaster float control switch is a mechanically-activated, narrow-angle instrument designed to monitor liquid levels and activate pump control panels and alarms in water and sewage applications. This control switch is used to accurately monitor high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in water and sewage applications. Built to function reliably in challenging industrial environments, it provides precise level detection for automated system operation.
Key Features
- Not sensitive to rotation — flexible installation orientation
- Flexible 18 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE) cable with standard lengths of 10, 15, 20, or 30 feet
- High impact, corrosion resistance, polypropylene housing for sewage and water applications
- Mounting Clamp for applications where the float can be attached to a discharge pipe or similar mounting device
- Narrow-angle mechanical actuation for reliable switching
Technical Specifications
- Electrical Rating: 5 amp, 125/250 VAC, 50/60 Hz

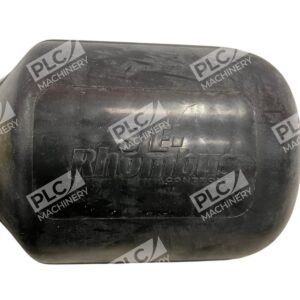

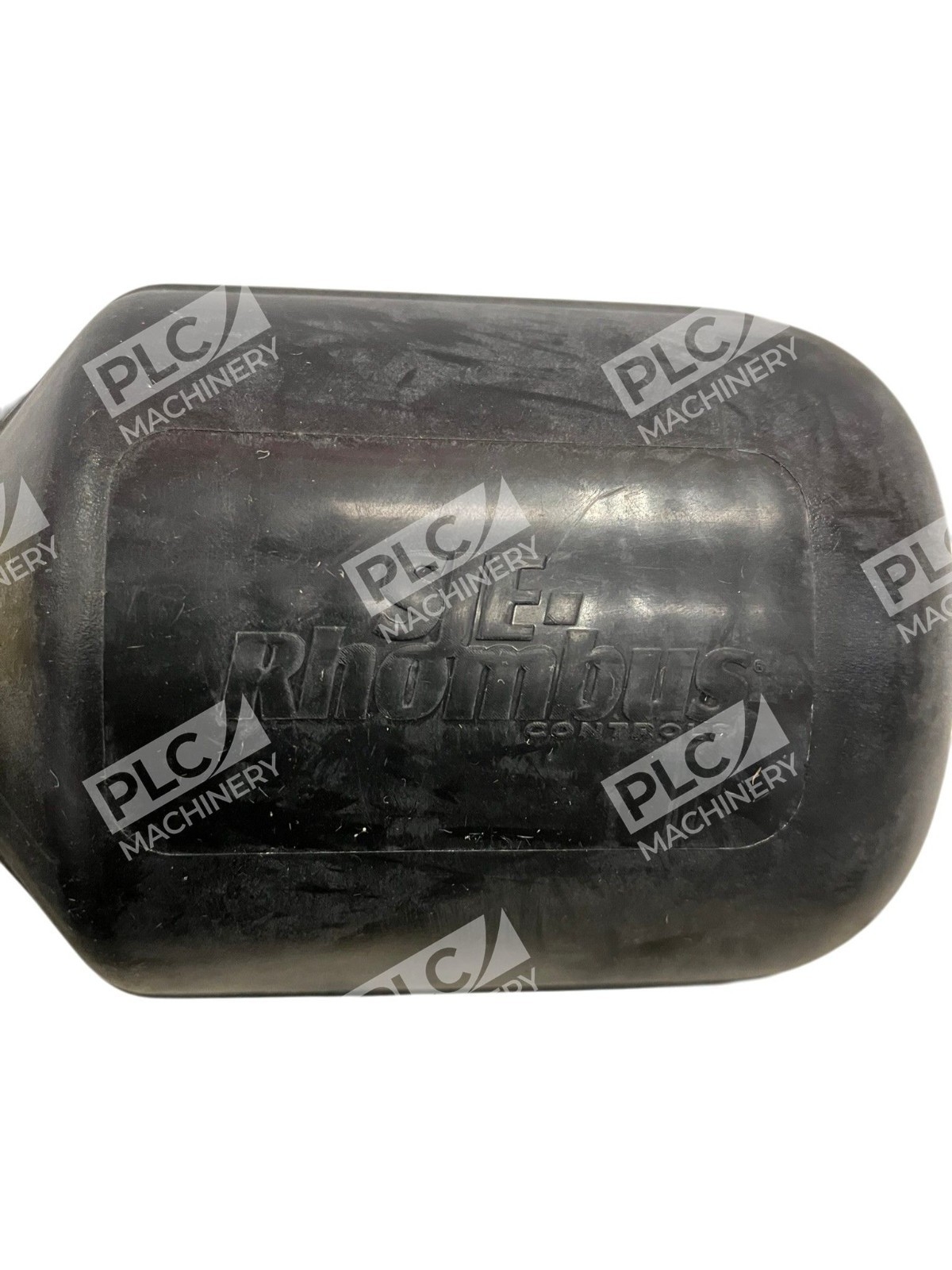

- Float Dimensions: 2.74 inches diameter x 4.83 inches long (7.0 x 12.3 cm)
- Cable Type: Flexible 18 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
- Housing Material: High impact, corrosion resistance, polypropylene
- Maximum Water Depth: 30 feet (9 meters), 13 PSI (90 kPa)
- Operating Temperature: Up to 140°F (60°C)
- Minimum Load: Not recommended for controlling electrical loads less than 100 milliamps, 12 VAC
Typical Applications
The SJE 1023556 is commonly deployed in:
- Wastewater and sewage lift stations
- Water treatment and distribution systems
- Sump pump control circuits
- Tank level monitoring and alarm systems
- Industrial pump automation
Compatibility & Replacements
Compatible With
- Water and sewage pump control panels
- Industrial alarm systems
- Automated level monitoring systems
- Standard 125/250 VAC electrical control circuits
- Pipe clamp and suspended mounting configurations
Replaces / Drop-In Replacement For
The 1023556 is a standard SJE SignalMaster configuration. For specific model interchangeability, verify cable length, mounting style (pipe clamp vs. suspended), and contact type (normally open vs. normally closed) with SJE documentation or your system integrator.
Works With
- Pump control relay panels (general industrial standards)
- NEMA enclosures and control cabinets
- Alarm and monitoring systems requiring 125/250 VAC signal input
- Manual or automated pump start/stop logic
