Overview

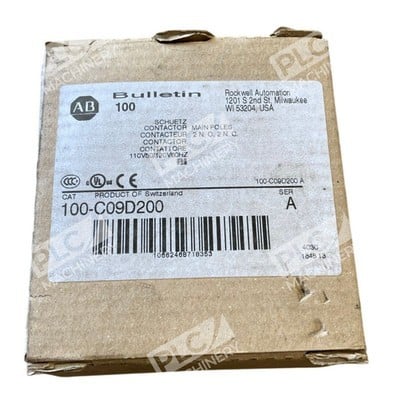

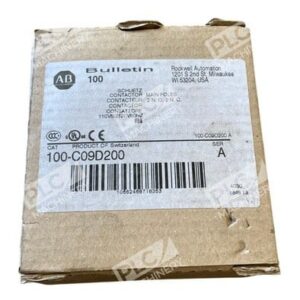

The Allen-Bradley 100-C09D200 is part of the Bulletin 100-C Series contactors, a compact and modular IEC-rated contactor designed for industrial motor control and automation panels. This 9-amp, 4-pole configuration features motor load ratings suitable for controlling machinery, pumps, compressors, and HVAC systems. The 100-C09D200 combines proven reliability with space-saving design, making it ideal for high-density control enclosures and retrofit applications.
Key Features
- 9 Amp Contact Rating: 9A AC-3 at 400VAC; 32A AC-1 (general-purpose) rating
- 4-Pole Main Contacts: 2 normally open (NO) and 2 normally closed (NC) power contacts
- Dual Voltage Coil: 110V 50Hz / 120V 60Hz AC coil with line-side termination
- Screw Terminals: Robust, proven screw-type connection for field wiring
- IEC and CSA Rated: Meets IEC 60947-4-1 standards plus CSA, CUL, UL, CE, and international certifications
- Compact Design: Space-saving footprint supports base mounting or 35mm DIN rail installation
Technical Specifications
The 100-C09D200 delivers reliable switching in demanding industrial control environments with the following ratings and features:
- Motor load: 4 kW at 400VAC 3-phase (AC-3 duty)
- General-purpose load: 32A at 400VAC (AC-1 duty)
- Rated voltage range: 230–690VAC 50Hz, 115–575VAC 60Hz (main contacts)
- Coil isolation: Line-side termination standard; load-side available via “U” prefix
- Contact arrangement: 2NO + 2NC main poles
- Terminal connection: Screw type, suitable for wire gauge AWG 14–4
- Mounting: Base or 35mm DIN rail compatible
- Built-in surge suppression: Integrated coil protection for inductive circuits
- Agency approvals: C-TICK, CCC, CE, CSA, CUL, GOST, KC, UL
Typical Applications
The 100-C09D200 excels in industrial motor-control circuits across diverse sectors:
- Manufacturing: Machine tool control, conveyor systems, and production automation
- HVAC: Air-handling unit motors, compressor control, and climate-management panels
- Utilities and Pumping: Water pump and compressor motor switching
- Control Panels: Space-constrained distribution and sub-panel designs
- Retrofit/Maintenance: Direct replacement in existing 100-A legacy systems or new installations requiring compact IEC contactors
Compatibility & Replacements
Compatible With
- Allen-Bradley 193-series electronic overload relays (193-E, 193-EE)
- Allen-Bradley 592-series bimetallic overload relays
- Standard 35mm DIN rail mounting systems
- IEC 60947-4-1 compliant control circuits
- NEMA/IEC dual-rated industrial control environments
- AC and DC control voltage supplies (via coil options)
Replaces / Drop-In Replacement For
- Allen-Bradley 100-A09 (legacy 100-A series) — primary replacement in motor-control applications, though physical mounting footprint should be verified
- Other Siemens 3TB4x, Schneider LC1-D series, or equivalent 9A IEC contactors in comparable mounting footprints — consult system integrator for precise cross-compatibility
Works With
- Rockwell Automation Studio 5000 and RSLogix 500 (PLC programming for motor control logic)
- IEC 60947-4-1 standard motor-control assemblies
- Direct-mounted 193-E/193-EE overload relay accessory blocks
- Front and side-mounted auxiliary contact blocks (up to 8 total auxiliary contacts)
- EtherNet/IP networked control systems (when integrated via gateway modules)
