<h2>Overview</h2>

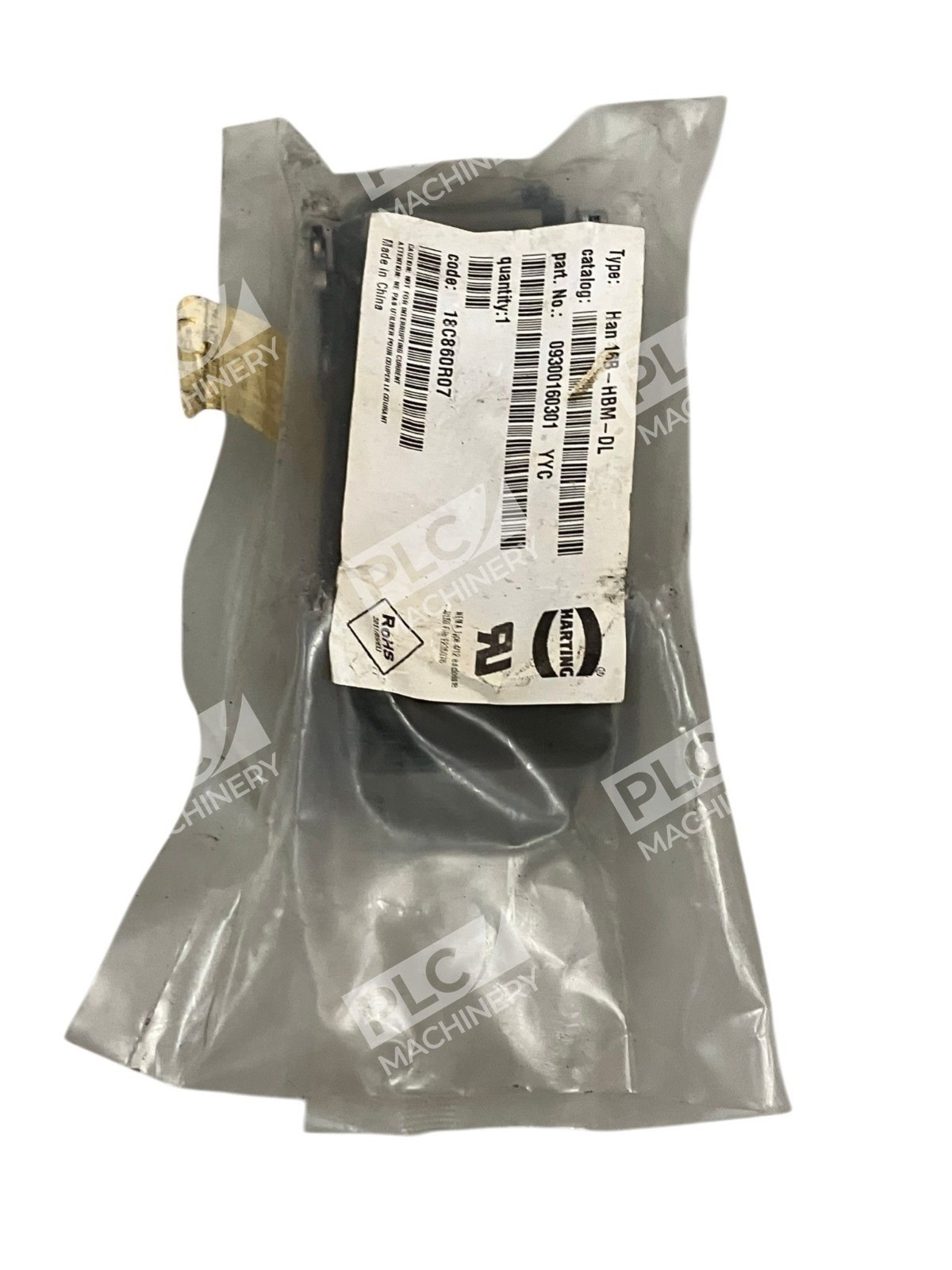

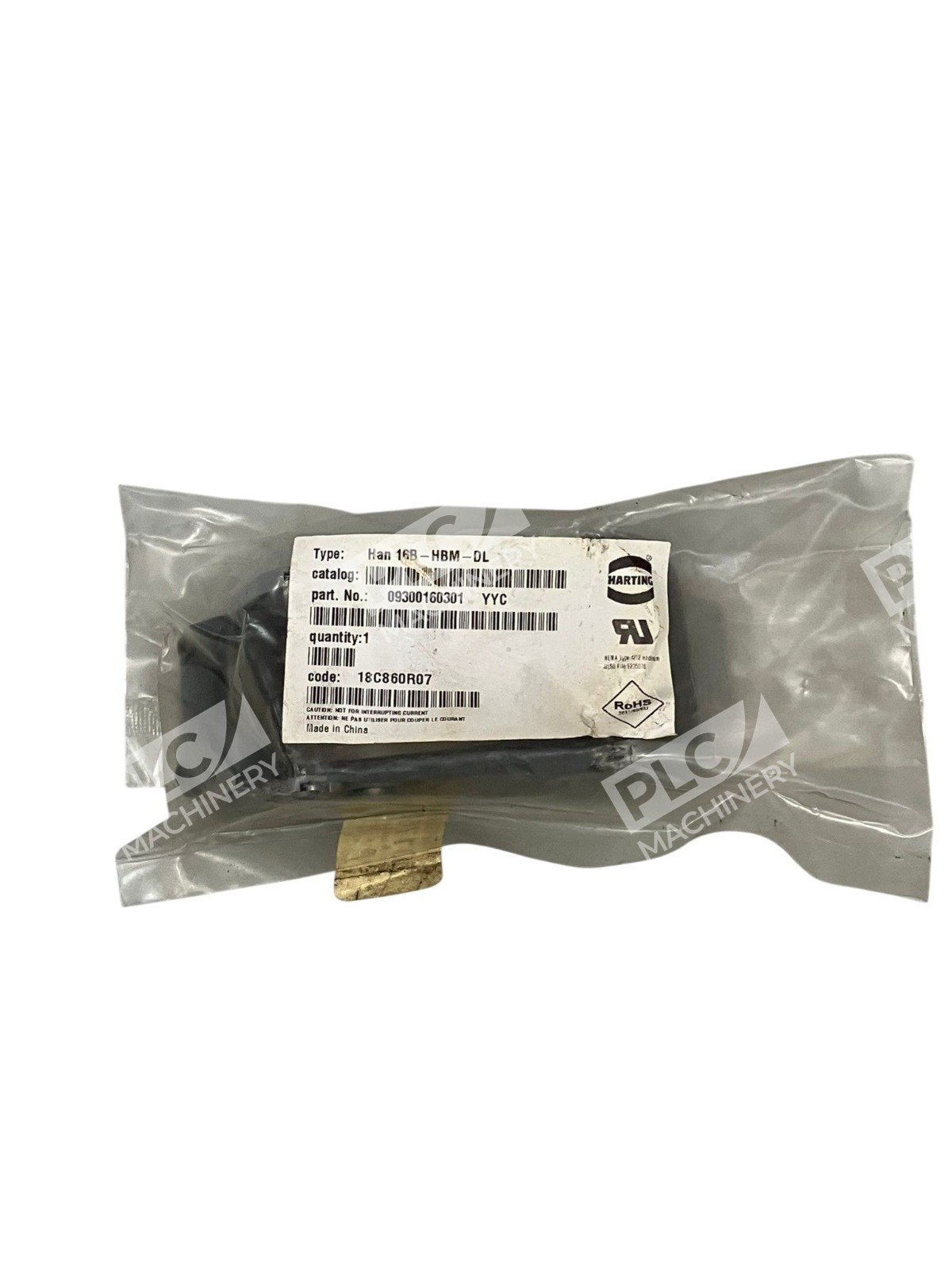

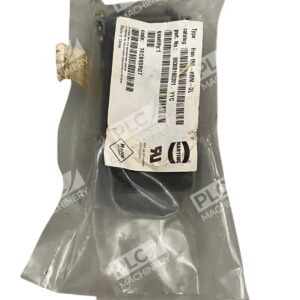

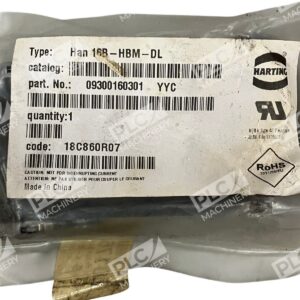

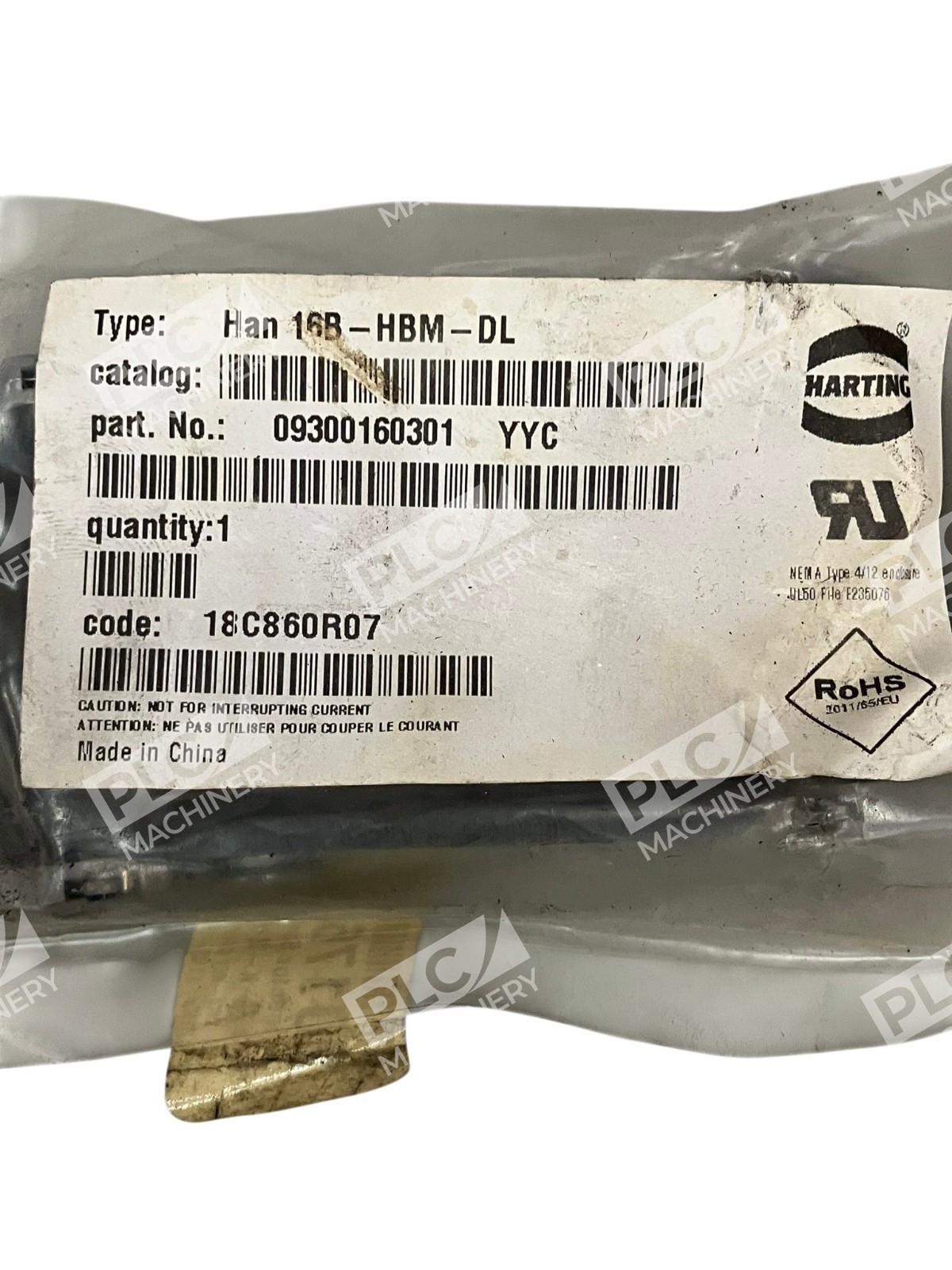

<p>The <strong>Harting 09300160301</strong> Han 16B-HBM-DL is a robust bulkhead-mounted connector housing engineered for secure and reliable industrial connections. This low-profile housing features a double locking lever mechanism and Han-Easy Lock facility, ensuring vibration-resistant, tight seals in demanding environments. Built with die-cast aluminum body and epoxy coating in RAL 7037 dust grey, the housing withstands harsh conditions while maintaining electrical integrity.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Double Locking Lever</strong> — Han-Easy Lock facility for reliable, repeatable mating cycles</li>
<li><strong>Low-Profile Design</strong> — Compact bulkhead mounting for space-constrained applications</li>
<li><strong>IP65 Protection</strong> — Sealed housing resists dust and water ingress in wet or contaminated environments</li>
<li><strong>Durable Materials</strong> — Die-cast aluminum body with stainless steel hardware and NBR sealing gasket</li>
<li><strong>Wide Temperature Range</strong> — Rated -40°C to +125°C for extreme operating conditions</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Series:</strong> Han B</li>
<li><strong>Size:</strong> 16B</li>
<li><strong>Type of Housing:</strong> Bulkhead-mounted, low construction</li>
<li><strong>Locking System:</strong> Double locking lever with Han-Easy Lock</li>
<li><strong>Material (Housing):</strong> Aluminium die-cast, epoxy coated</li>
<li><strong>Material (Levers):</strong> Polycarbonate (PC) with stainless steel</li>
<li><strong>Colour:</strong> RAL 7037 (dust grey)</li>
<li><strong>Seal Material:</strong> NBR sealing gasket</li>
<li><strong>Operating Temperature:</strong> -40°C to +125°C</li>
<li><strong>Degree of Protection:</strong> IP65 (IEC 60529)</li>
<li><strong>Type Rating (UL):</strong> 4, 4X, 12</li>
<li><strong>Mating Cycles:</strong> ≥500</li>
<li><strong>Tightening Torque:</strong> 1 Nm (fixing screws M4)</li>
<li><strong>Field of Application:</strong> Standard hoods/housings for industrial connectors</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Industrial control cabinets and panel-mount assemblies</li>
<li>Machinery and equipment with harsh environmental exposure</li>
<li>Process automation and plant installations requiring sealed connectors</li>
<li>Bulkhead feedthroughs for cable management in IP65-rated enclosures</li>
<li>Systems requiring vibration resistance and repeatable connector mating</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Harting Han B Series connectors, size 16B</li>
<li>Panel-mount and bulkhead termination applications</li>
<li>Industrial control systems requiring IP65-rated housings</li>
<li>Cable entry systems with M4 fixing hardware</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Harting 09300160301 Han 16B-HBM-DL is the direct replacement for earlier versions of 16B bulkhead housings. Verify compatibility with legacy systems before ordering. Standard Harting Han B Size 16B connectors mate directly with this housing.</p>
<h3>Works With</h3>
<ul>
<li>Harting Han B Series connectors and contacts (size 16B)</li>
<li>Industrial connectors requiring bulkhead panel mounting</li>
<li>Cable assembly and wire harness integration</li>
<li>IEC 61984 compliant connector systems</li>
</ul>
