Overview
The Zymark 79692/2 RapidPlate controller is a precision automation component engineered for high-throughput laboratory screening applications. This used unit is designed to operate the RapidPlate 96/384 liquid handling workstation, a six-position liquid handler for both 96 and 384 well microplates that can operate as a stand-alone device. The Type T 250V specification indicates this is a power supply/controller unit rated for 1.6–3.0 amperes, suitable for integration into existing laboratory automation systems.
Key Features
- Compatible with Zymark RapidPlate 96/384 automated liquid handling systems
- Compatible with both Rack and Nestable Caliper Life Sciences Certified disposable tips
- Supports high-throughput screening and compound plate replication workflows

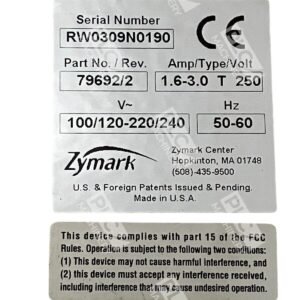

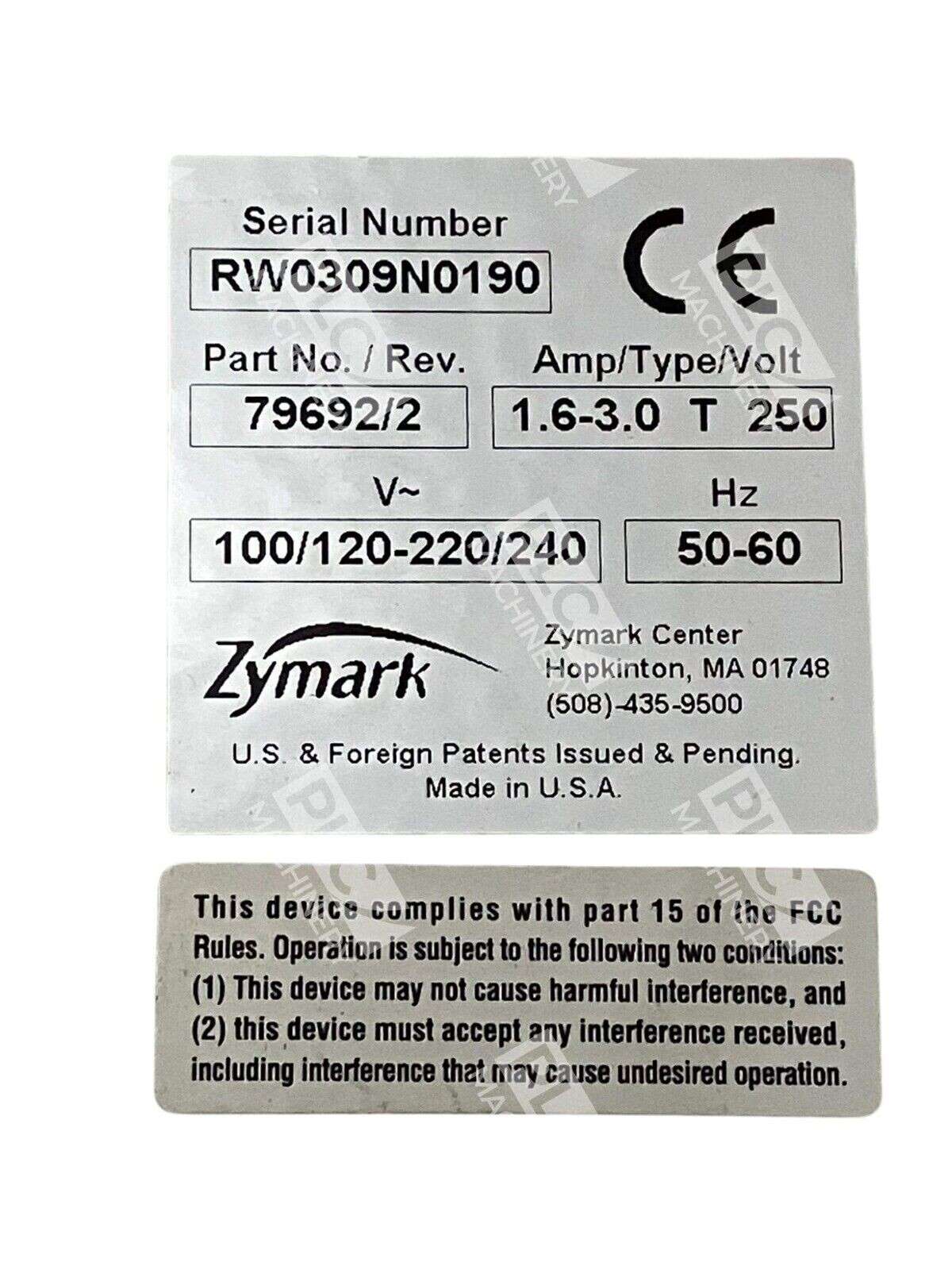

- Type T 250V power supply rated for 1.6–3.0A operation
- Stand-alone operation or integration with multi-instrument labs
- Used condition; tested and fully functional
Technical Specifications
- Capacity: Six-position turntable deck
- Volume Range: 1–200 µL
- Speed: Replicates four 96-well plates in less than 70 seconds
- CV (Coefficient of Variation): 1–10 µL < 5%; 11–200 µL < 2% (aqueous transfers)
- Power Supply: Type T 250V, 1.6–3.0A
- Electrical Requirements: 50/60 Hz; 120–240V, 10 amp

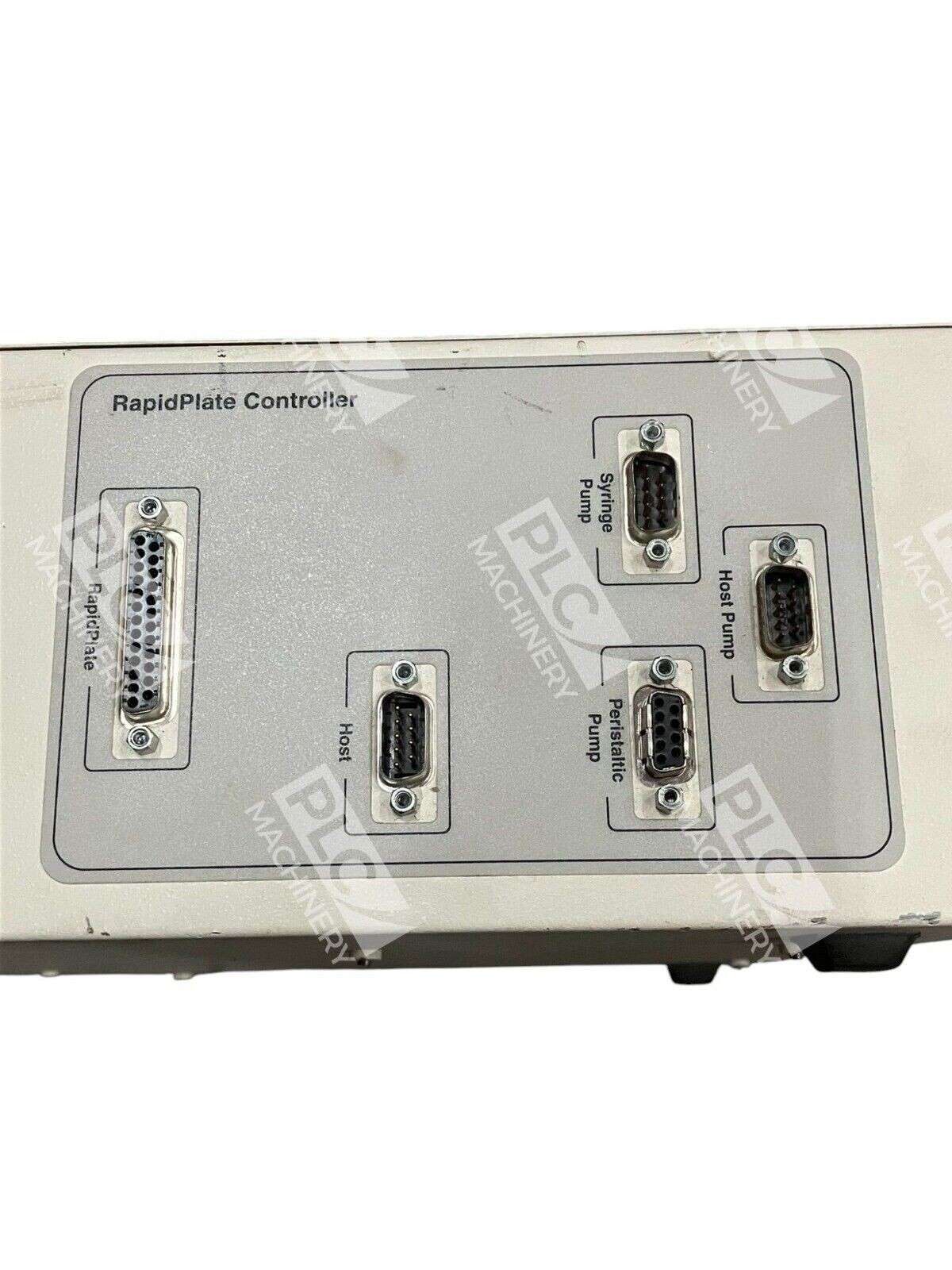

- Communication: RS-232 serial port
- Operating System: Microsoft Windows 2000 compatible
- Condition: Used, tested and functional
Typical Applications
The Zymark 79692/2 controller is ideal for:
- Compound plate replication and distribution in pharmaceutical labs
- High-throughput drug screening and assay preparation
- Reagent addition and plate consolidation workflows
- Plate dilutions and sample preparation automation
- Integration with multi-instrument lab platforms via iLink or CLARA software
- Contract research organizations (CROs) and biotech screening centers
Compatibility & Replacements
Compatible With
- Zymark RapidPlate 96/384 liquid handling workstations
- 96-well and 384-well microplates (Rack and ANSI/SLAS formats)
- Caliper Life Sciences certified disposable tips (100 µL and 200 µL)
- Lab automation software: iLink, CLARA integration and scheduling platforms
- Twister II plate handlers for multi-instrument workflows
- Windows 2000 and compatible laboratory information management systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering. The Zymark 79692/2 is a specific controller model for RapidPlate 96/384 systems; confirm model numbers match your existing workstation.
Works With
- RS-232 serial communication protocols
- iLink automation integration software
- CLARA scheduling and integration platform
- Caliper Life Sciences laboratory automation ecosystems
- Revvity (formerly PerkinElmer) automation platforms
