Overview

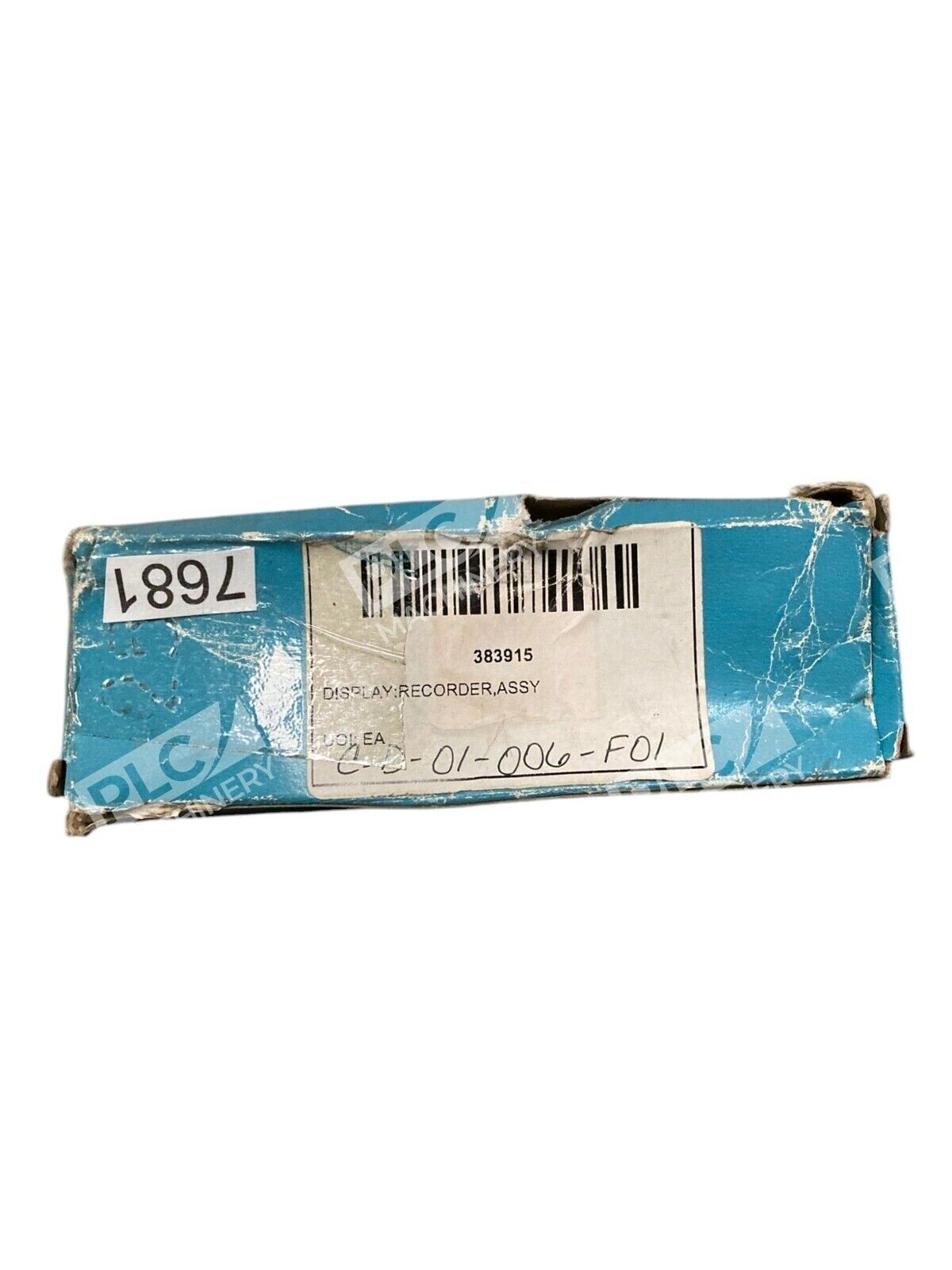

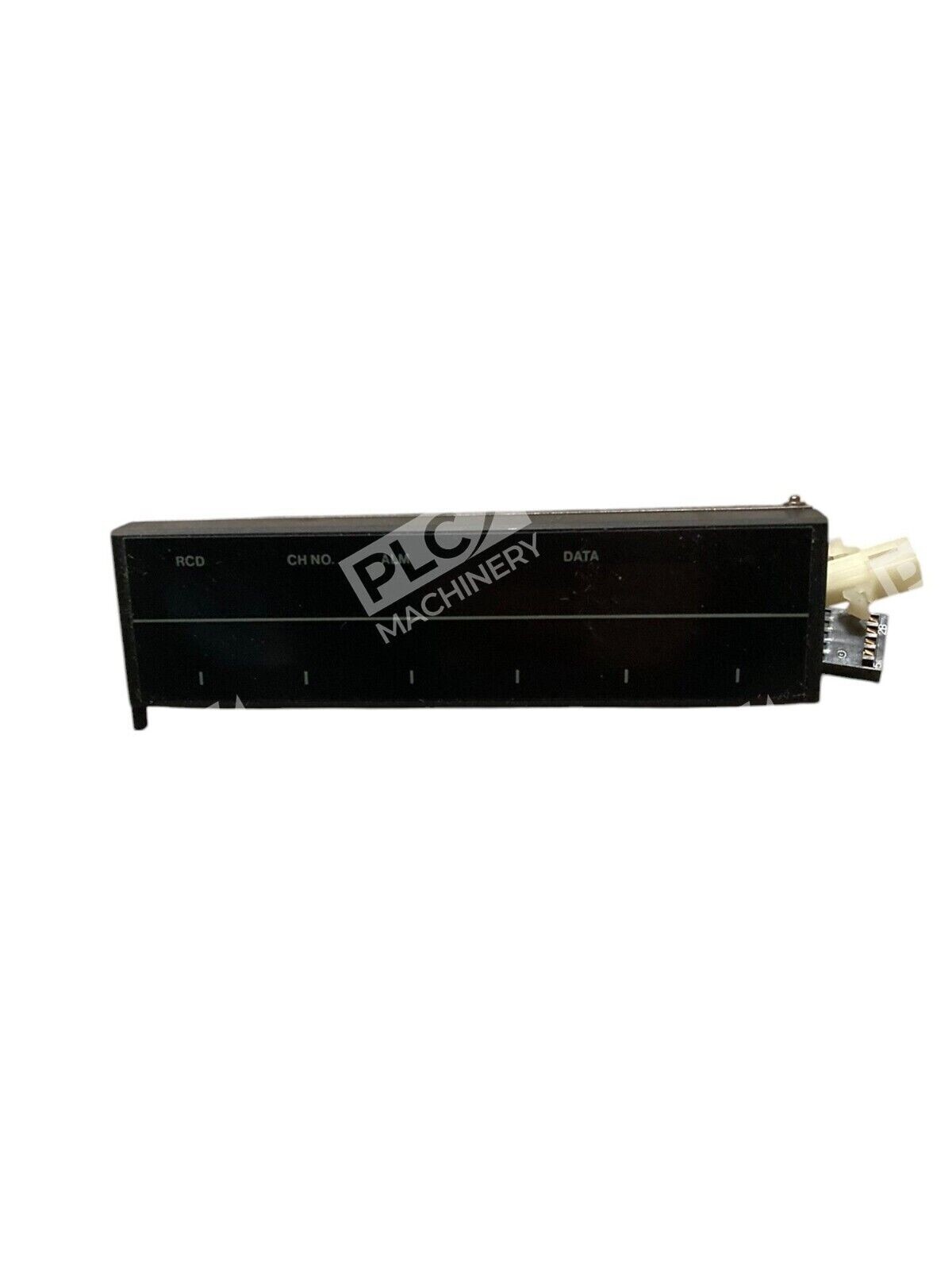

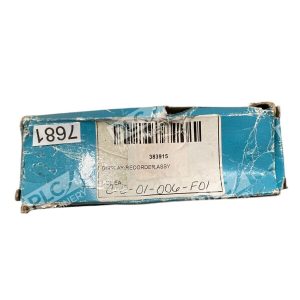

The Yokogawa YEW UR100 B9565LC is a display module recorder assembly (part number 383915) engineered as a critical replacement component for the Yokogawa UR100 series of chart recorders. This assembly integrates display and recording functionality essential for continuous data logging in industrial, laboratory, and process control environments. The B9565LC module provides reliable chart recording and visual data monitoring for temperature, pressure, flow, and other analog signals.
Key Features
- Designed for Yokogawa UR100 series recorders
- Complete display module and recorder assembly integration
- Supports continuous data acquisition and charting
- Replacement component for legacy Yokogawa recording systems
- Tested and ready for installation
Technical Specifications
- Manufacturer: Yokogawa
- Part Number: 383915
- Model: YEW UR100 B9565LC
- Product Type: Display Module Recorder Assembly
- Series: YEW UR100
- Application: Chart recording, data acquisition, process monitoring
Typical Applications
- Industrial process monitoring and data logging
- Laboratory measurement and recording systems
- Temperature, pressure, and flow rate chart recording
- Legacy equipment maintenance and replacement
- Continuous analog signal monitoring in manufacturing
- Test, measurement, and inspection in industrial facilities
Compatibility & Replacements
Compatible With
- Yokogawa UR100 series chart recorders
- Yokogawa YEW recorder families
- Industrial process control systems using analog data acquisition
Replaces / Drop-In Replacement For
- OEM Yokogawa YEW UR100 display module assemblies
Works With
- Yokogawa chart paper (YEW B9565 series)
- Standard analog sensor inputs (thermocouple, RTD, 0-20 mA, 0-10 V)
- Legacy Yokogawa recording system infrastructure
