Overview

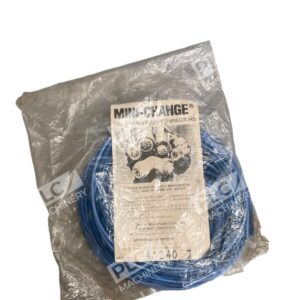

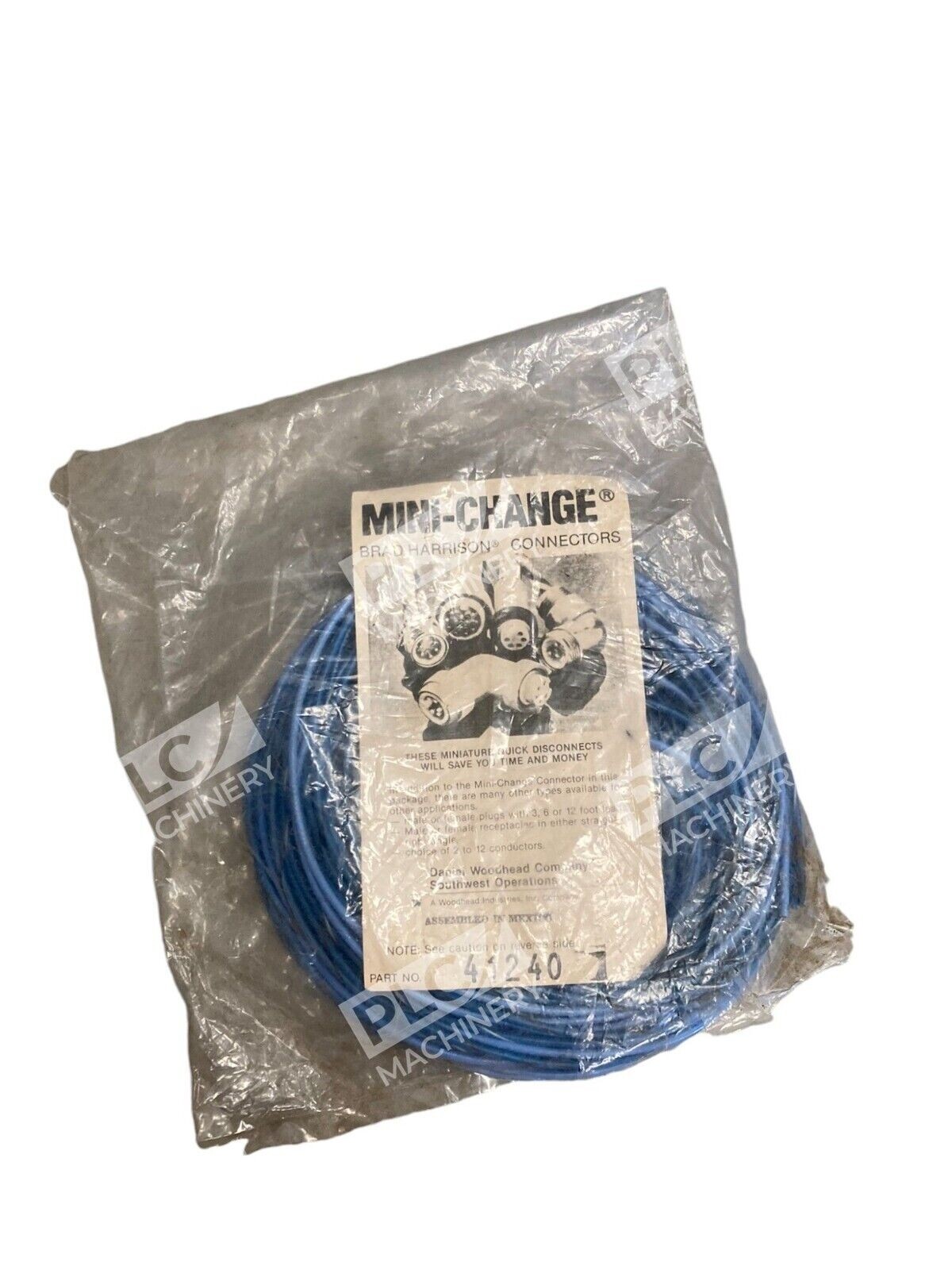

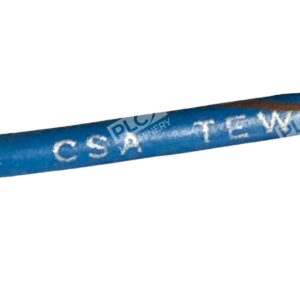

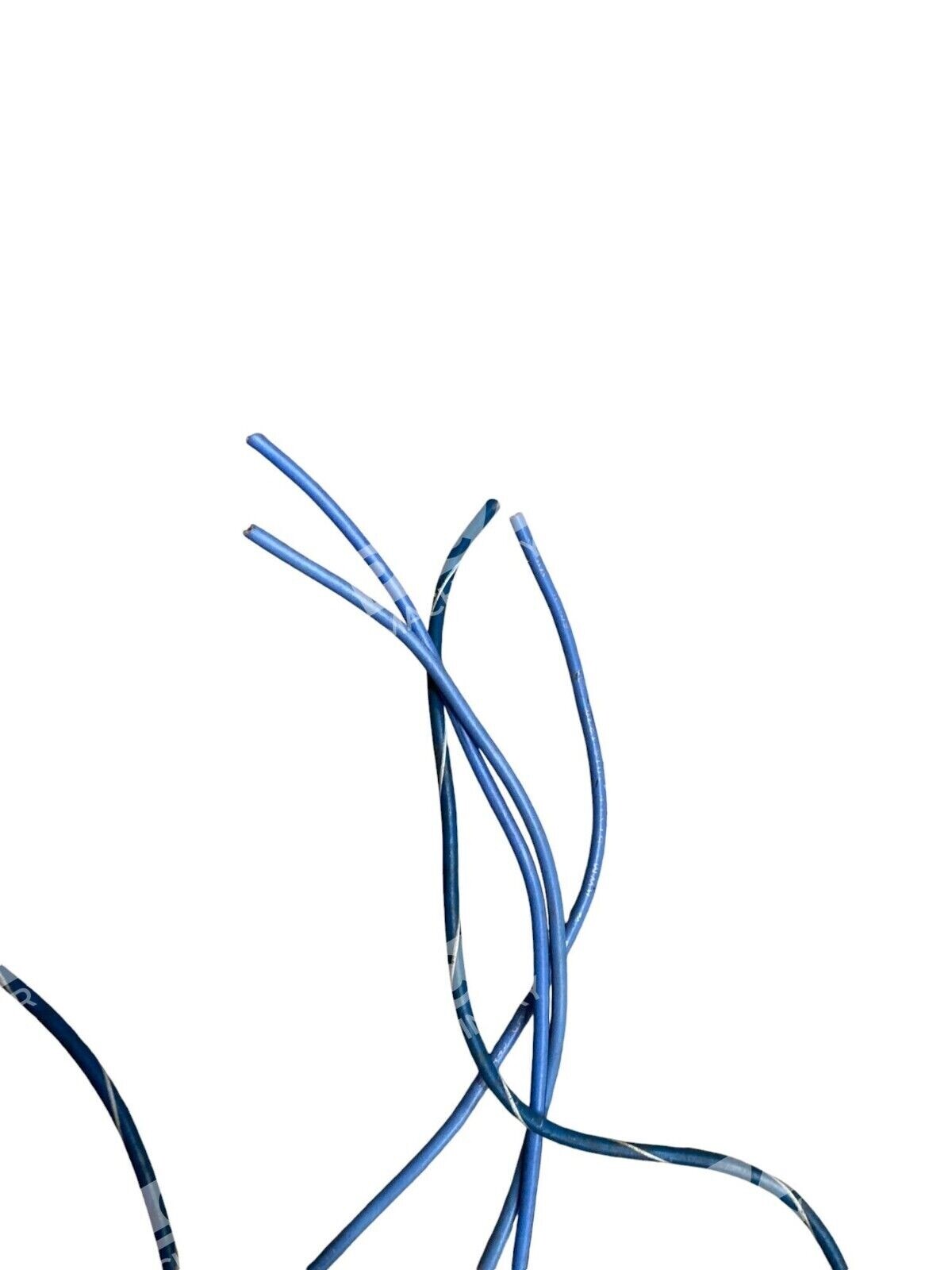

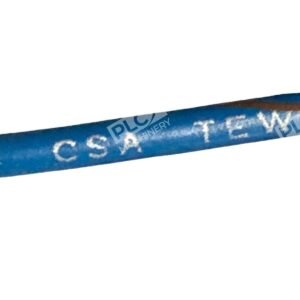

The Woodhead Brad Harrison 41240 quick disconnect cable is a precision-engineered connector cable designed for industrial control, automation, and power distribution applications. Brad Harrison connectors represent the industry standard for miniature quick-disconnect solutions, offering push-to-lock reliability without the need for hardwired connections. This cable integrates Woodhead Connectivity’s decades of experience in connector design, ensuring robust performance in demanding industrial environments.
Key Features
- Push-to-lock quick-disconnect mechanism for fast field connections and disconnections

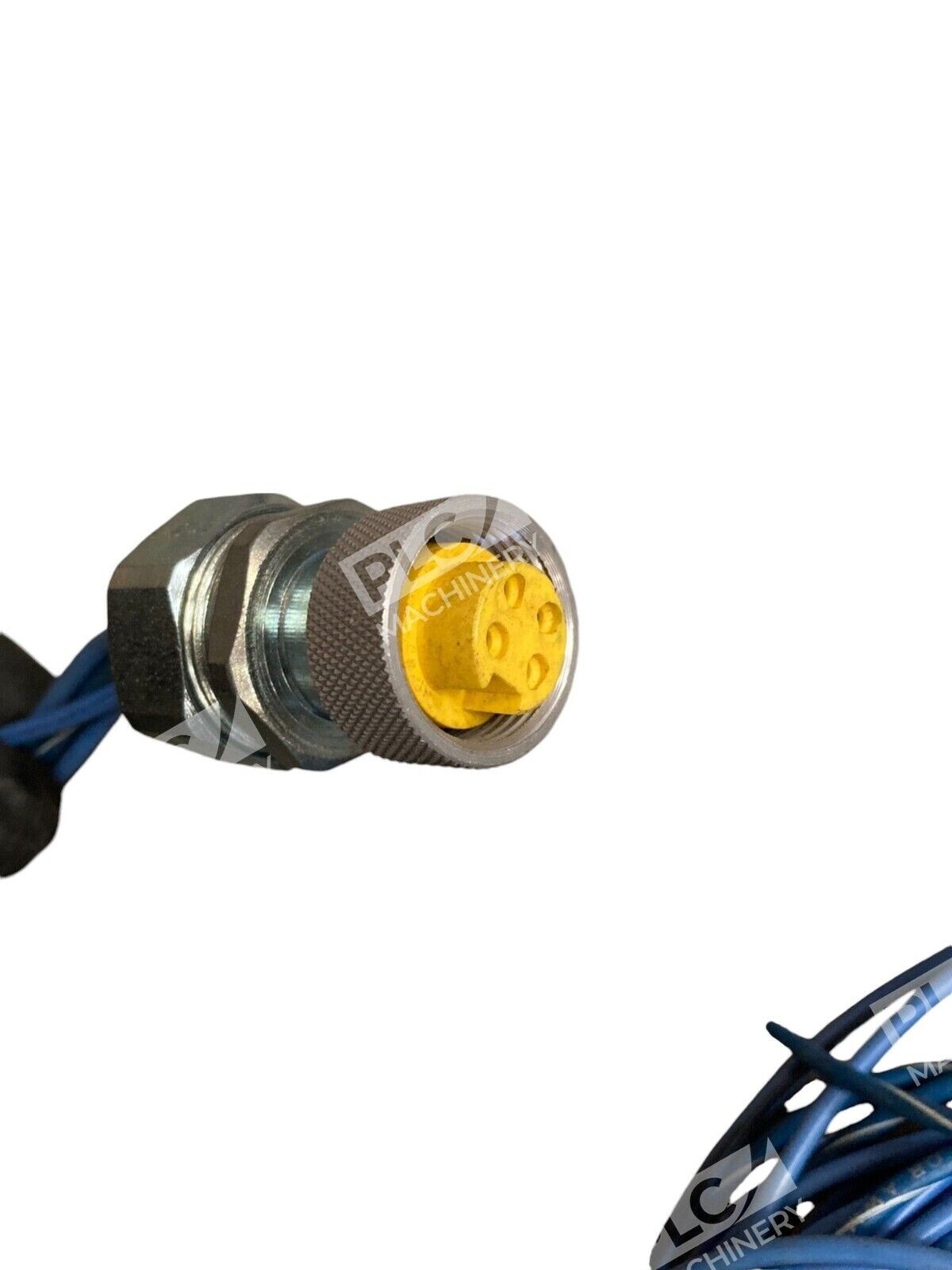

- Molded mini-change connector configuration for durability and reliable sealing
- IP68 environmental rating when used with mating Brad Harrison connectors for immersion and wash-down resistance
- UL/CSA certifications for safety and compliance in North American industrial applications
- Multiple cable jacket options (PVC, CEI, SJTO) to match temperature and environmental requirements
Technical Specifications
| Manufacturer | Woodhead Industries (Woodhead Connectivity) |

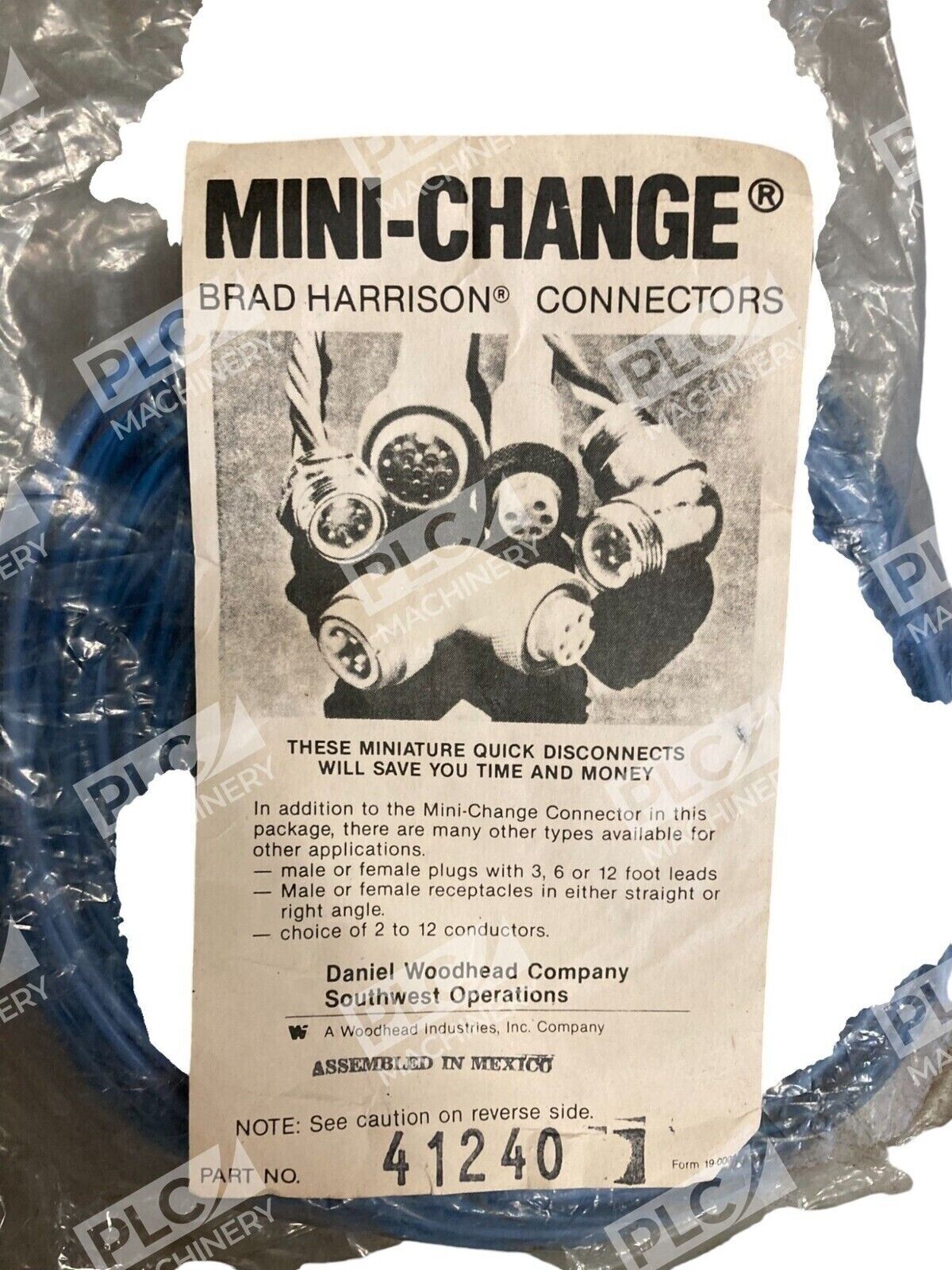

| Part Number | 41240 |

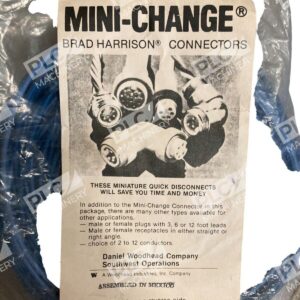

| Product Family | Brad Harrison Mini-Change Connectors |
| Connection Type | Quick-Disconnect (Push-to-Lock) |

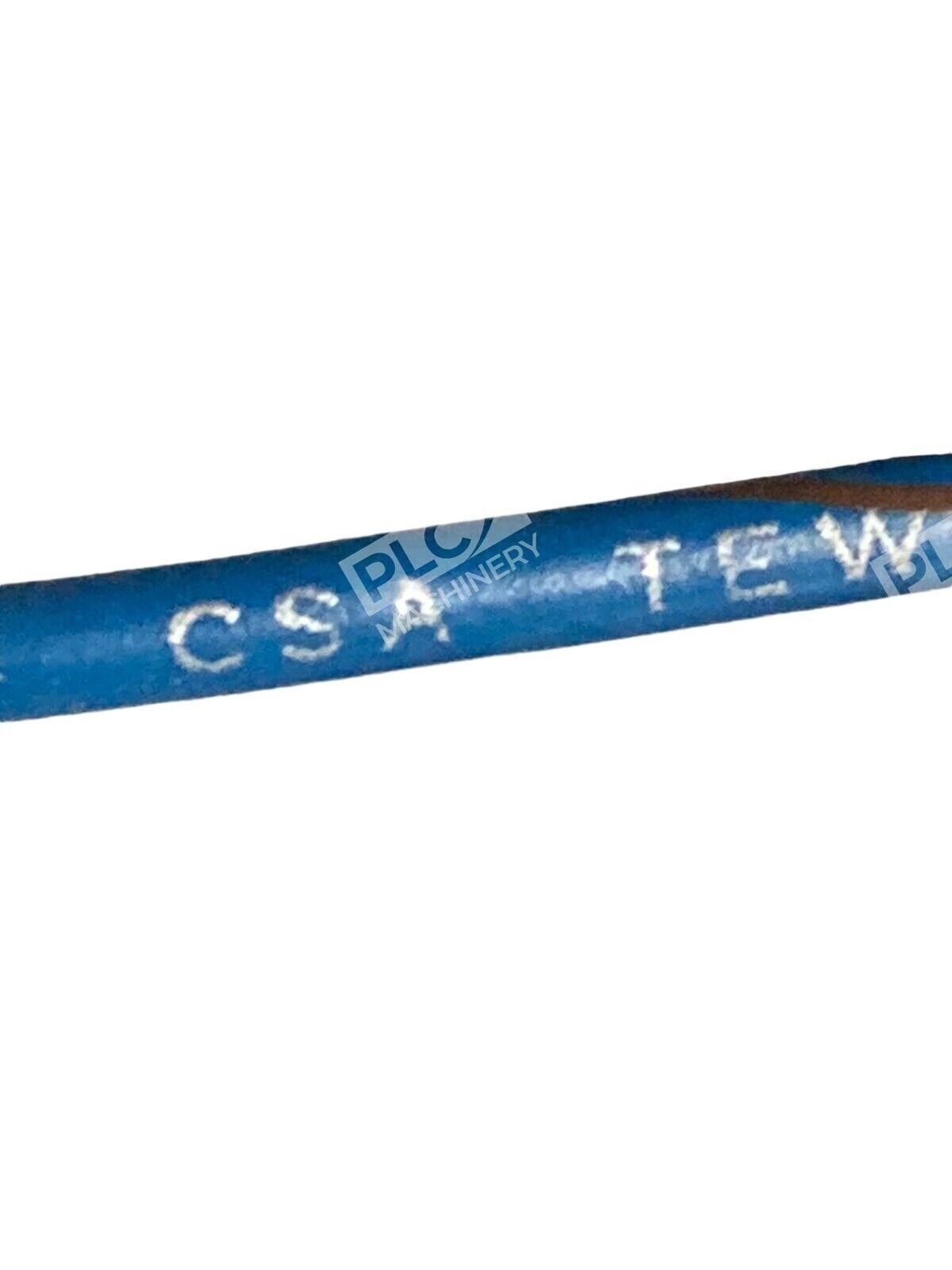

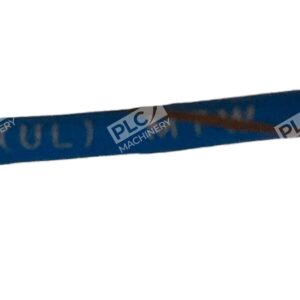

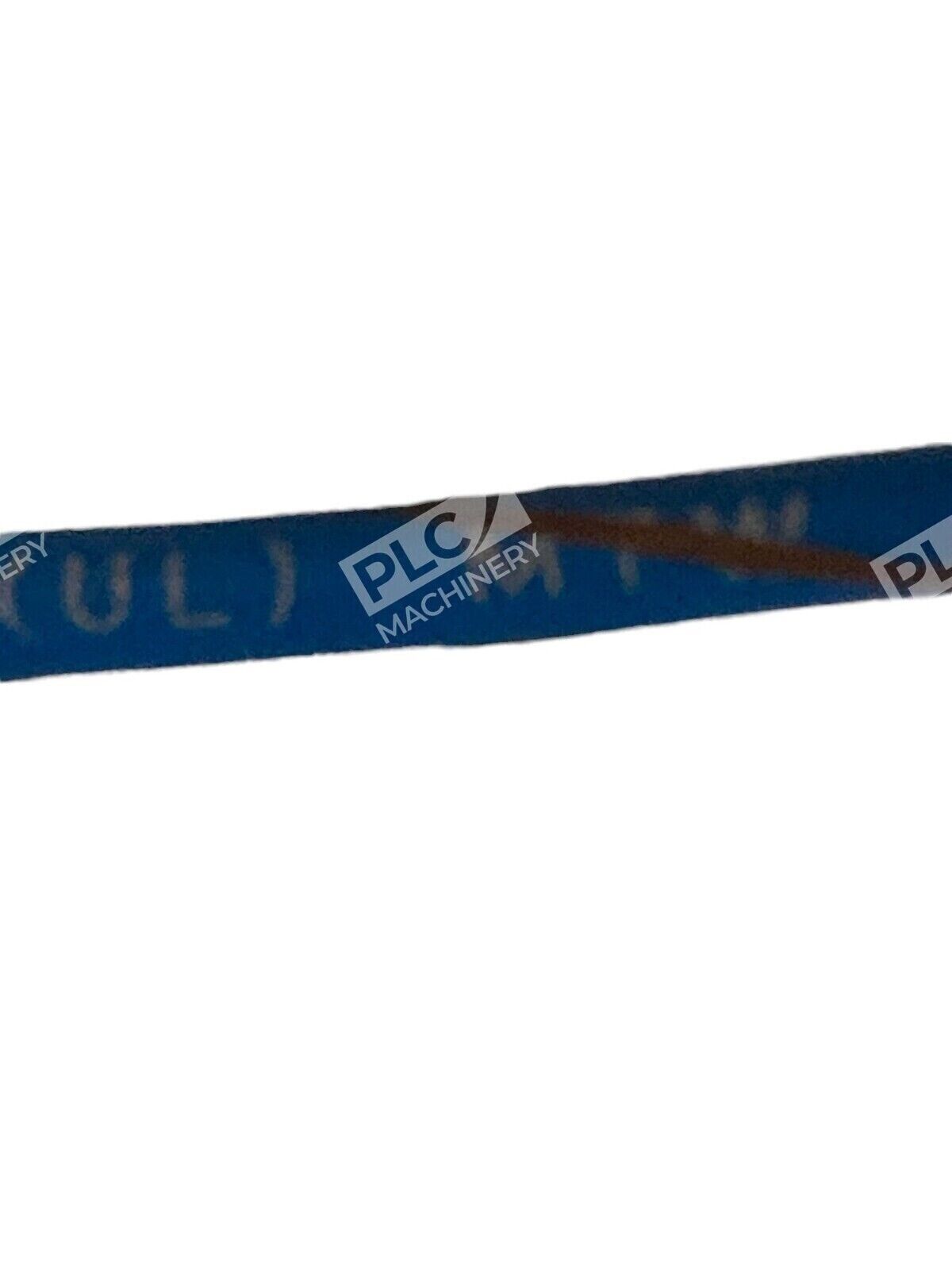

| Certifications | UL Listed, CSA Approved |
| Environmental Rating | IP68 (with mating connectors) |

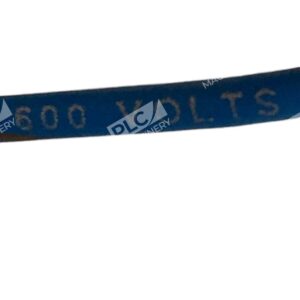

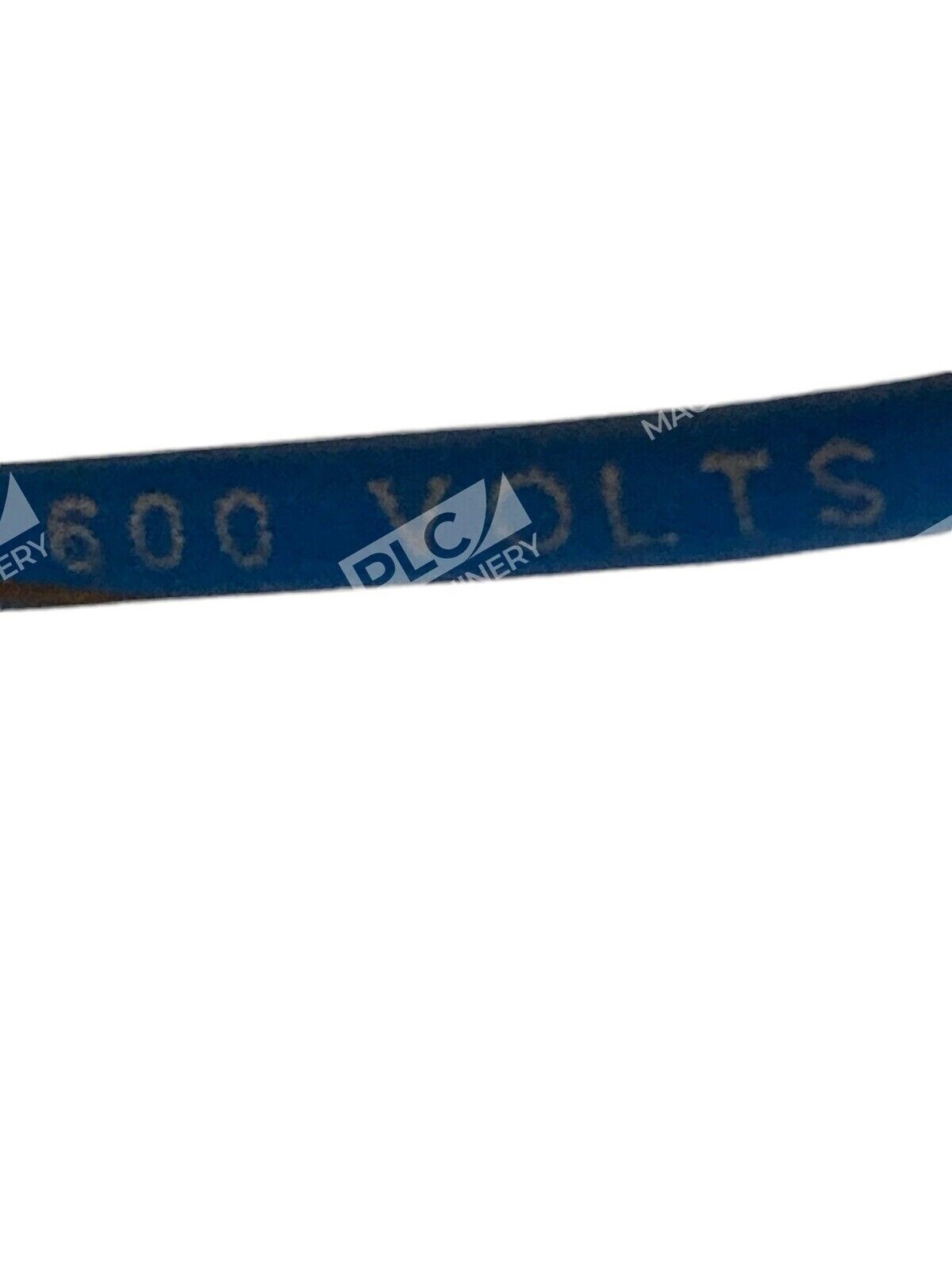

| Operating Voltage | 300V standard (600V available) |
| Temperature Range | -5°C to +70°C (standard PVC) or -40°C to +105°C (SJTO type) |
| Cable Construction | Molded connector with multiple jacket options |
| Series | Brad Harrison Mini-Change |
Typical Applications
- PLC and process control system interconnections
- Industrial sensor and device networking
- Power distribution in modular automation systems
- Food processing and conveyor equipment wiring
- Robotic and manufacturing automation platforms
- Motion control and servo drive integration
Compatibility & Replacements
Compatible With
- Brad Harrison Mini-Change connector receptacles (2-5 pole configurations)
- Woodhead multi-port junction systems
- Industrial PLC control cabinets and motor controllers
- IP68-rated wet environments (when used with matching mating connectors)
- Factory automation and material handling systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or consult Woodhead Connectivity documentation to confirm direct replacement applications for part 41240.
Works With
- Woodhead Brad Harrison connector family (all pin configurations)
- Molded mini-change receptacles and plugs
- Standard industrial PLC networks and field device wiring
- Modular panel-mount and receptacle systems
