Overview

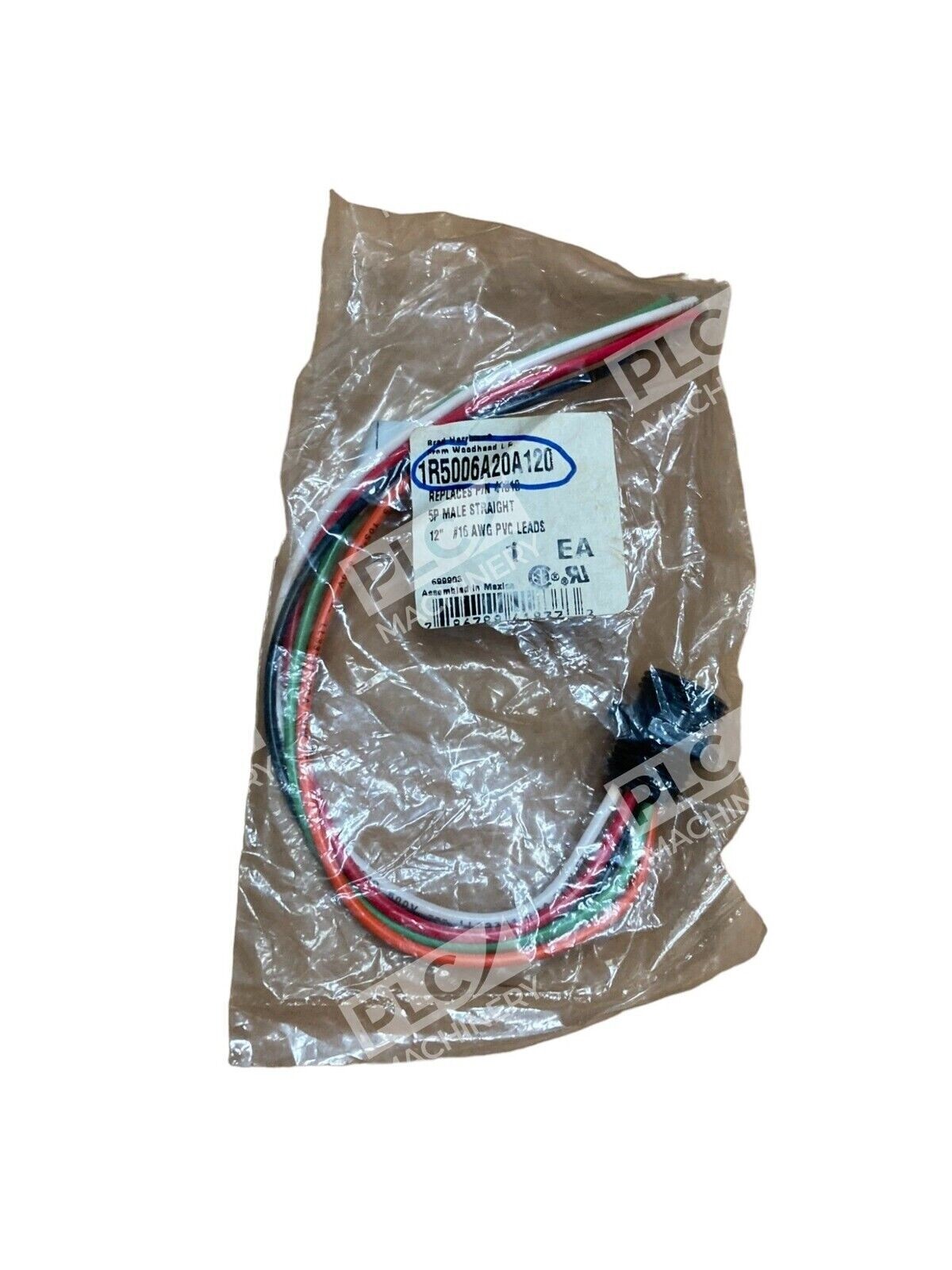

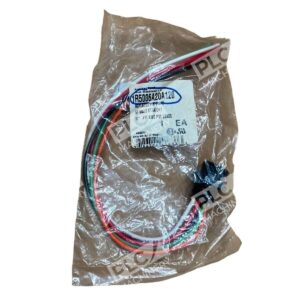

The Woodhead 1R5006A20A120 is a Brad® Mini-Change® A-Size receptacle cordset designed for industrial automation, machinery control, and sensor interfacing. This 5-pin connector delivers dependable quick-disconnect performance in harsh manufacturing environments. With 600V AC/DC rating and 13-amp capacity, it handles motor starters, solenoids, and sensor networks with industry-standard reliability.
Key Features
- 5-pin straight male receptacle configuration for quick-connect/disconnect cycles
- 13 amp, 600V AC/DC rated—suitable for motor and solenoid applications
- 16 AWG, 12-inch PVC leads maintain low-resistance conductivity
- NEMA 6P/IP67 sealed housing resists moisture, dust, and contaminants
- Included 1-inch black coupler with 7/8-inch receptacle connection
- High-performance plating sustains integrity through thousands of mate/unmate cycles
Technical Specifications
- Voltage Rating: 600V AC/DC
- Current Rating: 13 amp
- Pin Configuration: 5-pin

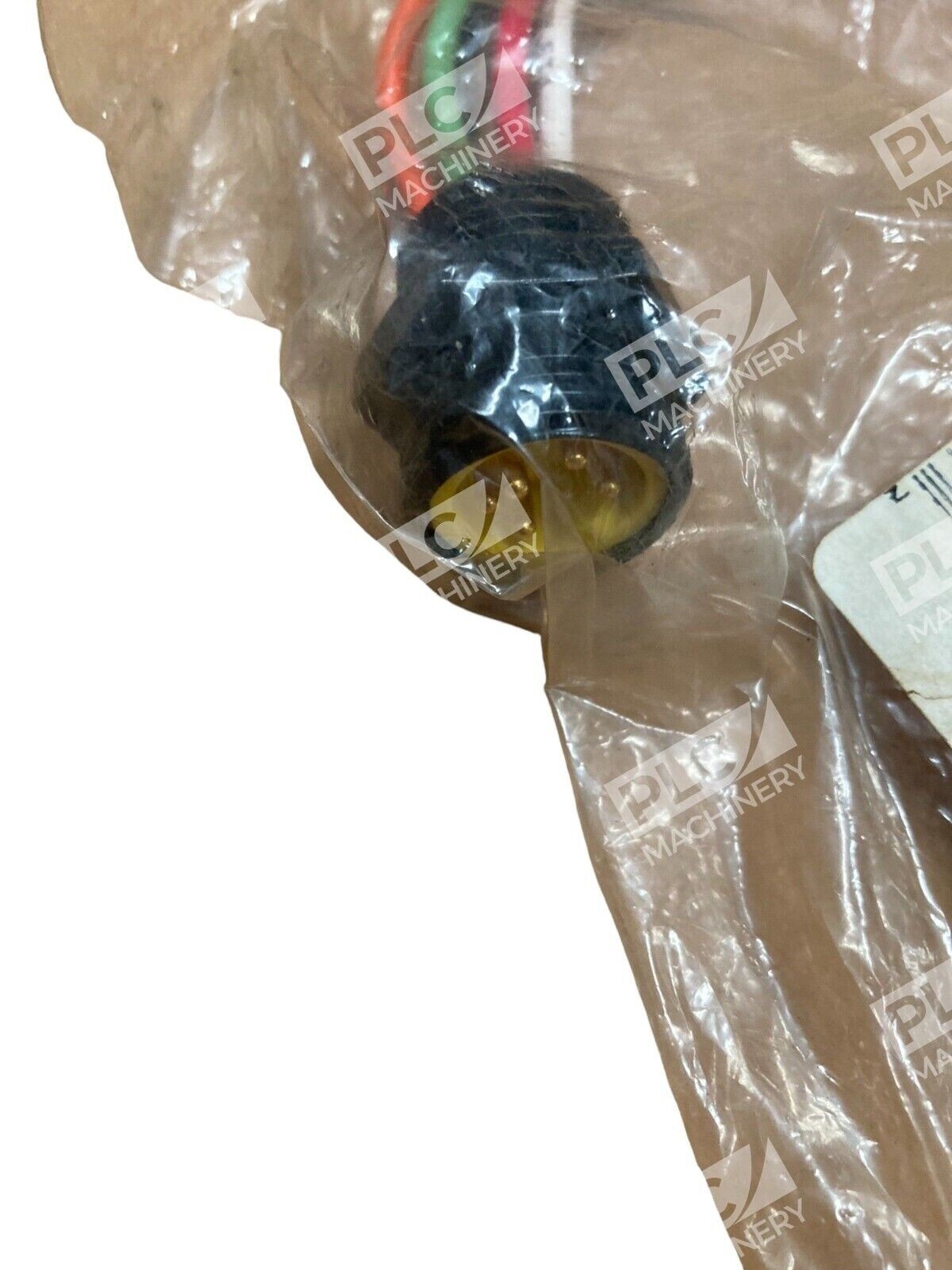

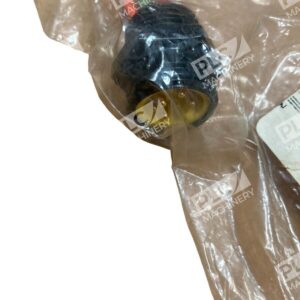

- Connector Type: Straight male receptacle

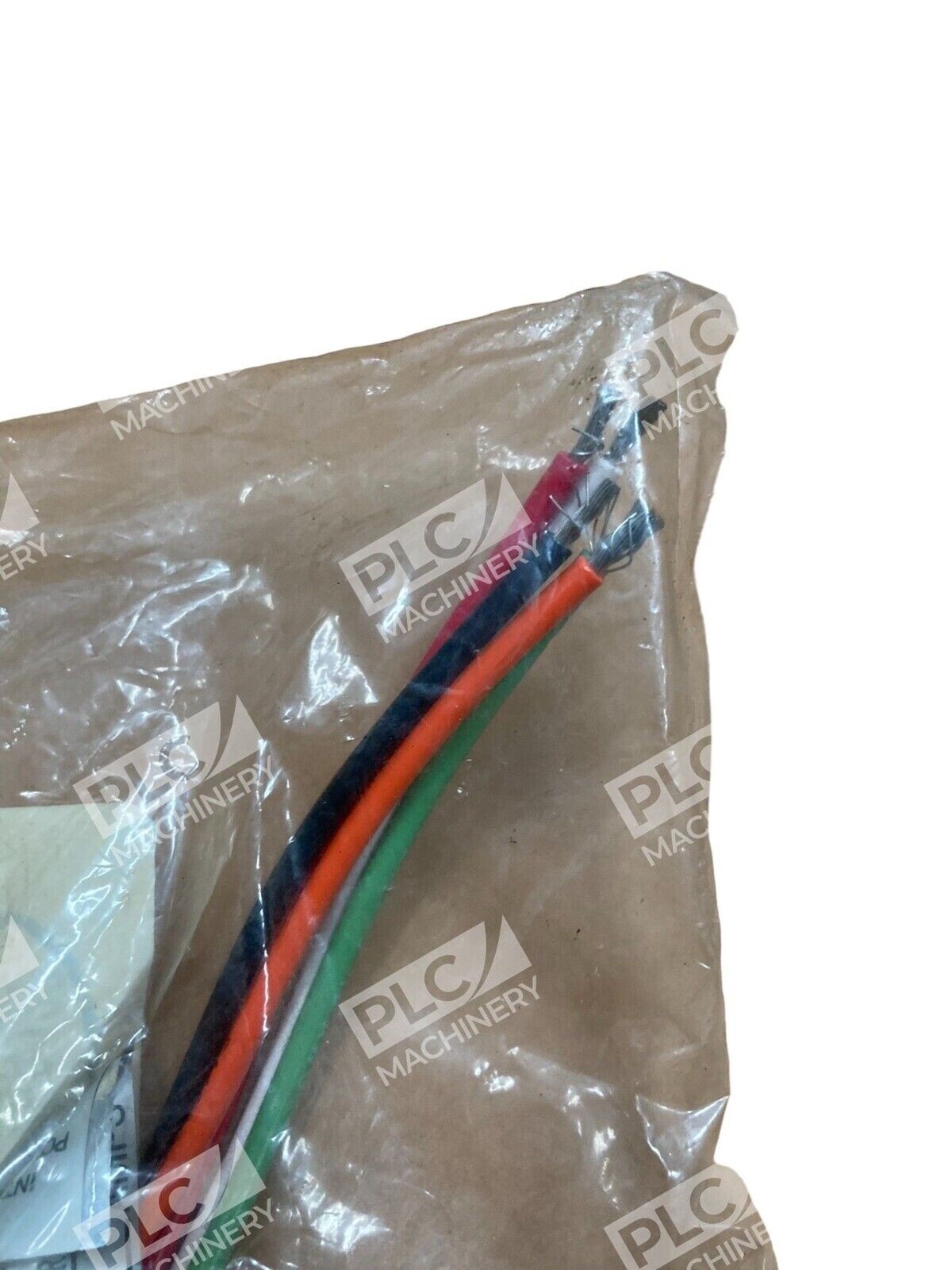

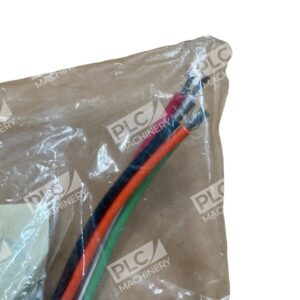

- Lead Wire: 16 AWG, 12-inch length
- Lead Insulation: PVC
- Housing Material: Die-cast zinc
- NEMA Rating: NEMA 6P / IP67
- Operating Temperature: -20 to +105°C
- Thread Type: 1/2-14 NPT
- Cable Strain Relief: 100 pounds minimum
- RoHS Compliant: Yes
Typical Applications
- Motor starter and drive control interfaces
- Solenoid valve connector assemblies
- Industrial sensor networks (temperature, pressure, limit switches)
- PLC and machine tool I/O wiring
- Factory automation equipment interconnection
- Portable or frequently relocated machinery connections
Compatibility & Replacements
Compatible With
- Brad Mini-Change socket and connector systems
- Allen-Bradley and Siemens automation controllers
- Industrial DC and AC motor control circuits up to 600V
- Standard automation I/O terminal blocks and solenoid coils
Replaces / Drop-In Replacement For

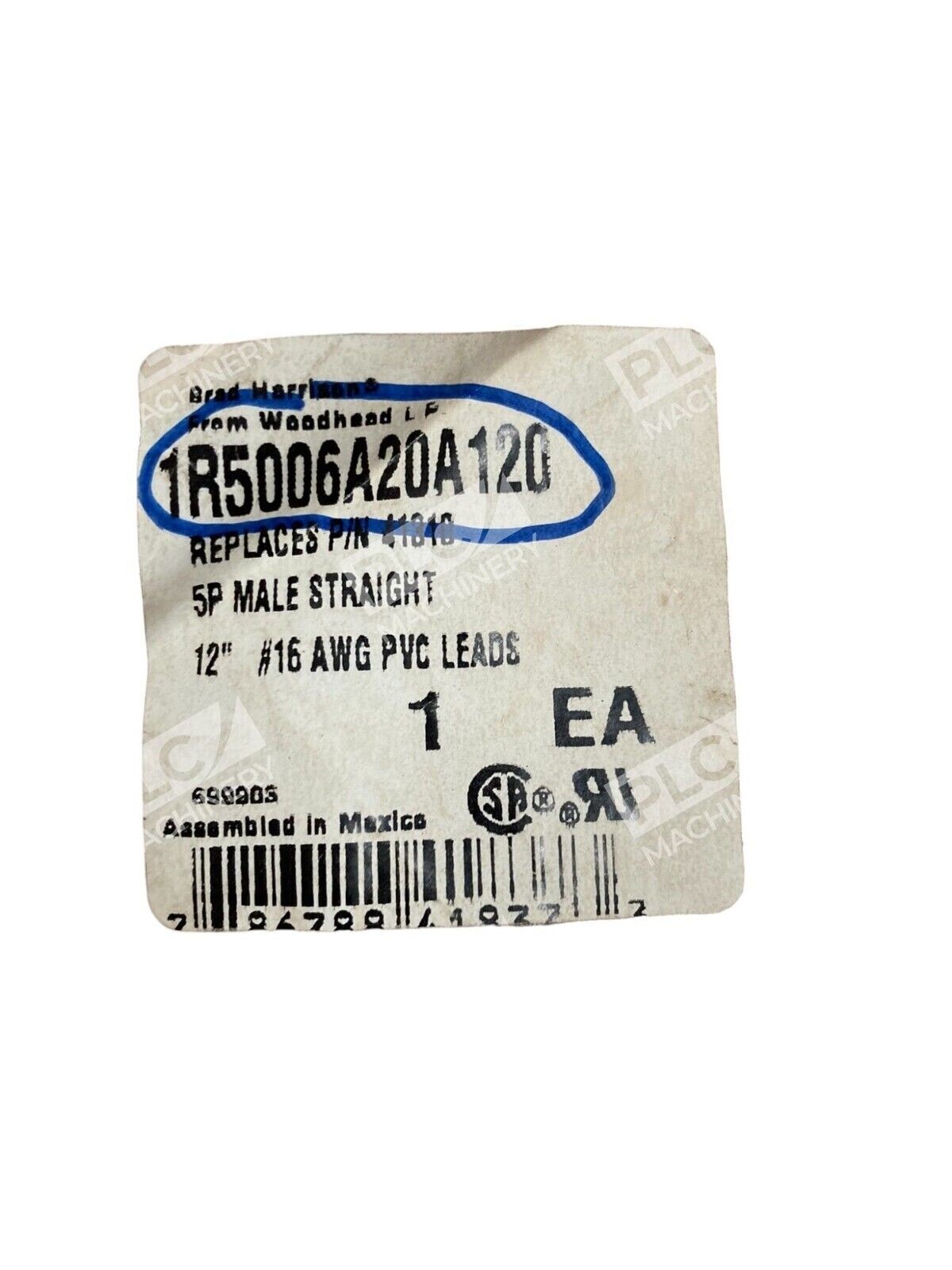

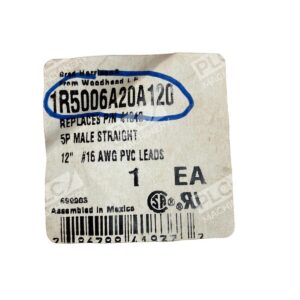

- Woodhead 41310 (model variant)
- Other Brad Mini-Change 5-pin male receptacle cordsets with identical pin-out and voltage rating
Works With
- Brad Mini-Change connector ecosystem (Molex/Woodhead)
- Standard industrial cable and wire harness assemblies
- Factory floor machinery control networks
- Maintenance and retrofitting projects requiring quick-disconnect connectors
