Overview

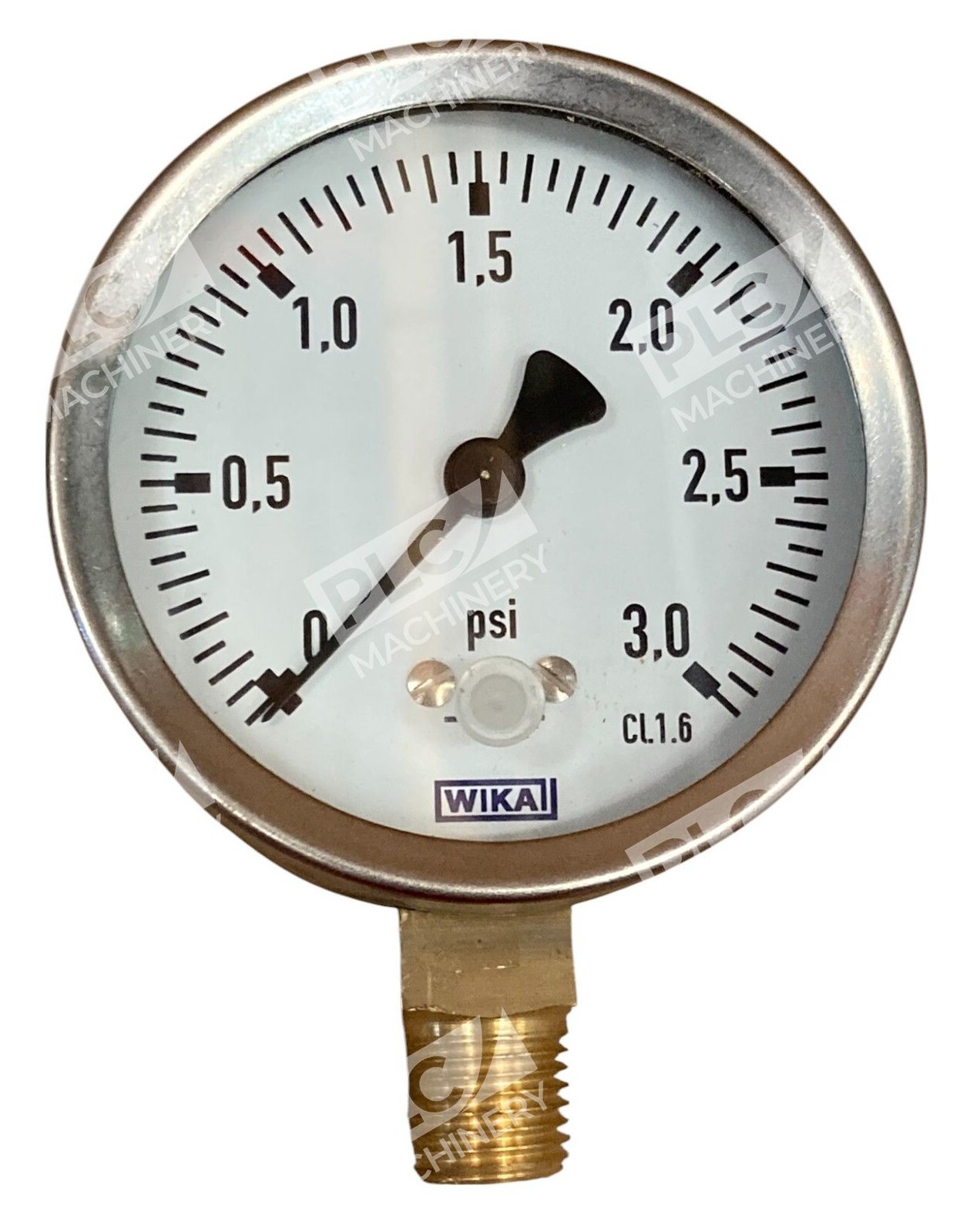

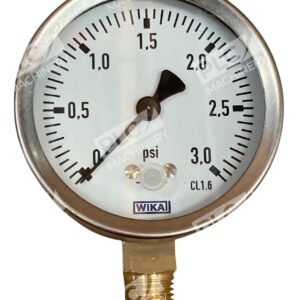

The WIKA 611.10 is a capsule-element low-pressure gauge engineered for sensitive, accurate measurement in controlled environments. This 0-3 PSI model features ±1.6% full-scale accuracy and is ideal for laboratory, medical, environmental, and pneumatic system monitoring. With a copper alloy process element and NEMA 2-rated steel case, it delivers reliable performance for gaseous, dry, and non-aggressive media.
Key Features
- Capsule pressure element — exceptionally sensitive to low-pressure differentials
- Class 1.6 accuracy (±1.6% of full scale) per EN 837-3 design standard
- Copper alloy wetted parts — corrosion-resistant for long service life
- Front-face zero adjustment — field-calibration without opening the case
- NEMA 2 steel case with clear plastic window — protected against light moisture and industrial dust
- 2.5″ dial with black lettering and aluminum pointer — easy-to-read analog display
Technical Specifications
- Pressure Range: 0–3 PSI
- Accuracy: ±1.6% of full scale value (Class 1.6)
- Dial Size: 2.5 inches (63 mm nominal)
- Wetted Parts: Copper alloy (Model 611.10)

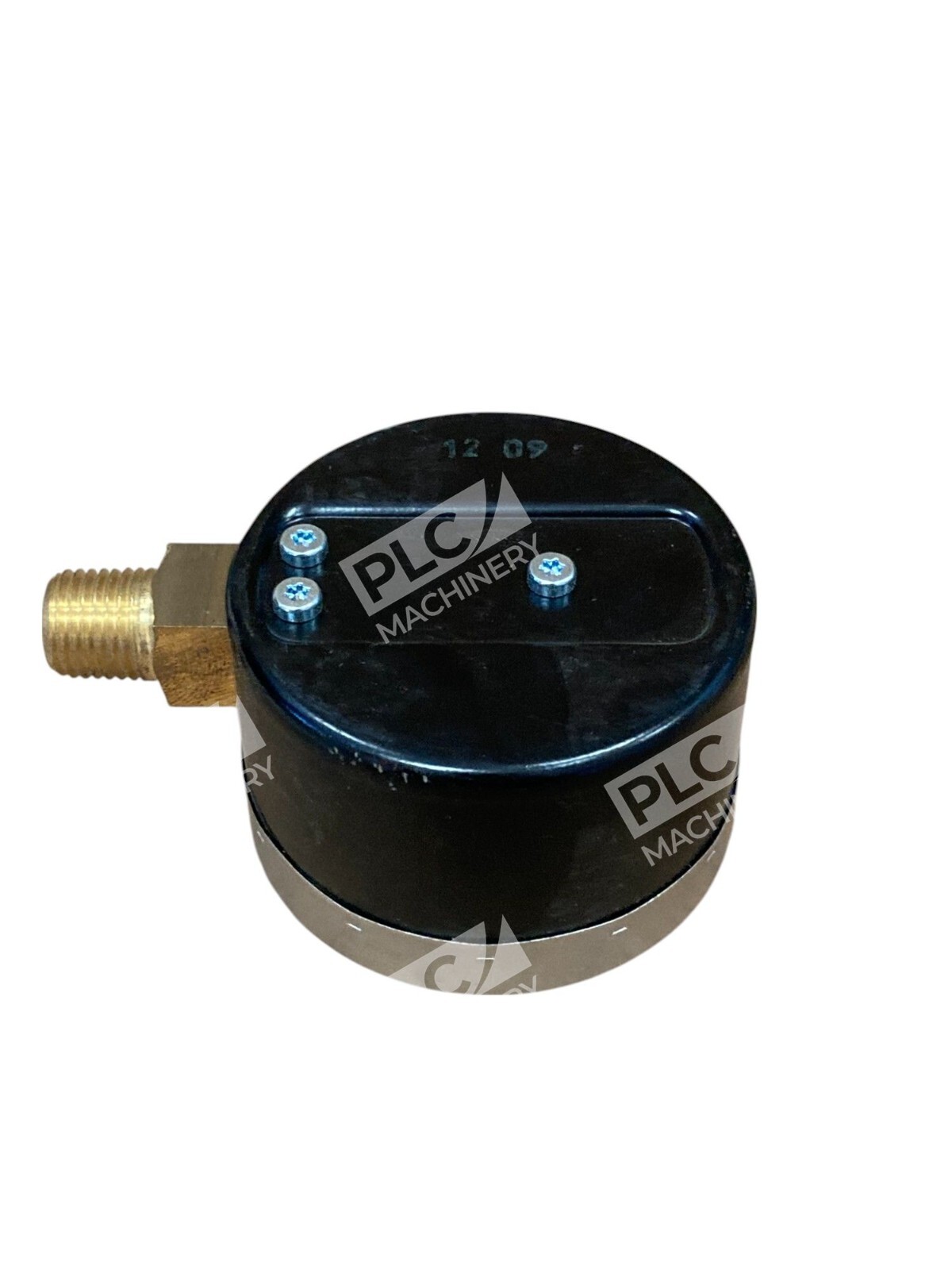

- Case Material: NEMA 2 black steel

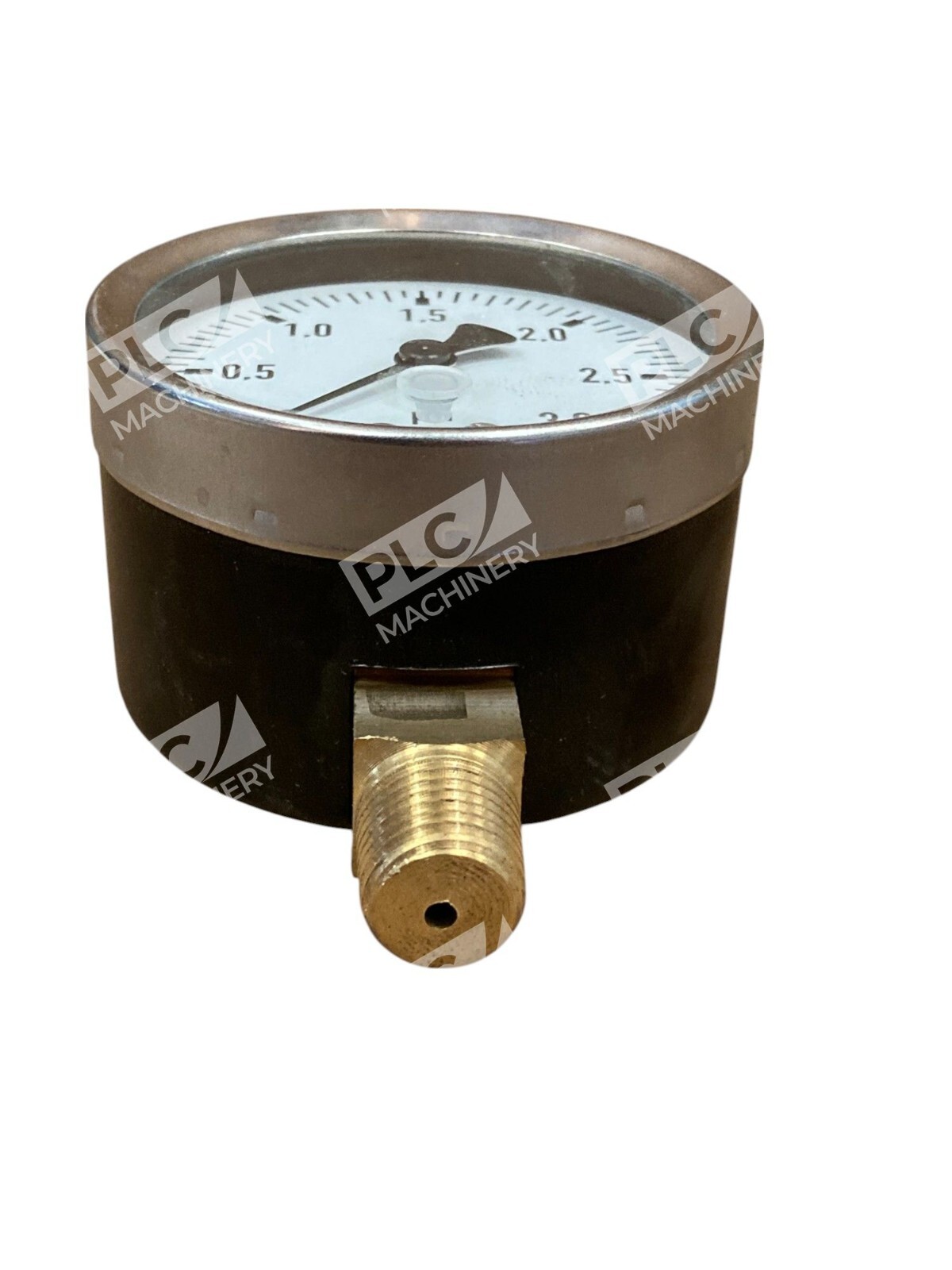

- Connection: 1/4″ NPT male thread (back or lower mount options)
- Sealing: NBR elastomer
- Operating Ambient Temperature: −4°F to +140°F (−20°C to +60°C)
- Maximum Media Temperature: +212°F (+100°C)
- Temperature Error: ±0.5% of span per 18°F (10K) deviation from 68°F reference
- Pressure Limit: Full-scale value (steady and fluctuating)
- Ingress Protection: IP 32 / NEMA 2
- Design Standard: EN 837-3 (capsule gauge)
Typical Applications
The WIKA 611.10 is widely specified for:
- Laboratory and medical gas pressure monitoring
- Environmental and filter-pressure systems
- Pneumatic tool and equipment pressure verification
- Low-pressure vacuum and compound measurement (0–100″ WC)
- HVAC and facility maintenance pressure checks
- Gas supply line and regulator outlet monitoring
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT male process connections (back or lower mounting)
- Pneumatic and low-pressure gas systems (gaseous, dry media only)
- OEM equipment requiring low-pressure capsule-type instrumentation
- Laboratory and medical-gas distribution systems
Replaces / Drop-In Replacement For
- Other WIKA 611.10 units with matching pressure range and connection type
- Equivalent capsule-gauge instruments with same 2.5″ dial and NPT thread
- Verify dial size, NPT thread size, and mounting orientation before order confirmation
Works With
- Standard pneumatic system components and regulators
- Low-pressure gas manifolds and filter housings
- Laboratory and medical-gas infrastructure
- Direct dial-reading applications (no electronic interface required)
