Overview

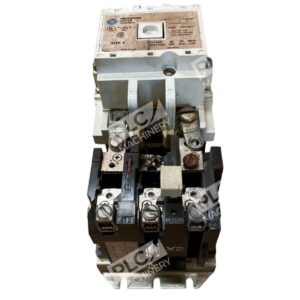

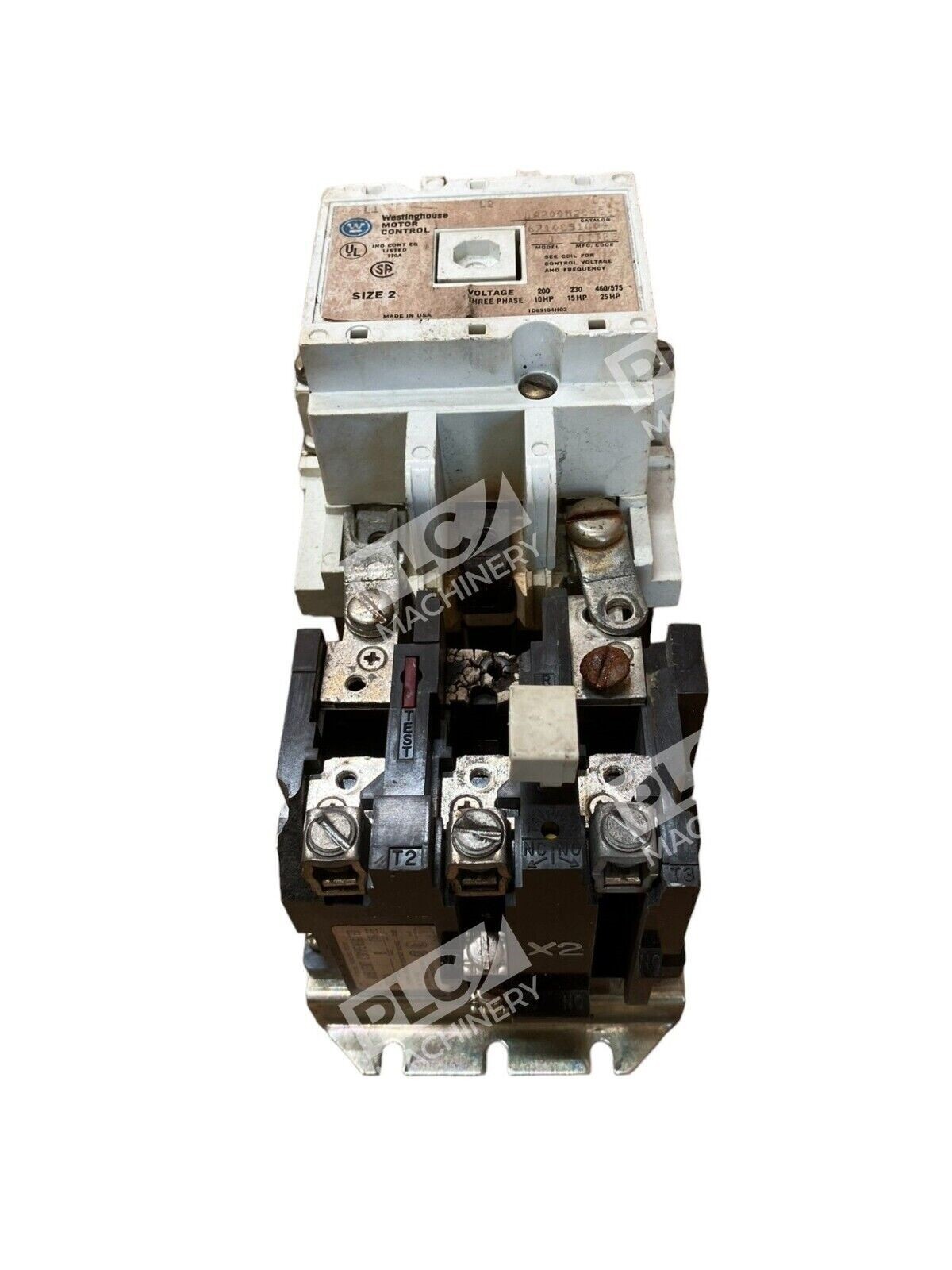

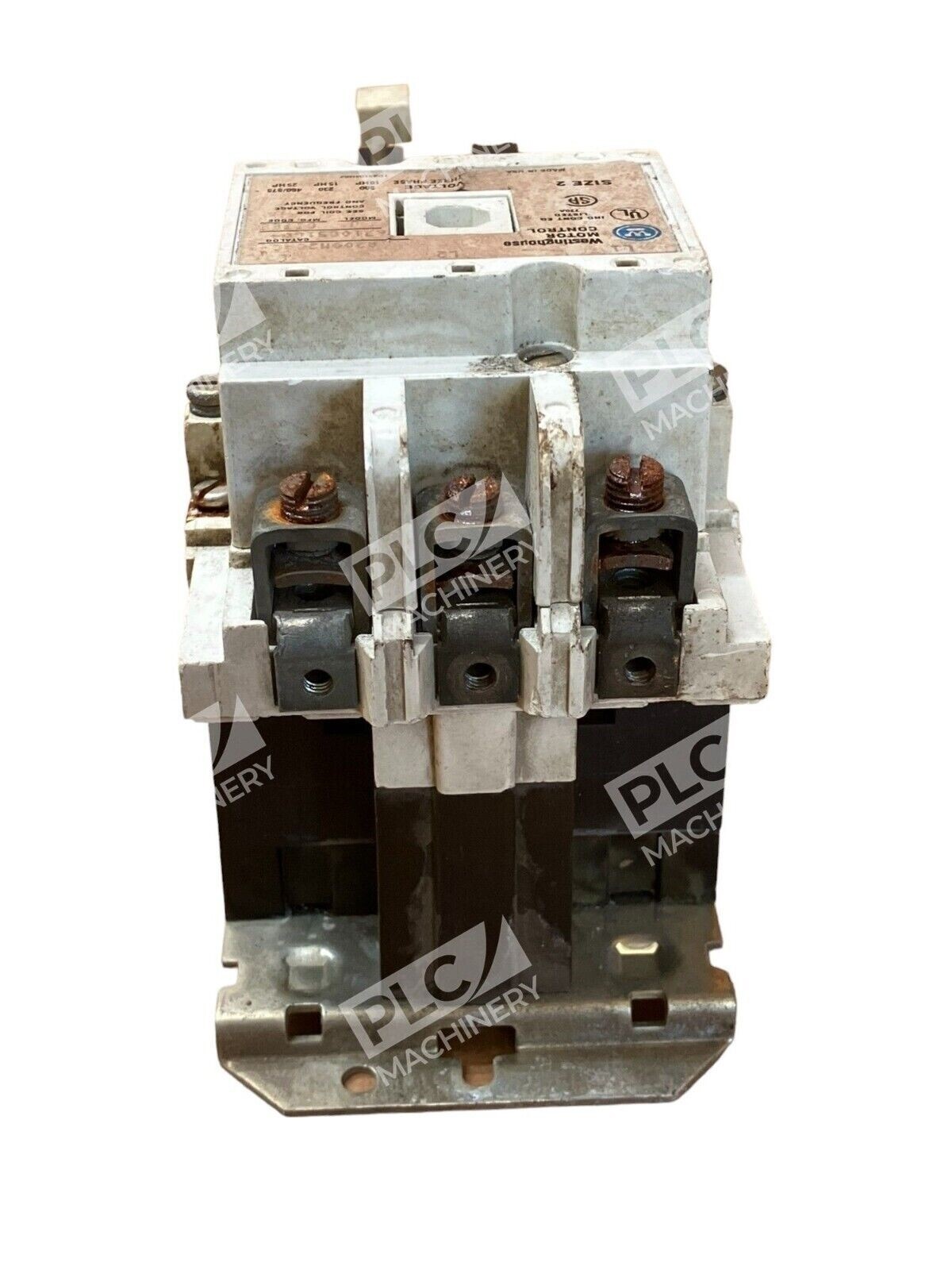

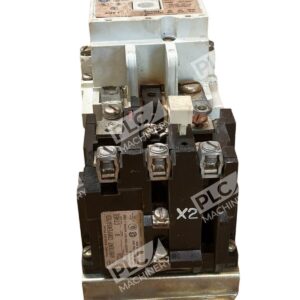

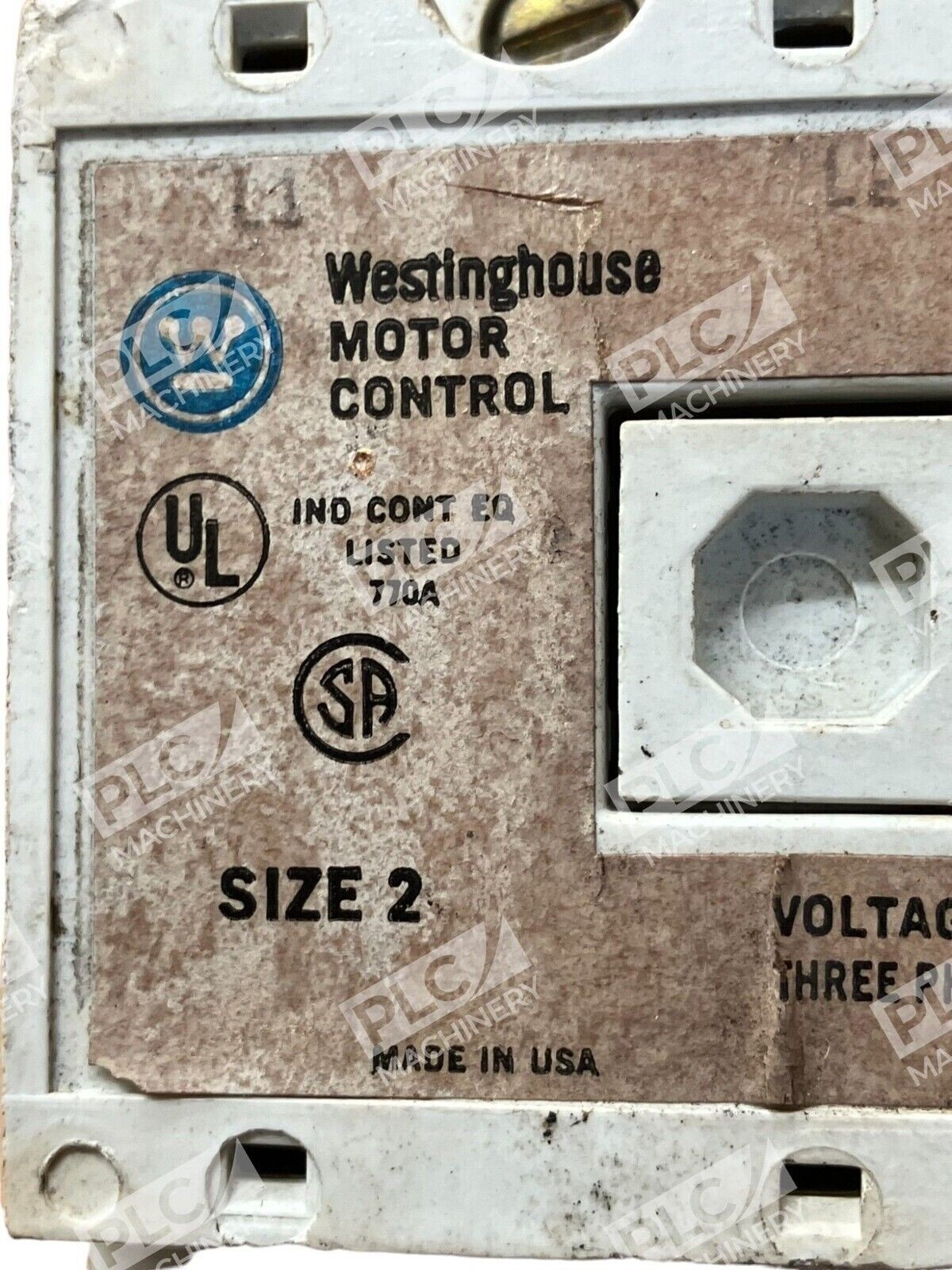

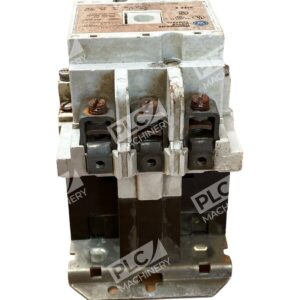

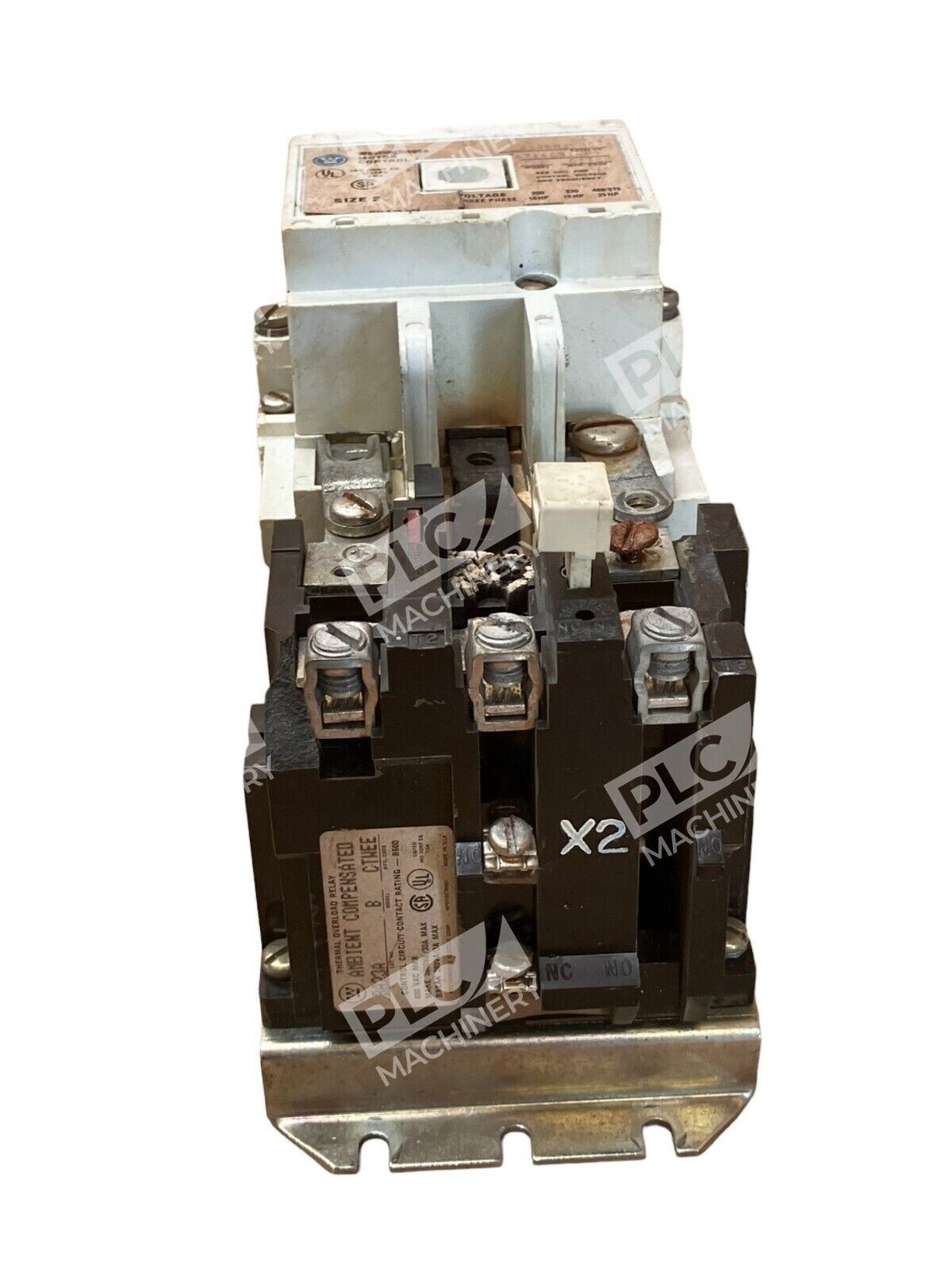

The Westinghouse A200M2CACD is a Size 2 motor starter that delivers dependable three-phase motor control for industrial machinery and production equipment. This unit pairs the A200M2CAC main contactor with a BA23A thermal overload relay, providing both electromagnetic switching and motor protection in a compact NEMA 2 enclosure. Rated at 45 amps and suitable for motors up to 25 HP at 460/575 volts, the A200M2CACD has been a workhorse in facilities and manufacturing environments for decades. Though discontinued by Westinghouse, used units remain highly sought by maintenance teams and system integrators seeking reliable replacements.
Key Features

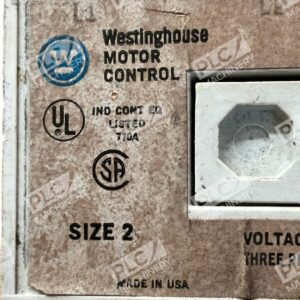

- Size 2 NEMA starter with 45-amp rated contacts and 3-pole configuration

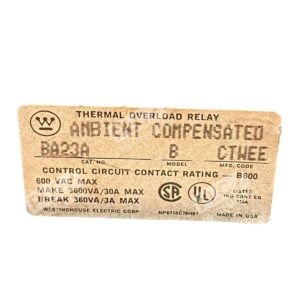

- Integrated BA23A Type B thermal overload relay (26.3–45A adjustable range)
- Rated for 25 HP at 460/575V, 15 HP at 230V, 10 HP at 200V

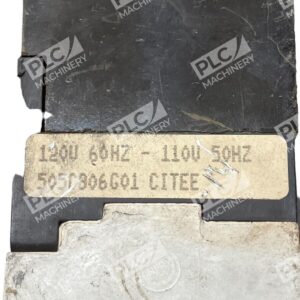

- 110/120 VAC control circuit coil (Model J style)
- Bi-metallic ambient-compensated thermal protection
- Discontinued unit — ideal for legacy equipment repairs and drop-in replacements
Technical Specifications

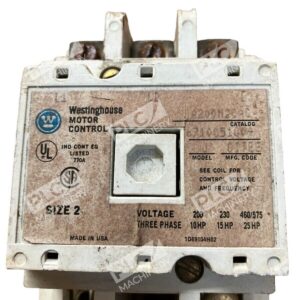

- Contactor: A200M2CAC, Size 2, 3-pole

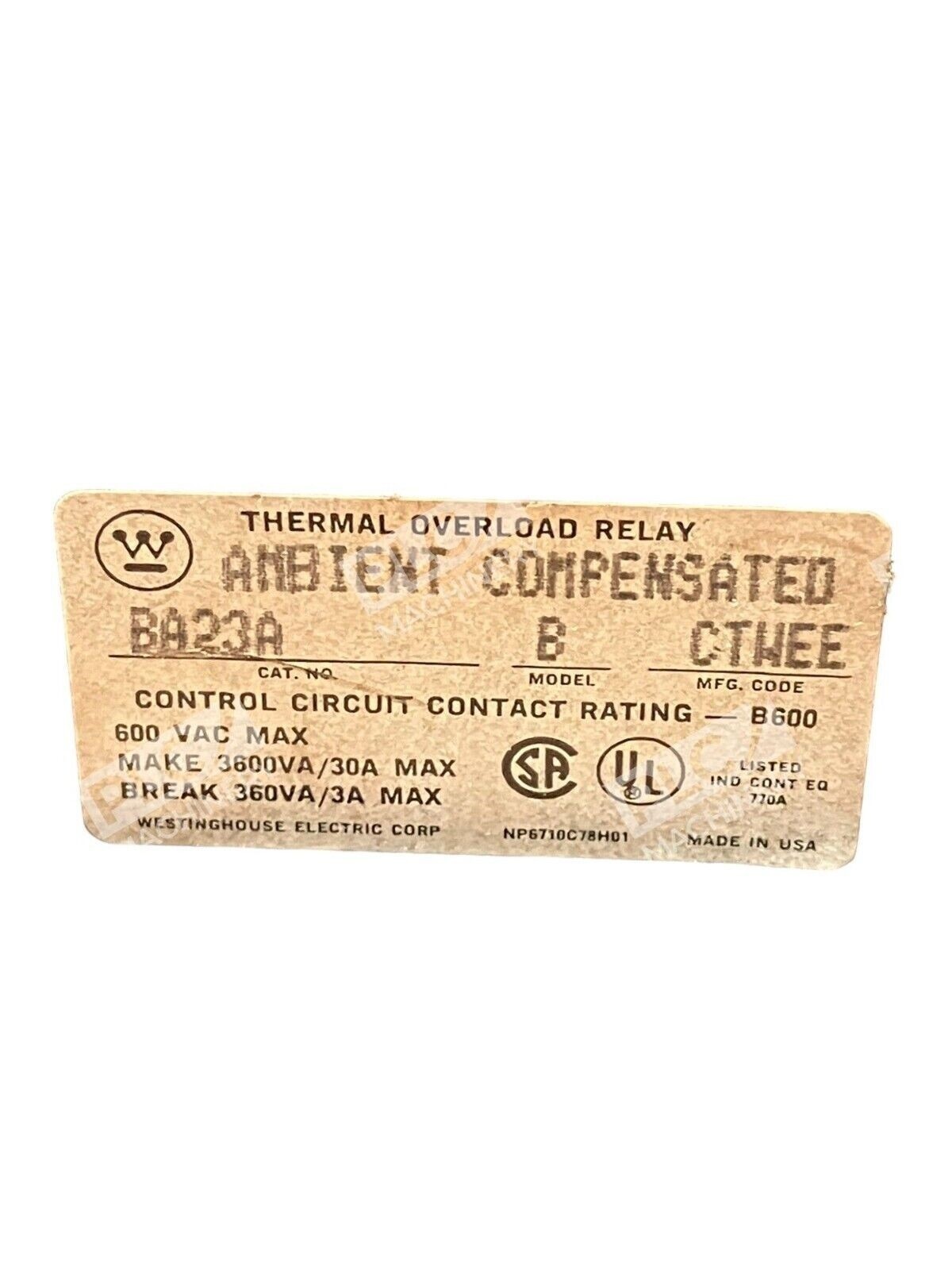

- Overload Relay: BA23A Type B, 26.3–45A adjustable, 600 VAC rating

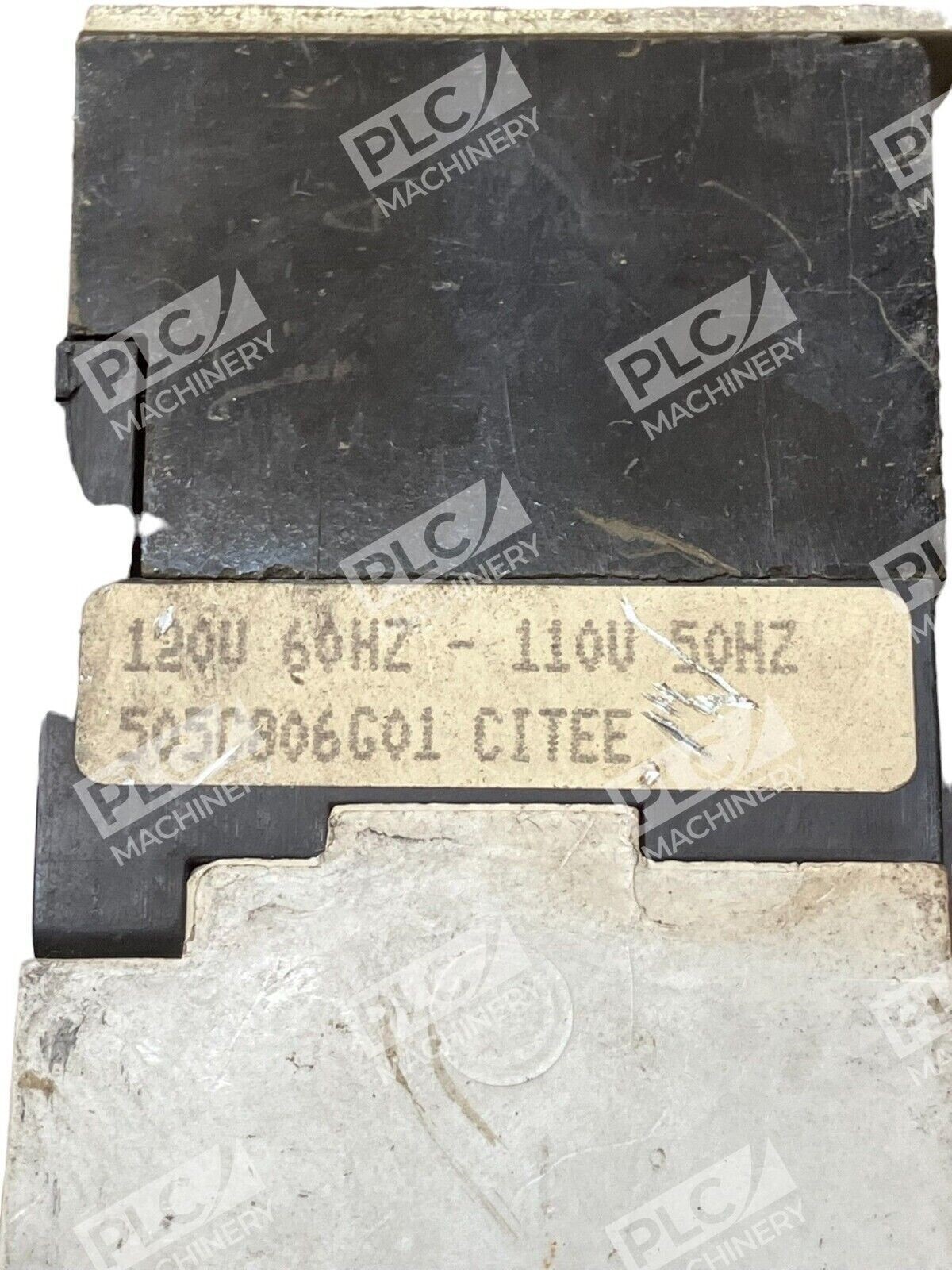

- Control Voltage: 110/120 VAC, 50/60 Hz
- Rated Current: 45 amps at rated voltage

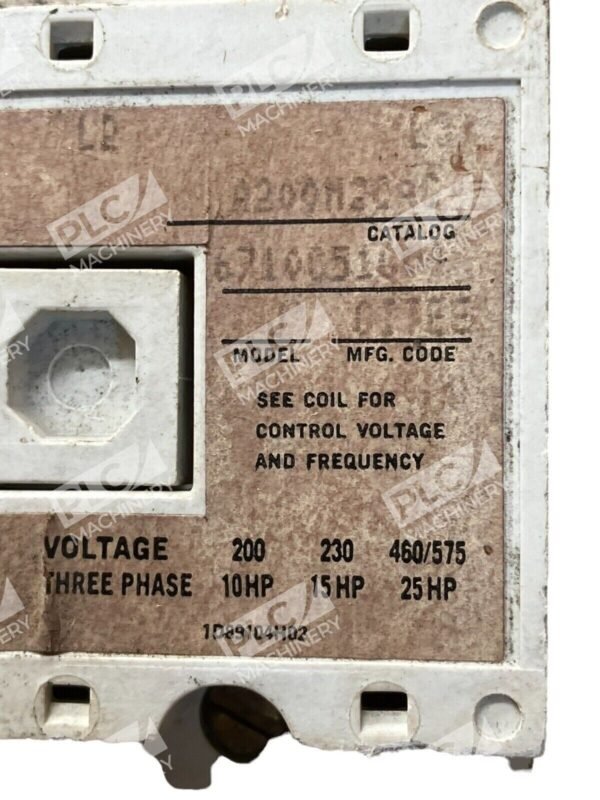

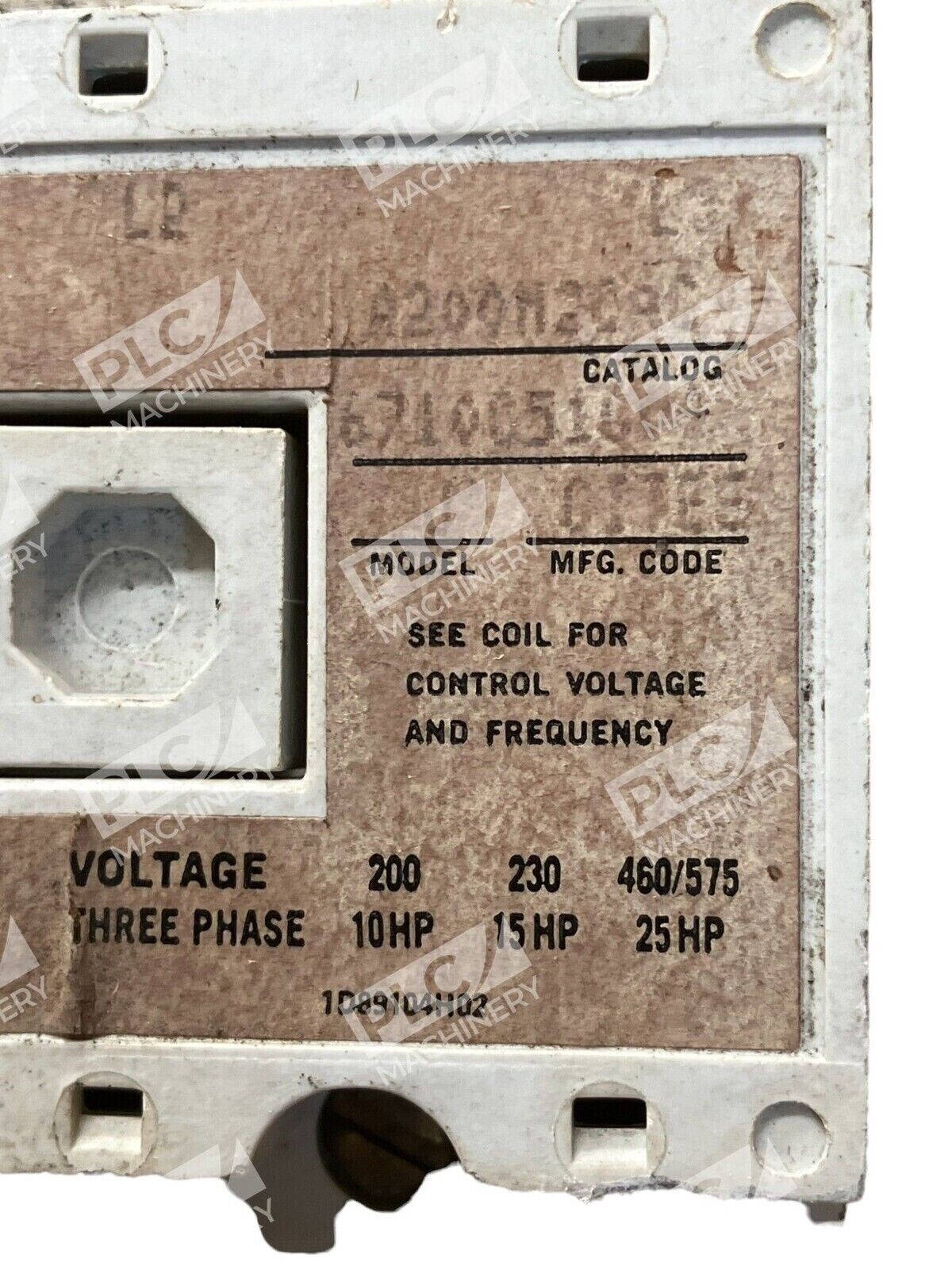

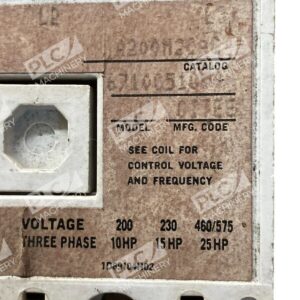

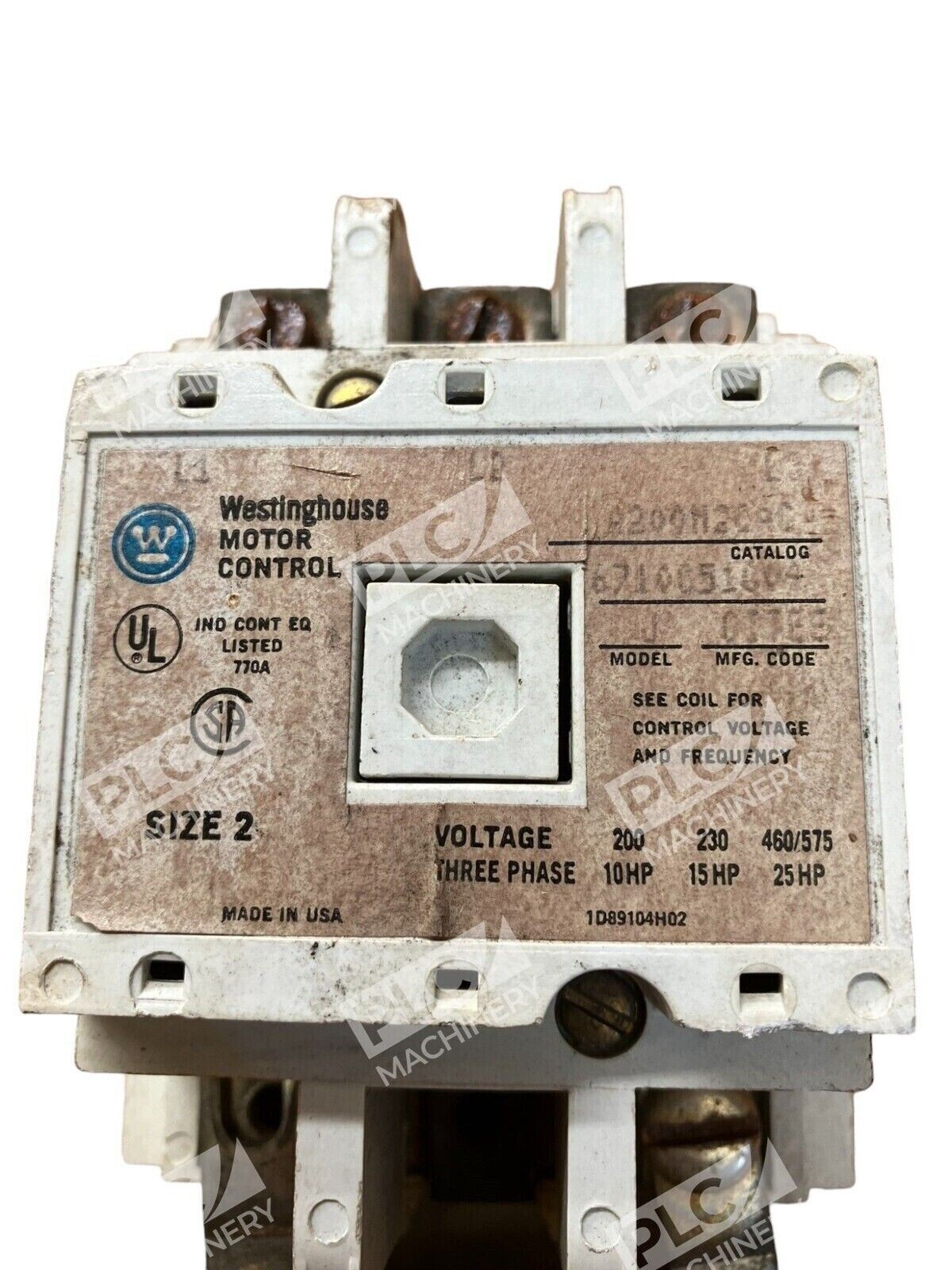

- Motor Ratings: 25 HP @ 460/575V; 15 HP @ 230V; 10 HP @ 200V (3-phase)
- Contact Material: Silver alloy for minimal contact resistance
- Trip Class: 10A (Class B thermal protection)
- Enclosure Type: NEMA 2 rated
- Operating Temperature: Standard industrial range, ambient compensated
- Mechanical Life: Millions of mechanical cycles
Typical Applications
- Primary motor starting and stopping control for compressors, pumps, and conveyors
- Machine tool drive systems and spindle motors
- HVAC equipment, refrigeration units, and cooling systems
- Industrial production line automation and material handling equipment
- Replacement in legacy electrical control panels and switchboards
- Maintenance departments upgrading or repairing motor control systems
Compatibility & Replacements
Compatible With
- Three-phase 200V, 230V, and 460/575V motor circuits
- 110/120 VAC control transformers and power supplies
- NEMA-standard motor control enclosures and switchboards
- Westinghouse and compatible OEM auxiliary contacts and accessories
- Industrial automation panels and manual or PLC-based motor control schemes
Replaces / Drop-In Replacement For
- Westinghouse A200M2CAC starters in NEMA Size 2 applications
- Earlier Westinghouse Size 2 motor starters with equivalent 45A ratings
- Verify compatibility with your original equipment documentation before installation
Works With
- BA23A, BA23A/B thermal overload relays (plug-in or direct-mount)
- NEMA standard auxiliary contact kits and mechanical interlocks
- Standard 600 VAC control circuits and 110/120 VAC coil power
- Manual starters, drum controllers, and soft-starter bypass configurations
