Overview

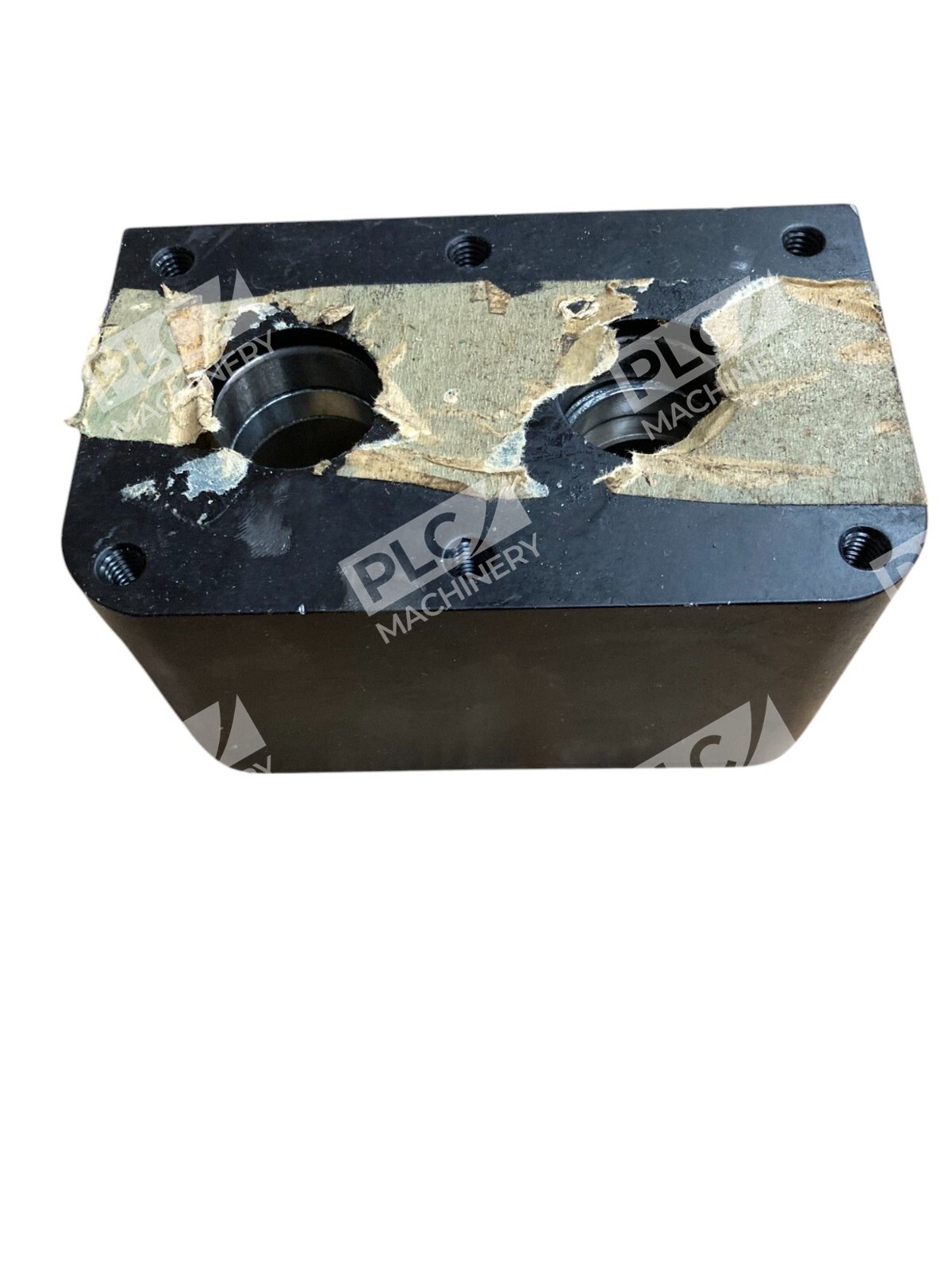

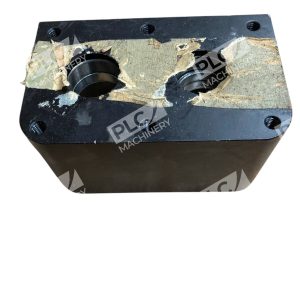

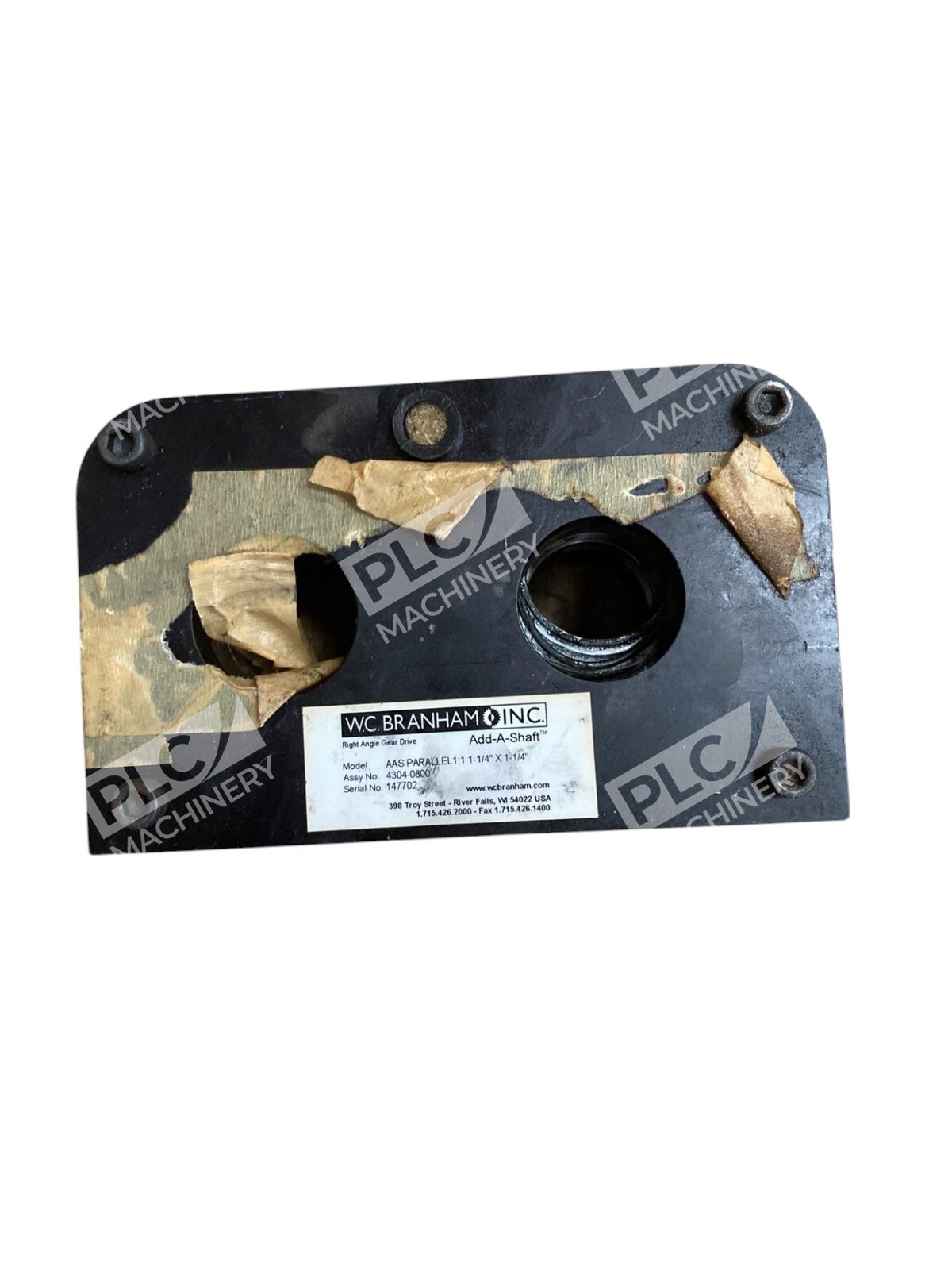

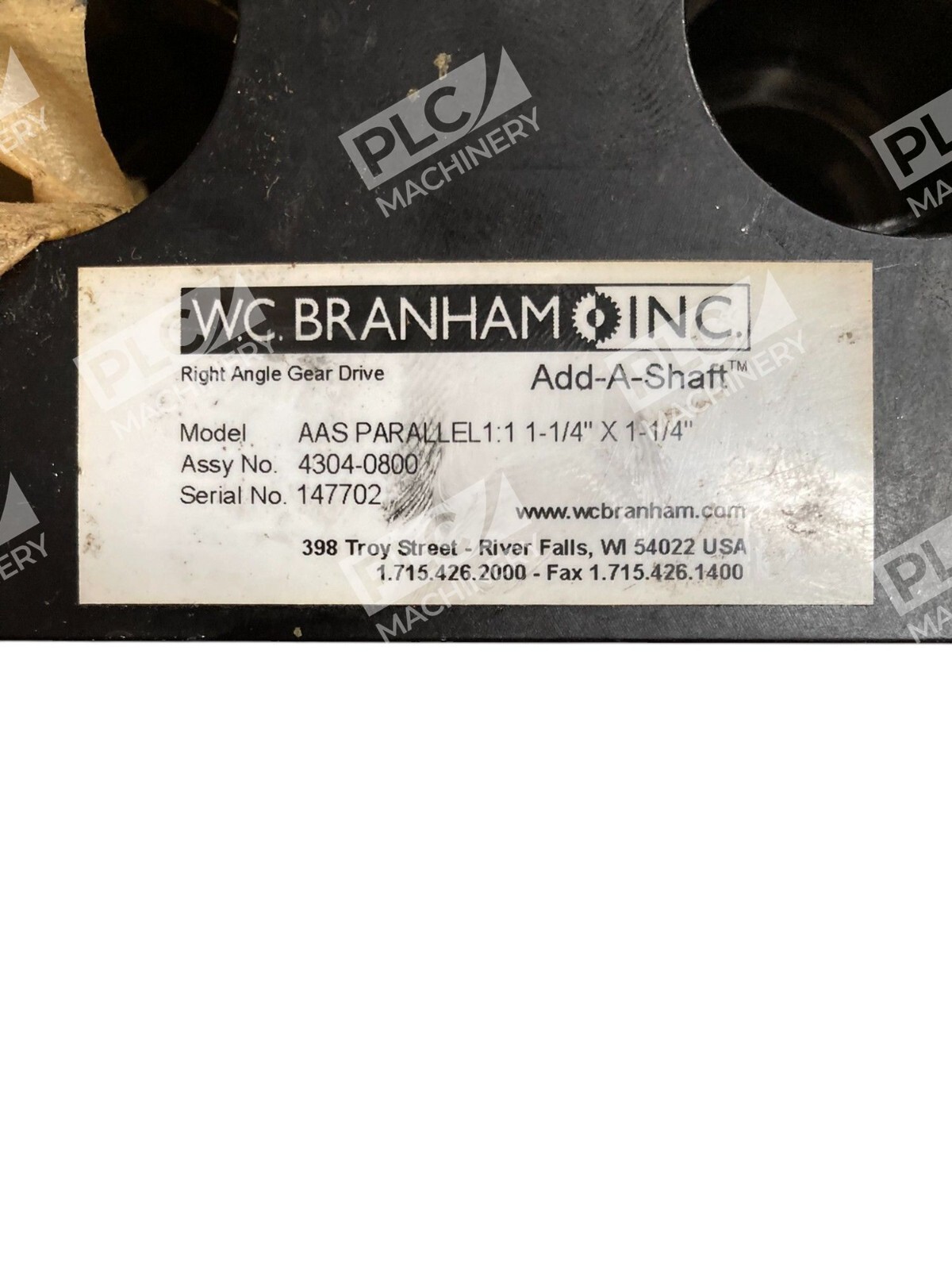

The WC Branham 4304-0800 right-angle gear drive delivers dependable torque transmission with a 1:1 gear ratio and parallel-shaft configuration. Designed for mechanical applications requiring 90-degree power transfer, this AAS model accommodates 1-1/4″ x 1-1/4″ bore shafts and integrates seamlessly into existing industrial systems. W.C. Branham manufactures all gearboxes in Wisconsin using precision helical gears and sealed ball-bearing assemblies.
Key Features
- Sealed, pre-lubricated design: All W.C. Branham gearboxes are shipped pre-lubricated and installation ready, eliminating field assembly steps.
- Helical gear construction: Each gearbox has two 45-degree helical gears that mesh at 90º to rotate power, providing smooth, efficient operation.
- Ball-bearing support: All-ball-bearing configuration in a leak-proof, sealed gear case allows for higher thrust and radial load capabilities, lower operating temperatures, no leakage, and longer service life.
- Bi-directional operation: Gears slide axially along keyed shafts for easy installation.
- 1:1 speed ratio for direct drive applications.
- Parallel-shaft arrangement ideal for space-constrained layouts.
Technical Specifications
The following specifications are derived from manufacturer documentation and distributor listings:
- Gear Ratio: 1:1 (no speed change)
- Configuration: Right-angle, parallel-shaft, AAS series
- ‘A’ Bore: 1-1/4 inches
- ‘B’ Bore: 1-1/4 inches
- Design Type: Helical gear, sealed ball-bearing
- Lubrication: Pre-lubricated, sealed gearcase
- Bidirectional: Yes
- Series: Series 25 right-angle gearbox
- Manufacturer: W.C. Branham Inc. (Wisconsin, USA)
Typical Applications
- Material handling equipment requiring 90-degree torque transmission
- Conveyor systems and production line drives
- Industrial machinery with space constraints
- Agricultural and landscaping equipment
- Power transmission where parallel-shaft configuration is preferred
Compatibility & Replacements
Compatible With
- Motor drive shafts up to 1.25 inches diameter
- Base-mount industrial equipment frames
- Standard keyway shaft configurations
- Right-hand and left-hand rotation applications
- Equipment rated for 1:1 speed-ratio gearboxes
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manual before ordering. The WC Branham 4304-0800 is a direct replacement for other AAS-series 1-1/4″ parallel-shaft 1:1 gear drives from W.C. Branham with identical bore dimensions and mounting footprint.
Works With
- Industrial electric motors (1/4 HP through 5 HP typical)
- Hydraulic and pneumatic drive systems
- Variable-frequency drive (VFD) controlled systems
- Sealed-bearing mechanical powertrains
- Right-angle power transmission applications requiring low-maintenance operation
