Overview

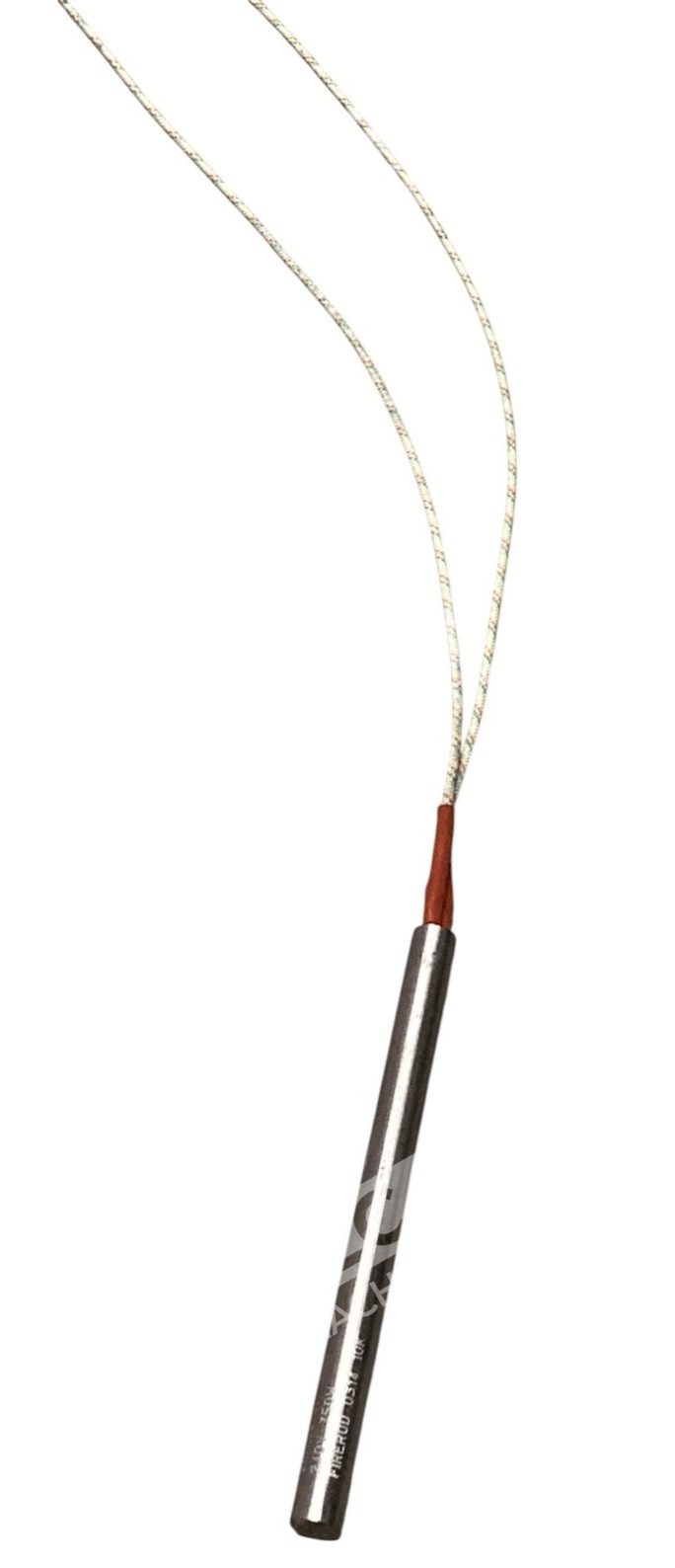

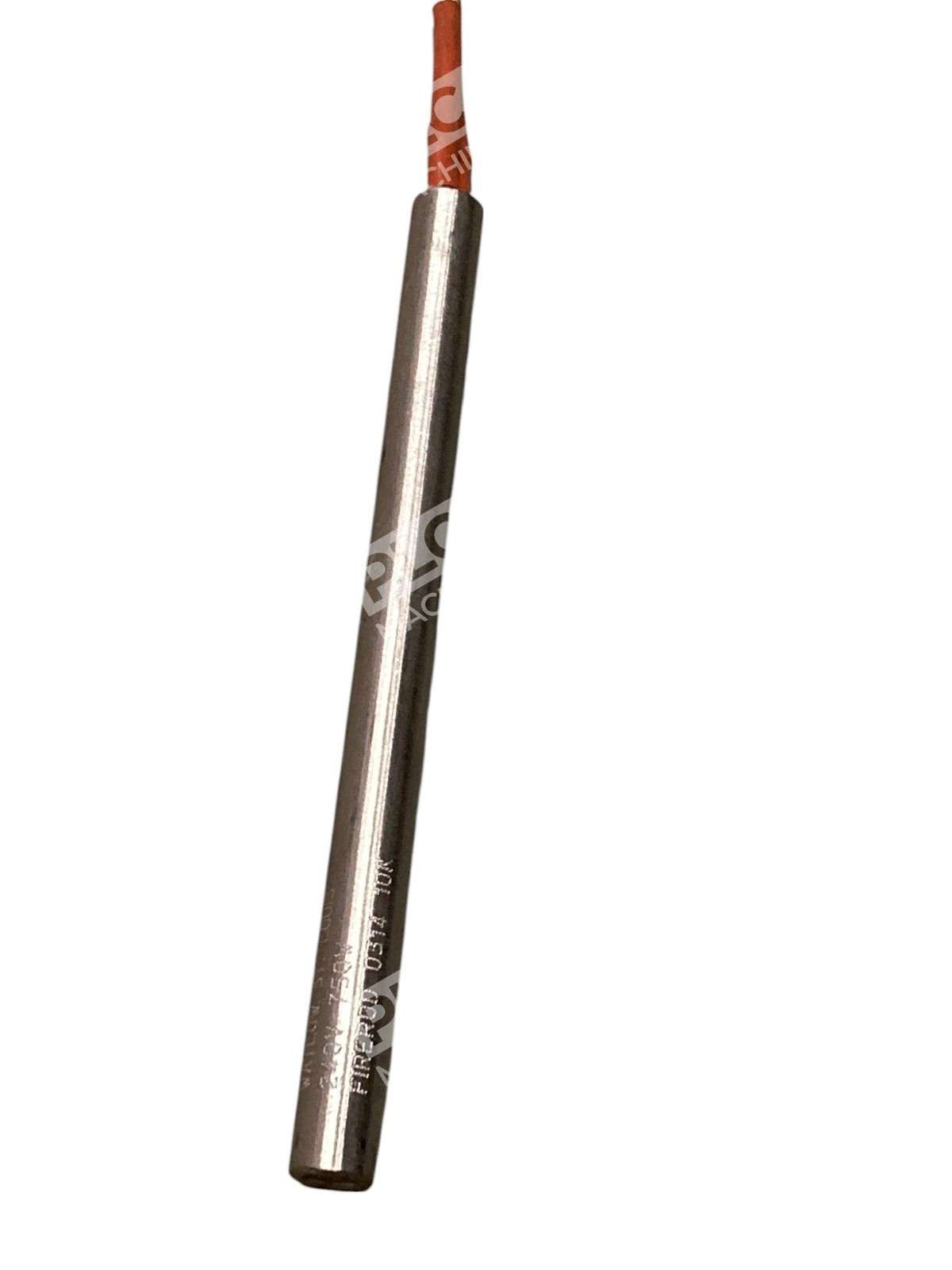

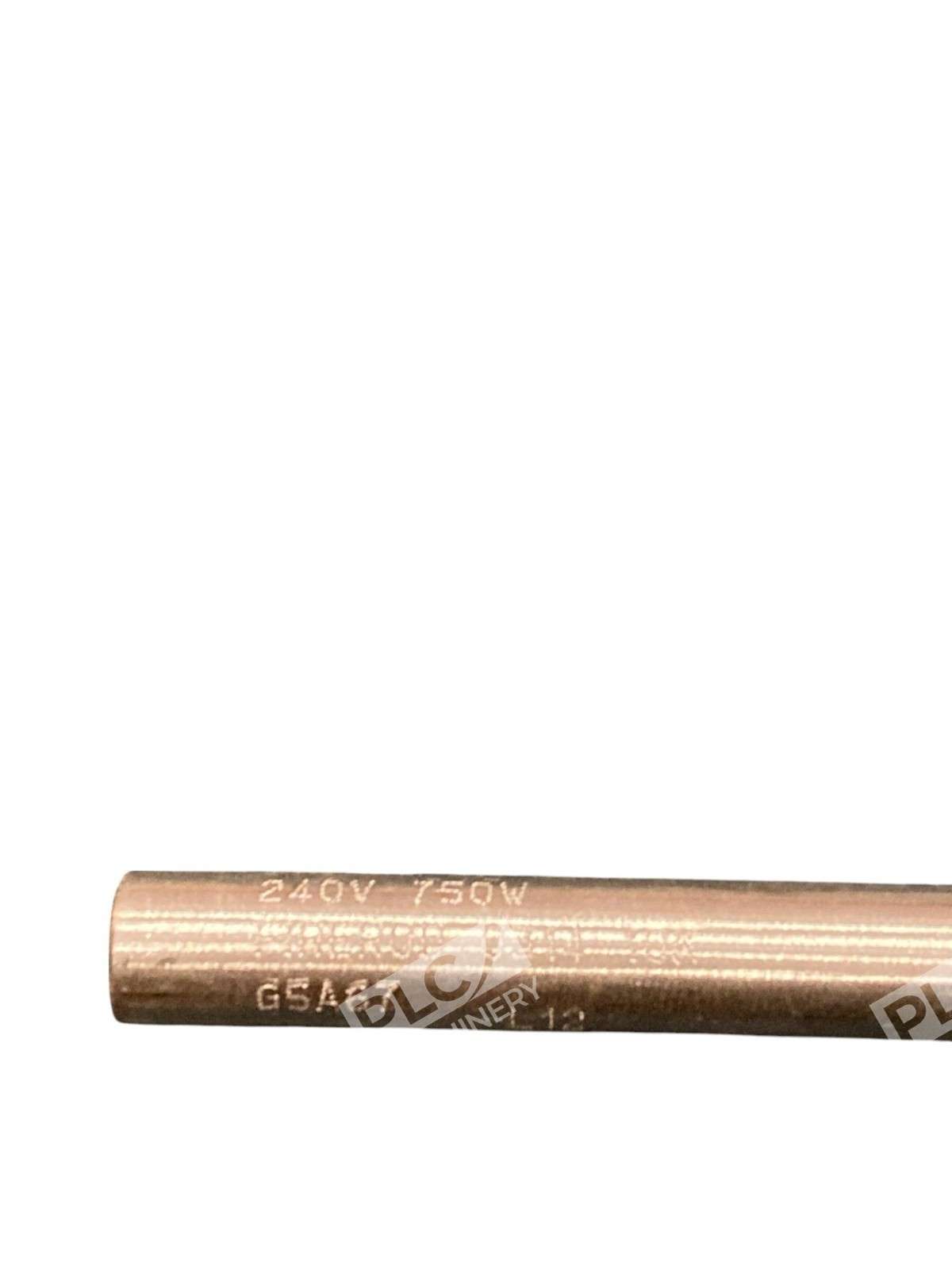

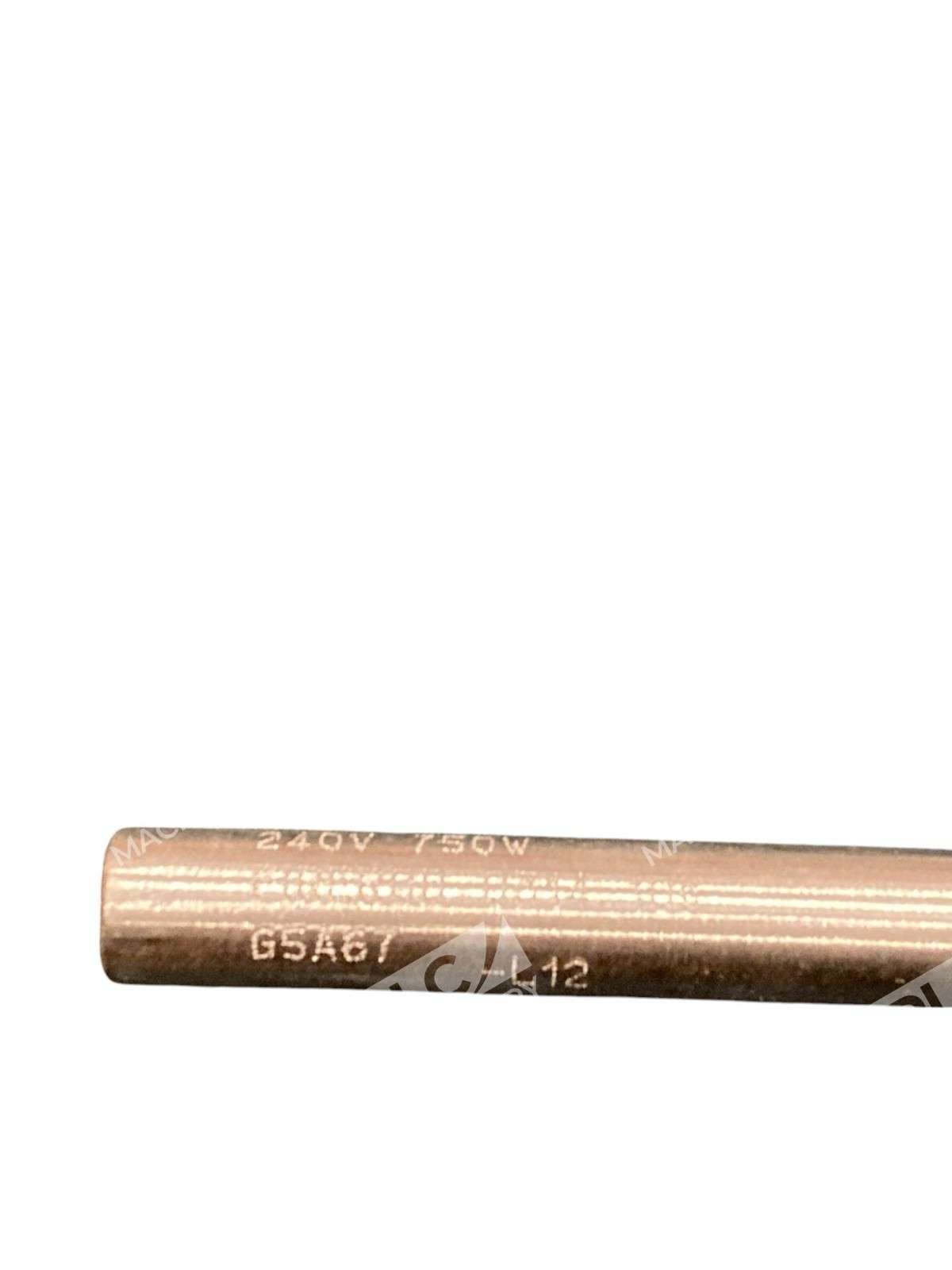

The Watlow G5A67 FIREROD cartridge heater is a precision heating element engineered for industrial, semiconductor, and process heating applications. With 240V supply and 750W power output, this 3/8″ diameter × 5″ length unit combines Watlow’s proven swaged cartridge design with premium materials to deliver consistent thermal performance. The FIREROD cartridge heater revolutionized the heating element industry in 1954 when it was patented as the first swaged cartridge heater, establishing the benchmark for reliability and durability in cartridge heating.
Key Features
- Swaged construction compacts the unit to directly improve heat transfer and efficiency
- Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath
- Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up
- Premium materials and tight manufacturing controls provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion
- ISO 9001 certified for quality and reliability

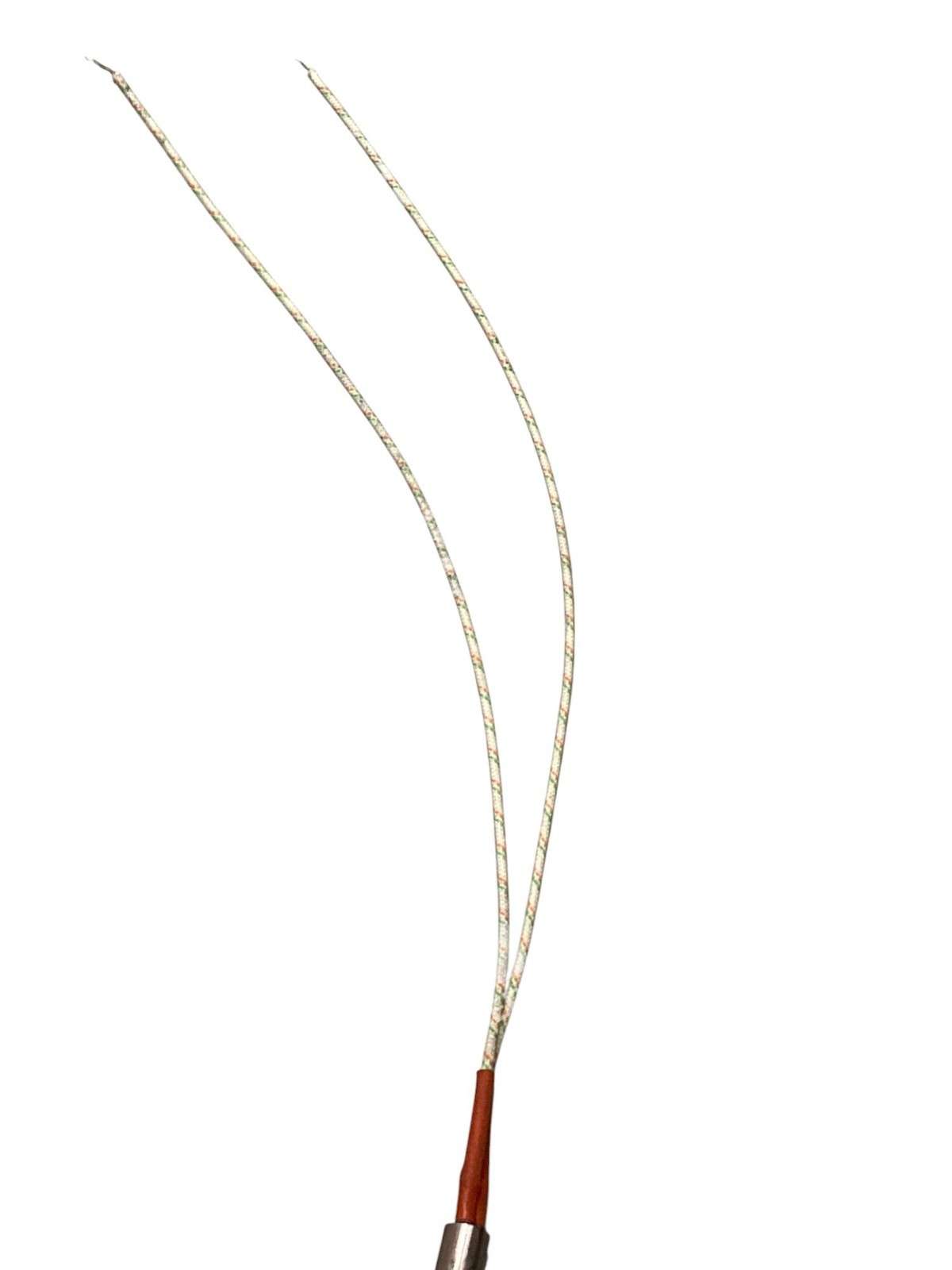

- Fiberglass lead protection (GGS) on standard configuration
Technical Specifications
- Voltage: 240V AC
- Power Output: 750W
- Diameter: 3/8″
- Length: 5″
- Lead Type: Fiberglass (GGS) — standard configuration
- Sheath Material: Alloy 800 (optional: stainless steel)
- Maximum Operating Temperature: 1400°F (760°C) on Alloy 800
- Maximum Watt Density: 400 W/in² (62 W/cm²)
- Insulation: Magnesium oxide (MgO), compacted
- Resistance Wire: Nickel-chromium
- Certifications: ISO 9001
Typical Applications
Watlow G5A67 cartridge heaters are designed for use in:
- Injection molding and plastic processing equipment
- Hot runner systems and molds
- Semiconductor equipment and component heating
- Thermal test chambers and ovens
- Instrument and electronic component heating
- Industrial process heating requiring precise temperature control
- Food service and medical equipment thermal applications
Compatibility & Replacements
Compatible With
- 240V single-phase electrical systems
- Industrial control circuits rated for 750W loads
- Standard cartridge heater sockets and mounting blocks
- Temperature controllers with cartridge heater outputs
- Direct or step-down transformer installations
Replaces / Drop-In Replacement For
- Other 3/8″ × 5″ 240V 750W cartridge heaters in equivalent form factor
- Verify specific mount compatibility with your system integrator before installation
Works With
- Watlow temperature controllers and thermal management systems
- Universal cartridge heater mounting blocks and holders
- Standard 240V AC electrical distribution panels
- Thermal sensors and thermostats for load switching
