Overview

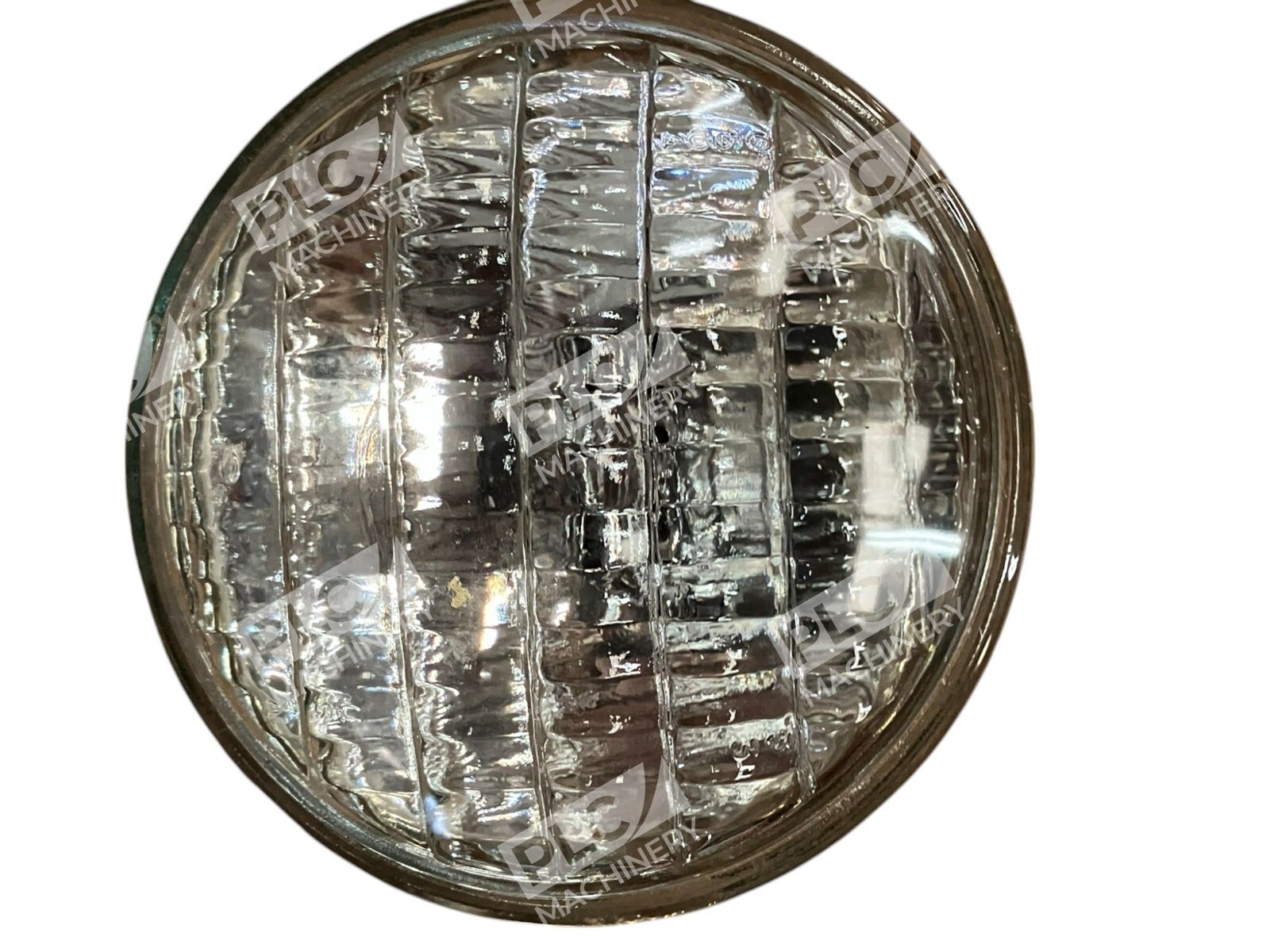

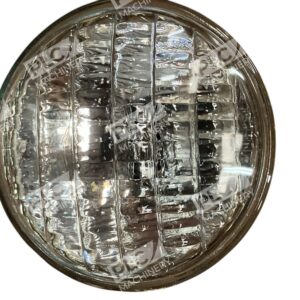

The Wagner 4411 lamp is a low-voltage sealed beam headlight bulb designed for agricultural and industrial equipment lighting. With 35W power at 12.8V, this PAR36 halogen lamp provides improved brightness and visibility compared to standard incandescent bulbs. The 4411 features a screw terminal G53 base for secure mounting and is rated for 300 hours of average service life.
Key Features
- PAR36 sealed beam halogen design with 4.5-inch diameter optics
- 35W, 12.8V low-voltage rating suitable for vehicle and equipment circuits

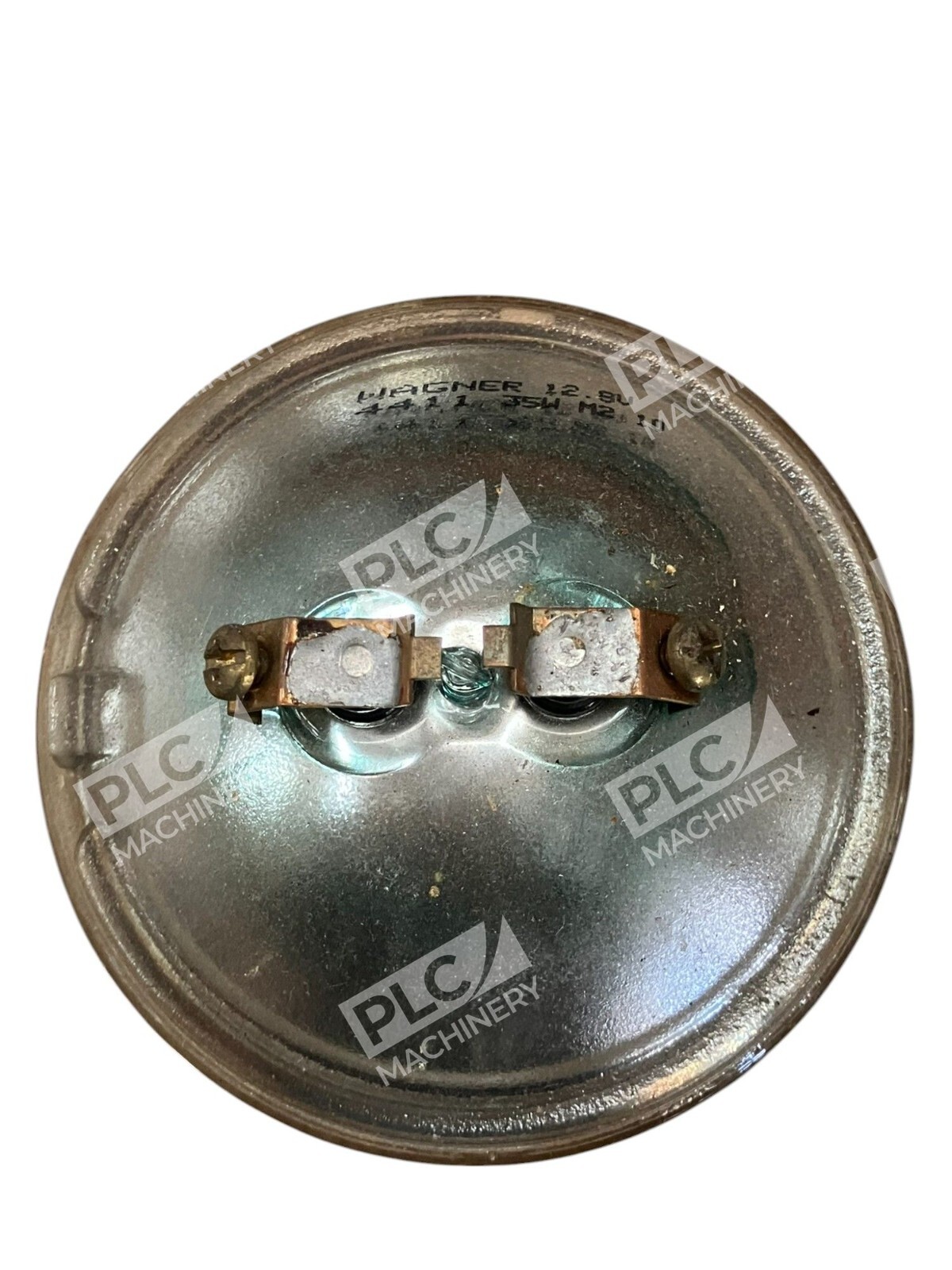

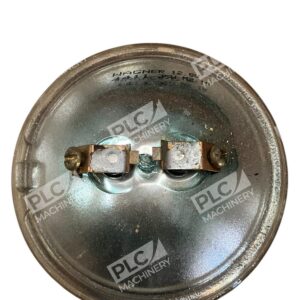

- G53 screw terminal base for direct mounting compatibility
- 300-hour average rated life under normal operating conditions
- Non-reflective bottom shelf reduces glare in wet, rainy, or snowy conditions
- Delivers up to 40% more light reach than equivalent incandescent bulbs
Technical Specifications
- Wattage: 35W
- Voltage: 12.8V
- Current: 2.73–2.734A
- Bulb Type: PAR36 Sealed Beam, Halogen
- Base Type: G53 Screw Terminal (M2 Slip-On and Screw)
- Diameter: 4.5 inches (114.3 mm)
- Length: 2.75 inches (70 mm)
- Rated Life: 300 hours average
- Light Output: 2500 lumens (nominal)
- Candela: 3000 candela
Typical Applications
- Agricultural tractor headlights (John Deere, Case IH, Allis-Chalmers, Cub Cadet, International Harvester)
- Snowblower and snow removal equipment lighting
- Forklift and material handling vehicle headlights
- Marine spotlights and marine equipment lighting
- Off-road vehicle and ATV lighting systems
- Industrial equipment task lighting
Compatibility & Replacements
Compatible With
- 12.8V vehicle electrical systems (tractors, forklifts, off-road equipment)
- Standard PAR36 sealed beam fixture housings with G53 screw terminal sockets
- Vehicles and equipment originally equipped with 4411, 4406, or 4410 lamps
- Marine spotlight and aftermarket lighting applications
Replaces / Drop-In Replacement For
- Wagner 4406, 4410 (direct mechanical and electrical equivalents)
- GE 24443, GE 24448, GE 24430, GE 24428, GE 24439
- Philips 4411C1
- Satco S4305
- OEM equivalents: Jabsco 62022-4002, 62025-4002, 62026-4002
Works With
- G53 socket sealed beam fixture assemblies
- 12.8V DC equipment power supplies (vehicle alternators, battery systems)
- PAR36 reflector housings and headlight buckets (automotive and agricultural)
- No electronic ballast or driver required; direct-wire incandescent operation
