Overview

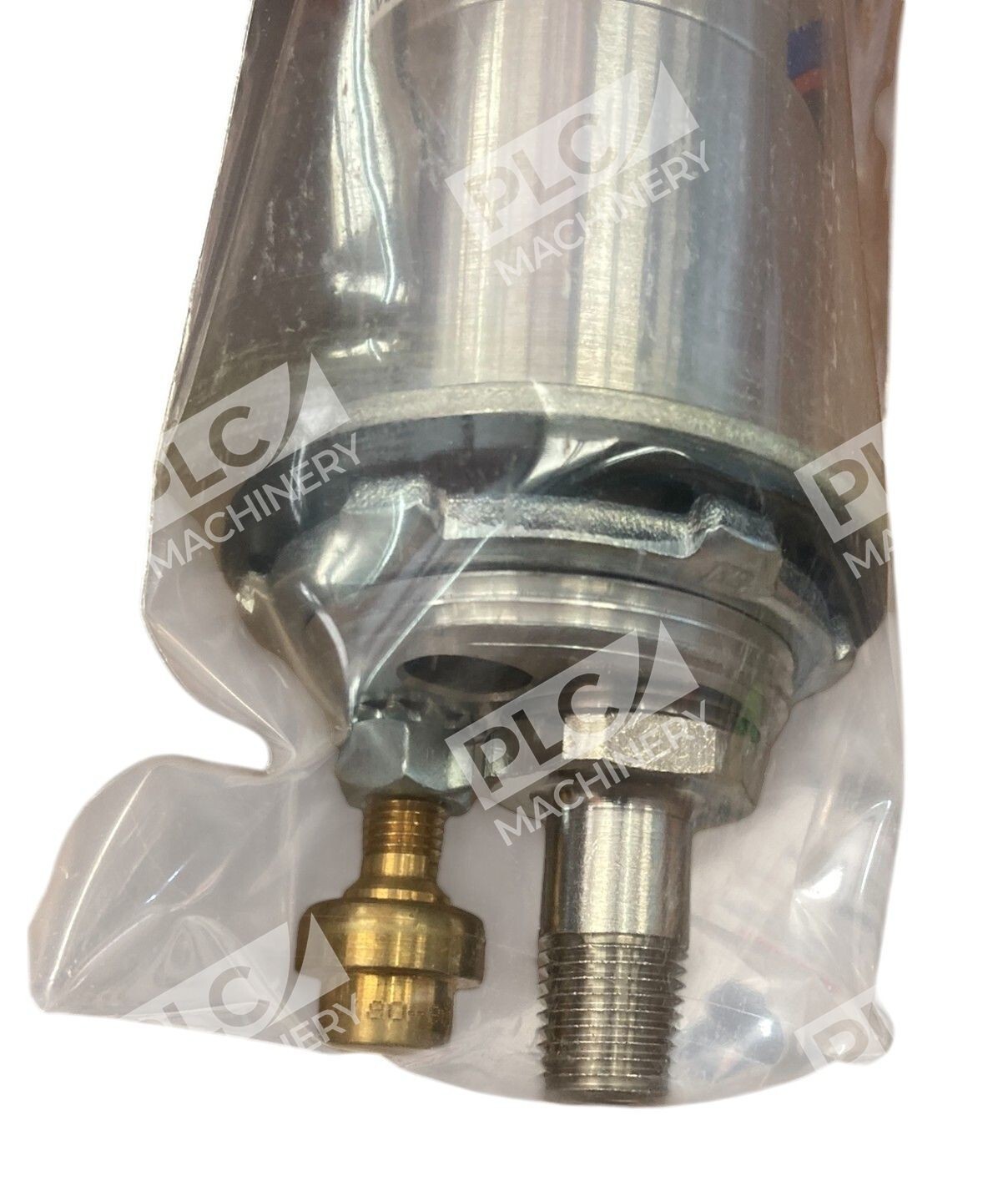

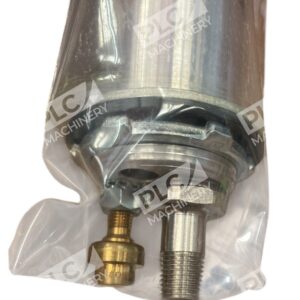

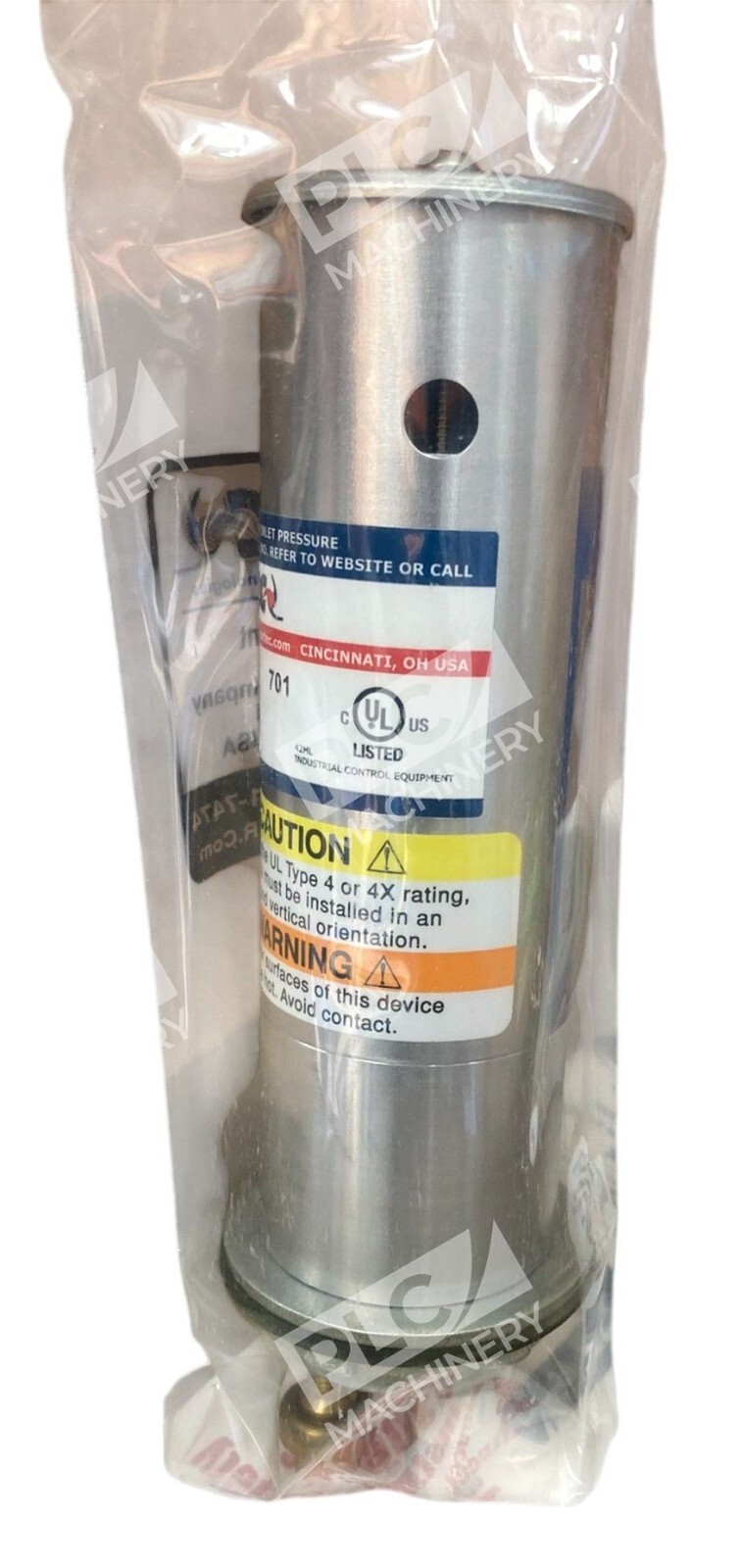

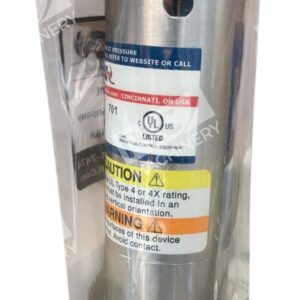

The Vortec 701 panel guard is a thermostat-equipped enclosure cooler designed to maintain stable cabinet temperatures without the complexity of electrically controlled cooling systems. Using vortex tube technology, the 701 converts compressed air into controlled cold air distribution, preventing heat-related failures in electrical control cabinets, variable frequency drives, servo motors, and programmable logic controllers.
Key Features
- Integrated mechanical thermostat—activates cooling automatically at preset temperature
- No external wiring or electrical connections required for operation
- Pneumatic operation using factory-supplied compressed air
- Maintains positive pressure inside enclosure to prevent dust and moisture ingress
- No moving parts—reliable, maintenance-free vortex technology
- NEMA 4-rated for industrial and harsh environments
Technical Specifications
- Cooling Capacity: 264 Watts (standard 701-15H variant)
- Air Consumption: 425 SLPM
- Environmental Rating: NEMA 4
- Sound Level: 60–79 dBA
- Temperature Control: Mechanical thermostat (no electrical control)
- Power Source: Compressed air (pneumatic)
- Configuration: Cooler unit (filter and ducting sold separately on some variants)
Typical Applications
The Vortec 701 panel guard is ideal for:
- Small to medium electrical control cabinets
- Industrial machinery enclosures requiring temperature stability
- Facilities with existing compressed air infrastructure
- Environments where heat causes component drift, display errors, or breaker nuisance trips
- OEM equipment requiring sealed, clean cooling without external fans
Compatibility & Replacements
Compatible With
- Standard industrial compressed air systems (NPT or BSP inlet threads available)
- Electrical cabinet cooling applications up to small-to-medium enclosures
- Equipment sensitive to heat: PLCs, drives, servo controllers, variable frequency drives
- Industrial environments requiring NEMA 4 protection and sealed cooling
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Vortec 701 series includes multiple variants (701-15H, 701-35H, 701-BSP) with different cooling capacities and inlet thread types. Confirm the exact model code required for your application.
Works With
- Compressed air supply lines (requires filter and regulator, sold separately)
- Internal ducting kits (701M-43 and other duct variants available from manufacturer)
- Optional pressure regulators with gauges for system tuning
- Auto-drain oil removal filters (701S-24A, 701S-48, 701S-54 models available)
