Overview

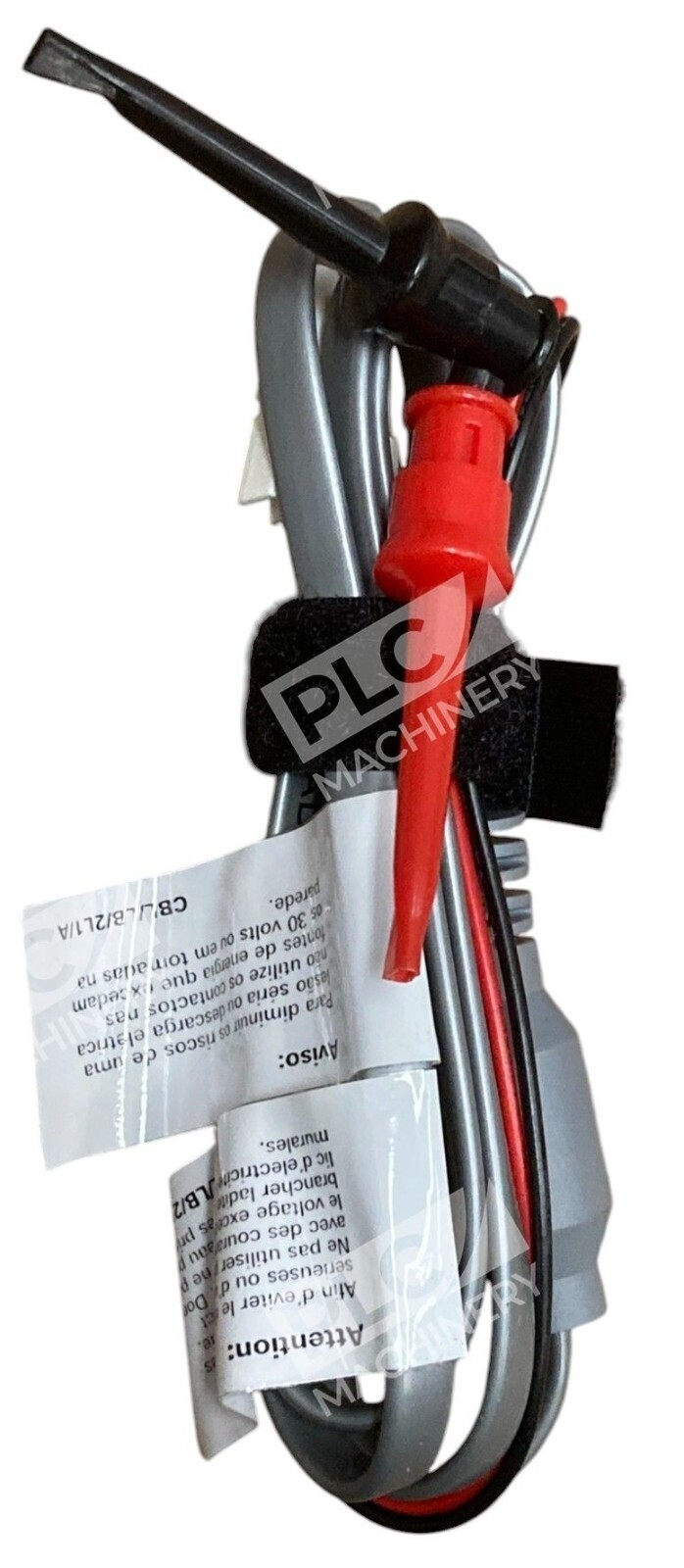

The Vernier CBL/LB/2L1/A voltage sensor cables are a precision connection component designed for use with Vernier’s CBL2 LabQuest data logging system. These cables feature integrated miniclips that provide secure, repeatable connections to voltage sensors, ensuring clean signal transmission for accurate electrical measurements in laboratory and educational environments.
Key Features
- Integrated miniclips for secure probe attachment to voltage sensors
- Compatible with Vernier CBL2 LabQuest interfaces
- Designed for analog channel connections on Vernier data loggers
- Suitable for educational physics, electronics, and engineering laboratories
- Reliable signal path for voltage measurement applications
Technical Specifications
- Manufacturer: Vernier Software & Technology

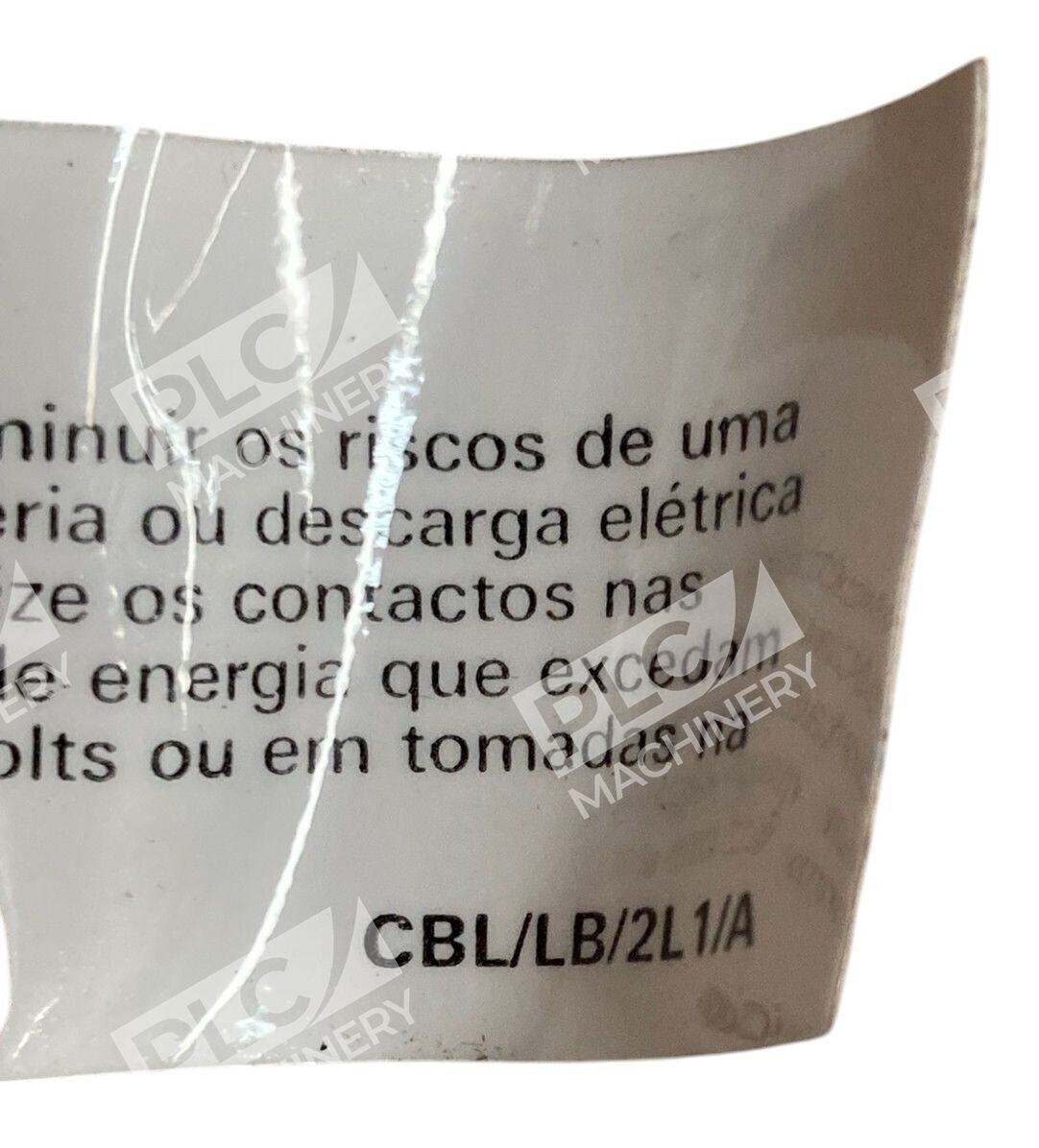

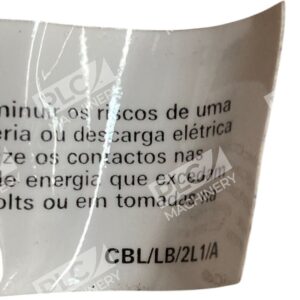

- Part Number: CBL/LB/2L1/A (also referenced as CBL LB 21.3 A)
- Product Type: Voltage Sensor Probe Cables with Miniclips
- Interface Compatibility: CBL2 LabQuest
- Connection Type: Analog sensor cable
- Typical Cable Length: 1.5 meters (standard Vernier sensor cable length)
Typical Applications
The Vernier CBL/LB/2L1/A cables are commonly used in:
- High school and college physics laboratories for voltage and electrical measurements
- Electronics and circuit analysis courses
- Engineering data acquisition projects requiring real-time voltage monitoring
- Replacement cables for worn or damaged original probe connections
- Educational demonstrations of electrical principles and circuit behavior
Compatibility & Replacements
Compatible With
- Vernier CBL2 LabQuest data logging interface
- Vernier voltage probes and compatible analog sensors
- Analog input channels on CBL2 systems
- Educational physics and electronics laboratory setups
- Logger Pro software on Windows and Macintosh computers
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to ensure this cable assembly matches your specific probe and interface requirements.
Works With
- Vernier LabPro interface
- Vernier LabQuest and LabQuest Mini systems
- CBL 2 Texas Instruments calculator interfaces
- Logger Pro data analysis and graphing software
- Analog sensor extension cables and related Vernier accessories
